0034.5120: DescriptionElectric Fuse, Fast Blow, 0.6A, 250VAC, 200A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size170KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

0034.5120 Overview

Electric Fuse, Fast Blow, 0.6A, 250VAC, 200A (IR), Inline/holder,

0034.5120 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
Reach Compliance Code	compliant
ECCN code	EAR99
Fusing characteristics	FAST
body height	31.8 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
physical size	6.35mm x 31.8mm
Pre-discharge time - minutes	5000 ms
Rated breaking capacity	200 A
Rated current	0.6 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

INDEX BY TYPES | INDEX BY ORDER NUMBERS

NON RESETTABLE FUSES

FSF 6.3x32 (UL)

UL 248-14 · 125/250 VAC · Quick-Acting F

Describtion

- UL Standard Fuse

- Glass Tube

References

General Product Information

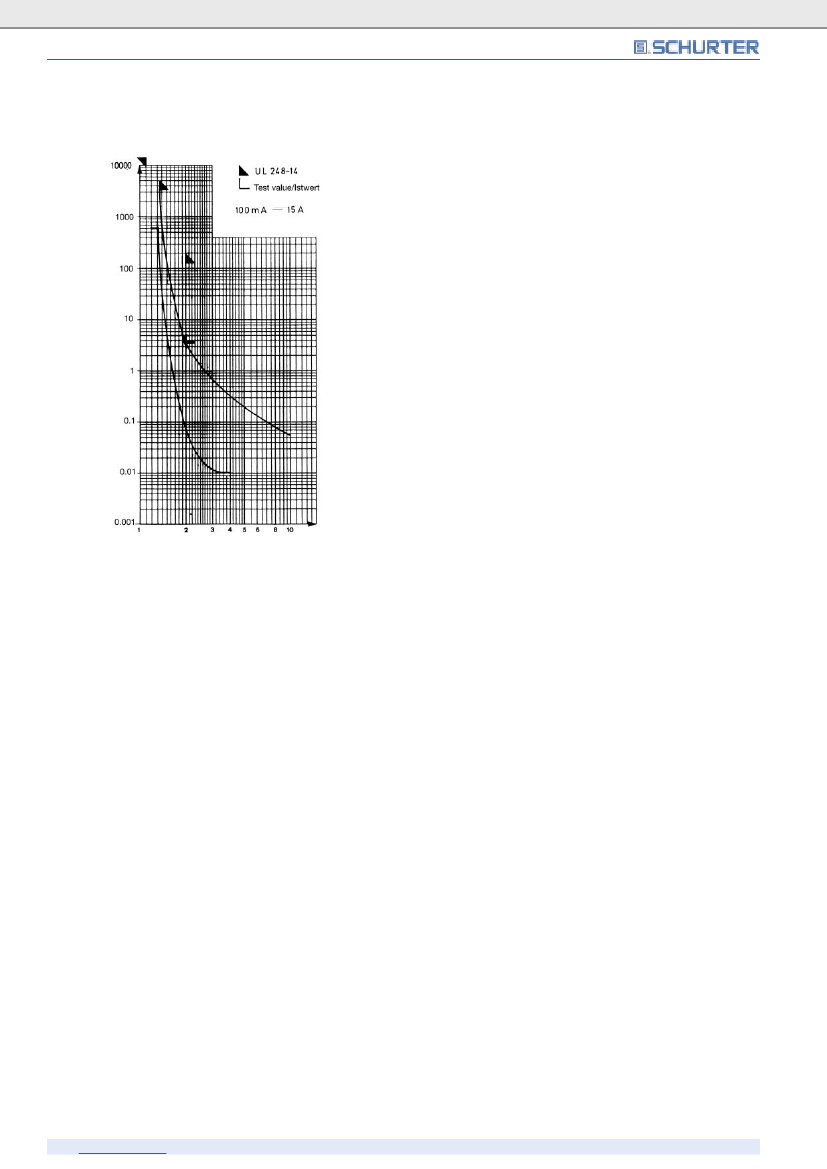

Time-Current Curves see last page

Standards

- UL 248-14

- CSA C22.2 no. 248.14

Weblinks

Approvals:

http://www.schurter.com/approvals

RoHS:

http://www.schurter.com/rohs

Technical Data

Rated Voltage

Rated Current

Breaking Capacity

Characteristic

Mounting

Admissible Ambient Air Temp.

Climatic Category

Material: Tube

Material: Endcaps

Unit Weight

Stock Conditions

Product Marking

125/250 VAC

0.1 - 15 A

200 A - 10 kA

Quick-Acting F

Fuseholder / Clip

-40 °C to 85 °C

40/085/21 acc. to IEC 60068-1

Glass

Nickel-Plated Copper Alloy

1.8 g

0 °C to 60 °C, max. 70% r.h.

Current Rating, Voltage Rating, Characte-

ristic, Approvals

Length

6.3 mm

Dimensions

20

-4

+3

ø 6.35

±0.1

31.8

±0.8

Pre-Arcing Time

Rated Current In

0.1 A - 15 A

1.1 x In

min.

4h

1.35 x In

max.

60 min

2.0 x In

max.

5s

1

www.schurter.com

0034.5120 Related Products

	0034.5120	34.5128	34.5112	0034.5128	0034.5112	34.512
Description	Electric Fuse, Fast Blow, 0.6A, 250VAC, 200A (IR), Inline/holder,	Electric Fuse, FAST BLOW ELECTRIC FUSE, 1.5A, 250VAC, 200A (IR), INLINE/HOLDER	Electric Fuse, FAST BLOW ELECTRIC FUSE, 0.19A, 250VAC, 200A (IR), INLINE/HOLDER	Electric Fuse, Fast Blow, 1.5A, 250VAC, 200A (IR), Inline/holder,	Electric Fuse, Fast Blow, 0.19A, 250VAC, 200A (IR), Inline/holder,	Electric Fuse, FAST BLOW ELECTRIC FUSE, 0.6A, 250VAC, 200A (IR), INLINE/HOLDER
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	unknow	unknown	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	FAST	FAST	FAST	FAST	FAST	FAST
body height	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm
Body length or diameter	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
physical size	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm
Pre-discharge time - minutes	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms
Rated breaking capacity	200 A	200 A	200 A	200 A	200 A	200 A
Rated current	0.6 A	1.5 A	0.19 A	1.5 A	0.19 A	0.6 A
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL
surface mount	NO	NO	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Base Number Matches	-	1	1	1	1	-
