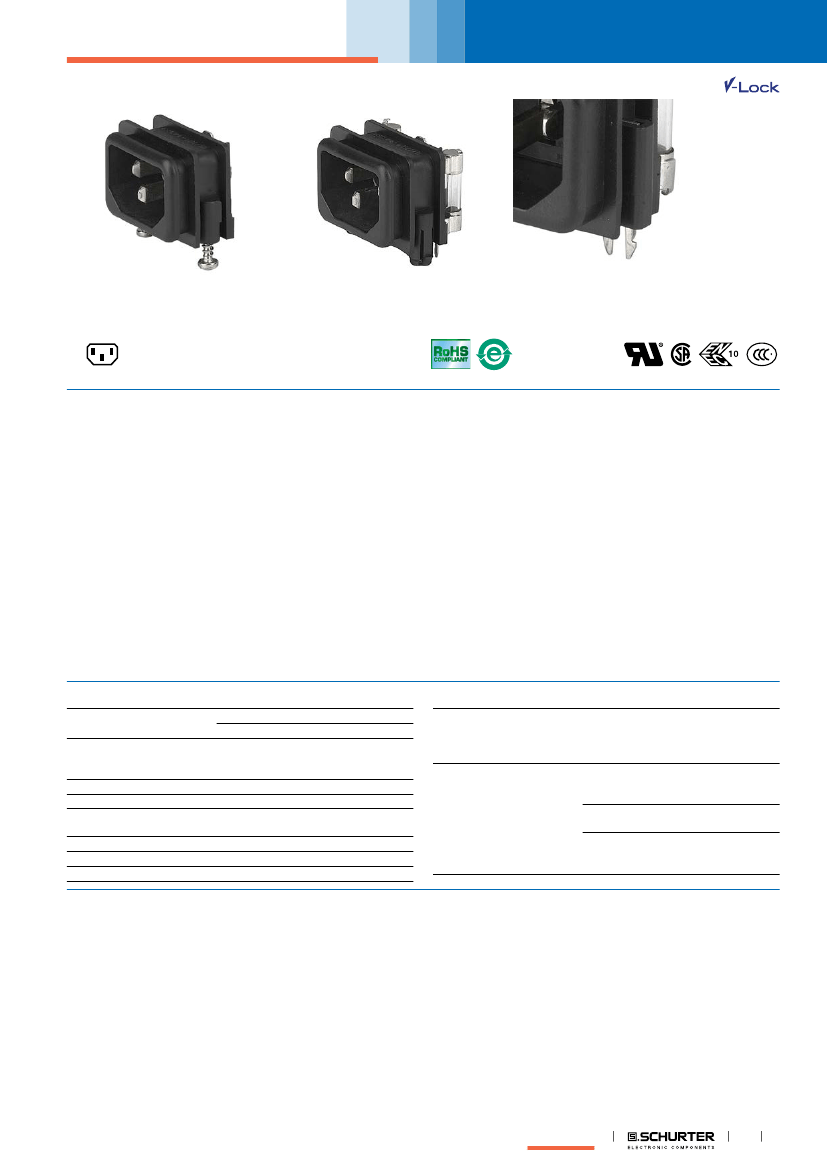

Drawings, Accessories, Detailed request for product
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
10 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 4 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
For PCB mounting
Snap-in: 1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
Appliance Inlet
C14 acc. to IEC 60320,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
10 A, Protection Class I
optional, 1 or 2 pole, Shocksafe cate-
gory PC2 acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 3.15 W (1 pole)/ 2.5 W (2-pole)
per pole
Admissible power acceptance at hig-
her ambient temperature see derating
curves
Fuseholder
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Material: Housing
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Connectors
1
GSF1

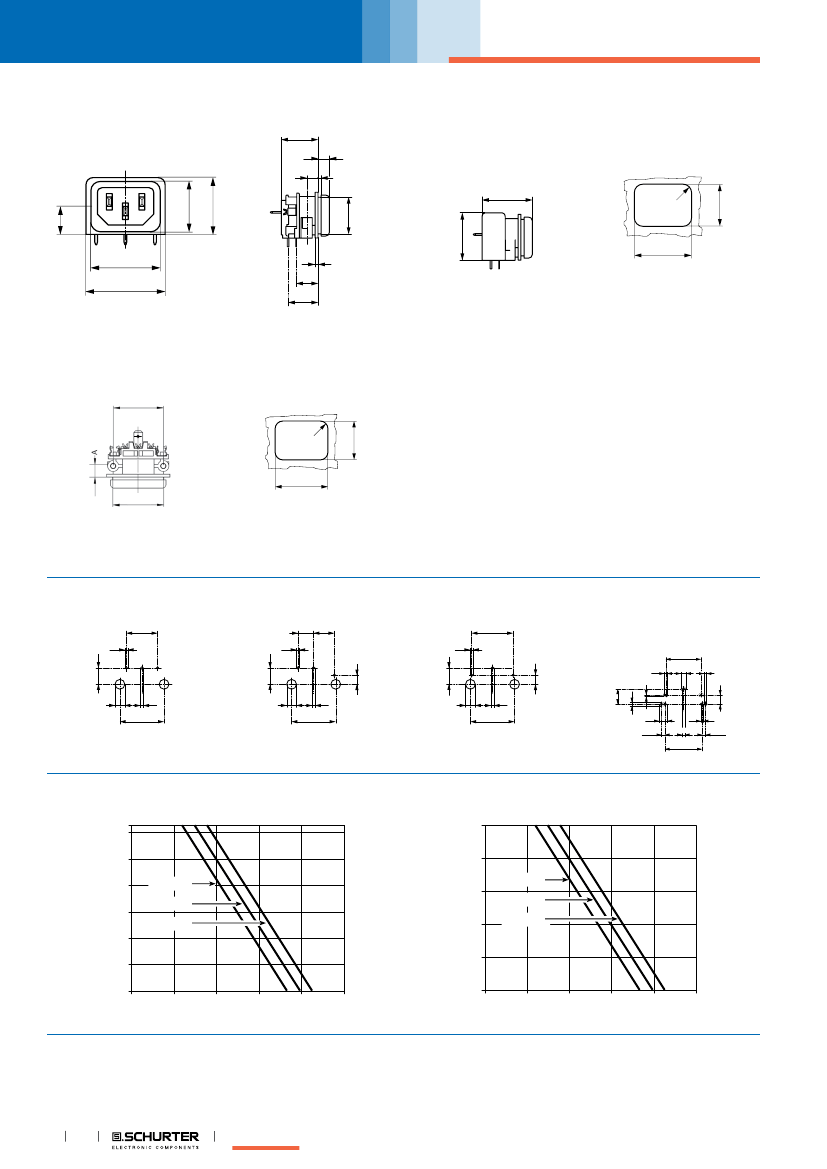

Dimensions
19.3
6
A S
Power entry modules without line filter
www.schurter.com/PG05
with insulation cover
24.45
21.9
26.8
19.35
max. R4.5
25.5
12
29.9
34
1.5
11.5
15.9
30.3
±0.1
A = 6 mm for standard versions
A = 5 mm for pick and place versions
S = 0 mm for mounting from rear-side
for mounting from rear-side
27
19.7
±0.1
max. R2
27.7
±0.1
27.5
A = 6 mm for standard versions
A = 5 mm for pick and place versions
for sandwich mounting
Drilling diagrams
without fuseholder
18.1
1.4
with 1-pole fuseholder
9.05 12.7
1.4
5.5
with 2-pole fuseholder
25.4
1.4
5.5
Pick and Place versions
without / with 1-pole or
2-pole fuseholder
25.4
±0.10
1.4
10.9
±0.05
3.5
1.6
6.5
±0.05
5.8
2.3
±0.05
9.9
9.9
9.9
2.5
D1
27
1.6
D1
27
1.6
D1
27
1.6
1*
1.6
1.6
26.7
±0.10
2.3
±0.05
D1 for snap-in mounting = 6 ± 0.05
D1 for self-tapping screw = 3.6 ± 0.1
D1 for snap-in mounting = 6 ± 0.05
D1 for self-tapping screw = 3.6 ± 0.1
D1 for snap-in mounting = 6 ± 0.05
D1 for self-tapping screw = 3.6 ± 0.1
1* only for protection class II
Derating Curves
1-pole
3.15
2-pole
Admissible power acceptance in Watt per pole
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Admissible Power Acceptance in Watt
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
Ambient Air Temperature Ta °C
Ambient Air Temperature Ta °C
2
Connectors
22.3
±0.1
Power entry modules without line filter
www.schurter.com/PG05
GSF1
Fuseholder
-
-
-
-
-
-
-
-
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
-
-
-
-
-
-
-
-
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
-
-
1-pole
1-pole
2-pole
2-pole
-
-
Ground terminal 4.8
x 0.8 mm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Ground terminal direction
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
Packaging
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Order Number
GSF1.0002.31
GSF1.0001.31
GSF1.0002.41
GSF1.0001.41
GSF1.0002.51
GSF1.0001.51
GSF1.0002.61
GSF1.0001.61
GSF1.1002.31
GSF1.1001.31
GSF1.1002.41
GSF1.1001.41
GSF1.1002.51
GSF1.1001.51
GSF1.1002.61
GSF1.1001.61
GSF1.2002.31
GSF1.2001.31
GSF1.2002.41
GSF1.2001.41
GSF1.2002.51
GSF1.2001.51
GSF1.2002.61
GSF1.2001.61
GSF1.0202.31
GSF1.0201.31
GSF1.0202.41
GSF1.0201.41
GSF1.0202.51
GSF1.0201.51
GSF1.0202.61
GSF1.0201.61
GSF1.1202.31
GSF1.1201.31
GSF1.1202.41
GSF1.1201.41
GSF1.1202.51
GSF1.1201.51
GSF1.1202.61
GSF1.1201.61
GSF1.2202.31
GSF1.2201.31
GSF1.2202.41
GSF1.2201.41
GSF1.2202.51
GSF1.2201.51
GSF1.2201.61
GSF1.0002.01
GSF1.0001.01
GSF1.1002.01
GSF1.1001.01
GSF1.2002.01
GSF1.2001.01
GSF1.0202.01
GSF1.0201.01
█
█
█
Variants
Mounting side
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Sandwich
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
Panel mounting
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
Screw
Screw
Screw
Screw
Snap-in
Snap-in
Panel Thickness
s [mm]
1.5
1.5
2
2
2.5
2.5
3
3
1.5
1.5
2
2
2.5
2.5
3
3
1.5
1.5
2
2
2.5
2.5
3
3
1.5
1.5
2
2
2.5
2.5
3
3
1.5
1.5
2
2
2.5
2.5
3
3
1.5
1.5
2
2
2.5
2.5
3
6
6
6
6
6
6
6
6
Connectors
3
GSF1
Mounting side
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
Rear Side
█
Most Popular.
Panel mounting
Snap-in
Snap-in
Snap-in
Snap-in
Metal snaps
Metal snaps
Metal snaps
Panel Thickness
s [mm]
6
6
6
6
6
6
6
Fuseholder
1-pole
1-pole
2-pole
2-pole
-
1-pole
2-pole
Ground terminal 4.8
x 0.8 mm
l
l
l
l
l
l
l
Power entry modules without line filter
www.schurter.com/PG05
Ground terminal direction
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
angled to pin axis
angled to pin axis
Packaging
-
-
-
-
Blister tray
Blister tray
Blister tray
Order Number
GSF1.1202.01
GSF1.1201.01
GSF1.2202.01
GSF1.2201.01
GSF1.3402.01
GSF1.4402.01
GSF1.5402.01
█
█
█
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Insulation cover must be ordered separately. Order No. 0098.0078
Suffix ".21" corresponds to the version with V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching
system prevents against accidental removal of the cordset.
Optional blister tray packaging 250 Pcs
Packaging unit

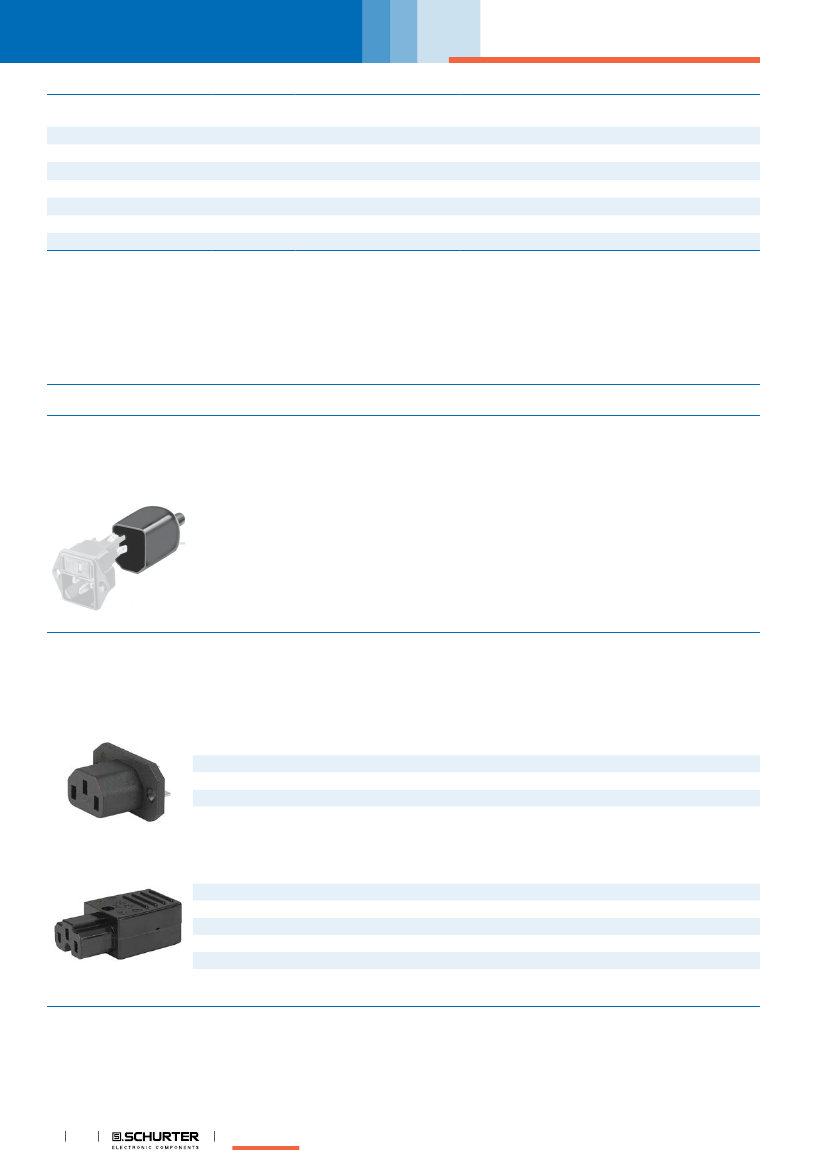

Accessories
50 Pcs
Description
Assorted Covers
Rear Cover
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to GSF1
4787
4788
5091
Connector Overview complete
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
IEC Connector C13, Rewireable, Straight
Connector further types to GSF1
0102
0102-G
0112
4012
4022
...
4
Connectors
The specifications, descriptions and illustrations indicated in this document are based on
current information. All content is subject to modifications and amendments.
