The ASM3P2579A uses the most efficient and optimized
modulation profile approved by the FCC and is
implemented by using a proprietary all digital method.
The ASM3P2579A modulates the output of a single PLL
in order to “spread” the bandwidth of a synthesized clock,
and more importantly, decreases the peak amplitudes of
its harmonics. This results in significantly lower system
EMI compared to the typical narrow band signal produced
by oscillators and most frequency generators. Lowering
EMI by increasing a signal’s bandwidth is called ‘spread
spectrum clock generation’.
Applications
The ASM3P2579A is targeted towards all portable
devices with very low power requirements like MP3
players and digital still cameras.
Product Description
The ASM3P2579A is a versatile spread spectrum
frequency modulator designed specifically for a wide
range of clock frequencies. The ASM3P2579A reduces
electromagnetic interference (EMI) at the clock source,
allowing system wide reduction of EMI of
all clock
dependent signals. The ASM3P2579A allows significant
system cost savings by reducing the number of circuit
board layers ferrite beads, shielding that are traditionally
required to pass EMI regulations.
Key Specifications
Description
Supply voltages
Cycle-to-Cycle Jitter
Output Duty Cycle
Modulation Rate Equation
Frequency Deviation
Specification
VDD = 3.3V/2.5V
200pS (Max)
45/55% (worst case)
F
IN
/640
±1% @ 24MHz

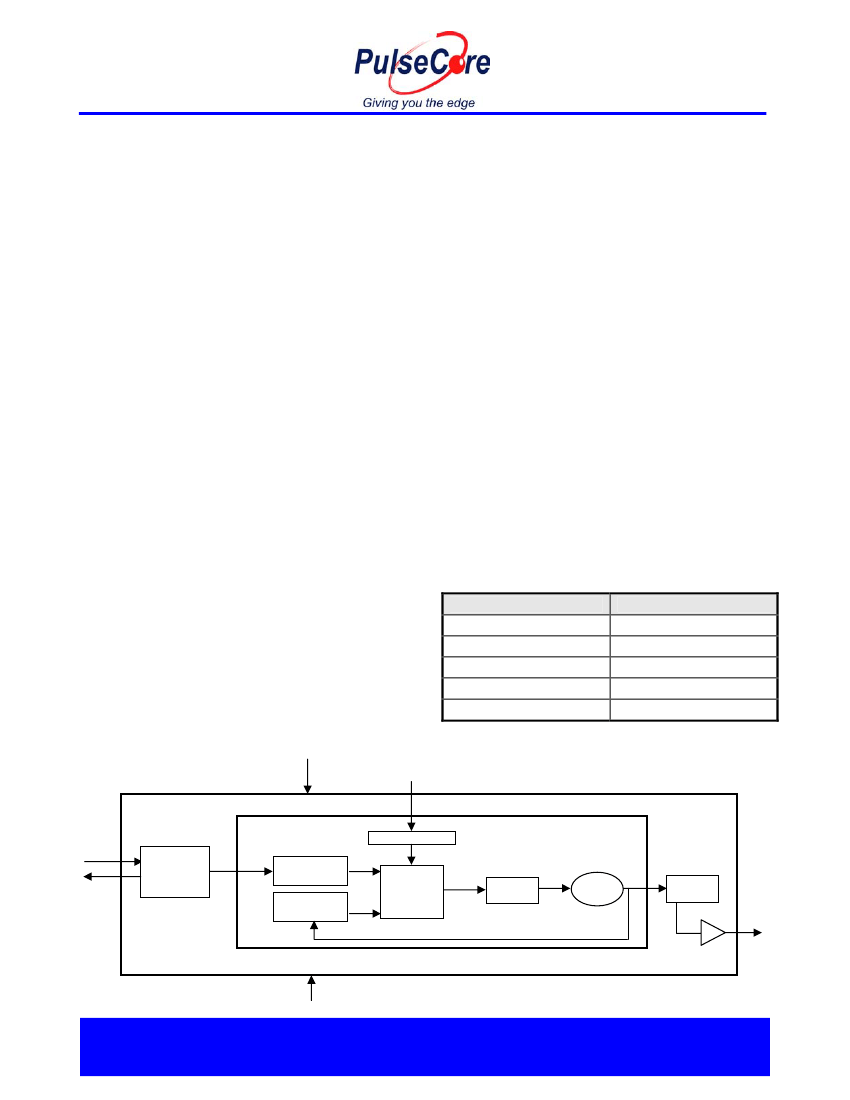

Block Diagram
VDD
SSON
XIN
Crystal
Oscillator
Frequency
Divider
Feedback
Divider
Modulation
PLL
XOUT
Phase
Detector
Loop
Filter
VCO
Output
Divider
ModOUT
VSS
PulseCore Semiconductor Corporation
1715 S. Bascom Ave Suite 200, Campbell, CA 95008
•
Tel: 408-879-9077
•
Fax: 408-879-9018
www.pulsecoresemi.com
Notice: The information in this document is subject to change without notice.
January 2007
rev 1.1
Pin Configuration (6-pin TSOT-23 Package)
ASM3P2579A
SSON
XOUT
XIN/CLKIN
1
2
3
6
VSS
ModOUT
VDD
ASM3P2579A
5
4
Pin Description
Pin#
1
2
3
4
5
6
Pin Name
SSON
XOUT
XIN/CLKIN
VDD
ModOUT
VSS
Type
I
O
I
P
O
P
Description
When SSON is HIGH, the spread spectrum is enabled and when LOW, it turns off the
spread spectrum. Connect the pin to ground When Spread Spectrum feature is not
required.
Crystal connection. If using an external reference, this pin must be left unconnected.
Crystal connection or external reference frequency input. This pin has dual functions. It
can be connected either to an external crystal or an external reference clock.
Power supply for the entire chip
Spread spectrum clock output.
Ground connection.
Low Power Peak EMI Reducing Solution
Notice: The information in this document is subject to change without notice.
2 of 12
January 2007
rev 1.1

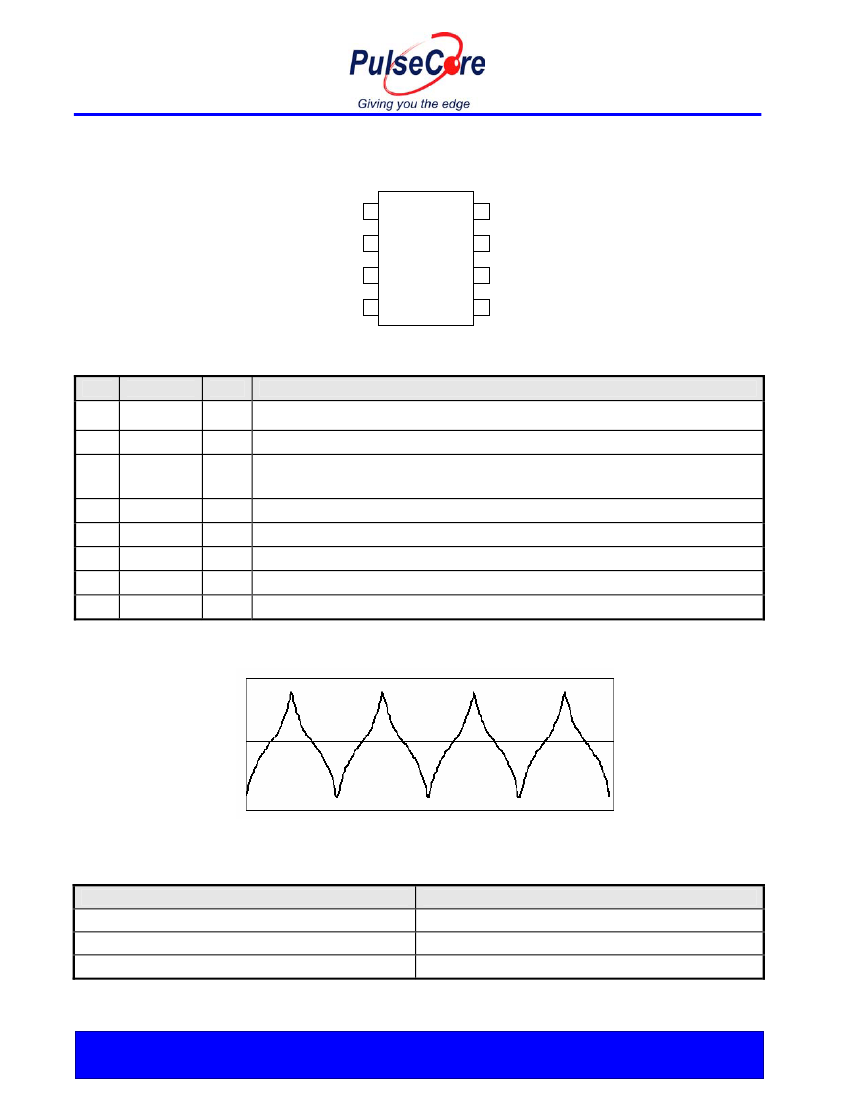

Pin Configuration (8-pin SOIC and TSSOP Packages)
ASM3P2579A
XIN/CLKIN
XOUT
SSON
1
2
3
8
7
6
5
VDD
NC
ModOUT
VSS
ASM3P2579A
NC
4
Pin Description
Pin#
1
2
3
4
5
6
7
8
Pin Name
XIN/CLKIN
XOUT
Type
I
O
I
-
P
O
-
P
Description
Crystal connection or external reference frequency input. This pin has dual functions. It
can be connected either to an external crystal or an external reference clock.
Crystal connection. If using an external reference, this pin must be left unconnected.
When SSON is HIGH, the spread spectrum is enabled and when LOW, it turns off the
spread spectrum. Connect the pin to ground When Spread Spectrum feature is not
required.
No connect.
Ground connection.
Spread spectrum clock output.
No connect.
Power supply for the entire chip
SSON
NC
VSS
ModOUT
NC
VDD
Modulation Profile
Specifications
Description
Frequency Range
Modulation Equation
Frequency Deviation
Specification
12MHz < CLKIN < 30MHz
F
IN
/640
±1% @ 24MHz
Low Power Peak EMI Reducing Solution
Notice: The information in this document is subject to change without notice.
3 of 12
January 2007
rev 1.1
Absolute Maximum Ratings
Symbol
VDD, V
IN
T
STG
T
A
T
s
T
J
T
DV
Storage temperature
Operating temperature
Max. Soldering Temperature (10 sec)
Junction Temperature
Static Discharge Voltage
(As per JEDEC STD22- A114-B)
ASM3P2579A
Parameter
Rating
-0.5 to +4.6
-65 to +125
-40 to +85
260
150
2
Unit
V
°C
°C
°C
°C
KV
Voltage on any pin with respect to Ground
Note: These are stress ratings only and are not implied for functional use. Exposure to absolute maximum ratings for prolonged periods of time may affect
device reliability.
DC Electrical Characteristics for 2.5V Supply
(Test condition: All parameters are measured at room temperature (+25°C) unless otherwise stated)
Symbol
V
IL
V
IH
I
IL
I
IH
I
XOL
I
XOH
V
OL
V
OH
I
DD
I
CC
VDD
t
ON
Z
OUT
Input low voltage
Input high voltage
Input low current
Input high current
Parameter
Min
VSS - 0.3
2.0
-
-
-
-
-
1.8
-
-
2.375
-
-
Typ
-
-
-
-
3
3
-
-
1.1
3.5
2.5
-
50
Max
0.8
VDD + 0.3
-35
35
-
-
0.6
-
-
-
2.625
5
-
Unit
V
V
µA
µA
mA
mA
V
V
mA
mA
V
mS
Ω
XOUT output low current (@0.5V, VDD=2.5V)
XOUT output high current (@1.8V, VDD=2.5V)
Output low voltage (VDD = 2.5V, I
OL
= 8mA)
Output high voltage (VDD = 2.5V, I
OH
= 8mA)
Static supply current *
Dynamic supply current (2.5V, 24MHz and no load)
Operating Voltage
Power-up time (first locked cycle after power-up)
Output impedance
* XIN/CLKIN is made low.
AC Electrical Characteristics for 2.5V Supply
Symbol
CLKIN
ModOUT
f
d
t
LH
*
t
HL
*
t
JC
t
D
Input frequency
Output frequency
Frequency Deviation
Input Frequency = 12MHz
Input Frequency = 30MHz
Parameter
Min
12
12
-
-
0.7
0.4
-
45
Typ
-
-
±1.65
±0.80
1.5
1.0
-
50
Max
30
30
-
-
1.9
1.1
200
55
Unit
MHz
MHz
%
nS
nS
pS
%
Output rise time (measured from 0.7V to 1.7V)
Output fall time (measured from 1.7V to 0.7V)
Jitter (cycle to cycle)
Output duty cycle
* t
LH
and t
HL
are measured into a capacitive load of 15pF
Low Power Peak EMI Reducing Solution
Notice: The information in this document is subject to change without notice.
4 of 12
January 2007
rev 1.1
DC Electrical Characteristics for 3.3V Supply
(Test condition: All parameters are measured at room temperature (+25°C) unless otherwise stated)
ASM3P2579A
Symbol
V
IL
V
IH
I
IL
I
IH
I
XOL
I
XOH
V
OL
V
OH
I
DD
I
CC
VDD
t
ON
Z
OUT
Input low voltage
Input high voltage
Input low current
Input high current
Parameter
Min
VSS - 0.3
2.0
-
-
-
-
-
2.5
-
-
2.7
-
-
Typ
-
-
-
-
3
3
-
-
1.2
4.0
3.3
-
45
Max
0.8
VDD + 0.3
-35
35
-
-
0.4
-
-
-
3.6
5
-
Unit
V
V
µA
µA
mA
mA
V
V
mA
mA
V
mS
Ω
XOUT output low current (@0.4V, VDD=3.3V)
XOUT output high current (@2.5V, VDD=3.3V)
Output low voltage (VDD = 3.3V, I
OL
= 8mA)
Output high voltage (VDD = 3.3V, I
OH
= 8mA)
Static supply current*
Dynamic supply current (3.3V, 24MHz and no load)
Operating Voltage
Power-up time (first locked cycle after power-up)
Output impedance
* XIN/CLKIN is made low.
AC Electrical Characteristics for 3.3V Supply
Symbol
CLKIN
ModOUT
f
d
t
LH
*
t
HL
*
t
JC
t
D
Input frequency
Output frequency
Frequency Deviation
Input Frequency = 12MHz
Input Frequency = 30MHz
Parameter
Min
12
12
-
-
0.5
0.4
-
45
Typ
-
-
±1.65
±0.80
1.4
1.0
-
50
Max
30
30
-
-
1.7
1.2
200
55
Unit
MHz
MHz
%
nS
nS
pS
%
Output rise time (measured from 0.8 to 2.0V)
Output fall time (measured at 2.0V to 0.8V)
Jitter (cycle to cycle)
Output duty cycle
*t
LH
and t
HL
are measured into a capacitive load of 15pF
Low Power Peak EMI Reducing Solution
Notice: The information in this document is subject to change without notice.
