Single Window Single Mode Wideband
Tree/Star Coupler (nxm)
SWTC Series
Features
Best Uniformity
Low Insertion Loss and PDL
High Directivity
Highly Stable & Reliable

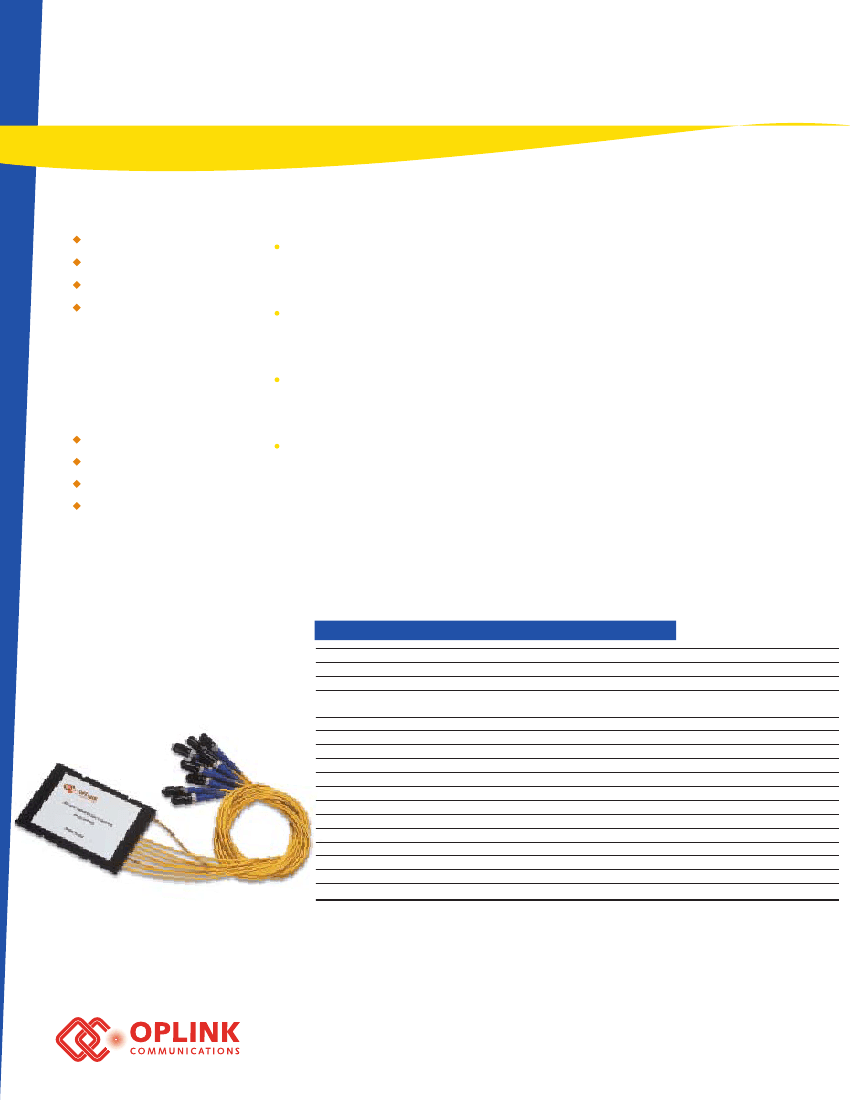

Single Window Single Mode Wideband Tree/Star Coupler (nxm)
Oplink’s single window, single mode wideband tree and star couplers are high port
count bi-directional products with excellent performance over a wide bandwidth. They
have very good uniformity, low excess loss and very low polarization sensitivity. All
devices are tested according to industry standard test procedures and are supplied
with all pertinent measurement data.
Oplink can provide customized designs to meet specialized feature applications. Also,
Oplink offers modular assemblies that integrate other components to form a full
functionmodule or subsystem.
Applications
Telecommunications
CATV Fiber Optic Links
Fiber Amplifier System
Fiberoptic Instruments
Performance Specifications
SWTC Series (NxM)
Nx4
Nx5
Nx6
Nx8
Nx16
Nx32
Nx40
Unit
Standard Configuration
Grade
Operating Wavelength
Operating Temperature
Storage Temperature
Maximum Insertion Loss
Max Uniformity
Polarization Dependent Loss
Directivity
Maximum Power Handling
Package Dimension *
N=1,2,4
N=1
P/A
P/A
1310 nm
1270 ~ 1350
6.7/7.4
0.8/1.0
0.3
P1
N=1,2,8 N=1,2,16 N=1,2
N=1,2
N=1,2
P/A
P/A
P/A
P/A
P/A
L Band
C Band
C+L Band
1528 ~ 1565
1570 ~ 1650
1528 ~ 1610
nm
-40 to +70
°C
-40 to +85
°C
8.3/8.7
9.2/9.6 10.2/11.2 13.5/14.5 17.5/18.5 18.8/20.0 dB
1.0/1.2
1.2/1.8
1.5/2.0
2.8/3.5
dB
1.2/1.4
2.5/3.0
dB
0.4
0.3
0.5
0.6
0.8
0.8
> 55
dB
500
mW
mm
P1
P2
P3*
P2
P4
P4
P1: (L)100 x (W)80 x (H)7
P2: (L)130 x (W)90 x (H)9
P3: (L)160 x (W)110 x (H)11
P4: (L)210 x (W)160 x (H)13
* Except for 16x16 which uses P4 package
* The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom specified.
** The maximum IL is under all states of polarization and within the full operating temperature and wavelength ranges specified,
does not include contribution from connectors.
Oplink Communications, Inc.
R1.20070926
Single Window Single Mode Wideband
Tree/Star Coupler (nxm)
SWTC Series

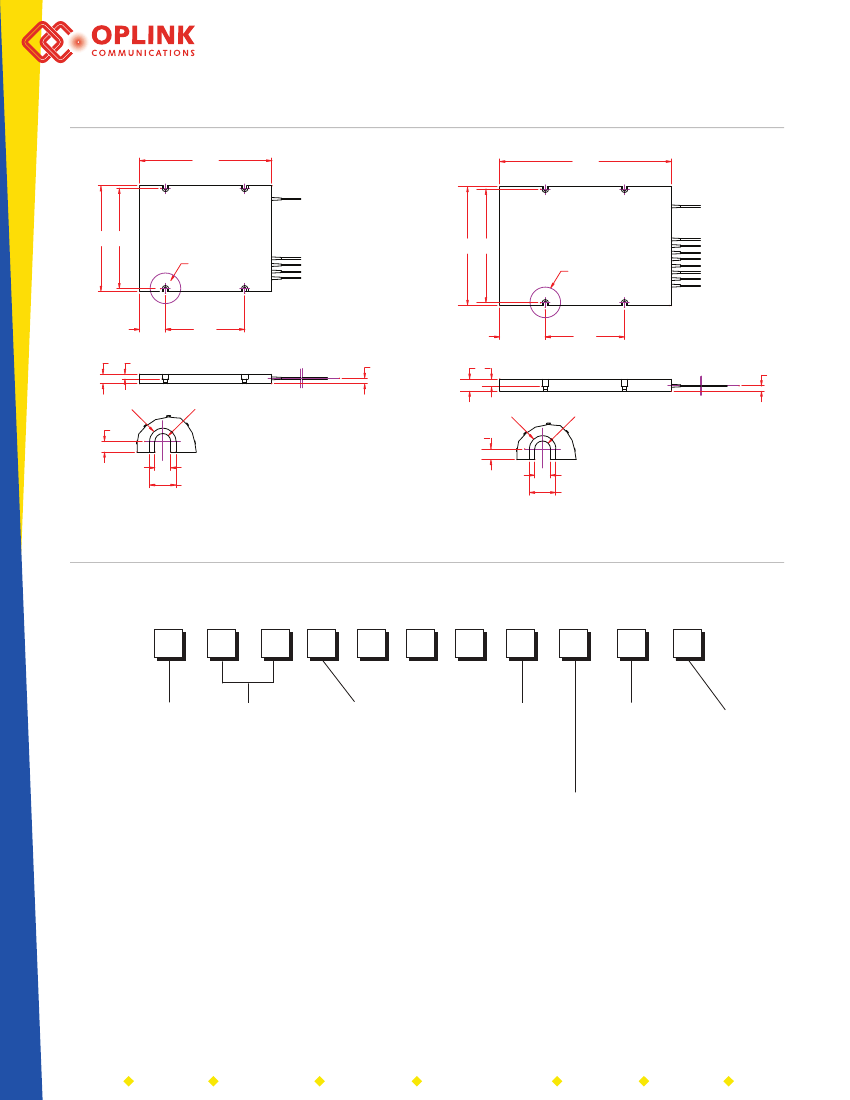

Mechanical Drawing / Package Dimensions
(dimension in mm)
P1
100.0
P2
130.0
80.0
76.0
90.0
VIEW B
86.0
VIEW B
20.0
60.0
35.0
60.0
7.0
3.5
TYP 4.0
9.0
5.5
TYP 4.0
R2.5
2.0
R1.5
R2.5
2.0
NOTES: (UNLESS OTHERWISE SPECIFIED)
1. ALL DIMENSION ARE IN MILLIMETER.
2. MAT’L AND FINISH: AL6061, BLACK ANODIZE.
3. TOL: .X = ±0.2, .XX = ±0.1.
R1.5
3.0
5.0
DETAIL B
3.0
5.0
DETAIL B
NOTES: (UNLESS OTHERWISE SPECIFIED)
1. ALL DIMENSION ARE IN MILLIMETER.
2. MAT’L AND FINISH: AL6061, BLACK ANODIZE.
3. TOL: .X = ±0.2, .XX = ±0.1.
46335 Landing Parkway Fremont, CA 94538-6407 Tel: (510 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink's OEM design team
or account manager for your requirements and ordering information (510) 933-7200.
SWTC
0
0
0
Wavelength
1310nm= 3
C band= 5
L band= 6
C+L band =1
Type
1x4=14, 1x16=1A
2x4=24, 2x16=2A
4x4=44, 16x16=AA
1x5=15, 1x32=1B
1x6=16, 2x32=2B
1x8=18, 1x40=1C
2x8=28, 2x40=2C
8x8=88
Grade
P Grade= P
A Grade= A
PackageType
P1=1
P2=2
P3=3
P4=4
Fiber Length
1.0
1.5
2.0
0.5
meter= 1*
meter= 5
meter= 2
meter= H
Connector Type
None= 1
FC/PC= 2
FC/SPC= 3
FC/APC= 4
SC/PC= 5
SC/SPC= 6
SC/APC= 7
ST= 8
LC= 9
MU= A
Fiber Type
900µm loose tube= 2
3mm cable= 3
* 1 meter is standard. The lead time for
special fiber length will be longer.
R1.20070926
