TRPA12MCWDM

Description
Multi-rate OC-12/STM-4 SFP CWDM Single Mode Transceivers withDigital Diagnostics
File Size429KB,5 Pages
ManufacturerOplink(Molex)
Websitehttp://www.oplink.com
Download Datasheet View All

TRPA12MCWDM Overview

Multi-rate OC-12/STM-4 SFP CWDM Single Mode Transceivers withDigital Diagnostics

Mul
ti-rate OC-12/STM-4 SFP CWDM Single Mode
Transceivers withDigital Diagnostics
TRPA12M CWDM

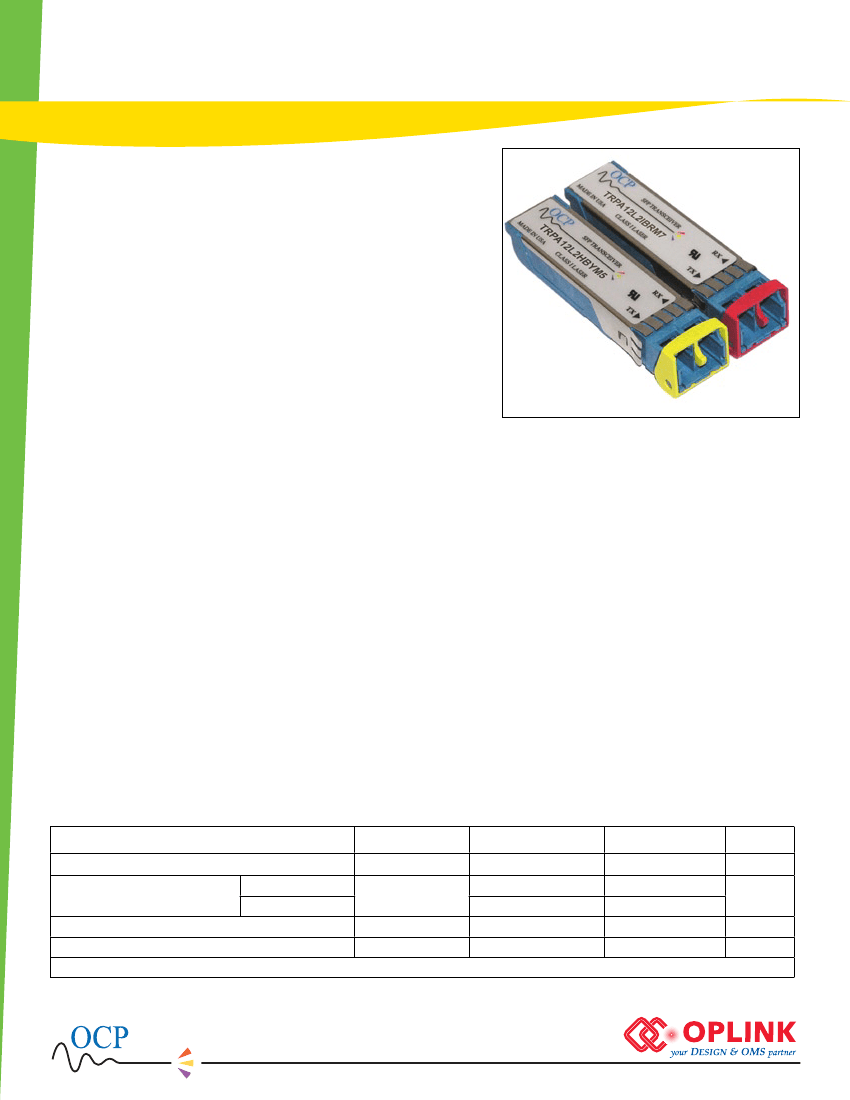

Product Description
The TRPA12M CWDM SFP series of multi-rate transceivers with integrated digital
diagnostics monitoring functionality provide a quick and reliable interface
for long reach (LR) applications. The diagnostic functions, alarm and warning
features as described in the Multi-Source Agreement (MSA) document, SFF-
8472 (Rev. 9.3), are provided via an I
2
C serial interface.
Products under this series are compatible with SONET/SDH standards for OC-
12/STM-4 LR-2/L-4.2 and are capable of operating down to 155Mb/s data rate.
There are eight (8) wavelengths available: 1471nm, 1491nm, 1511nm, 1531nm,
1551nm, 1571nm, 1591nm and 1611nm. Two optical link power budgets are
available, 27dB and 29dB, providing an extra 2dB and 4dB over SONET/SDH
link budgets, respectively, to accommodate the wavelength multiplexing
and de-multiplexing insertion losses. All modules satisfy Class I Laser Safety
requirements in accordance with the U.S. and international standards as
described in the FDA/CDRH and IEC-60825 documents, respectively.
The TRPA12M CWDM multi-rate transceivers connect to standard 20-pad SFP
connectors for hot plug capability. This allows the system designer to make
configuration changes or maintenance by simply plugging in different types
of transceivers without removing the power supply from the host system.
The transceivers have colored bail-type latches, which offer an easy and
convenient way to release the modules. The latch is compliant with the SFP
MSA.
The transmitter and receiver DATA interfaces are AC-coupled internally. LV-TTL
Transmitter Disable control input and loss of Signal output interfaces are also
provided.
The transceivers operate from a single +3.3V power supply over an operating
case temperature range of -5°C to +70°C (“B” option) or -5°C to +85°C (“E”
option). The housing is made of plastic and metal for EMI immunity.
Features
Eight (8) Wavelength CWDM Transceivers
Compatible with SFP MSA
Compatible with SONET/SDH OC-12/
STM-4 (622Mb/s) LR-2/L-4.2 Long Reach
Specifications
Compatible with SONET/SDH OC-3/STM-1
(155Mb/s)
Digital Diagnostics through Serial Interface
Internal Calibration for Digital Diagnostics
Optical Link Power Budgets of 27dB & 29dB
Minimum
Eye Safe (Class I Laser Safety)
Duplex LC Optical Interface
Excellent EMI & ESD Protection
Hot-pluggable
TX Fault & Loss of Signal Outputs
TX Disable Input
Absolute Maximum Ratings
Parameter
Storage Temperature
Operating Case Temperature
1
Supply Voltage
Input Voltage
1
Symbol
T
ST
“B” Option
“E” Option
T
OP
V
CC
V
IN
Minimum
- 40
-5
-5
0
0
Maximum
+ 85
+ 70
+ 85
+ 5.0
V
CC
Units
°C
°C
V
V
Measured on top side of SFP module at the front center vent hole of the cage.
An Oplink Company
RevB-NP. 2008.09.09
