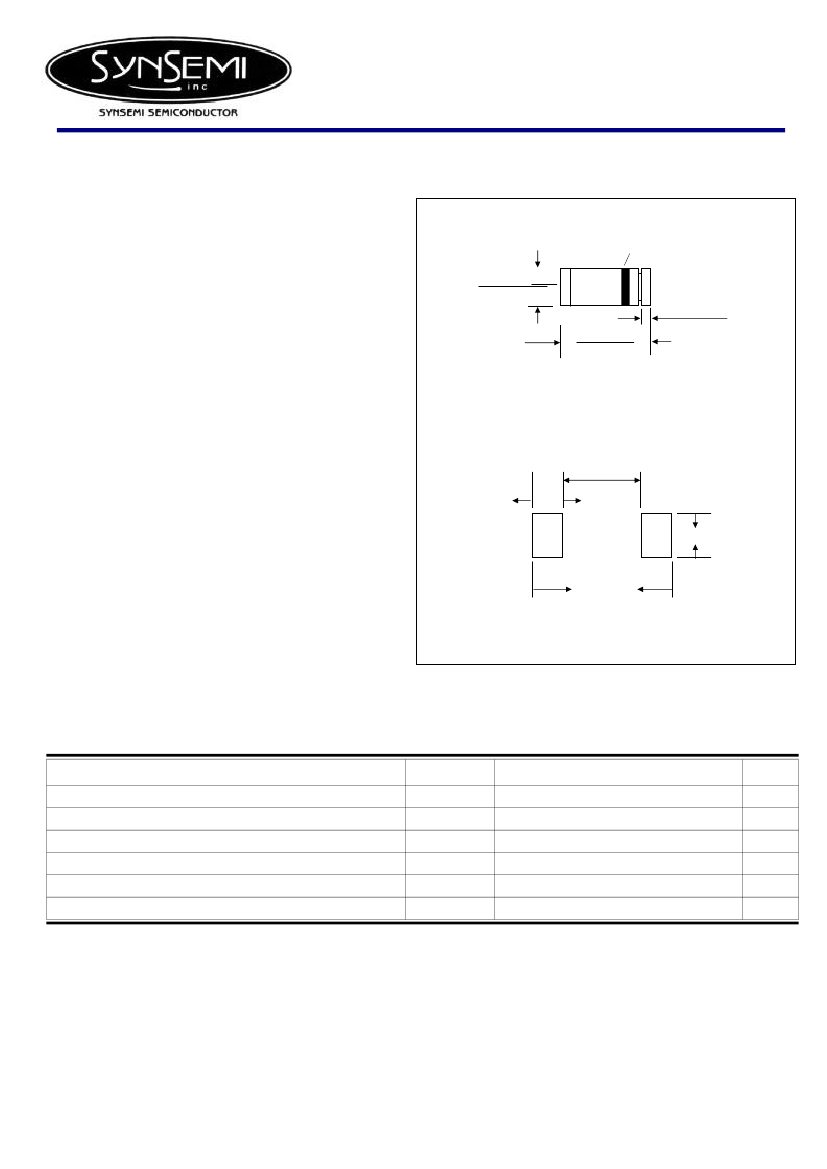

ZMM5225B - ZMM5267B

3.0 to 75V

500mW

FEATURES :

• Silicon planar zener diodes

• Standard Zener voltage tolerance is ±5%

• Other tolerances are available upon request.

• These diodes are also available in the DO-35 case

with the type designation 1N5225B … 1N5267B,

• Pb / RoHS Free

ZENER DIODES

MiniMELF (SOD-80C)

Cathode Mark

0.063 (1.64)

0.055 (1.40)

0.019(0.48)

0.011(0.28)

0.142(3.6)

0.134(3.4)

Mounting Pad Layout

0.098 (2.50)

Max.

MECHANICAL DATA :

* Case : MiniMELF Glass Case (SOD-80C)

* Weight : 0.05 gram (approximately)

0.049 (1.25)Min.

0.079 (2.00)Min.

0.197 (5.00)

REF

Dimensions in inches and ( millimeters )

Rating at 25

C ambient temperature unless otherwise specifie.

Maximum Ratings and Thermal Characteristics

Parameter

Zener Current see Table "Characteristics"

Maximum Forward Voltage at I

= 200 mA.

Power Dissipation at T

flange

= 75°C

Thermal Resistance Junction to Ambient Air

Junction temperature

Storage temperature range

1.25

500

(1)

300

(1)

175

-65 to + 150

°C/W

°C

Symbol

Value

Unit

Note: (1) Valid provided that electrodes are kept at ambient temperature

Page 1 of 2

Rev. 02 : March 25, 2005
