AZ846-24 Overview

MICROMINIATURE POLARIZED RELAY

AZ846-24 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	unknow
ECCN code	EAR99
body width	7.4 mm
body height	9.6 mm
Body length or diameter	14.7 mm
Coil operating voltage (DC)	18 V
Coil resistance	2880 Ω
Maximum coil voltage (DC)	46.3 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	62.5VA@250VAC
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated power R load	60W@220VDC
Contact (DC) maximum rated R load	2A@220VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1800 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	200000 Cycle(s)
End contact material	Silver Alloy
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	8
operating hours	2 ms
Maximum operating temperature	95 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	14.7mm x 7.4mm x 9.6mm
Guideline	UL
Relay action	LATCHED
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	1 ms
seal	EPOXY
Terminal length	0.0032 inch
Termination type	SOLDER
weight	1.8 g

Preview

Download Datasheet

View All

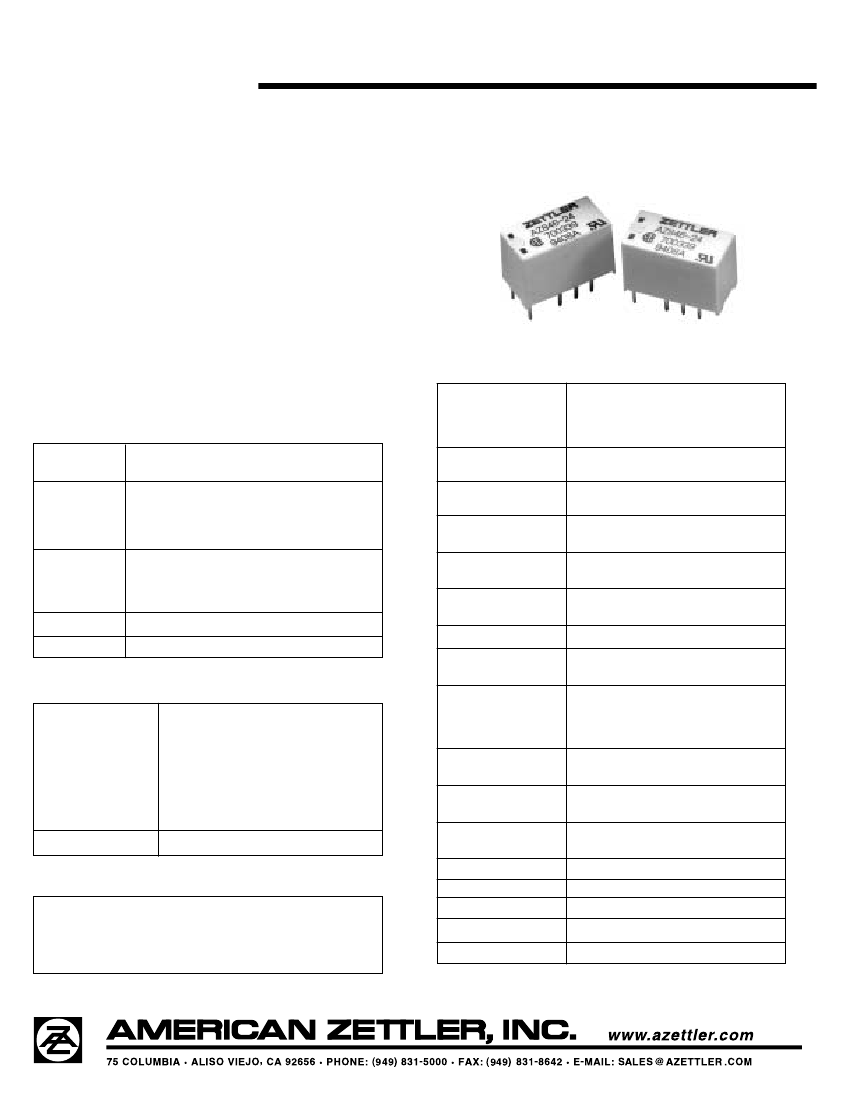

AZ846

MICROMINIATURE

POLARIZED RELAY

FEATURES

•

Microminiature size: up to 50% less board area than

previous generation telecom relays

•

High dielectric and surge voltage:

2.5 KV surge (per Bellcore TA–NWT–001089)

1.5 KV surge (per FCC Part 68)

1,000 Vrms, open contacts

•

Low power consumption: 79 mW pickup

•

Stable contact resistance for low level signal switching

•

Epoxy sealed for automatic wave soldering and cleaning

•

UL file E43203; CSA file 700339

•

All plastics meet UL94 V–O, 30 min. oxygen index

CONTACTS

Arrangement

Ratings

DPDT (2 Form C)

Bifurcated crossbar contacts

Resistive load:

Max. switched power: 60 W or 62.5 VA

Max. switched current: 2.0 A

Max. switched voltage: 220 VDC or 250 VAC

Rated Load

UL/CSA

0.5 A at 125 VAC

2.0 A at 30 VDC

0.3 A at 110 VDC

Silver alloy; gold clad

Dropout

Resistance

< 100 milliohms initially at 6 V, 1 A

Insulation Resistance

ohms min. at 25°C, 500 VDC,

50% RH

At nominal coil voltage

-40°C (-40°F) to 95°C (203°F) (3–12 VDC)

-40°C (-40°F) to 90°C (194°F) (24 VDC)

-40°C (-40°F) to 115°C (239°F)

Operational, 20 g, 10–55 Hz

Non-destructive, 30 g, 10–55 Hz

Operational, 50 g min., 11 ms

Non-destructive, 100 g min., 11 ms

350°C (662°F) for 3 seconds

260°C (500°F) for 10 seconds

80°C (176°F)

30 seconds

1.8 grams

P.B.T. polyester

Tinned copper alloy, P.C.

Greater than 10% of nominal coil voltage

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time

(typical)

Release Time (typical)

Bounce (typical)

Capacitance

Dielectric Strength

(at sea level)

Minimum operations

1 x 10

at 3Hz

1 x 10

at 0.5 A, 125 VAC, Res.

2 x 10

at 1.0 A, 30 VDC, Res.

2 ms at nominal coil voltage

1 ms at nominal coil voltage

(with no coil suppression)

At 10 mA contact current

1 ms at operate or release

< 1 pF at 10 KHz—open contacts

< 1 pF at 10 KHz—adjacent contact sets

See table

Material

COIL (Polarized)

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

79 mW (3–12 VDC)

113 mW (24 VDC)

1.0 W at 20°C (68°F)

0.78 W at 40°C (104°F)

At nominal coil voltage

18°C (32°F) (3–12 VDC)

25°C (45°F) (24 VDC)

Max. 115°C (239°F)

Ambient Temperature

Operating

Storage

Vibration

Shock

Max. Solder Temp.

Temp./Time

Max. Solvent Temp.

Temperature

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Relay has fixed coil polarity.

4. Specifications subject to change without notice.

Max. Immersion Time

Weight

Enclosure

Terminals

3/14/01W
