AZ942A-1CT-24DE datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> AZ942A-1CT-24DE

AZ942A-1CT-24DE: Description20 AMP MINIATURE AUTOMOTIVE RELAY; CategoryMechanical and electronic products relay; File Size78KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

AZ942A-1CT-24DE Overview

20 AMP MINIATURE AUTOMOTIVE RELAY

AZ942A-1CT-24DE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	unknow
ECCN code	EAR99
body width	16.5 mm
body height	16.8 mm
Body length or diameter	22.5 mm
Coil operating voltage (DC)	12.6 V
Coil resistance	720 Ω
Maximum coil voltage (DC)	39.8 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	5000VA@250VAC
Contact (AC) maximum rated R load	20A@250VAC
Maximum contact current (AC)	20 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated power R load	280W@30VDC
Contact (DC) maximum rated R load	20A@30VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Nickel
Input switching control type	Random
Insulation resistance	100000000 Ω
Number of terminals	5
operating hours	10 ms
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB hole count	5
physical size	22.5mm x 16.5mm x 16.8mm
Relay action	LATCHED
Relay style	1 FORM C
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	5 ms
seal	EPOXY
Terminal length	0.0035 inch
Termination type	SOLDER
weight	12 g

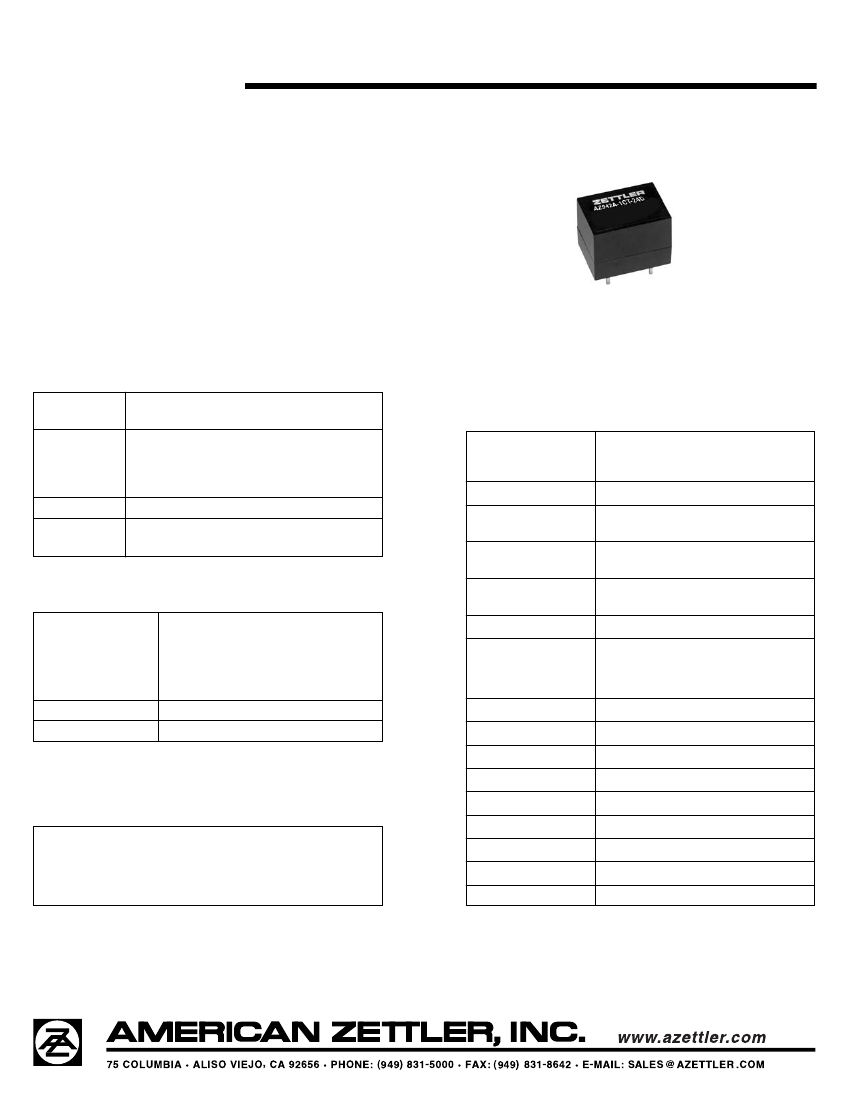

Preview

Download Datasheet

View All

AZ942A

20 AMP MINIATURE

AUTOMOTIVE RELAY

FEATURES

•

High switching capacity — 20 Amps

DC coils to 24 VDC

Epoxy sealed versions available

Class F insulation for high temperature operation

QS9000, ISO9001, ISO14001

Tested in accordance with SAE J2544

Extremely cost effective

CONTACTS

Arrangement

Ratings

Medium Duty

SPST (1 Form A)

SPDT (1 Form C)

Resistive load

Max. switched power: 280 W or 5000 VA

Max. switched current: 20 A

Max. switched voltage: 30 VDC or 250 VAC

Silver nickel

<100 milliohms initially

(24 V, 1 A voltage drop method)

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time

(typical)

Release Time

(typical)

Minimum operations

1x10

1 x 10

at 20 A 14 VDC Res.

10 ms at nominal coil voltage

5 ms at nominal coil voltage

(with no coil suppression)

Material

Resistance

Dielectric Strength

1500 Vrms contact to coil

(at sea level for 1 min.)

1000 Vrms across contacts

COIL

Power

At Pickup Voltage

(typical)

Max Continuous

Dissipation

Temperature Rise

Temperature

220 mW

Insulation Resistance

Dropout

Ambient Temperature

Operating

2.2 W at 20°C (68°F) ambient

40°C (72°F) at nominal coil voltage

Max. 155°C (311°F)

Storage

Vibration

Shock

Enclosure

Terminals

100 megohms min. at 20°C, 500 VDC,

50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-40°C(-40°F) to 105°C(221°F)

-55°C(-67°F) to 155°C(311°F)

0.062" DA at 10–55Hz

10 g operational, 100 g damage

P.B.T. polyester

Tinned copper alloy, P.C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

12 g

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Unsealed relays should not be dip cleaned.

4. Specifications subject to change without notice.

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

5/17/05W

AZ942A-1CT-24DE Related Products

	AZ942A-1CT-24DE	AZ942A	AZ942A-1CT-12D	AZ942A-1CT-12DE	AZ942A-1CT-24D	AZ942A-1CT-6D	AZ942A-1CT-6DE
Description	20 AMP MINIATURE AUTOMOTIVE RELAY	20 AMP MINIATURE AUTOMOTIVE RELAY	20 AMP MINIATURE AUTOMOTIVE RELAY	20 AMP MINIATURE AUTOMOTIVE RELAY	20 AMP MINIATURE AUTOMOTIVE RELAY	20 AMP MINIATURE AUTOMOTIVE RELAY	20 AMP MINIATURE AUTOMOTIVE RELAY
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to
Maker	AZETTLER	-	AZETTLER	AZETTLER	AZETTLER	AZETTLER	AZETTLER
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
body width	16.5 mm	-	16.5 mm	16.5 mm	16.5 mm	16.5 mm	16.5 mm
body height	16.8 mm	-	16.8 mm	16.8 mm	16.8 mm	16.8 mm	16.8 mm
Body length or diameter	22.5 mm	-	22.5 mm	22.5 mm	22.5 mm	22.5 mm	22.5 mm
Coil operating voltage (DC)	12.6 V	-	6.3 V	6.3 V	12.6 V	3.2 V	3.2 V
Coil resistance	720 Ω	-	180 Ω	180 Ω	720 Ω	45 Ω	45 Ω
Maximum coil voltage (DC)	39.8 V	-	19.8 V	19.8 V	39.8 V	9.9 V	9.9 V
Nominal coil voltage	24 V	-	12 V	12 V	24 V	6 V	6 V
Coil/Input Power Type	DC	-	DC	DC	DC	DC	DC
Contact (AC) maximum rated power R load	5000VA@250VAC	-	5000VA@250VAC	5000VA@250VAC	5000VA@250VAC	5000VA@250VAC	5000VA@250VAC
Contact (AC) maximum rated R load	20A@250VAC	-	20A@250VAC	20A@250VAC	20A@250VAC	20A@250VAC	20A@250VAC
Maximum contact current (AC)	20 A	-	20 A	20 A	20 A	20 A	20 A
Maximum contact current (DC)	20 A	-	20 A	20 A	20 A	20 A	20 A
Contact (DC) maximum rated power R load	280W@30VDC	-	280W@30VDC	280W@30VDC	280W@30VDC	280W@30VDC	280W@30VDC
Contact (DC) maximum rated R load	20A@30VDC	-	20A@30VDC	20A@30VDC	20A@30VDC	20A@30VDC	20A@30VDC
Contact resistance	100 mΩ	-	100 mΩ	100 mΩ	100 mΩ	100 mΩ	100 mΩ
Maximum contact voltage (AC)	250 V	-	250 V	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	30 V	-	30 V	30 V	30 V	30 V	30 V
Contact/Output Power Type	AC/DC	-	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Dielectric strength between coil and contacts	1500 Vrms	-	1500 Vrms	1500 Vrms	1500 Vrms	1500 Vrms	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms	-	1000 Vrms	1000 Vrms	1000 Vrms	1000 Vrms	1000 Vrms
Electrical life	100000 Cycle(s)	-	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
End contact material	Silver Nickel	-	Silver Nickel	Silver Nickel	Silver Nickel	Silver Nickel	Silver Nickel
Input switching control type	Random	-	Random	Random	Random	Random	Random
Insulation resistance	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Number of terminals	5	-	5	5	5	5	5
operating hours	10 ms	-	10 ms	10 ms	10 ms	10 ms	10 ms
Maximum operating temperature	105 °C	-	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB hole count	5	-	5	5	5	5	5
physical size	22.5mm x 16.5mm x 16.8mm	-	22.5mm x 16.5mm x 16.8mm	22.5mm x 16.5mm x 16.8mm	22.5mm x 16.5mm x 16.8mm	22.5mm x 16.5mm x 16.8mm	22.5mm x 16.5mm x 16.8mm
Relay action	LATCHED	-	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
Relay style	1 FORM C	-	1 FORM C	1 FORM C	1 FORM C	1 FORM C	1 FORM C
Relay function	SPDT	-	SPDT	SPDT	SPDT	SPDT	SPDT
Relay type	POWER/SIGNAL RELAY	-	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	5 ms	-	5 ms	5 ms	5 ms	5 ms	5 ms
Terminal length	0.0035 inch	-	0.0035 inch	0.0035 inch	0.0035 inch	0.0035 inch	0.0035 inch
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
weight	12 g	-	12 g	12 g	12 g	12 g	12 g
