AZ956S-24DE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ956S-24DE

AZ956S-24DE: DescriptionMICROMINIATURE POLARIZED RELAY; CategoryMechanical and electronic products relay; File Size86KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ956S-24DE Overview

MICROMINIATURE POLARIZED RELAY

AZ956S-24DE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compli
ECCN code	EAR99
body width	7.9 mm
body height	8 mm
Body length or diameter	13.5 mm
Maximum coil current (DC)	0.005 A
Coil operating voltage (DC)	18 V
Coil power	120 mW
Coil resistance	4500 Ω
Maximum coil voltage (DC)	24 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	60VA@125VAC
Contact (AC) maximum rated R load	1A@125VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated power R load	30W@150VDC
Contact (DC) maximum rated R load	1A@150VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	500 Vrms
Electrical life	250000 Cycle(s)
End contact material	Palladium Nickel
End contact plating	GOLD RHODIUM
Input switching control type	Random
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Installation features	SURFACE MOUNT-STRAIGHT
Number of terminals	6
operating hours	2 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	13.5mm x 7.9mm x 8mm
Guideline	FCC; UL
Relay action	MOMENTARY
Relay style	1 FORM C
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	1.4 ms
seal	EPOXY TERMINAL SEALED
surface mount	NO
Terminal surface	Tin (Sn)
Termination type	SOLDER
weight	1.8 g

Preview

Download Datasheet

View All

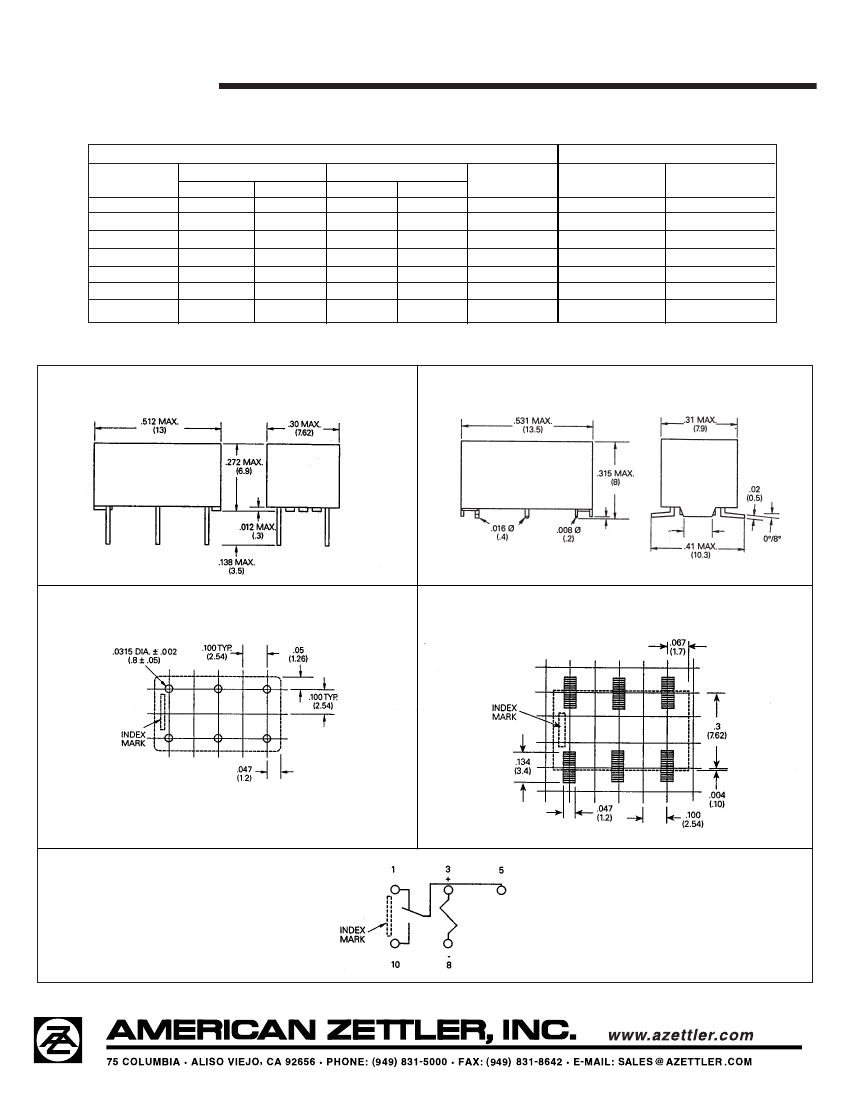

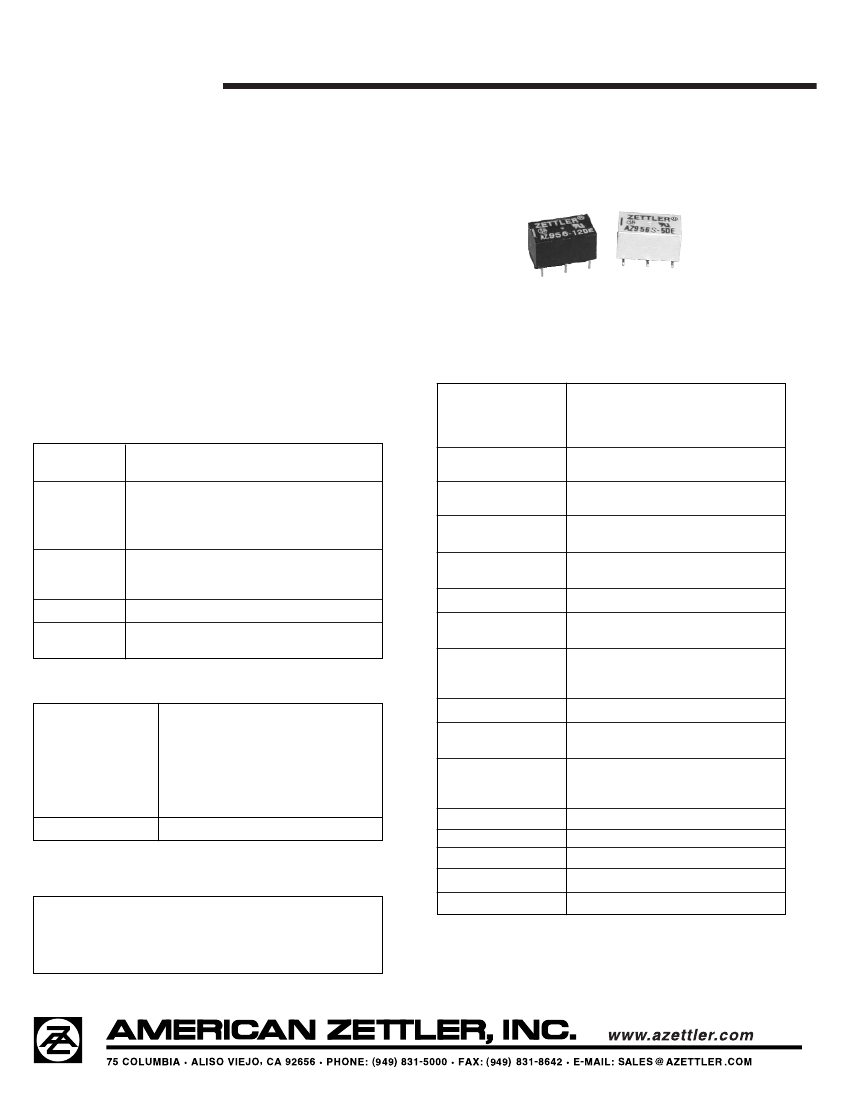

AZ956

MICROMINIATURE

POLARIZED RELAY

FEATURES

•

Microminiature size: up to 50% less board area than

previous generation telecom relays

•

Meets FCC Part 68.302 1500 V lightning surge

•

Low power consumption: 36 mW pickup

•

Stable contact resistance for low level signal switching

•

Epoxy sealed for automatic wave soldering and cleaning

•

UL, CUR file E43203

•

All plastics meet UL94 V–0, 30 min. oxygen index

GENERAL DATA

Life Expectancy

Mechanical

Electrical

SPDT (1 Form C)

Bifurcated crossbar contacts

Resistive load:

Max. switched power: 30 W or 60 VA

Max. switched current: 1.0 A

Max. switched voltage: 150 VDC or 125 VAC

Rated Load

Material

Resistance

0.5 A at 120 VAC

1.0 A at 30 VDC

Palladium nickel with gold-rhodium overlay

Insulation Resistance

< 50 milliohms initally

(6 V, 10 mA method)

Ambient Temperature

Operating

Storage

Vibration

36 mW

0.5 W at 20°C (68°F)

At nominal coil voltage

8°C (15°F)

Max. 105°C (221°F)

Shock

Max. Solder Temp.

Temp./Time

Max. Solvent Temp.

Max. Immersion Time

Weight

ohms min. at 25°C, 500 VDC,

50% RH

At nominal coil voltage

-40°C (-40°F) to 70°C (158°F)

-40°C (-40°F) to 105°C (221°F)

Operational, 40 g, 10–200 Hz

Operational, 50 g min., 11 ms

Non-destructive, 150 g min., 11 ms

Vapor phase: 215°C, 40 Sec.

Infrared: 215°C, 40 Sec.

Double wave: 260°C, 10 Sec.

80°C (176°F)

30 seconds

1.8 grams

P.B.T. polyester

Tinned copper alloy, P.C.

Operate Time

(typical)

Release Time (typical)

Bounce (typical)

Dielectric Strength

(at sea level)

Dropout

Minimum operations

1 x 10

2.5 x 10

at 0.4 A, 125 VAC, resistive

3 x 10

at 1.0 A, 24 VDC, resistive

1 ms at nominal coil voltage

0.4 ms at nominal coil voltage

(with no coil suppression)

At 10 mA contact current

1 ms at operate or release

1500 Vrms contact to coil

500 Vrms between open contacts

Greater than 10% of nominal coil voltage

CONTACTS

Arrangement

Ratings

COIL (Polarized)

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Relay has fixed coil polarity.

4. Specifications subject to change without notice.

Enclosure

Terminals

7/24/02W
