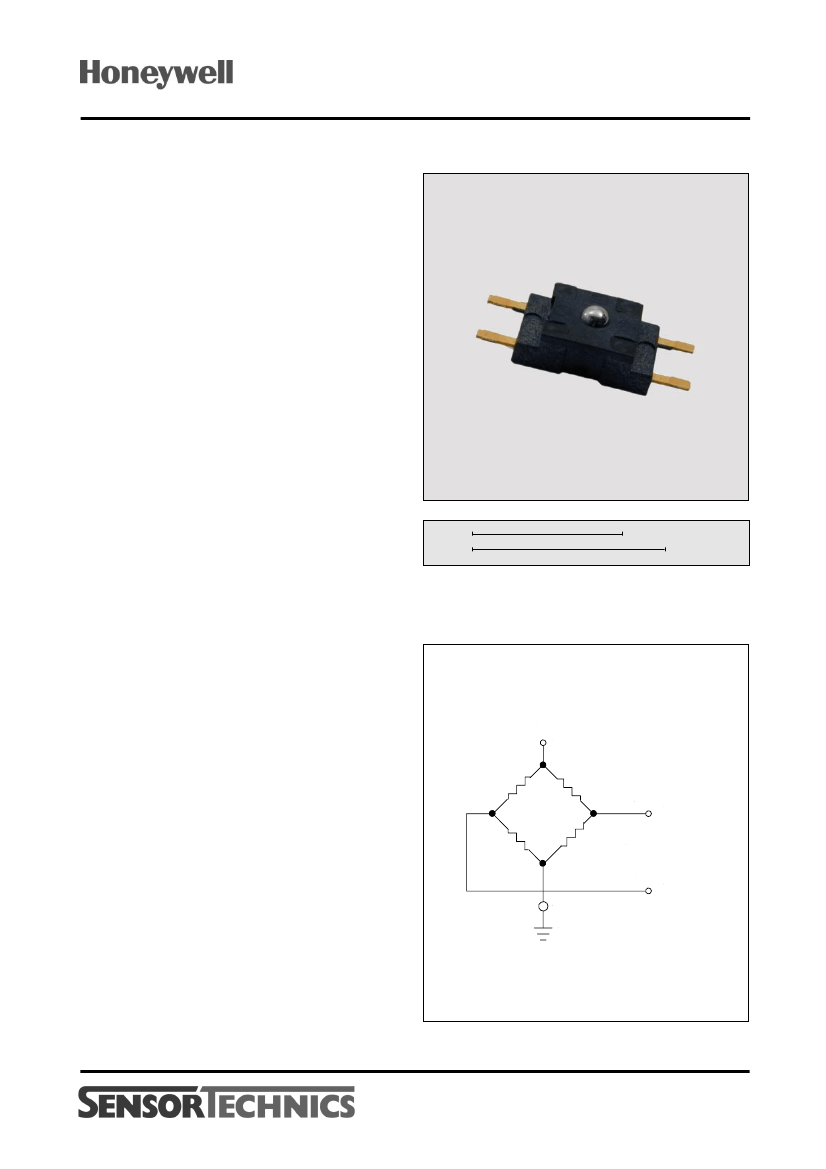

FSS
Low profile force sensor
FEATURES
·
·
·
·
·
·
·
0...1500 g range
High impedance bridge
Compact, commercial grade package
Robust performance characteristics
Ratiometric electrical output
Extremely low deflection
High ESD resistance
APPLICATIONS
· Medical infusion pumps
· Ambulatory noninvasive pump
pressure
· Occlusion detection
· Kidney dialysis machines
· Load and compression sensing
· Variable tensions control
· Robotic end-effectors
· Wire bonding equipment
Scale:
1 cm
½ inch
ELECTRICAL CONNECTION
SPECIFICATIONS
Maximum ratings
Supply voltage
Temperature limits
Storage
Operating
Lead temperature (5 sec. soldering)
Humidity limits
Vibration (0 to 2000 Hz)
(qualification tested, 0 to 2 KHz)
Mechanical shock (qualification tested)
Over force
1
3..6 V
-40 to +100°C
-40 to +85°C
315°C
0...99 %RH
20 g sine
150 g
4500 g
Vs
1
4
- V
out
Output
2
3
GND
+ V
out
September 2004 / 591
1/3
www.sensortechnics.com
FSS
Low profile force sensor
COMMON PERFORMANCE CHARACTERISTICS
V
s
= 5.0 ± 0.01 V, t
amb
= 25°C (unless otherwise noted)
Characteristics
Operating force
Zero pressure offset
Span
2
Temperature effects (0 - 50°C)
4
Temperature effects on bridge impedance
4
Linearity (BSL)
3
Mechanical hysteresis
5
Repeatability at 300g
5
Input impedance
Output impedance
ESD (direct contact, terminals and plunger)
MCTF (main cycles to failure at 50°C)
Offset
Span
Min.
0
-15
150
Typ.
Max.
1500
+15
Unit
g
mV
180
±0.5
-2200
+2200
±0.7
±0.5
±1.5
210
ppm/°C
±1.5
% sp a n
mV
6.0
6.0
kΩ
kV
4.0
4.0
8
5.0
5.0
20
million cycles
Specification notes:
1.
The maximum specified force which may be applied to the sensor without causing a permanent change in the output characteristics.
2.
Span is the algebraic difference between the output voltage at full-scale force and the output at zero force. Span is
ratiometric to the supply voltage.
3.
Linearity (BSL), the deviation of measured output at constant temperature (25°C) from "Best Straight Line" determined by
three points, offset pressure, full-scale pressure and half full-scale pressure.
4.
Error band of the offset voltage, span or bridge impedance in the specified temperature range, relative to the 25°C reading.
5.
Repeatability, the deviation in output readings for successive application of any given input force (all other conditions
remaining constant. Hysteresis, the error defined by the deviation in output signal obtained when a specific force point is
approached first with increasing force, then with decreasing force or vice versa (all other conditions remaining constant).
2/3
September 2004 / 591
www.sensortechnics.com
FSS
Low profile force sensor
OUTLINE DRAWING
Pin 1
3.81
(0.15)
4x 0.76
(0.03)
4x 2.54
(0.10)
2
Pin 1 is designated
by the laser marked
surface
6.10 9.14
(0.24) (0.36)
4
1.57
(0.06)
4x 0.25
(0.01)
3
0.50
(0.02)
5.59
(0.22)
3.25
(0.13)
0.76
(0.03)
mass:
2 g
dimensions in mm (inches)
ORDERING INFORMATION
PART NO.
FSS1500NST
FSS1500NSB
FSS1500NSR
PACKAGING STYLE
tube (multiples of 100)
blister pack
tape and reel (multiples of 1500)
Sensortechnics reserves the right to make changes to any products herein. Sensortechnics does not assume any liability arising out of
the application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights
of others.
September 2004 / 591
3/3
www.sensortechnics.com
