692-930-21 Overview

PROFESSIONAL LED INDICATORS Ã12.7mm Mounting

692-930-21 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli
color	BLUE
color@wavelength	Blue
Configuration	SINGLE
Maximum forward current	0.02 A
Maximum forward voltage	12 V
Lens type	DIFFUSED
Nominal luminous intensity	7000.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	7 mm
method of packing	BULK
peak wavelength	470 nm
shape	CYLINDRICAL
size	10 mm
surface mount	NO
T code	T-4
Base Number Matches	1

Preview

Download Datasheet

View All

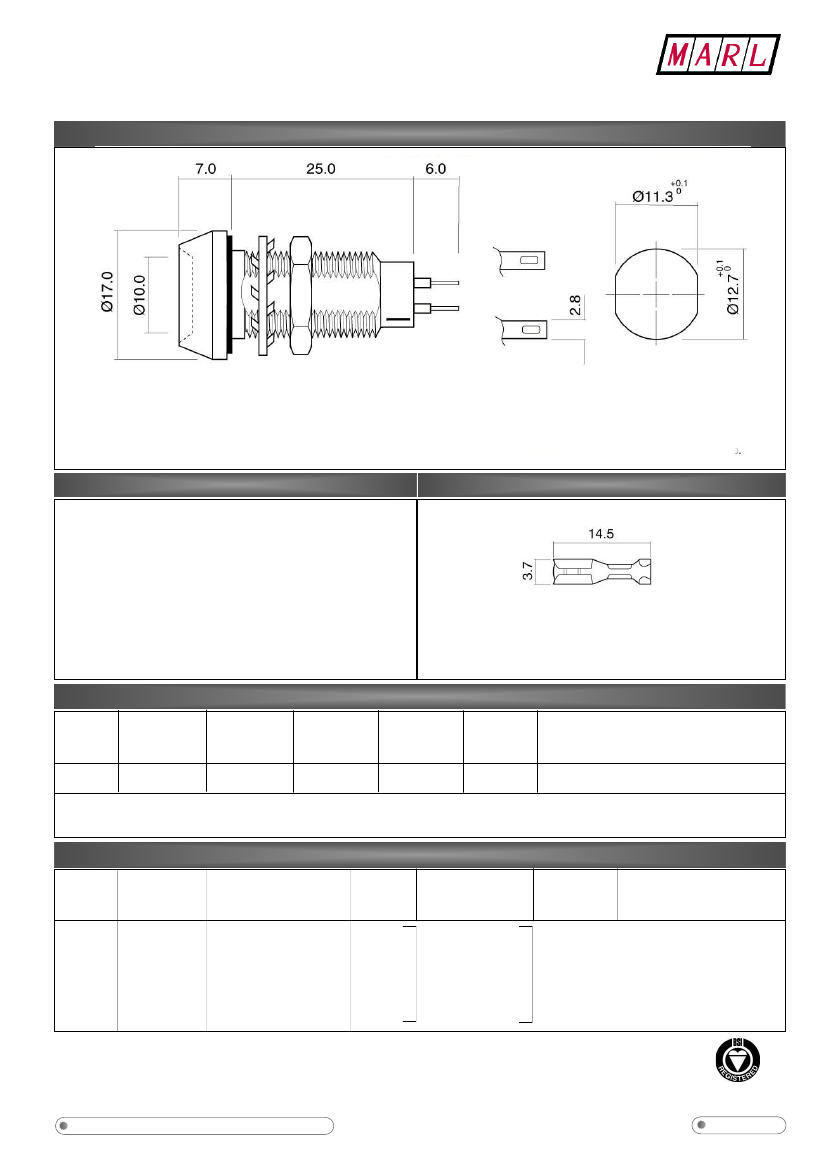

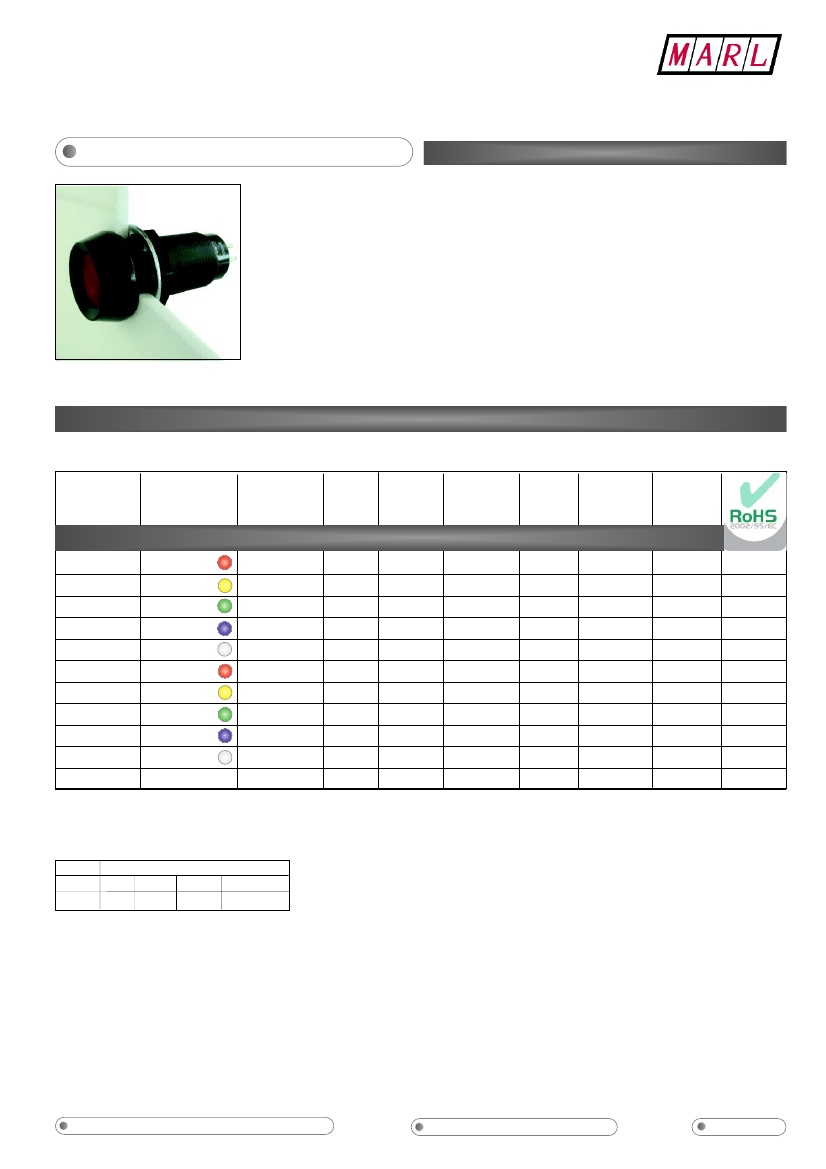

PROFESSIONAL LED INDICATORS Ø12.7mm Mounting

FEATURES

Black anodised aluminium housing

692 SERIES

PACK QUANTITY = 10 PIECES

Flame retardant flying lead options

Sealed to IP67

Full internal potting makes this product ideal for high

vibration applications

Internal reverse protection diode fitted as standard in all

voltage models

SPECIFICATION

Ordering Information & Typical T

echnical Characteristics (T

a = 25°C)

Mean Time Between Failure = 100,000 Hours.

PART NUMBER

COLOUR

Luminous intensity figures refer to the unmodified discrete LED.

VOLTAGE

CURRENT

LUMINOUS

WAVE

OPERATING

STORAGE

LENS

DC (Vdc)

Vopr

DC (mA)

lopr

INTENSITY

lv@20mA (mcd)

LENGTH

λp

(nm)

TEMP

T

opr

TEMP

T

stg

HIGH INTENSITY

692-501-21

692-521-21

692-532-21

692-930-21

692-997-21

692-501-23

692-521-23

692-532-23

692-930-23

692-997-23

UNITS

Red

Yellow

Green

Blue

Cool White

Red

Yellow

Green

Blue

Cool White

Colour Diffused

12

24-28

Vdc

20

mA

11000

16000

23000

7000

7800

11000

16000

23000

7000

7800

mcd

643

591

527

470

see below

643

591

527

470

see below

nm

-40 ~ +95^

-30 ~ +85^

-40 ~ +95^

-30 ~ +85^

°C

-40 ~ +100

°C

Yes

Other voltages AC/DC available. Please contact our Technical Sales.

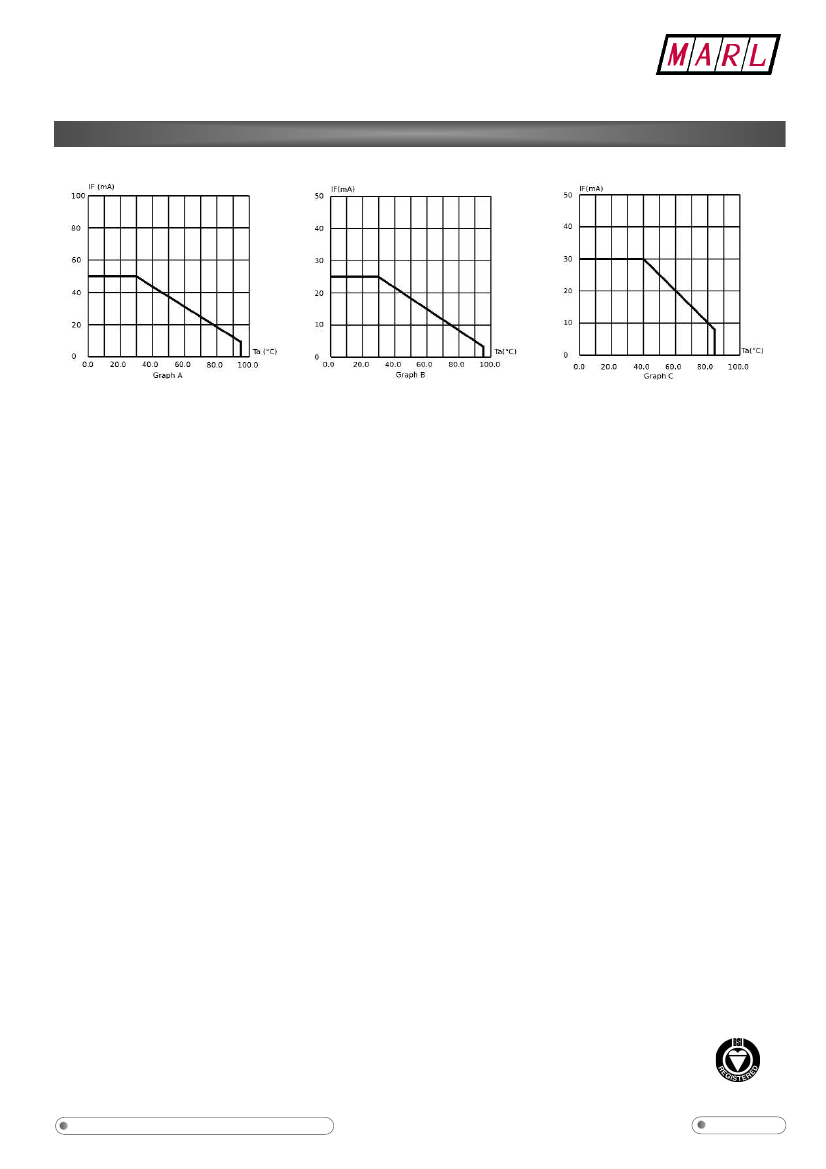

^ = Products must be derated according to the derating information. Each derating graph refers to specific LEDs.

x

y

997F

0.296

0.276

*Typical

emission colour cool white

0.283

0.330

Intensities (lv) and colour shades of white (x,y co-ordinates) may vary between LEDs within

a batch.

0.305

0.360

0.318

How to Order:

website: www.marl.co.uk • email: sales@marl.co.uk • webstore: www.leds.co.uk

•

T

elephone +44 (0)1229 582430

•

Fax: +44 (0)1229 585155

relating to either products or service.

for products or service.

The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation

Marl International reserve the right to alter without notice the specification or any conditions of supply

Issue 2

SAMPLES AVAILABLE

Page 1 of

3
