4.0A Sintered Glass Passivated
Ultra Fast Recovery Rectifier
MUR440
–
MUR460

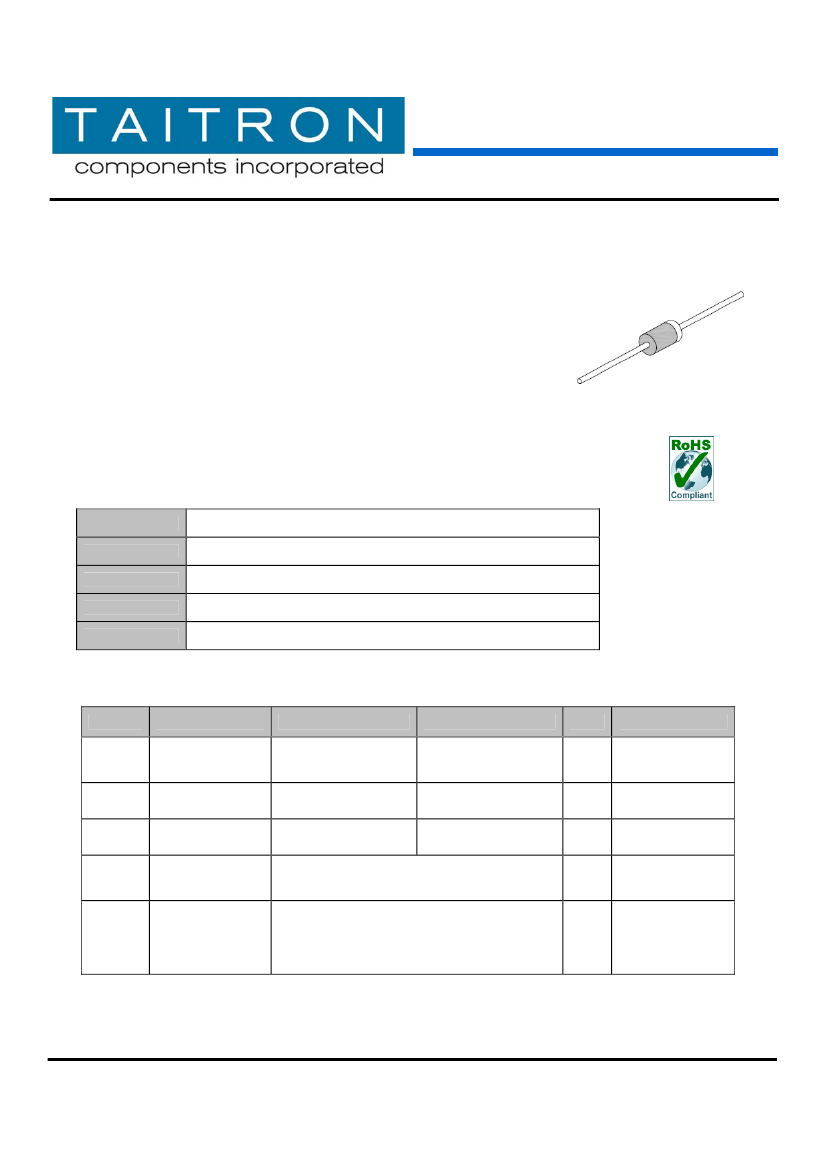

4.0A Sintered Glass Passivated Ultra Fast Recovery Rectifier
Features
•
GPRC (glass passivated rectifier chip) inside
•
Designed for use in switching power supplies,
inverters and as free wheeling diodes.
•
175 ° C operating junction temperature
•
Low forward voltage, low leakage current
•
High temperature glass passivated junction
•
RoHS Compliance
DO-201AD
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
JEDEC DO-201AD molded plastic body
Plastic package has UL flammability classification 94V-0
Tin plated, solderable per MIL-STD-750, Method 2026
Color band denotes cathode end
0.04ounces, 1.12 grams
Maximum Ratings and Electrical Characteristics
(T
A
=25ºC unless noted otherwise)
Symbol
Description
Maximum
Repetitive Peak
Reverse Voltage
Maximum RMS
Voltage
Maximum DC
Blocking Voltage
Maximum Average
Forward Rectified
Current
Peak Forward
Surge Current
MUR440
400
280
400
4.0
MUR460
600
420
600
Unit
V
V
V
A
0.375” (9.5mm)
lead length(Fig.1)
8.3ms single half
sine-wave
superimposed on
rated load (JEDEC
method)
Conditions
V
RRM
V
RMS
V
DC
I
AV
I
FSM
150
A
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel:
Fax:
(800)-TAITRON (800)-824-8766
(800)-TAITFAX (800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. B/AH 2007-12-26
Page 1 of 4
4.0A Sintered Glass Passivated Ultra Fast Recovery Rectifier
MUR440
–
MUR460
Symbol
Description
Maximum
Instantaneous
Forward Voltage
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
Typical Reverse
Recovery Time
Typical Junction
Capacitance
Typical Thermal
Resistance
Operating
Temperature range
Storage Temperature
Range
MUR440
1.28
10
µA
250
50
75
75
-65 to +175
°C
-65 to +175
nS
pf
°C / W
MUR460
Unit
V
Conditions
V
F
I
F=4.0 A
T
A
=25° C
T
A=150° C
I
F=0.5A,
I
R=1A,
I
rr=0.25A
V
R=4V, f=1MHz
Note
I
R
T
rr
C
J
Rth
JA
T
J
T
STG
Note:
Thermal resistance from junction to ambient at 0.375” (9.5mm) lead lengths, P.C.B mounted.

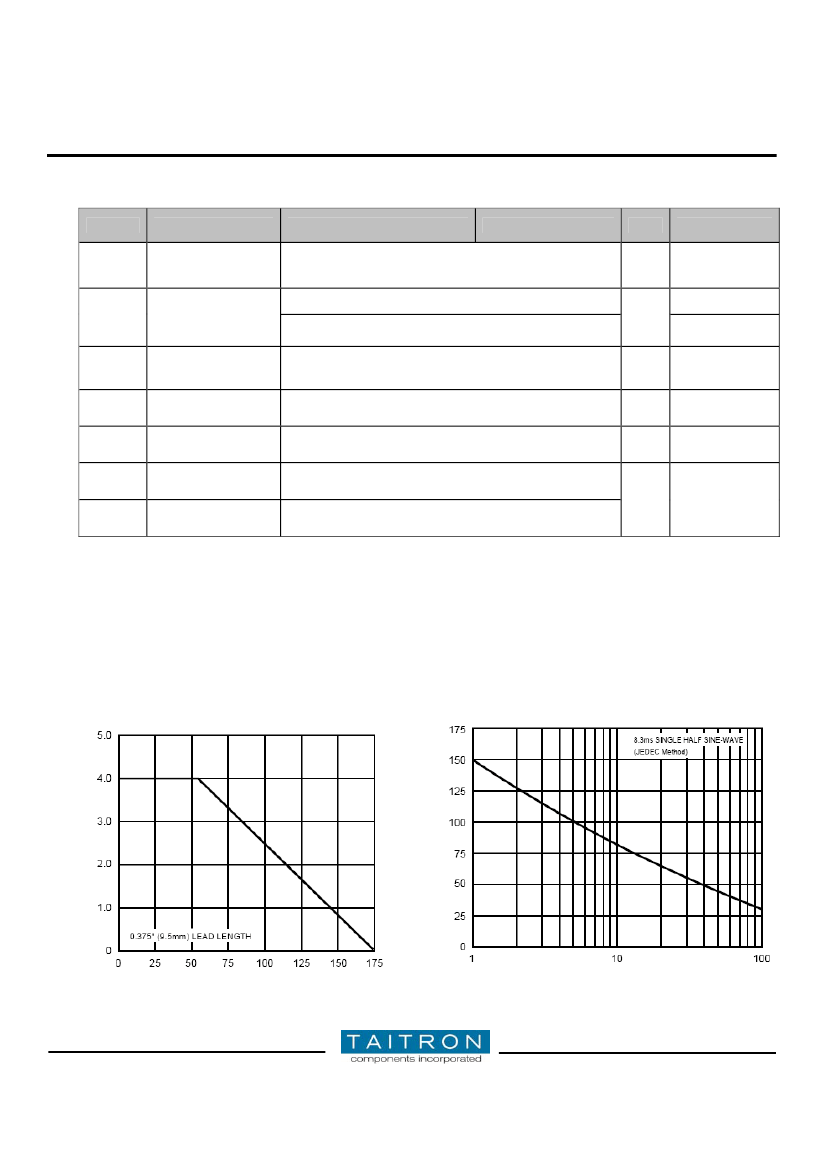

Typical Characteristics Curves
Fig.1-Max. Forward Current Derating Curve
Fig.2-Max. Non-Repetitive Forward Surge Current
Peak Forward Surge Current (A)
Average Forward Rectified Current
(A)
Number of Cycles at 60Hz
Ambient Temperature T
a
(°C)
Rev. B/AH 2007-12-26
www.taitroncomponents.com
Page 2 of 4
4.0A Sintered Glass Passivated Ultra Fast Recovery Rectifier
MUR440
–
MUR460

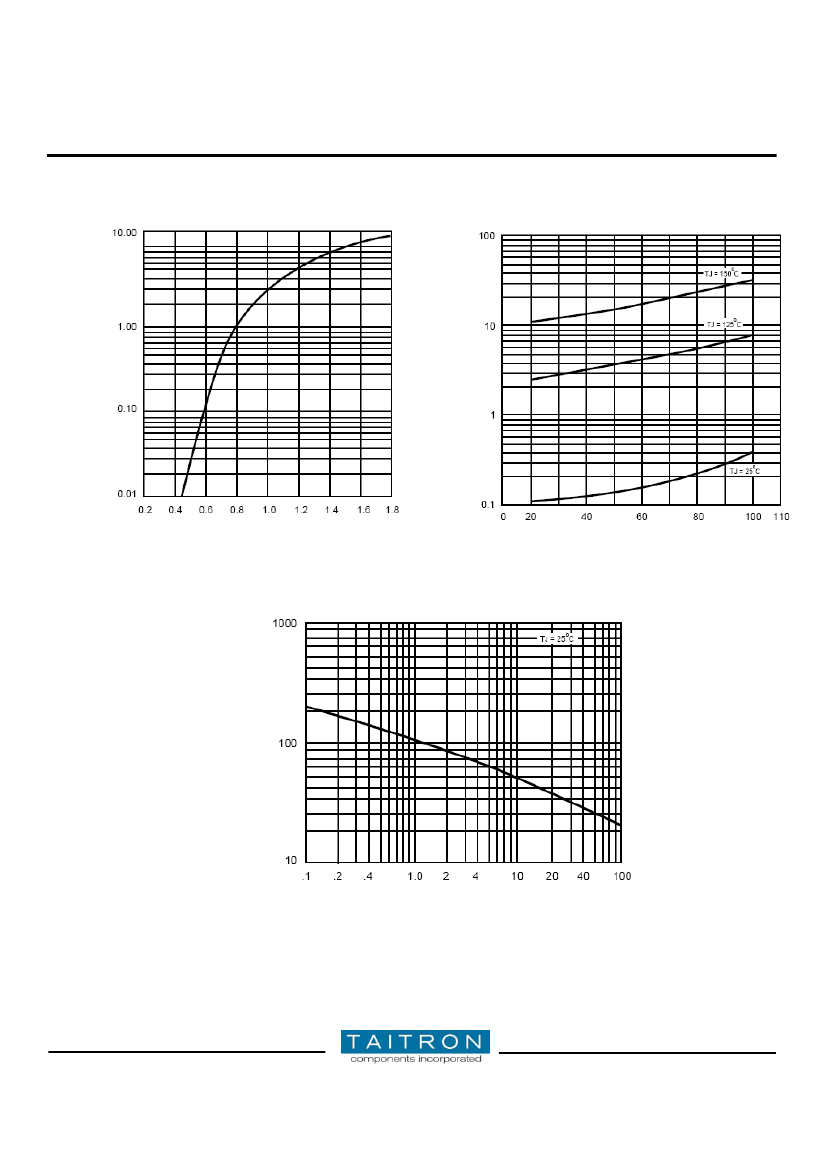

Fig.3- Typical Forward Characteristics
Fig.4-Typical Reverse Characteristics
Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Fig.5- Typical Junction Capacitance
Junction
Capacitance
(
pF)
Reverse Voltage (V)
I
R
, Instantaneous Reverse current (µA)
Instantaneous Forward Current
(A)
Rev. B/AH 2007-12-26
www.taitroncomponents.com
Page 3 of 4
4.0A Sintered Glass Passivated Ultra Fast Recovery Rectifier
MUR440
–
MUR460
Dimensions in inches (mm)
DO-201AD
How to contact us:
US HEADQUARTERS
28040 WEST HARRISON PARKAWAY, VALENCIA, CA 91355-4162
Tel: (800) TAITRON (800) 824-8766 (661) 257-6060
Fax: (800) TAITFAX (800) 824-8329 (661) 257-6415
Email:
taitron@taitroncomponents.com
Http://www.taitroncomponents.com
TAITRON COMPONENTS MEXICO, S.A .DE C.V.
BOULEVARD CENTRAL 5000 INTERIOR 5 PARQUE INDUSTRIAL ATITALAQUIA, HIDALGO C.P.
42970 MEXICO
Tel: +52-55-5560-1519
Fax: +52-55-5560-2190
TAITRON COMPONETS INCORPORATED E REPRESENTAÇÕES DO BRASIL LTDA
RUA DOMINGOS DE MORAIS, 2777, 2.ANDAR, SALA 24 SAÚDE - SÃO PAULO-SP 04035-001 BRAZIL
Tel: +55-11-5574-7949
Fax: +55-11-5572-0052
TAITRON COMPONETS INCORPORATED, SHANGHAI REPRESENTATIVE OFFICE
METROBANK PLAZA, 1160 WEST YAN’ AN ROAD, SUITE 1503, SHANGHAI, 200052, CHINA
Tel: +86-21-5424-9942
Fax: +86-21-5424-9931
Rev. B/AH 2007-12-26
www.taitroncomponents.com
Page 4 of 4
