TSCDA310 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> TSCDA310

TSCDA310: Description3.0A Low Profile Chip Schottky Rectifier; CategoryDiscrete semiconductor diode; File Size213KB，4 Pages; ManufacturerTAITRON Components; Websitehttp://www.taitroncomponents.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TSCDA310 Overview

3.0A Low Profile Chip Schottky Rectifier

TSCDA310 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TAITRON Components
package instruction	R-PDSO-N2
Reach Compliance Code	unknow
Is Samacsys	N
Other features	LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JESD-30 code	R-PDSO-N2
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	200 µA
Reverse test voltage	100 V
surface mount	YES
technology	SCHOTTKY
Terminal form	NO LEAD
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

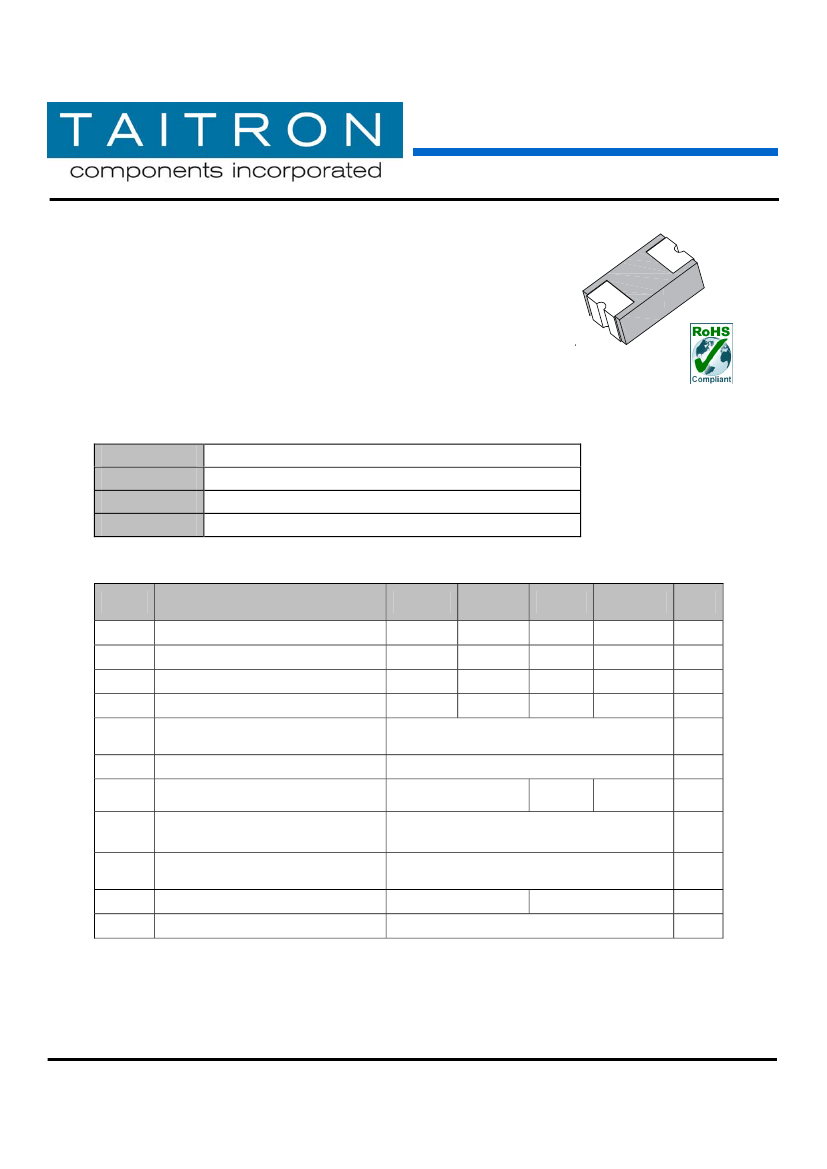

3.0A Low Profile Chip

Schottky Rectifier

TSCDA32-TSCDA310

3.0A Low Profile Chip Schottky Rectifier

Features

•

Low Profile Package, Build-in Strain Relief

Low Power Loss , High Efficiency

High Surge Current Capability

Super Very Low Forward Voltage

Plastic Package has Underwriters Laboratory Flammability

Classification 94V-0

•

RoHS Compliant

C2010

(SMA)

Mechanical Data

Case:

Terminals:

Polarity:

Weight:

Packed with FRP substrate and epoxy underfilled

Pure Tin plated, solderable per MIL-STD-750, Method 2026

Laser cathode band marking

0.02 gram

Maximum Ratings

Ambient

=25ºC unless noted otherwise)

Symbols

Description

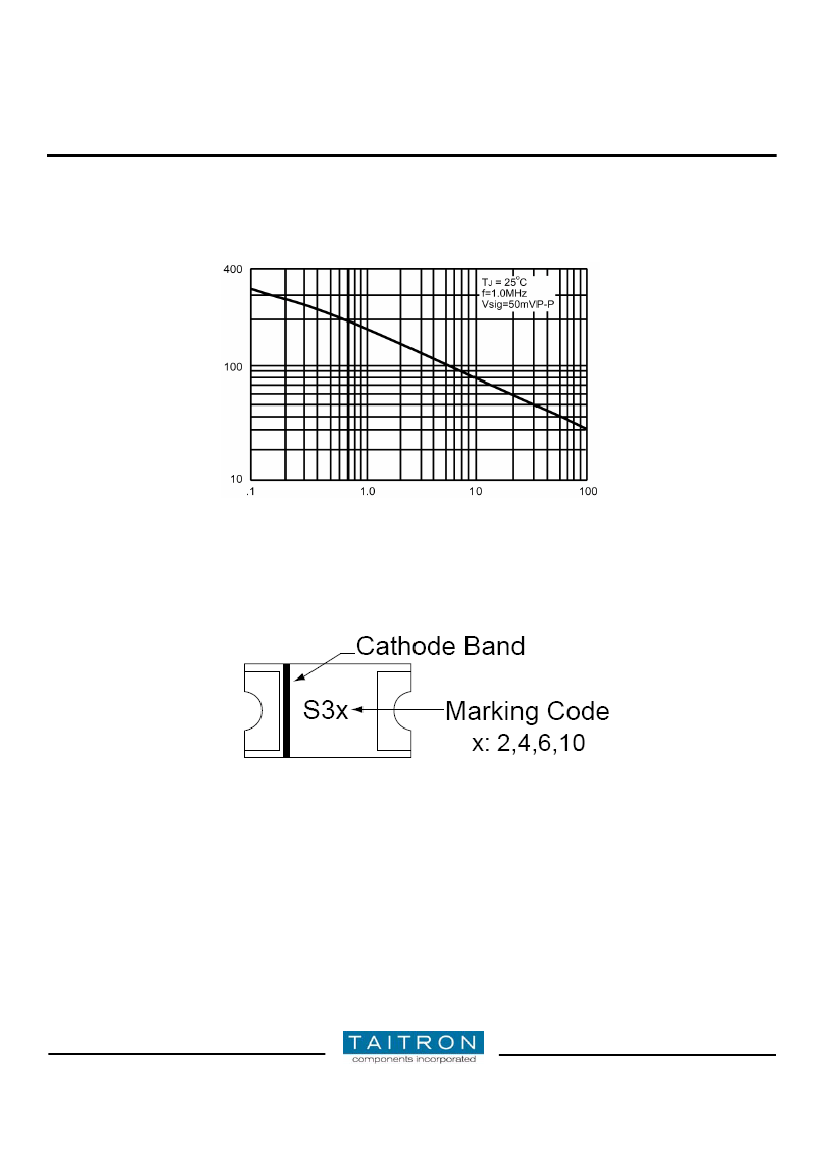

Marking Code

TSCDA32

S32

TSCDA34

S34

3.0

0.50

0.2

17.0

-55 to +125

-55 to +150

0.70

0.85

TSCDA36 TSCDA310

S36

S310

100

° C/W

°C

Unit

RRM

RMS

(AV)

FSM

θJL

STG

Max. Recurrent Peak Reverse Voltage

Max. RMS Voltage

Max. DC Blocking Voltage

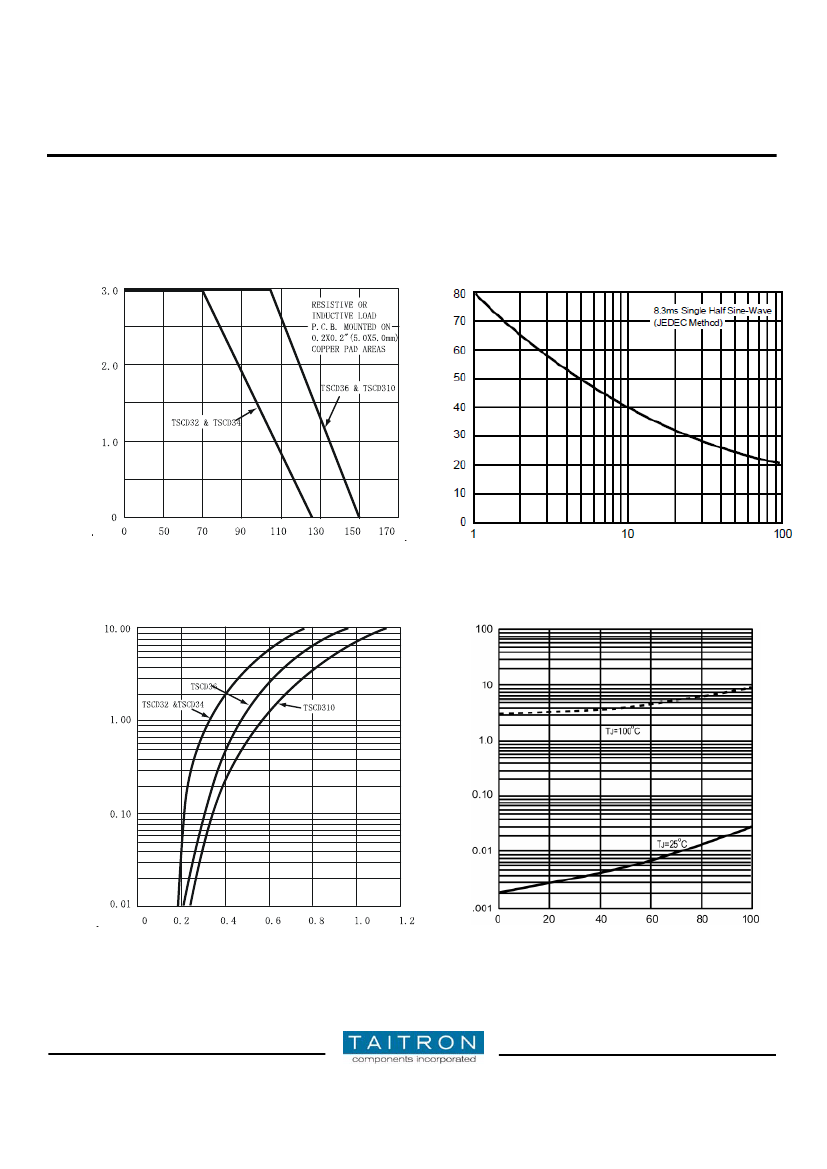

Max. Average Forward Rectified

Current (FIG.1)

Peak Forward Surge Current (Note1)

Max. Instantaneous Forward Voltage at

3.0A (Note2)

Max. DC Reverse Current at Rated DC

Blocking Voltage @Ta=25°C

Typical Thermal Resistance, Junction to

Lead (Note3)

Operating Junction Temperature Range

Storage Temperature Range

Note:

1. 8.3ms single half sine-wave superimposed on rated load (JEDEC method)

2. Pulse Test with PW = 300 µsec, 1% Duty Cycle.

3. P.C.B. mounted 5.0 x 5.0mm (0.2 x 0.2") copper pad areas.

TAITRON COMPONENTS INCORPORATED

www.taitroncomponents.com

Tel: (800)-TAITRON

Fax: (800)-TAITFA

(800)-824-8766

(800)-824-8329

(661)-257-6060

(661)-257-6415

Rev. A/JJ 2007-06-15

Page 1 of 4

TSCDA310 Related Products

	TSCDA310	TSCDA32	TSCDA34	TSCDA36
Description	3.0A Low Profile Chip Schottky Rectifier	3.0A Low Profile Chip Schottky Rectifier	3.0A Low Profile Chip Schottky Rectifier	3.0A Low Profile Chip Schottky Rectifier
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	R-PDSO-N2	SMA, 2 PIN	R-PDSO-N2	R-PDSO-N2
Reach Compliance Code	unknow	unknow	unknow	unknow
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.5 V	0.5 V	0.7 V
JESD-30 code	R-PDSO-N2	R-PDSO-N2	R-PDSO-N2	R-PDSO-N2
Maximum non-repetitive peak forward current	80 A	80 A	80 A	80 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	125 °C	125 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	100 V	20 V	40 V	60 V
Maximum reverse current	200 µA	200 µA	200 µA	200 µA
Reverse test voltage	100 V	20 V	40 V	60 V
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	TAITRON Components	TAITRON Components	TAITRON Components	-
Base Number Matches	1	-	1	1
