3.0A Super Fast
Recovery Rectifier
TSF31
–
TSF36

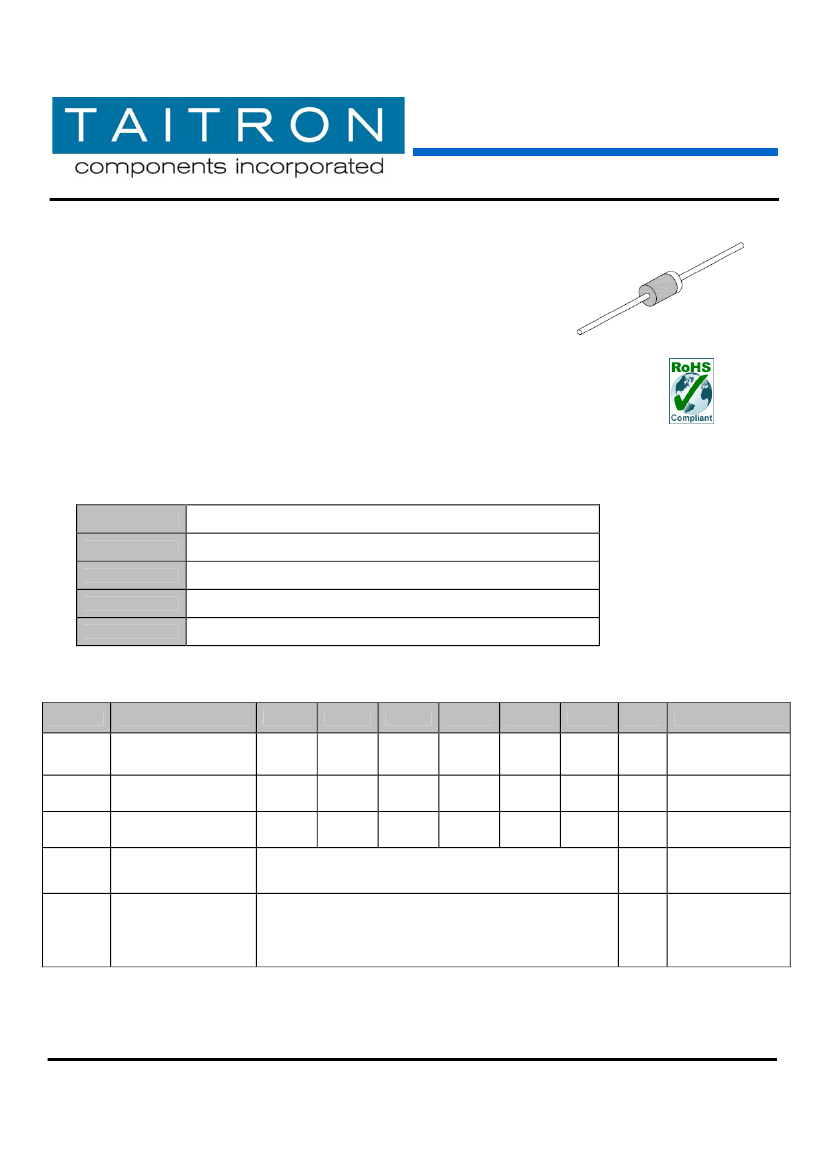

3.0A Super Fast Recovery Rectifier
Features
•
•
•
•
•
Low forward voltage drop
High current capability
High reliability
High surge current capability
High temperature soldering guaranteed 250°C/10 seconds
/.0375" (9.5mm) lead length, 5lbs (2.3kg) tension
•
RoHS Compliance
DO-201AD
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
DO-201AD, molded plastic
UL 94V-0 rate flame retardant
Axial leads, solderable per MIL-STD-202, Method 208 guaranteed
Color band denotes cathode end
1.2 grams
Maximum Ratings and Electrical Characteristics
(T
A
=25ºC unless noted otherwise)
Symbol
Description
Maximum Repetitive
Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking
Voltage
Maximum Average
Forward Rectified
Current
Peak Forward Surge
Current
TSF31
50
35
50
TSF32
100
70
100
TSF33
150
105
150
3.0
TSF34
200
140
200
TSF35
300
210
300
TSF36
400
280
400
Unit
V
V
V
A
Conditions
V
RRM
V
RMS
V
DC
I
AV
Ta=55 ˚C
8.3ms single half
sine-wave
superimposed on
rated load (JEDEC
method)
I
FSM
125
A
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel:
Fax:
(800)-TAITRON (800)-824-8766
(800)-TAITFAX (800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. A/DX 2007-06-04
Page 1 of 4
3.0A Super Fast Recovery Rectifier
TSF31
–
TSF36
Symbol
Description
Maximum
Instantaneous
Forward Voltage
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
Typical Reverse
Recovery Time
Typical Junction
Capacitance
Operating
Temperature range
Storage Temperature
Range
100
-55 to +125
°C
-55 to +150
TSF31
TSF32
0.95
5.0
µA
100
35
80
nS
pf
TSF33
TSF34
TSF35
1.25
TSF36
Unit
V
Conditions
V
F
I
F
=3.0 A
T
A
=25° C
T
A
=100° C
I
F=0.5A,
I
R=1A,
I
rr=0.25A
VR=4V, f=1MHz
I
R
T
rr
C
J
T
J
T
STG

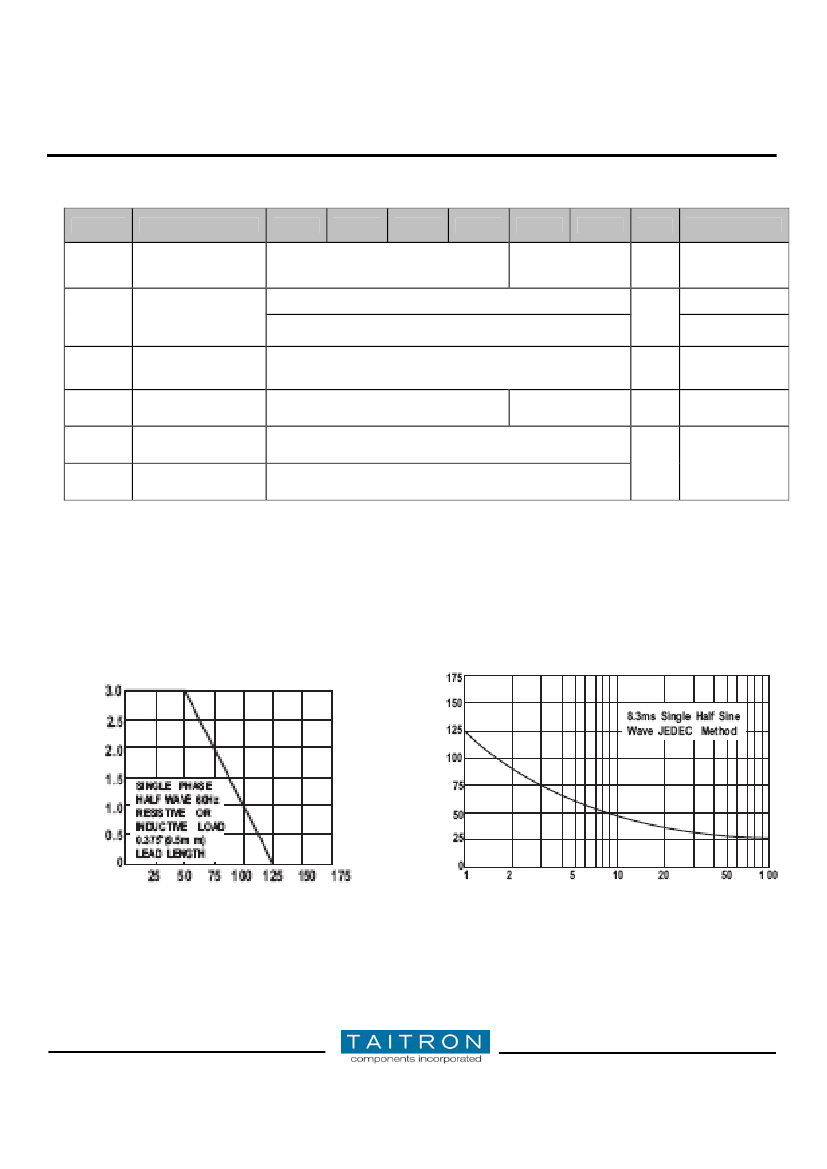

Typical Characteristics Curves
Fig.1-Max. Forward Current Derating Curve
Fig.2-Max. Non-Repetitive Forward Surge Current
Peak Forward Surge Current (A)
Average Forward Rectified Current
(A)
Ambient Temperature T
a
(°C)
Number of Cycles at 60Hz
Rev. A/DX 2007-06-04
www.taitroncomponents.com
Page 2 of 4
3.0A Super Fast Recovery Rectifier
TSF31
–
TSF36

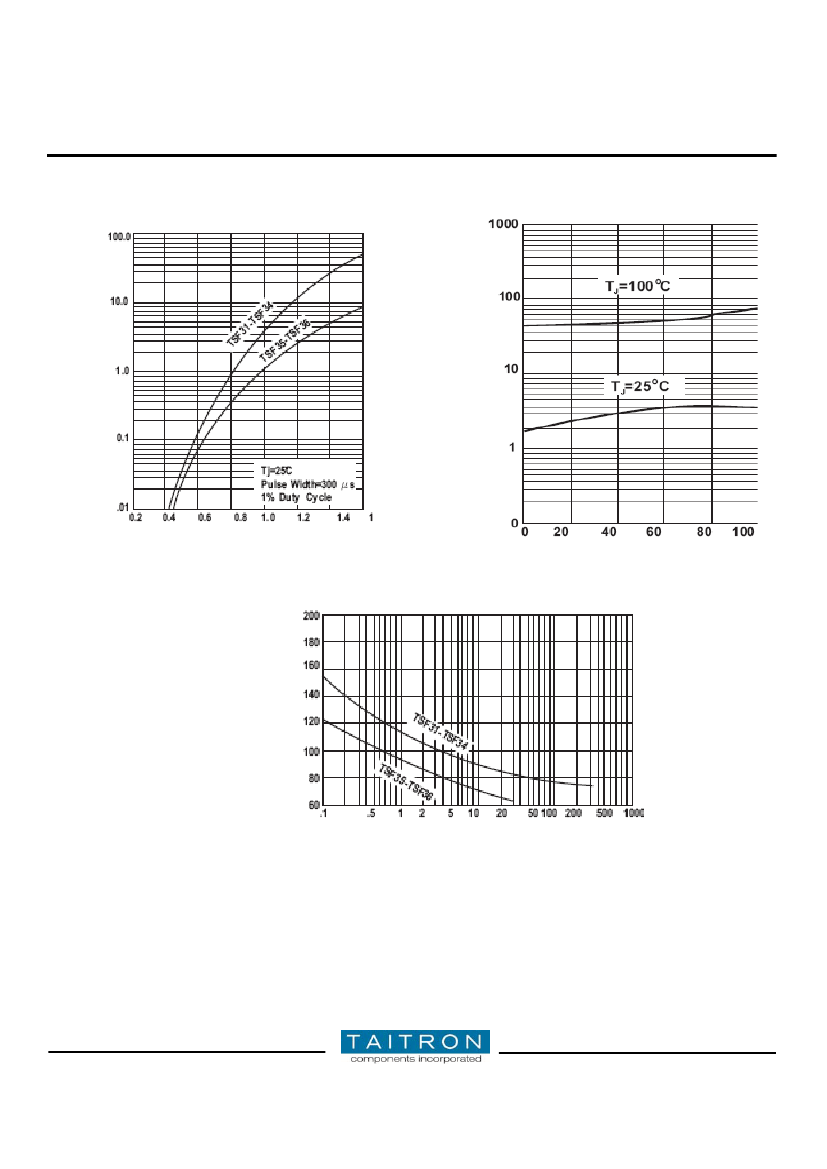

Fig.4-Typical Reverse Characteristics
Fig.3- Typical Forward Characteristics
(A)
Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Fig.5- Typical Junction Capacitance
Junction
Capacitance
(
pF)
Reverse Voltage (V)
I
R
, Instantaneous Reverse current (µA)
Instantaneous Forward Current
Rev. A/DX 2007-06-04
www.taitroncomponents.com
Page 3 of 4
3.0A Super Fast Recovery Rectifier
TSF31
–
TSF36
Dimensions in inches (mm)
