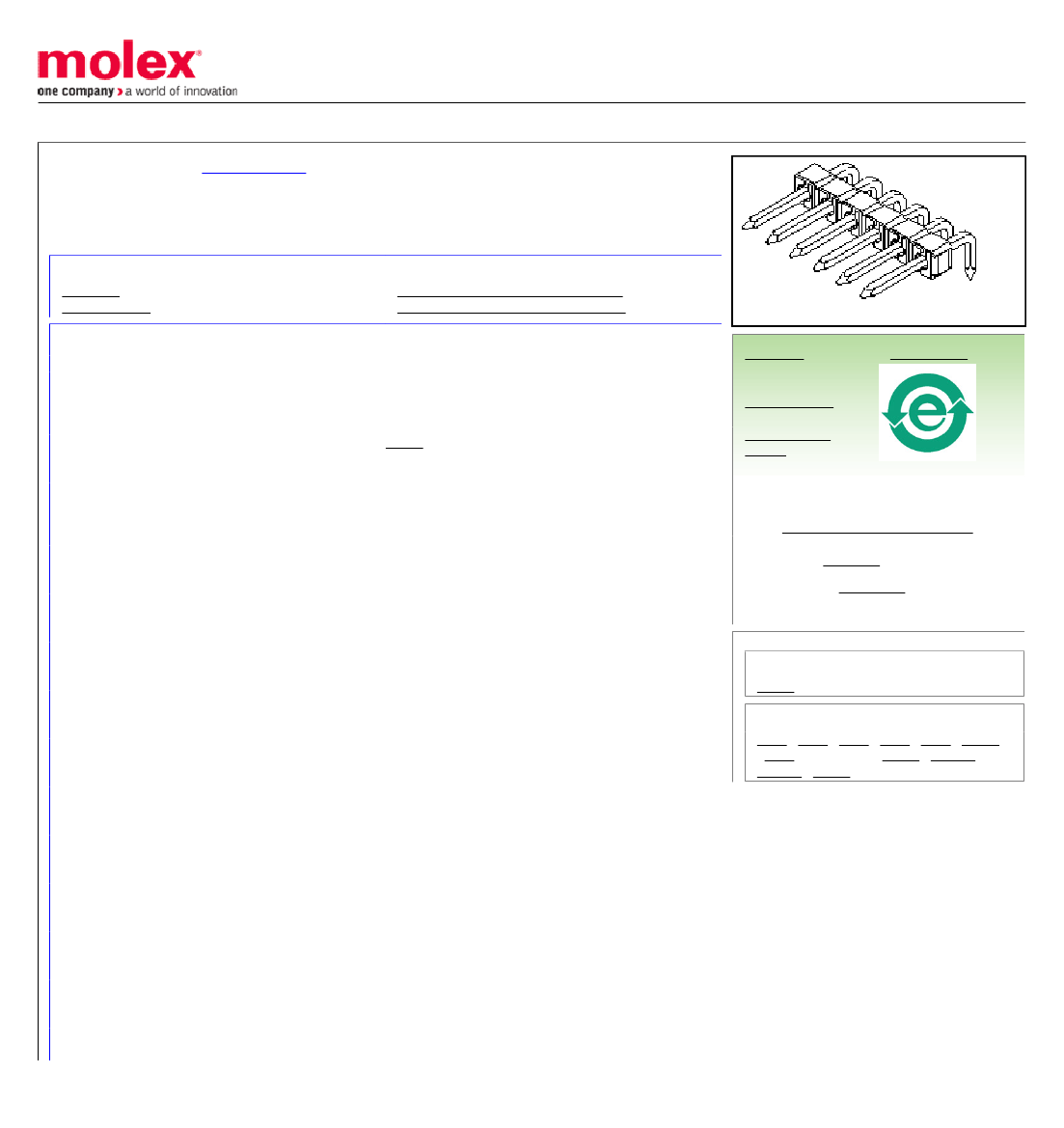

Part Number:
Status:
Description:
0022288164
Active
2.54mm (.100") Pitch KK® Header, Breakaway, Right Angle Surface Mount
Compatible, 16 Circuits, 0.76µm (30µ") Gold (Au) Selective Plating, Mating Pin Length
6.20mm (.244")
Documents:
3D Model
Drawing (PDF)
Product Specification PS-10-07 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Product Name
PCB Headers
42377
Board-to-Board, Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Yes
16
16
Black
100
94V-0
No
None
Brass
Gold
Tin
High Temperature Thermoplastic
1
Right Angle
0.120 In
3.05 mm
No
None
0.062 In
1.60 mm
Bag
0.100 In
2.54 mm
30
0.75
100
2.5
Yes
No
Partial
No
Yes
0°C to +75°C
Through Hole
Search Parts in this Series
42377Series
Mates With
2695 , 6471 , 7880 , 4455 , 7720 , 70430
, 7859 , L ink:90148, 90147 , 70400a ,
70066a , 40556
Electrical
Current - Maximum per Contact
Voltage - Maximum
4A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
235
Material Info
Old Part Number
42377-0296
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-10-07
SD-42377-001
This document was generated on 04/14/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

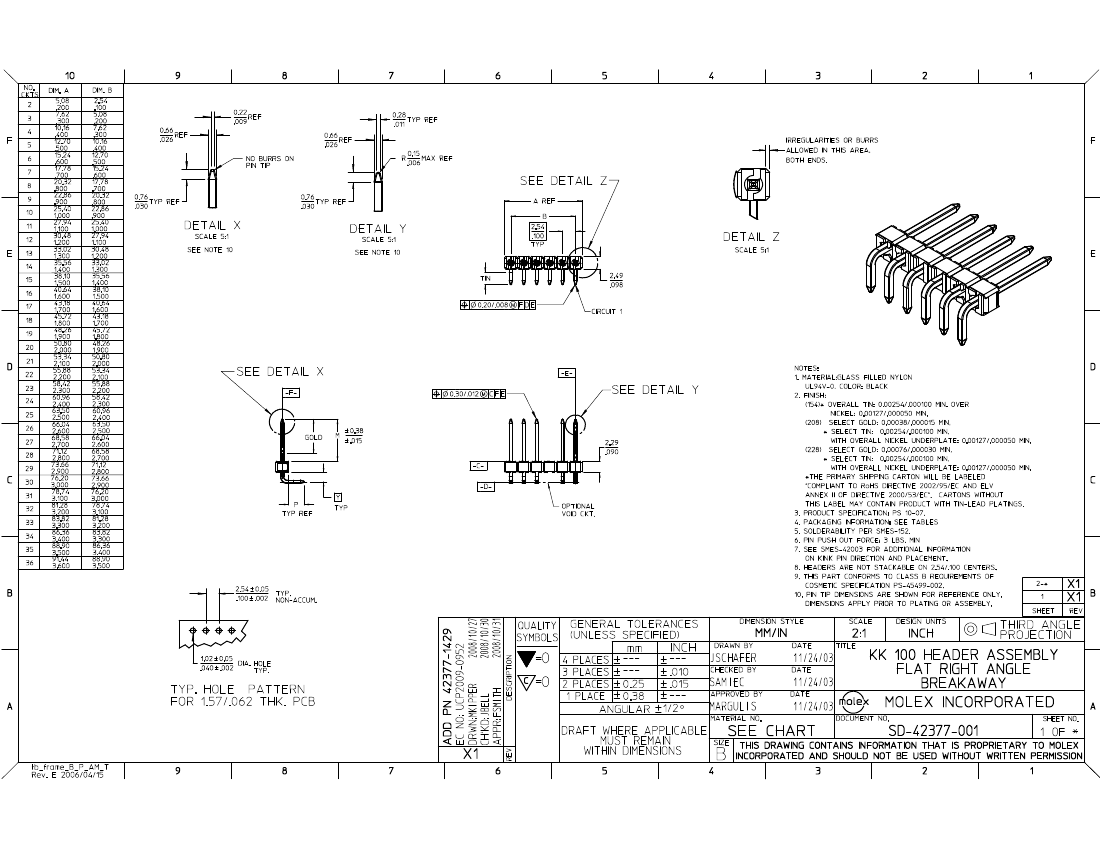

A-42377-0002 / 0036
HEADER NUMBER:
42312-0036
PIN NUMBER:
42663-AZA154
PIN LENGTH: L
.550/13.97
MATING LENGTH: M
.244/6.20
GOLD POINT: G
N/A
PI N HEIGHT: Y
.070/1.78
PC TAIL LENGTH: P
.120/3.05
TIN: T
OVERALL
CKTS:
2-36
KINKS:
NONE
REMOVED BACKWALLS:
NONE
VOIDED CKTS:
NONE
PACKAGING:
BULK PK-40873-0041
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02 22-28-8020 42377-0002 20 22-28-8200 42377-0020
03 22-28-8030 42377-0003 21 22-28-8210 42377-0021
04 22-28-8040 42377-0004 22 22-28-8220 42377-0022
05 22-28-8050 42377-0005 23 22-28-8230 42377-0023
06 22-28-8060 42377-0006 24 22-28-8240 42377-0024
07 22-28-8070 42377-0007 25 22-28-8250 42377-0025
08 22-28-8080 42377-0008 26 22-28-8260 42377-0026
09 22-28-8090 42377-0009 27 22-28-8270 42377-0027
10 22-28-8100 42377-0010 28 22-28-8280 42377-0028
11 22-28-8110 42377-0011 29 22-28-8290 42377-0029
12 22-28-8120 42377-0012 30 22-28-8300 42377-0030
13 22-28-8130 42377-0013 31 22-28-8310 42377-0031
14 22-28-8140 42377-0014 32 22-28-8320 42377-0032
15 22-28-8150 42377-0015 33 22-28-8330 42377-0033
16 22-28-8160 42377-0016 34 22-28-8340 42377-0034
17 22-28-8170 42377-0017 35 22-28-8350 42377-0035
18 22-28-8180 42377-0018 36 22-28-8360 42377-0036
19 22-28-8190 42377-0019
REV:
ECR/ECN INFORMATION:
TITLE:
A-42377-0037 / 0071
HEADER NUMBER:
42312-0036
PIN NUMBER:
42663-BSA154
PIN LENGTH: L
.630/16.00
MATING LENGTH: M
.324/8.23
GOLD POINT: G
N/A
PI N HEIGHT: Y
.070/1.78
PC TAIL LENGTH: P
.120/3.05
TIN: T
OVERALL
CKTS:
2-36
KINKS:
NONE
REMOVED BACKWALLS:
NONE
VOIDED CKTS:
NONE
PACKAGING:
BULK PK-40873-0041
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02
22-28-8021
42377-0037
20 22-28-8201 42377-0055
03
22-28-8031
42377-0038
21 22-28-8211 42377-0056
04
22-28-8041
42377-0039
22 22-28-8221 42377-0057
05
22-28-8051
42377-0040
23 22-28-8231 42377-0058
06
22-28-8061
42377-0041
24 22-28-8241 42377-0059
07
22-28-8071
42377-0042
25 22-28-8251 42377-0060
08
22-28-8081
42377-0043
26 22-28-8261 42377-0061
09
22-28-8091
42377-0044
27 22-28-8271 42377-0062
10
22-28-8101
42377-0045
28 22-28-8281 42377-0063
11
22-28-8111
42377-0046
29 22-28-8291 42377-0064
12
22-28-8121
42377-0047
30 22-28-8301 42377-0065
13
22-28-8131
42377-0048
31 22-28-8311 42377-0066
14
22-28-8141
42377-0049
32 22-28-8321 42377-0067
15
22-28-8151
42377-0050
33 22-28-8331 42377-0068
16
22-28-8161
42377-0051
34 22-28-8341 42377-0069
17
22-28-8171
42377-0052
35 22-28-8351 42377-0070
18
22-28-8181
42377-0053
36 22-28-8361 42377-0071
19
22-28-8191
42377-0054
SHEET No.
X1
EC No:
DATE:
UCP2009-0952
10/31/2008
CREATED / REVISED BY:
KK 100 HEADER ASSEMBLY
FLAT RIGHT ANGLE
BREAKAWAY
CHECKED BY:
-2-
APPROVED BY:
DOCUMENT NUMBER:
SD- 42377-001
MKIPPER
JBELL
FSMITH
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.1).DOC
A-42377-0072 / 0106
HEADER NUMBER:
42312-0036
PIN NUMBER:
42663-AZB208
PIN LENGTH: L
.550/13.97
MATING LENGTH: M
.244/6.20
GOLD POINT: G
.140/3.56
PIN HEIGHT: Y
.070/1.78
PC TAIL LENGTH: P
.120/13.05
TIN: T
.135/3.43
CKTS:
2-36
KINKS:
NONE
REMOVED BACKWALLS:
NONE
VOIDED CKTS:
NONE
PACKAGING:
BULK PK-40873-0041
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02 22-28-8022 42377-0072 20 22-28-8202 42377-0090
03 22-28-8032 42377-0073 21 22-28-8212 42377-0091
04 22-28-8042 42377-0074 22 22-28-8222 42377-0092
05 22-28-8052 42377-0075 23 22-28-8232 42377-0093
06 22-28-8062 42377-0076 24 22-28-8242 42377-0094
07 22-28-8072 42377-0077 25 22-28-8252 42377-0095
08 22-28-8082 42377-0078 26 22-28-8262 42377-0096
09 22-28-8092 42377-0079 27 22-28-8272 42377-0097
10 22-28-8102 42377-0080 28 22-28-8282 42377-0098
11 22-28-8112 42377-0081 29 22-28-8292 42377-0099
12 22-28-8122 42377-0082 30 22-28-8302 42377-0100
13 22-28-8132 42377-0083 31 22-28-8312 42377-0101
14 22-28-8142 42377-0084 32 22-28-8322 42377-0102
15 22-28-8152 42377-0085 33 22-28-8332 42377-0103
16 22-28-8162 42377-0086 34 22-28-8342 42377-0104
17 22-28-8172 42377-0087 35 22-28-8352 42377-0105
18 22-28-8182 42377-0088 36 22-28-8362 42377-0106
19 22-28-8192 42377-0089
REV:
ECR/ECN INFORMATION:
TITLE:
A-42377-0107 / 0141
HEADER NUMBER:
42312-0036
PIN NUMBER:
42663-BSB208
PIN LENGTH: L
.630/16.00
MATING LENGTH: M
.324/8.23
GOLD POINT: G
.140/3.56
PIN HEIGHT: Y
.070/1.78
PC TAIL LENGTH: P
.120/3.05
TIN: T
.135/3.43
CKTS:
2-36
KINKS:
NONE
REMOVED BACKWALLS:
NONE
VOIDED CKTS:
NONE
PACKAGING:
BULK PK-40873-0041
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02
22-28-8023
42377-0107
20 22-28-8203 42377-0125
03
22-28-8033
42377-0108
21 22-28-8213 42377-0126
04
22-28-8043
42377-0109
22 22-28-8223 42377-0127
05
22-28-8053
42377-0110
23 22-28-8233 42377-0128
06
22-28-8063
42377-0111
24 22-28-8243 42377-0129
07
22-28-8073
42377-0112
25 22-28-8253 42377-0130
08
22-28-8083
42377-0113
26 22-28-8263 42377-0131
09
22-28-8093
42377-0114
27 22-28-8273 42377-0132
10
22-28-8103
42377-0115
28 22-28-8283 42377-0133
11
22-28-8113
42377-0116
29 22-28-8293 42377-0134
12
22-28-8123
42377-0117
30 22-28-8303 42377-0135
13
22-28-8133
42377-0118
31 22-28-8313 42377-0136
14
22-28-8143
42377-0119
32 22-28-8323 42377-0137
15
22-28-8153
42377-0120
33 22-28-8333 42377-0138
16
22-28-8163
42377-0121
34 22-28-8343 42377-0139
17
22-28-8173
42377-0122
35 22-28-8353 42377-0140
18
22-28-8183
42377-0123
36 22-28-8363 42377-0141
19
22-28-8193
42377-0124
SHEET No.
X1
EC No:
DATE:
UCP2009-0952
10/31/2008
CREATED / REVISED BY:
KK 100 HEADER ASSEMBLY
FLAT RIGHT ANGLE
BREAKAWAY
CHECKED BY:
-3-
APPROVED BY:
DOCUMENT NUMBER:
SD- 42377-001
MKIPPER
JBELL
FSMITH
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.1).DOC
