SOMC20035600FR61: DescriptionRESISTOR, NETWORK, FILM, ISOLATED, 1.6 W, SURFACE MOUNT, DIP; CategoryPassive components The resistor; File Size156KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

SOMC20035600FR61 Overview

RESISTOR, NETWORK, FILM, ISOLATED, 1.6 W, SURFACE MOUNT, DIP

SOMC20035600FR61 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Component power consumption	0.16 W
The first element resistor	560 Ω
JESD-609 code	e0
Manufacturer's serial number	SOMC
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	10
Number of terminals	20
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TAPE, BLISTER
Rated power dissipation(P)	1.6 W
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Temperature coefficient tracking	50 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	GULL WING
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

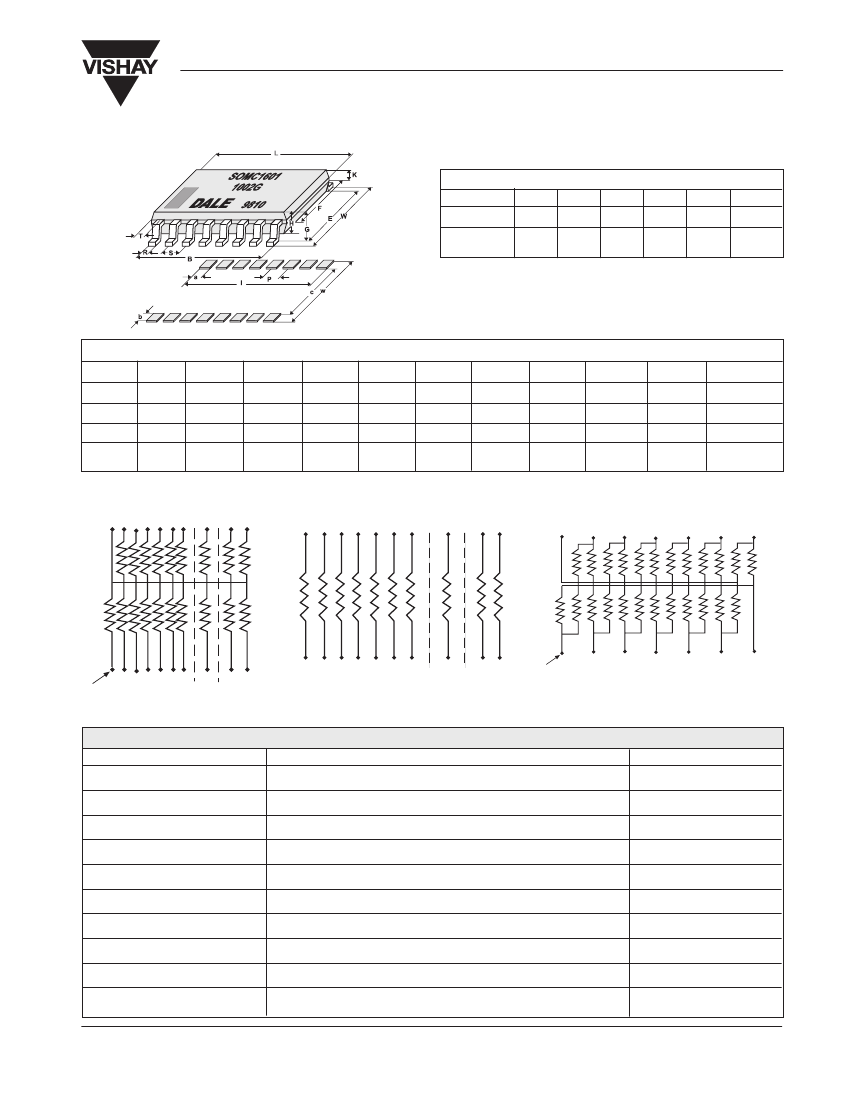

SOMC

Vishay Dale

Thick Film, Dual-in-Line Resistor Networks

FEATURES

•

14,16 or 20 terminal package

Isolated, bussed or TTL-terminator circuits

Molded case construction

Highly stable thick film elements

Reflow solderable

Compatible with automatic surface mounting equipment

Reduces total assembly costs

For wave flow soldering contact factory

STANDARD ELECTRICAL SPECIFICATIONS

MODEL ELEMENT PACKAGE POWER RATING CIRCUIT

SOMC

0.08

0.16

0.08

LIMITING ELEMENT TEMPERATURE TOL.

VOLTAGE MAX.

COEFFICIENT

ppm/

1, 2, 5

100

1, 2, 5

RESISTANCE E-SERIES

RANGE

1.05

1.125

1.05

1.20

1.28

1.20

1.52

1.60

1.52

Ω

10R – 1M

Temperature Range: - 55°C to + 125°C

• Power rating depends on the max. temperature at the solder point, the component placement density and the substrate material

• Jumper: Zero-Ohm-Resistor on request (100mΩ)

• Packaging: according to EIA; see appropriate catalog or web page

TECHNICAL CHARACTERISTICS

PARAMETER

Rated Dissipation at 70°C per Element

Limiting Element Voltage

Voltage Coefficient

Insulation Voltage (1min)

Category Temperature Range

Insulation Resistance

TC Tracking (- 55°C to + 125°C)

UNIT

ppm/V

dc/ac peak

°C

Ω

ppm/°C

01 CIRCUIT

0.08

03 CIRCUIT

0.16

< 50

200

- 55 / + 150

> 10

05 CIRCUIT

0.08

Rated voltage:

PxR

ORDERING INFORMATION

01, 03 Schematic

SOMC

MODEL

NUMBER OF

LEADS

SCHEMATIC

xxx or xxxx

VALUE

First 2 digits (3 for F tolerance) are

significant figures. Last digit

specifies number of zeros to follow.

xxx

xxxx

VALUE

xxx

xxxx

VALUE

TOLERANCE

F =

J =

05 Schematic

SOMC

MODEL

NUMBER OF

LEADS

SCHEMATIC

TOLERANCE

F =

J =

First 2 digits (3 for F tolerance) are

significant figures. Last digit

specifies number of zeros to follow.

www.vishay.com

116

For Technical Questions, contact: ff2aresistors@vishay.com

Document Number 31508

Revision 05-Aug-02
