LITTELFUSE - 01500145Z - FUSE HOLDER; 6.3 X 32MM; IN LINE

Preview

Download Datasheet

View All

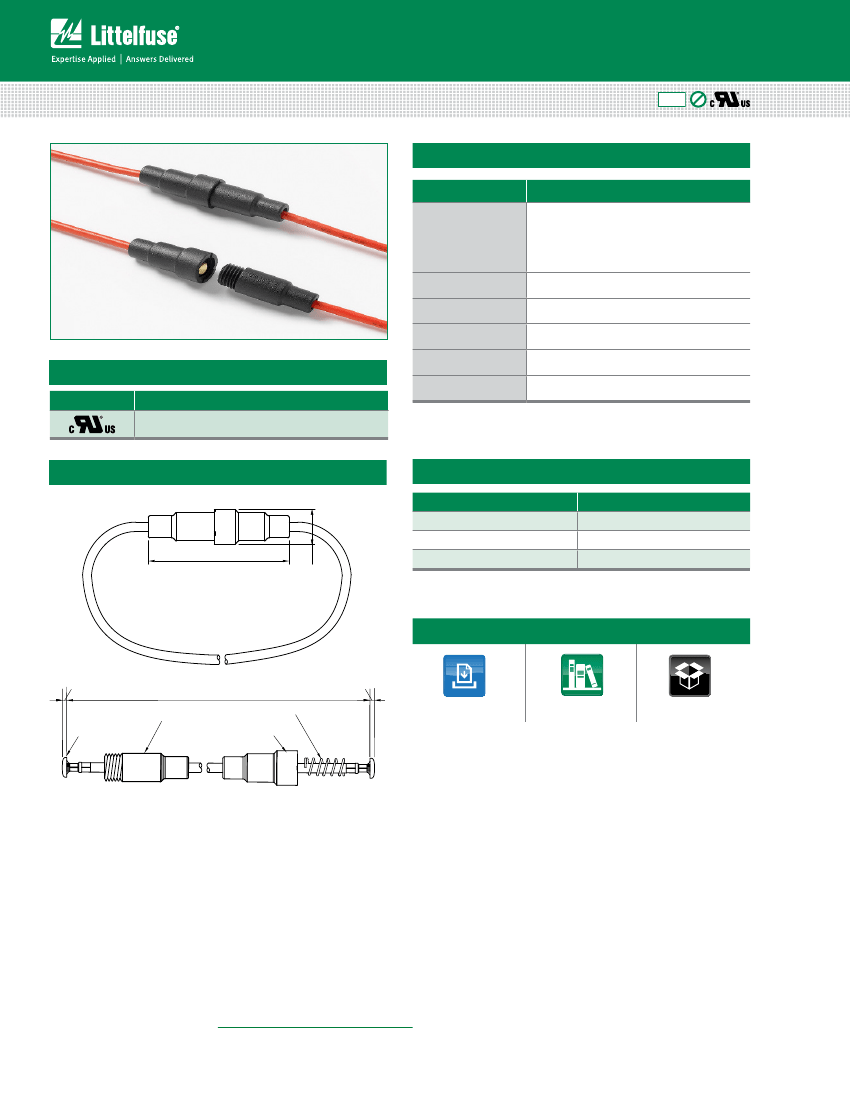

In-Line Cartridge Fuse Holders

150 Series In-Line Holders for 2AG or 5×20mm Fuses

Product Characteristics

Compatible Fuses

2AG or 5×20mm

This fuseholder, part number 150274, is

intended for use with 2AG and 5 × 20mm fuses.

Maximum current ratings are 5 amperes at 350V

for the 2AG size fuses and 10 amperes at 350V

for the 5 × 20mm size fuses.**

Black Nylon, UL94 V-0

Brass

16 Awg size; Nominal o.d. 0.104”; color Red

Will withstand 10 lb. pull.

–40ºC to +80ºC.

RoHS

Electrical

Body

Terminals

Wire

Agency Approval

Agency

Agency File Number

E14721

Lead Pull Test

Ambient Temperature

NOTES:

* Ensure that proper fuse re-rating is factored in fuseholder selection.

** If use above 32V, power must be turn off when changing the fuse.

Dimensions [mm]

Ordering Information

Ordering Number

350V

max

Packaging

Bulk Pack (1000 Pcs)

Bulk Pack (100 Pcs)

Bulk Pack (5000 Pcs)

01500274Z

01500274LXN

*01500274ZXU

47.5±1

(1.87±0.039")

11.0

(.43")

DIA.

NOTES:

* For unassembled Fuseholder, UL certification does not apply.

** Images are illustrative

Additional Information

1.45mm

WIRE: Red #16GPT Length 330 (13") REF.

Fuseholder Body

Compression Spring

Fuseholder Cap

1.45mm

Datasheet

Resources

Samples

Conductor

COMPRESSION SPRING:

15±0.2mm

Ø0.6±0.02mm

O.D. Ø5.1±0.1mm

I.D. Ø3.9±0.1mm

Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and

test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications.

Read complete Disclaimer Notice at

www.littelfuse.com/disclaimer-electronics.

Specifications are testing to change recommended.

Specifications are subject to change without notice. Application subject is strongly without notice.

Revised: 06/15/17
