255XBXP-24VDC: DescriptionPower/Signal Relay, 3PDT, Latched, 0.075A (Coil), 24VDC (Coil), 1800mW (Coil), 28A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size87KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

255XBXP-24VDC Overview

Power/Signal Relay, 3PDT, Latched, 0.075A (Coil), 24VDC (Coil), 1800mW (Coil), 28A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,

255XBXP-24VDC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RELAY FUNCTION 4PST ALSO AVAILABLE
body width	36.7 mm
body height	94.4 mm
Body length or diameter	66.8 mm
Maximum coil current (DC)	0.075 A
Coil operating voltage (DC)	19.2 V
Coil power	1800 mW
Coil release voltage (DC)	2.4 V
Coil resistance	320 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@120VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	28 A
Contact (DC) maximum rated R load	28A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	25 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
physical size	66.8mm x 36.7mm x 94.4mm
Guideline	CSA; UL
Relay action	LATCHED
Relay function	3PDT
Relay type	POWER/SIGNAL RELAY
release time	20 ms
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

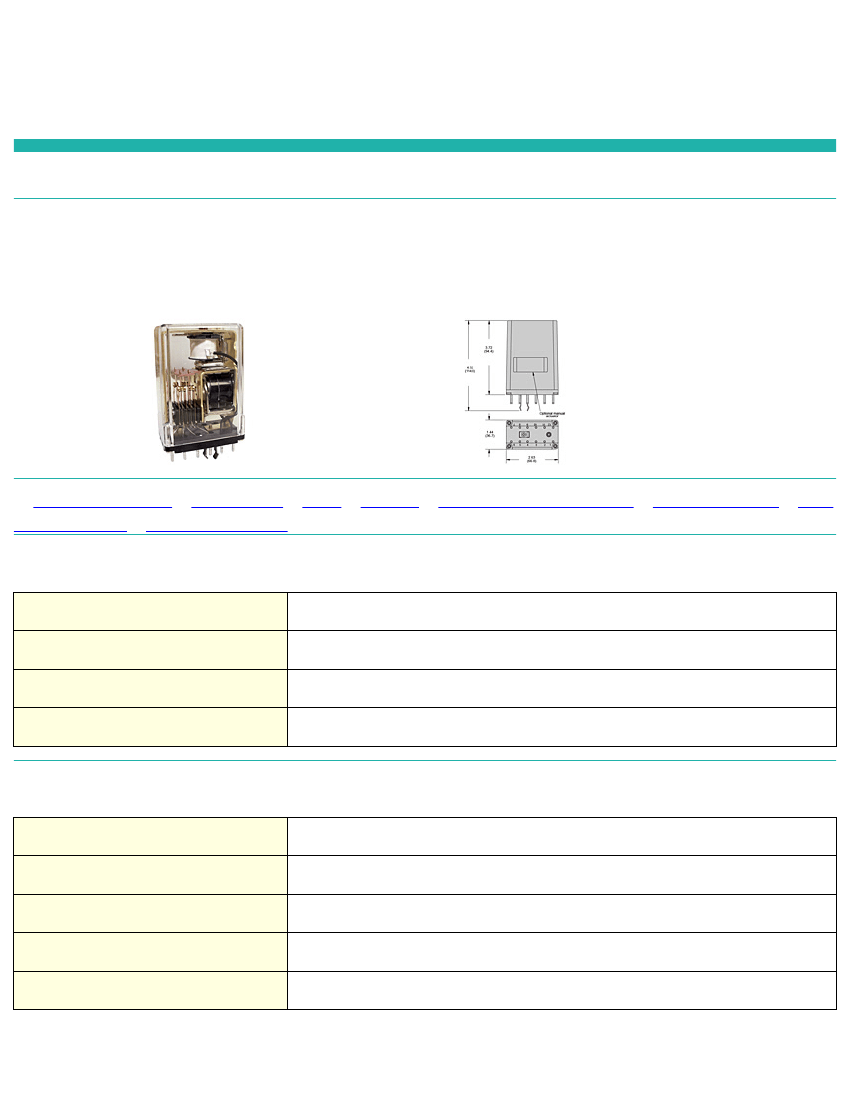

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

Item # 255XBXP-24VDC, 255 Series - Industrial Latching Relays

The 255 Series is a two coil latching version of the general purpose type 219 relay. When the operate coil is momentarily energized, contacts transfer and remain so

even after coil power is removed. The second coil when momentarly energized, provides electrical reset of the contacts. All contacts operate from a common armature

to prevent contatct overlapping. Coils are rated for continous duty. Both coils can be energized at the same time with no damage. The operate coil is dominant.

For Additional Configuration please contact the manufacturer.

SPECIFICATIONS

CONTACTS

COIL

TIMING

DIELECTRIC STRENGTH

TEMPERATURE

LIFE

EXPECTANCY

MISCELLANEOUS

SPECIFICATIONS

Series

255

Contact Arrangement

XBX (DPDT) - (2 form C)

Standard Features

Polycarbonate cover

Coil Voltage

24 VDC

CONTACTS

Contact Configuration

Up to 3PDT or 4PST

Contact Material

Silver Alloy Gold Diffused

Contact Rating

10 A

Contact Rating 120 / 240VAC Resistive

10/5 A

Contact Rating 28VDC Resistive

28 A

7/31/2013 | Page 1 of 3
