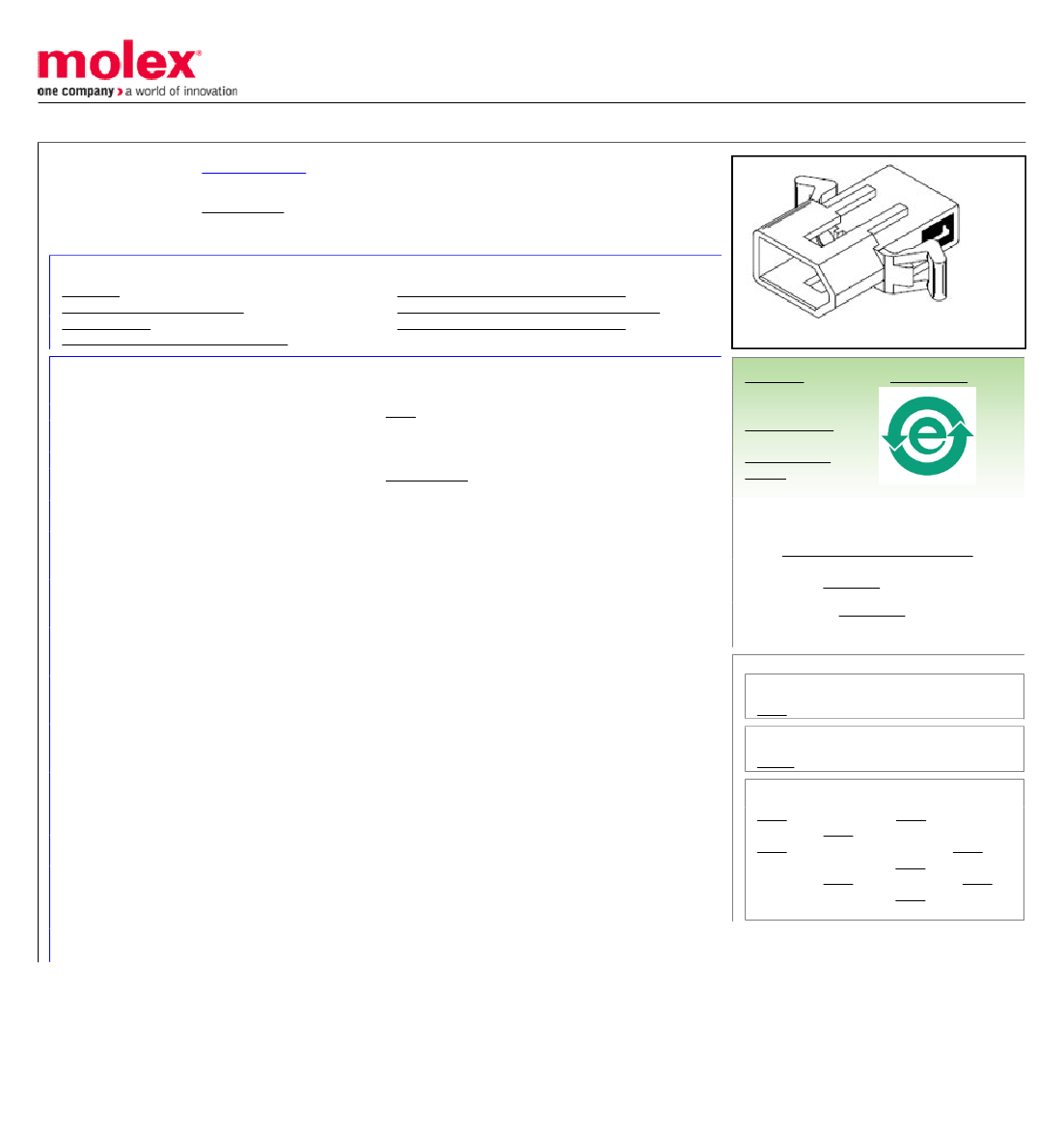

Part Number:
Status:
Overview:
Description:
0003092021
Active
standard_093
2.36mm (.093") Diameter Standard .093" Pin and Socket Plug Housing, 2 Circuits, With
Standard Mounting Ears
Documents:
3D Model
Packaging Specification (PDF)

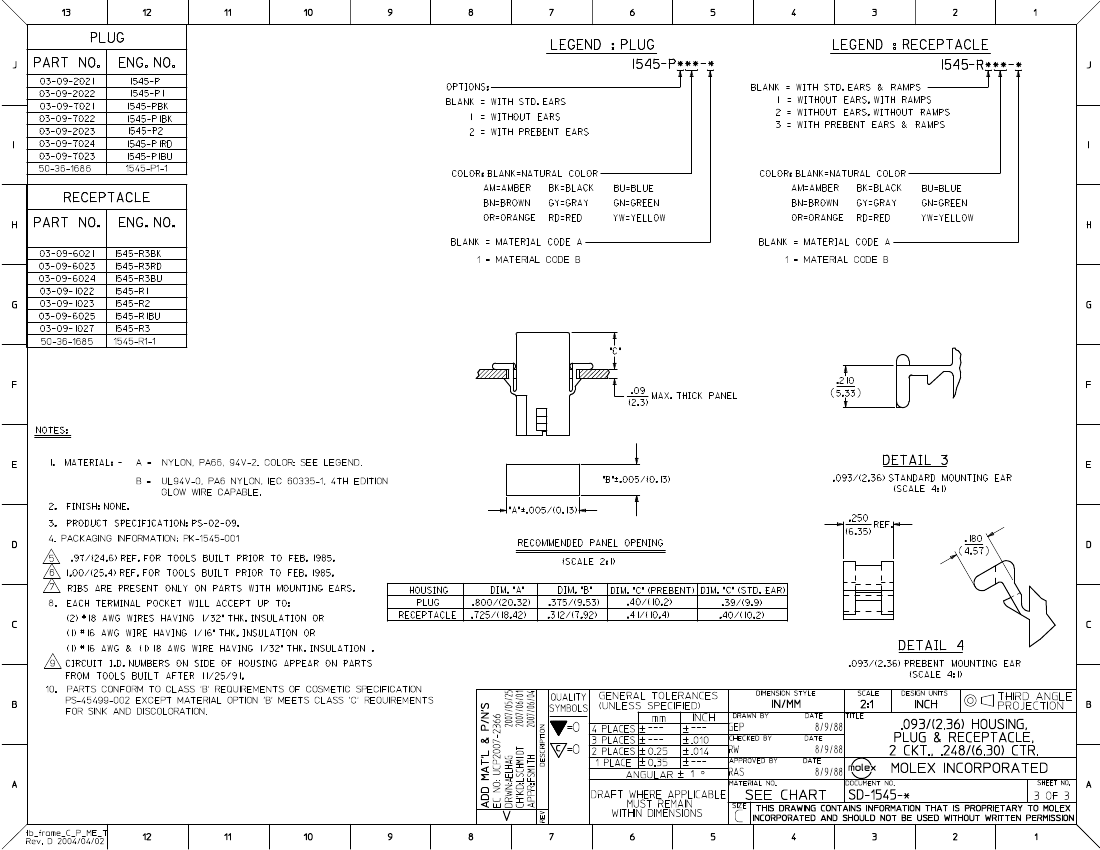

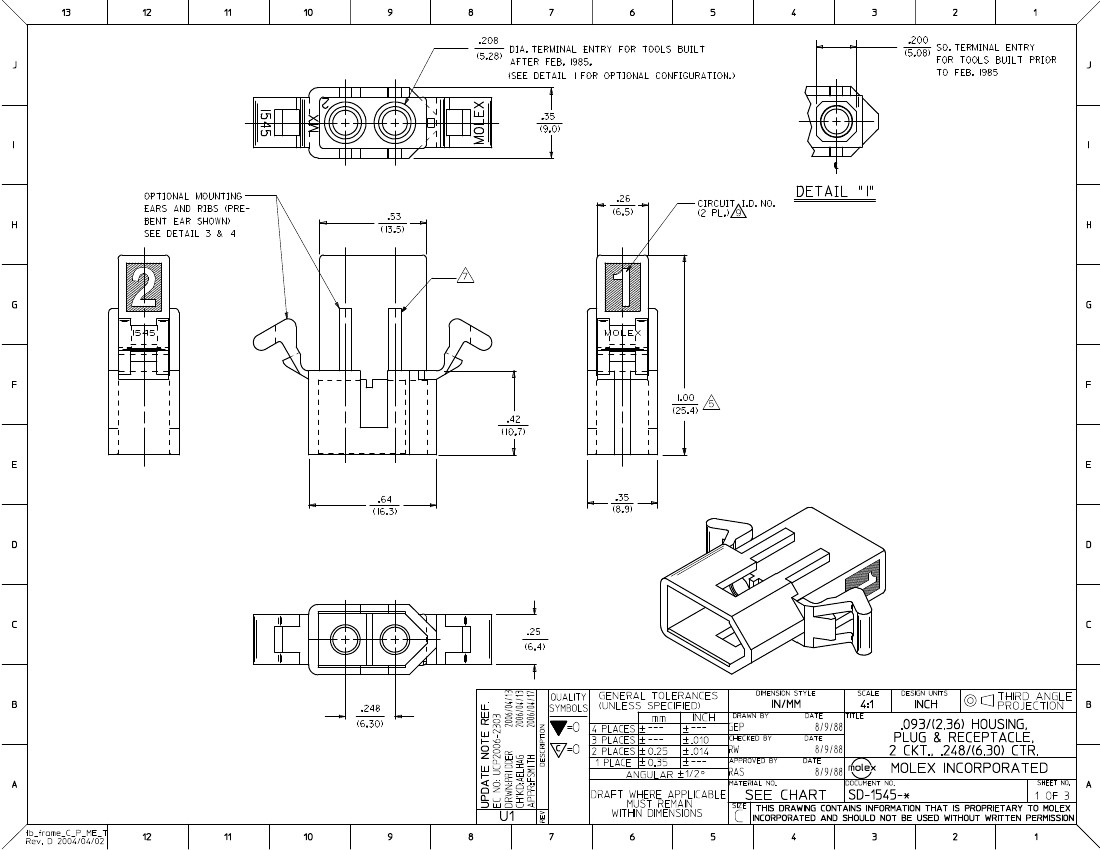

Drawing (PDF)
Product Specification PS-02-09 (PDF)
Product Specification PS-42477 (PDF)
Product Specification PS-43660-9999 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
General
Product Family
Series
Comments
MolexKits
Overview
Product Name
Crimp Housings
1545
Polarized to Mating Part, 17.0A max. can be achieved
when housing is used with 42477 or 42478 terminals
Yes
standard_093
Standard .093"
Physical
Breakaway
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Stackable
Temperature Range - Operating
No
2
1x2
Natural
Dual
No
None
Yes
Nylon
1
Bag
Yes
0.248 In
6.30 mm
No
-40°C to +105°C
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
1545Series
Mates With
42191 Pin and Socket Receptacle
Use With
1189 Crimp Terminals, 1190 Crimp
Terminals, 1376 Male PC Tail Terminals,
1377 Female PC Tail Terminals, 1380
Male Crimp Terminals, 1381 Female Crimp
Terminals, 1433 Crimp Terminals, 1434
Male Crimp Terminals, 1973 Male Crimp
Terminals
Electrical
Current - Maximum per Contact
14A
Material Info
Old Part Number
1545-P
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-1545-001
PS-02-09, PS-42477, PS-43660-9999
SD-1545-*
