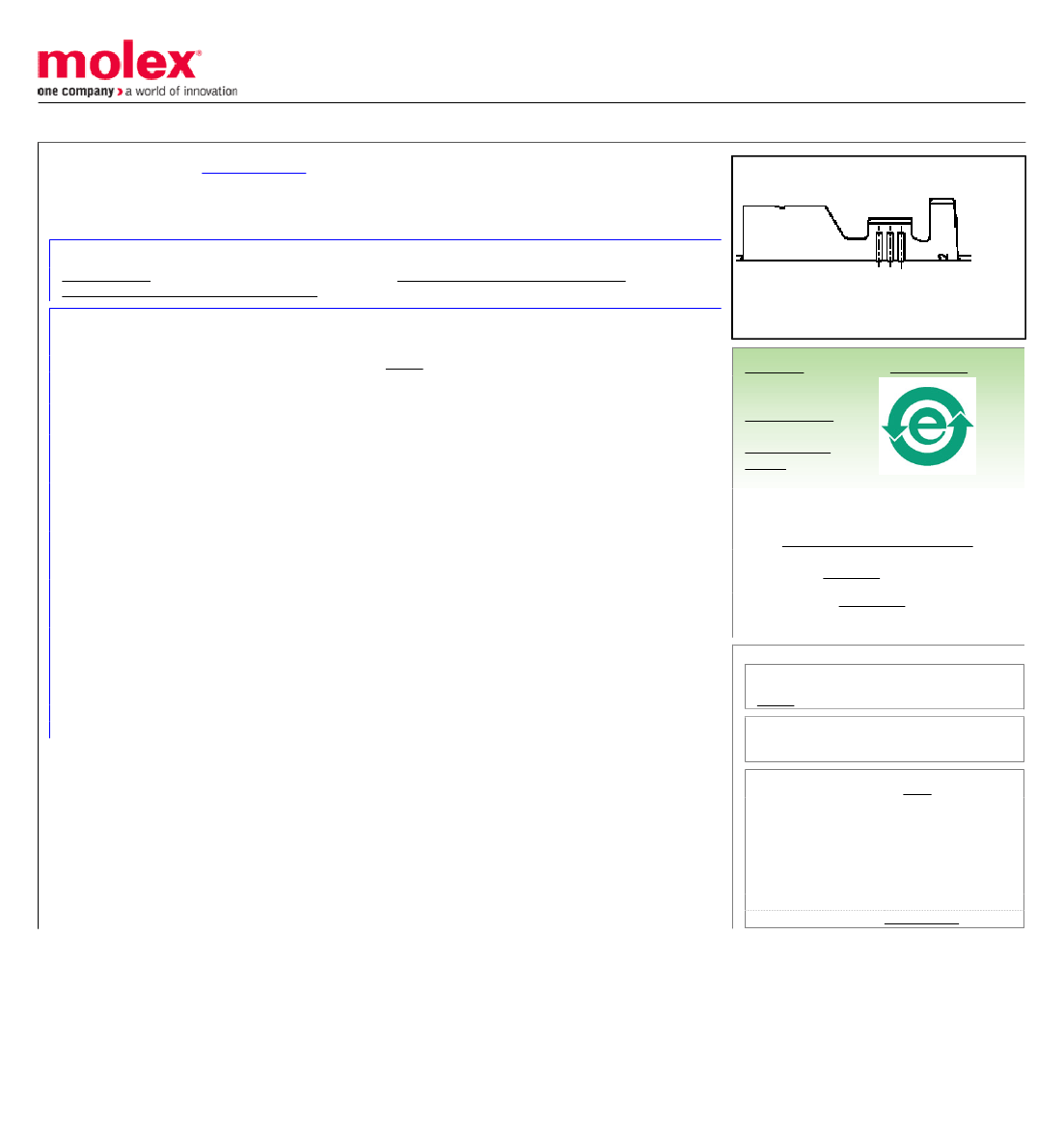

Part Number:
Status:
Description:
0357303130
Active
3.96mm (.156") Diameter Pin Terminal, Brass, 0.40mm (.016") Thickness, Wire Range
14-20 AWG (2.00-0.52mm²), Flash Au Plated
Documents:

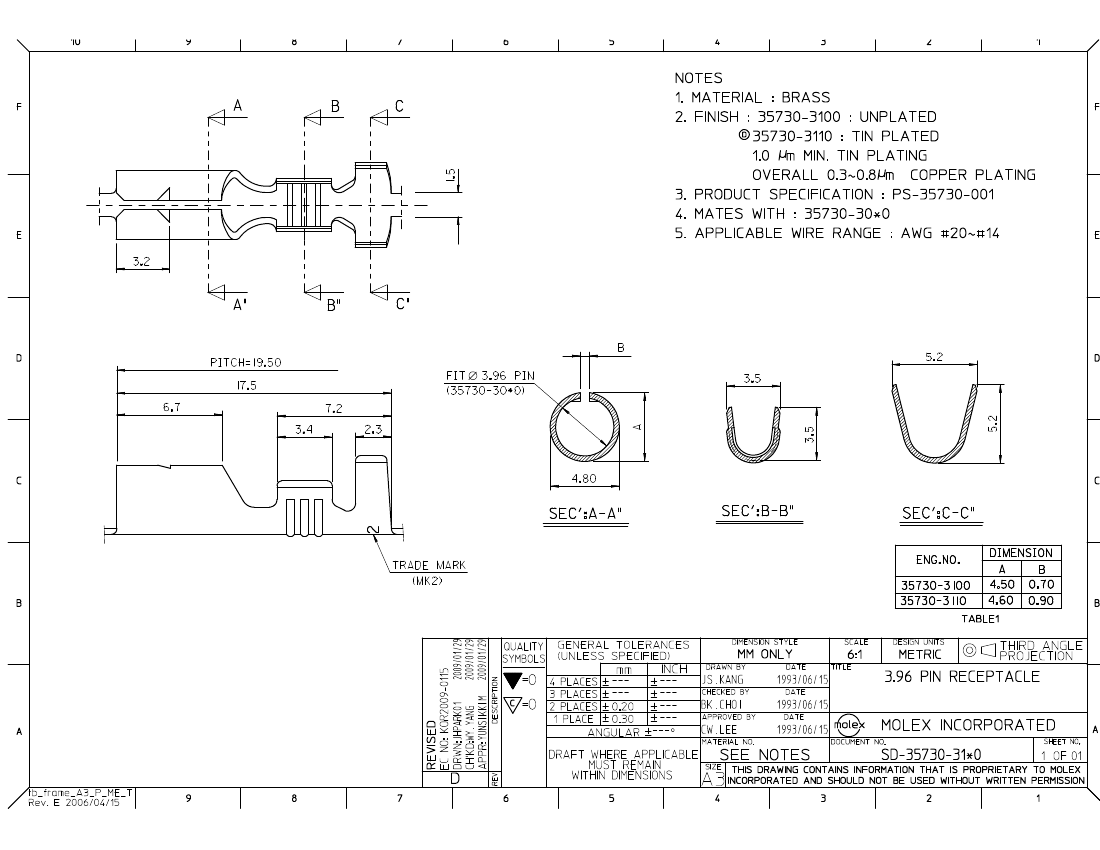

Drawing (PDF)
Product Specification PS-35730-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Crimp Quality Equipment
Product Name
Crimp Terminals
35730
Yes
N/A
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Brass
Gold
Gold
Reel
1.2
0.03
1.2
0.03
Crimp or Compression
3.50mm (.138") max.
14, 16, 18, 20
N/A
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-35730-001
SD-35730-31*0
Search Parts in this Series
35730Series
Mates With
35730-30*0
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Japan
Description
Product #
End-Feed Applicator 0573243000
