MABA-007569-ETK42T
E-Series RF 1:4 Transmission Line Step-up Transformer
2-1000 MHz
Features
Surface mount
Wide frequency range
1:4 impedance
CT on Secondary
Lead Free
RoHS* Compliant and is 260
0
C reflow compatible.
Available on Tape and Reel, reel quantity 2000
M/A-COM Products
Rev. V2
SM-22 package
123
Description
M/A-COM’s MABA-007569-ETK42T is a RoHS compli-
ant 1:4 RF transmission line transformer in a low cost,
surface mount package. The windings of the MABA-
007569-ETK4-2T are welded to the package substrate
for improved reliability and to eliminate lead content.
Ideally suited for high volume cellular and wireless
application. Parts are packaged in tape & reel.
5
4

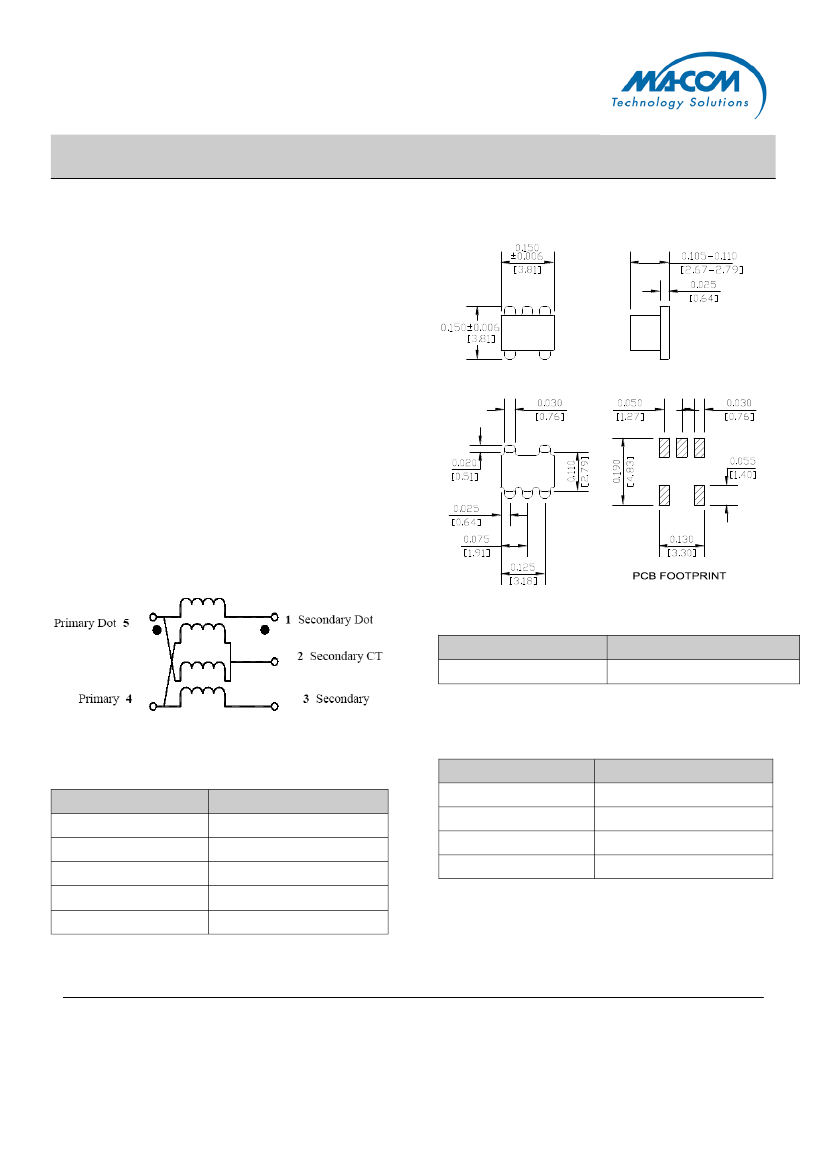

Schematic
Ordering Information
Part Number
MABA-007569-ETK4-2T
Package
2000 piece reel
Note: Reference Application Note M513 for reel size information.
Absolute Maximum Ratings
1,2
Pin Configuration
Pin No.
1
2
3
4
5
Function
Secondary Dot
Secondary CT
Secondary
Primary
Primary Dot
Parameter
DC Power
DC Current
Operating Temperature
Storage Temperature
Absolute Maximum
250 mW
30 mA
-40°C to +85°C
-55°C to +125°C
1. Exceeding any one or combination of these limits may cause
permanent damage to this device.
2. M/A-COM does not recommend sustained operation near
these survivability limits.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MABA-007569-ETK42T
E-Series RF 1:4 Transmission Line Step-up Transformer
2-1000 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50Ω
Parameter
RF Frequency
Insertion Loss
Test Conditions
-
-
Test Conditions
2.0 - 1000
5.0 - 250
3.0 - 500
2.5 - 700
2.0 - 1000
2.0 - 300
300 - 1000
2.0 - 300
300 - 1000
Units
MHz
dB
dB
dB
dB
dB
Degrees
Min
-
-
-
-
-
-
Typ
-
0.32
-
-
-
-
Max
-
1.0
2.0
3.0
4.0
0.3
2.0
5
20
M/A-COM Products
Rev. V2
Amplitude Unbal-
ance
Phase Unbalance
-
-

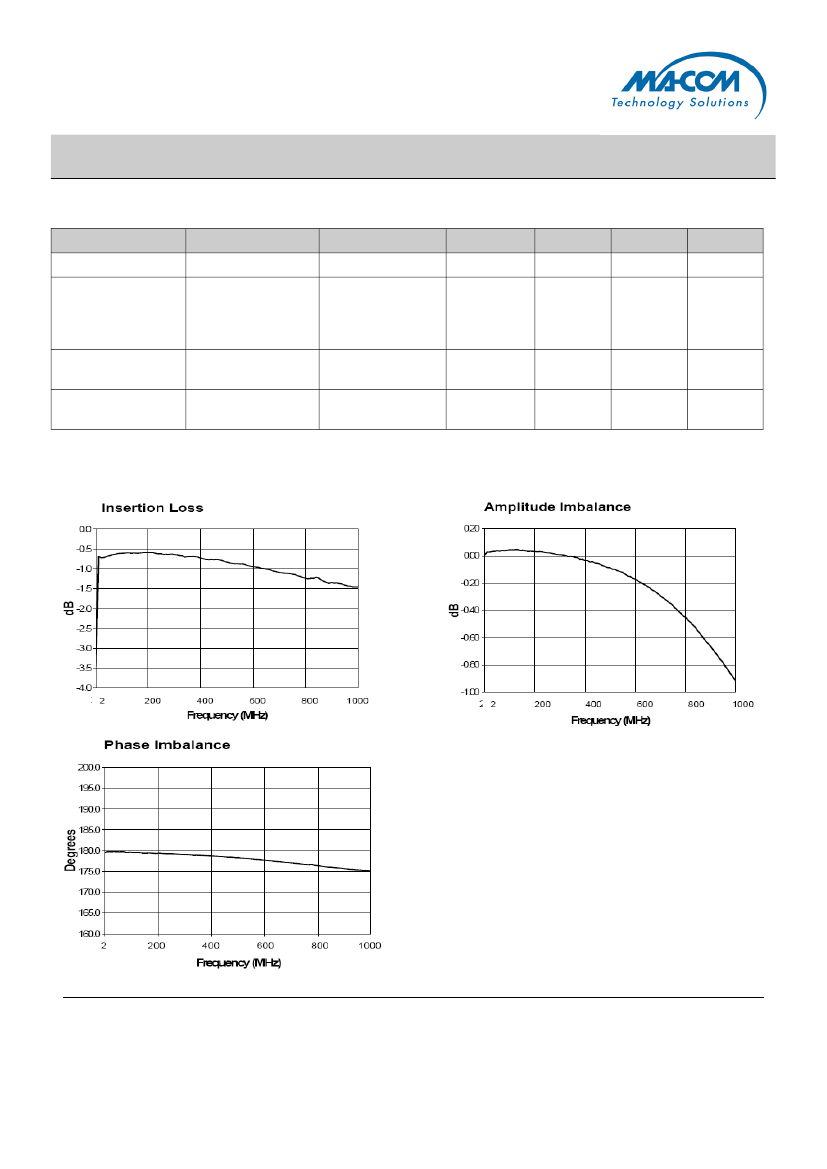

Typical Performance Curves
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MABA-007569-ETK42T
E-Series RF 1:4 Transmission Line Step-up Transformer
2-1000 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 75Ω
Parameter
RF Frequency
Insertion Loss
Test Conditions
-
-
Test Conditions
2.0 - 1000
8 - 250
5 - 500
4 - 700
700 - 1000
2.0 - 300
300 - 1000
2.0 - 300
300 - 1000
Units
MHz
dB
dB
dB
dB
dB
dB
Degrees
Degrees
Min
-
-
-
-
-
-
-
-
-
Typ
-
-
-
-
-
-
-
-
-
Max
-
1.0
2.0
3.0
4.5
0.3
2.0
5
20
M/A-COM Products
Rev. V2
Amplitude Unbalance
Phase Unbalance
-
-

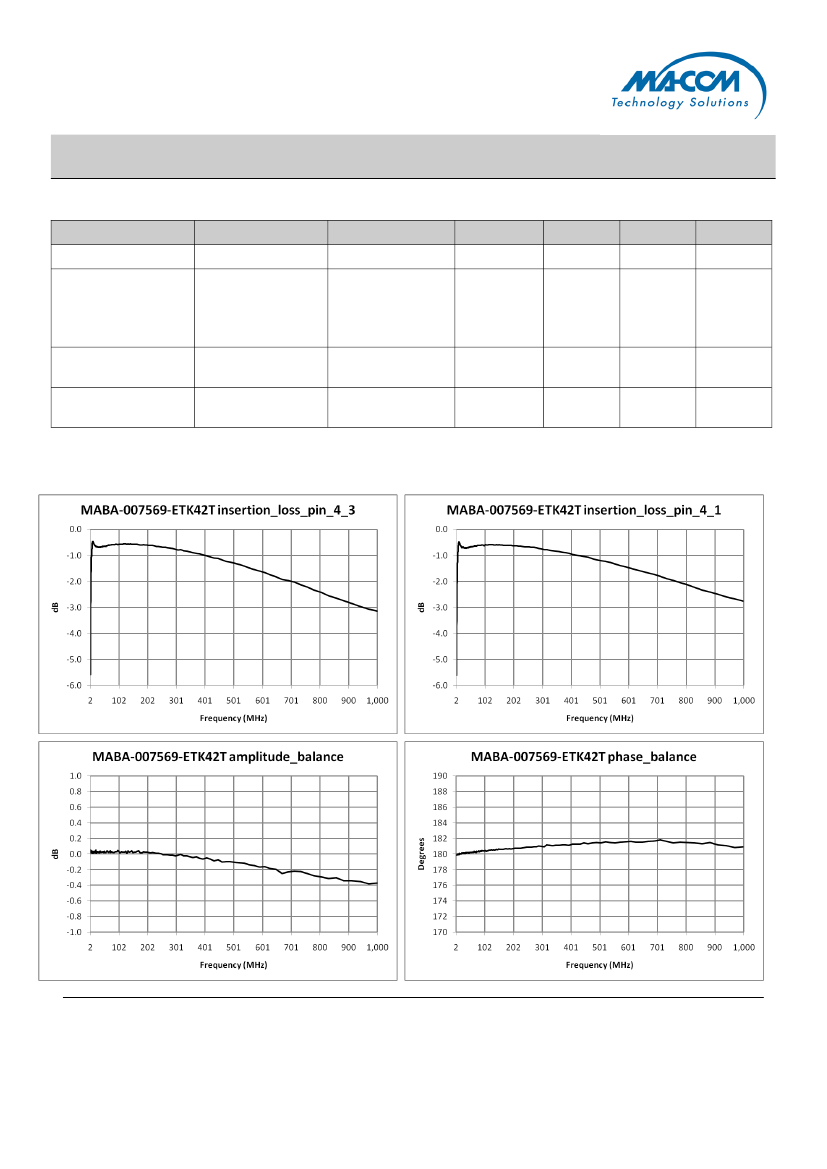

Typical Performance Curves
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MABA-007569-ETK42T
E-Series RF 1:4 Transmission Line Step-up Transformer
2-1000 MHz
M/A-COM Products
Rev. V2
Tape & Reel Information
Parameter
Qty per reel
Reel size
Tape width (W)
Pitch (P
1
)
A
0
B
0
K
0
Orientation
Units
-
mm
mm
mm
mm
mm
mm
-
Value
2000
330
12.00
8.00
4.0
4.3
2.9
F5
Ordering Information
Part Number
MABA-007569-ETK42T
Description
Tape & Reel
Recommended Maximum Ratings
Parameter
Input Power
DC Current
Operating Temperature Range
Temperature data available on request
Units
mW
mA
ºC
Min
Max
250
200
-40
+85
Reference Application note ANI-019 for orientation
4
