DATA SHEET
PHOTOCOUPLER
PS8821-1,-2
1 Mbps ANALOG OUTPUT TYPE
8-PIN SSOP (SO-8)
HIGH-SPEED PHOTOCOUPLER
DESCRIPTION
The PS8821-1, -2 are optically coupled isolators containing a GaAlAs LED on the light emitting diode (input side)
and a PIN photodiode and a high-speed amplifier transistor on the output side on one chip.
The PS8821-2 is suitable for high density applications.
−NEPOC
Series−
FEATURES
• 40% reduction of mounting area (5-pin SOP
×
2)
• Low power consumption (V
CC
= 3.3 V)
• High isolation voltage (BV = 2 500 Vr.m.s.)
• High-speed response (t
PHL
= 0.6
μ
s MAX., t
PLH
= 0.9
μ
s MAX.)
• Ordering number of tape product: PS8821-1-F3, F4: 1 500 pcs/reel
: PS8821-2-F3, F4: 1 500 pcs/reel
• Pb-Free product
• Safety standards
• UL approved: File No. E72422
• DIN EN60747-5-2 (VDE0884 Part2) approved (Option)
8
1
8

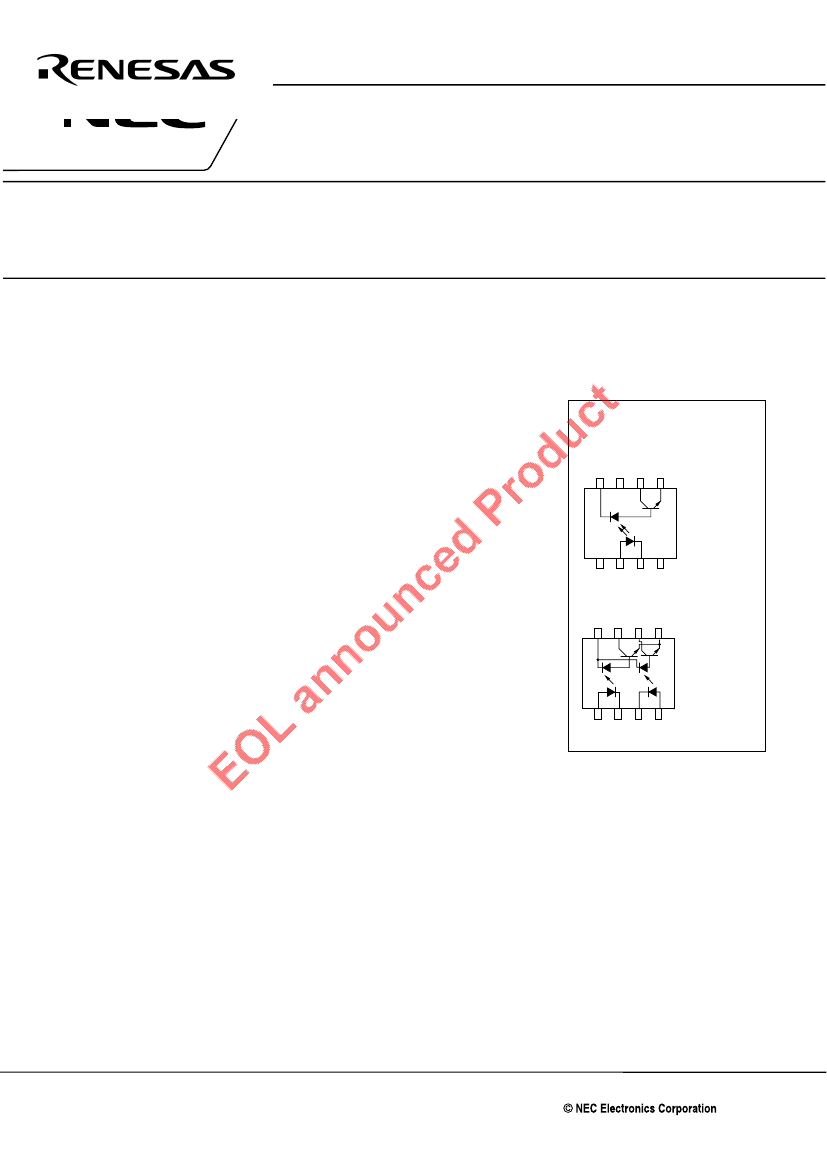

PIN CONNECTION
(Top View)
7
PS8821-1
6 5
1. NC
2. Anode
3. Cathode
4. NC
5. GND
6. V
O
7. NC
8. V
CC
3 4
PS8821-2
6 5
1. Anode1
2. Cathode1
3. Cathode2
4. Anode2
5. GND
6. V
O
2
7. V
O
1
8. V
CC
3 4
2
7
APPLICATIONS
• Power over Ethernet
• Computer and peripheral manufactures
• Substitutions for relays and pulse transformers
• Power supply
1
2
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. PN10591EJ03V0DS (3rd edition)
Date Published August 2008 NS
Printed in Japan
The mark <R> shows major revised points.
2006, 2008
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.

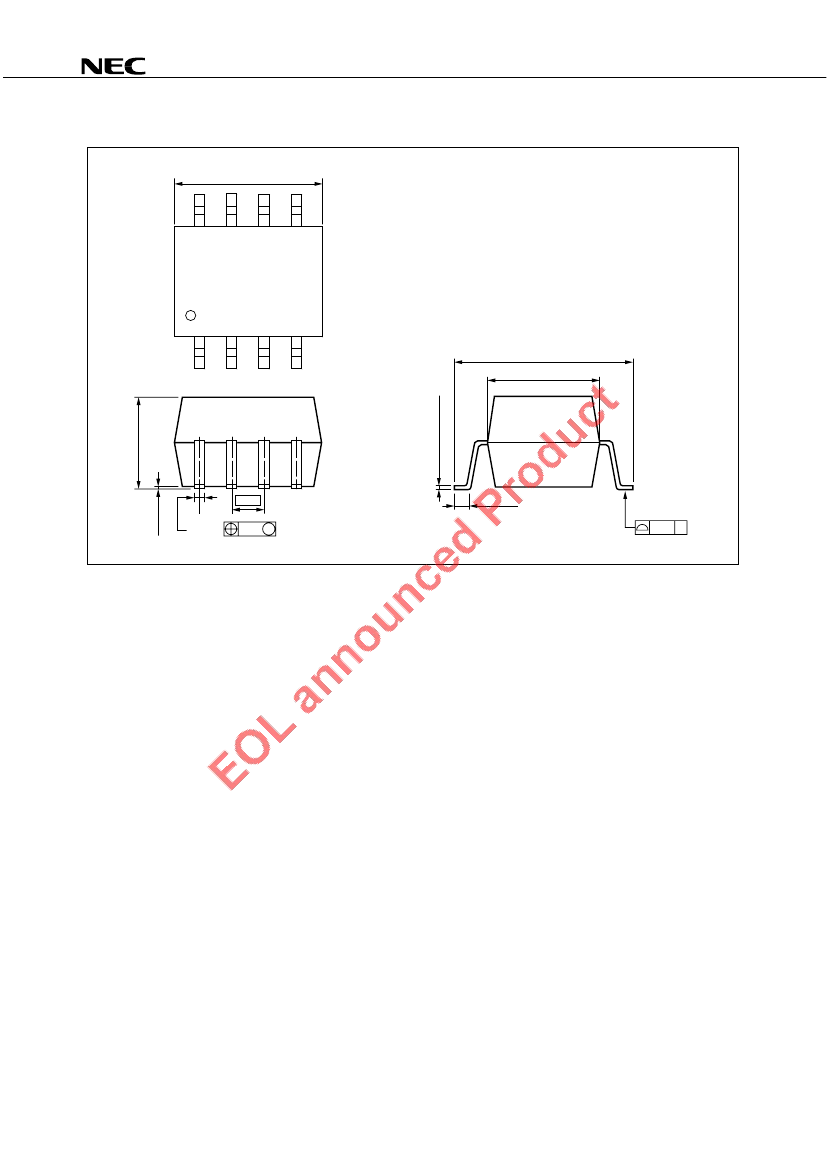

PS8821-1,-2
<R>
ORDERING INFORMATION
Part Number
Order Number
Solder Plating
Specification
Pb-Free
(SnBi)
Packing Style
Safety Standard
Approval
Standard products
(UL approved)
Application
*1
Part Number
PS8821-1
PS8821-1
PS8821-1-F3
PS8821-1-F4
PS8821-2
PS8821-2-F3
PS8821-2-F4
PS8821-1-V
PS8821-1-V-F3
PS8821-1-V-F4
PS8821-2-V
PS8821-2-V-F3
PS8821-2-V-F4
PS8821-1
PS8821-1-F3
PS8821-1-F4
PS8821-2
PS8821-2-F3
PS8821-2-F4
PS8821-1-V
PS8821-1-V-F3
PS8821-1-V-F4
PS8821-2-V
PS8821-2-V-F3
PS8821-2-V-F4
PS8821-1-A
PS8821-1-F3-A
PS8821-1-F4-A
PS8821-2-A
PS8821-2-F3-A
PS8821-2-F4-A
PS8821-1-V-A
PS8821-1-V-F3-A
PS8821-1-V-F4-A
PS8821-2-V-A
PS8821-2-V-F3-A
PS8821-2-V-F4-A
PS8821-1-AX
PS8821-1-F3-AX
PS8821-1-F4-AX
PS8821-2-AX
PS8821-2-F3-AX
PS8821-2-F4-AX
PS8821-1-V-AX
PS8821-1-V-F3-AX
PS8821-1-V-F4-AX
PS8821-2-V-AX
PS8821-2-V-F3-AX
PS8821-2-V-F4-AX
20 pcs (Tape 20 pcs cut)
Embossed Tape 1 500 pcs/reel
20 pcs (Tape 20 pcs cut)
Embossed Tape 1 500 pcs/reel
PS8821-2
20 pcs (Tape 20 pcs cut)
Embossed Tape 1 500 pcs/reel
DIN EN60747-5-2
(VDE0884 Part2)
Approved (Option)
PS8821-1
20 pcs (Tape 20 pcs cut)
Embossed Tape 1 500 pcs/reel
PS8821-2
Pb-Free
(Ni/Pd/Au)
20 pcs (Tape 20 pcs cut)
Embossed Tape 1 500 pcs/reel
Standard products
(UL approved)
PS8821-1
20 pcs (Tape 20 pcs cut)
Embossed Tape 1 500 pcs/reel
PS8821-2
20 pcs (Tape 20 pcs cut)
Embossed Tape 1 500 pcs/reel
DIN EN60747-5-2
(VDE0884 Part2)
Approved (Option)
PS8821-1
20 pcs (Tape 20 pcs cut)
Embossed Tape 1 500 pcs/reel
PS8821-2
*1
For the application of the Safety Standard, following part number should be used.
4
Data Sheet PN10591EJ03V0DS
PS8821-1,-2
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Parameter
Diode
Forward Current
Reverse Voltage
Power Dissipation
Detector
Supply Voltage
Output Voltage
Output Current
Power Dissipation
Isolation Voltage
*3
*2
*1
Symbol
I
F
V
R
P
D
V
CC
V
O
I
O
P
C
BV
T
A
T
stg
Ratings
25
5.0
45
7
7
8.0
100
2 500
–55 to +100
–55 to +125
Unit
mA/ch
V/ch
mW/ch
V
V/ch
mA/ch
mW/ch
Vr.m.s.
°C
°C
Operating Ambient Temperature
Storage Temperature
*1
Reduced to 0.45 mA/°C at T
A
= 25°C or more.
*2
Reduced to 1.00 mA/°C at T
A
= 25°C or more.
*3
AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output.
Pins 1-4 shorted together, 5-8 shorted together.
RECOMMENDED OPERATING CONDITIONS
Parameter
Supply Voltage
Forward Current (ON)
Input Voltage (OFF)
Symbol
V
CC
I
F (ON)
V
F (OFF)
MIN.
3.0
16
0
TYP.
3.3
MAX.
3.6
20
0.8
Unit
V
mA
V
Data Sheet PN10591EJ03V0DS
5
