LT06YD106KAT9: DescriptionCeramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, 15% TC, 10uF, Surface Mount, 1206, CHIP; CategoryPassive components capacitor; File Size38KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

LT06YD106KAT9 Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, 15% TC, 10uF, Surface Mount, 1206, CHIP

LT06YD106KAT9 Parametric

Parameter Name	Attribute value
Maker	AVX
package instruction	, 1206
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	10 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	LT
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
size code	1206
surface mount	YES
Temperature characteristic code	X5R
Temperature Coefficient	15% ppm/°C
Terminal surface	TIN OVER NICKEL
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

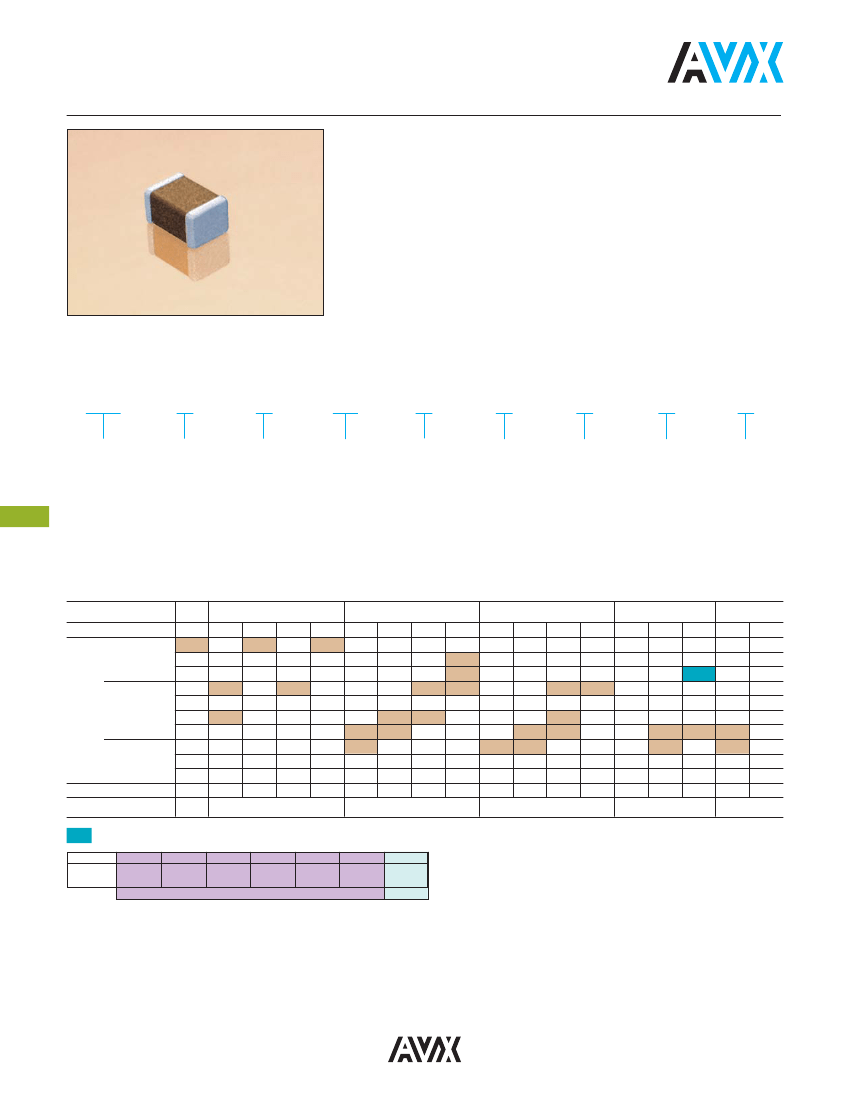

MLCC Low Profile

General Specifications

GENERAL DESCRIPTION

AVX introduces the LT series comprising a range of low profile

products in our X5R and X7R dielectric. X5R is a Class II dielectric

with temperature varation of capacitance within ±15% from –55°C to

+85°C. Offerings include 0201, 0402, 0603, 0805 1206, and 1210

packages in compact, low profile designs. The LT series is ideal for

decoupling and filtering applications where height clearance is limited.

AVX is also expanding the low profile products in our X7R dielectric.

X7R is a Class II dielectric with temperature variation of capacitance

within ±15% from -55ºC to +125ºC. Please contact the factory for

availability of any additional values not listed.

PART NUMBER

(see page 2 for complete part number explanation)

LT05

Size

LT01 - 0201

LT02 - 0402

LT03 - 0603

LT05 - 0805

LT06 - 1206

LT10 - 1210

Voltage

4V = 4

6.3V = 6

10V = Z

16V = Y

25V = 3

Dielectric

X5R = D

X7R = C

475

Capacitance

Code (In pF)

2 Sig. Digits +

Number of

Zeros

Capacitance

Tolerance

K = ±10%

M = ±20%

Failure

Rate

A = Not

Applicable

Terminations

T = Plated Ni

and Sn

Special

Packaging

Code

2 = 7" Reel

See table below

4 = 13" Reel

7 = Bulk Cass.

9 = Bulk

Contact

Factory

For

Multiples

NOTE: Contact factory for availability of tolerance options for specific part numbers.

SIZE

Cap

(μF)

WVDC

104

0.10

0.22

0.47

105

1.0

1.5

2.2

4.7

106

WVDC

LT01

LT02

6.3

LT03

6.3

LT05

LT06

LT10

X/W

6.3

SIZE

= X7R

Letter

Max.

Thickness

0.15

(0.006)

LT01

LT02

LT03

LT05

LT06

LT10

0.22

(0.009)

0.25

0.36

(0.010)

(0.014)

PAPER

0.56

(0.022)

0.95

(0.038)

1.02

(0.040)

EMBOSSED
