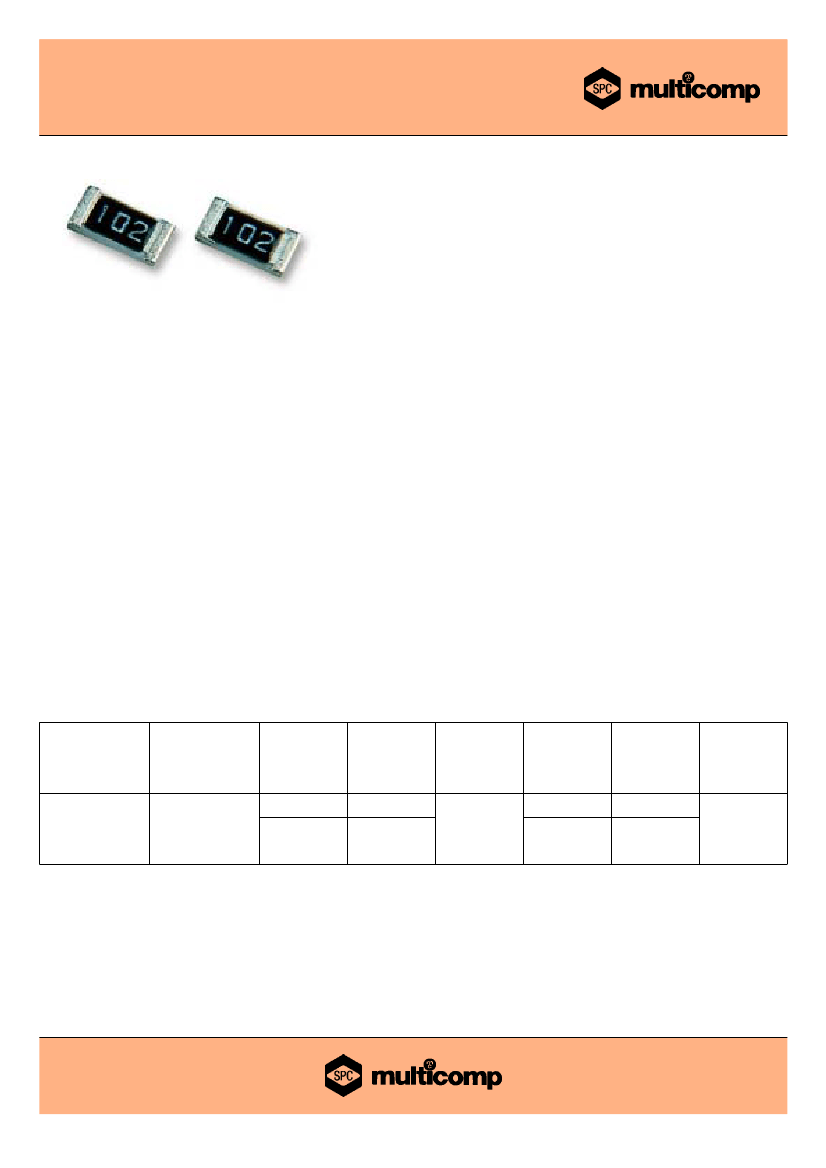

Thick
Film Chip Resistors
Thick
Film Chip Resistors
Features:
•
•
•
Small size and light weight.
Suitable for both flow and reflow soldering.
Reduction of assembly costs and matching with placement machines.
Performance Specifications:
Temperature coefficient
Short-time overload
Minimum Insulation resistance
Dielectric withstanding voltage
Terminal bending
Soldering heat
Minimum solderability
Temperature cycling
Humidity (Steady state)
Load life in humidity
Load life
: ±5%: 1Ω ~ 10Ω
≤
±200PPM/°C
±1%: 10Ω ~ 100Ω
≤
±200PPM/°C; 101Ω ~ 1MΩ
≤
±100PPM/°C.
: ±5%: ±(2.0% +0.1Ω) Maximum
±1%: ±(1.0% +0.1Ω) Maximum.
: 1000 Megaohm.
: No evidence of flashover, mechanical damage, arcing or insulation breakdown.
: ±(1.0% +0.05Ω) Maximum .
: ±(1.0% +0.05Ω) Maximum.
: 95% coverage.
: ±5%: ±(1.0% +0.05Ω) Maximum
±1%: ±(0.5% +0.05Ω) Maximum.
: ±5%: ±(3.0% +0.1Ω) Maximum
: ±1%: ±(0.5% +0.1Ω) Maximum.
: ±5%: ±(3.0% +0.1Ω) Maximum
±1%: ±(1.0% +0.1Ω) Maximum.
: ±5%: ±(3.0% +0.1Ω) Maximum
±1%: ±(1.0% +0.1Ω) Maximum.
*The values which are not of standard E-24 series (2% & 5%) and not of E-96 series (1%) could be offered on a case to case basis.
Specification Table
Type
Power
Rating at 70°C
(W)
Maximum
Working
Voltage
(V)
1A
0402
1/16
50
100
Maximum
Overload
Voltage
(V)
2A
-55 to +155
Operating
Temperature
(°C)
Tolerance
(%)
Jumper
±1
±2
±5
Resistance
Range
<50mΩ
10Ω - 1MΩ
1Ω - 10MΩ
1Ω - 10MΩ
Standard
Series
E96
E24
E24
Page 1
29/08/07 V1.1

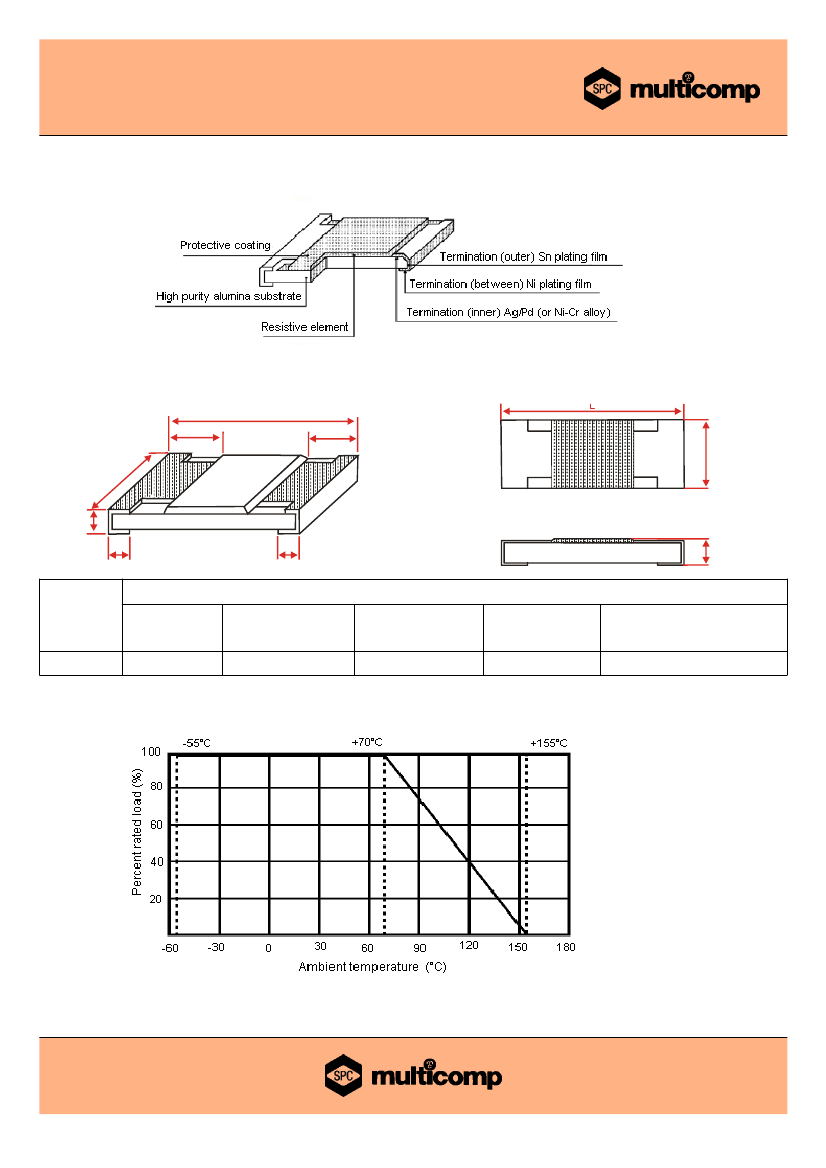

Thick Film Chip Resistors
Marking on the Resistors Body
•
•
For 0402 size, no marking on the body due to the small size of resistor.
±5% tolerance product. (Including resistance values less than 1Ω; both 1% and 5%) The marking is 3 digits, the first 2 digits are
the significant figures of the resistance and the 3rd digit denotes number of zeros.
153
= 15000Ω = 15KΩ;
120
= 12Ω
Below 10Ω shown as this:
6R8
= 6.8Ω
153
6R8
Resistance Preferred Value Range
E6
10
E12
10
E24
10
E96
10.0
10.2
10.5
10.7
11
11.0
11.3
11.5
11.8
12
12
12.1
12.4
12.7
13
13.0
13.3
13.7
14.0
14.3
14.7
15
15
15
15.0
15.4
15.8
16
16.2
16.5
16.9
17.4
17.8
18
18
18.2
18.7
19.1
19.6
20
20.0
20.5
21.0
Above values in accordance with IEC Publication 63 (1963) and BS2488
43
39
39
36
33
33
33
30
27
27
24
E6
22
E12
22
E24
22
E96
21.5
22.1
22.6
23.2
23.7
24.3
24.9
25.5
26.1
27.7
27.4
28.0
28.7
29.4
30.1
30.9
31.6
32.4
33.2
34.0
34.8
35.7
36.5
37.4
38.3
39.2
40.2
41.2
42.2
43.2
44.2
45.3
91
82
82
75
68
68
68
62
56
56
51
E6
47
E12
47
E24
47
E96
46.4
47.5
48.7
49.9
51.1
52.3
53.6
54.9
56.2
57.6
59.0
60.4
61.9
63.4
64.9
66.5
68.1
69.8
71.5
73.2
75.0
76.8
78.7
80.6
82.5
84.5
86.6
88.7
90.9
93.1
95.3
97.6
Page 3
29/08/07 V1.1
