ZR40401N850 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ZR40401N850

ZR40401N850: DescriptionTwo Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8; CategoryPower/power management The power supply circuit; File Size181KB，4 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

ZR40401N850 Overview

Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8

ZR40401N850 Parametric

Parameter Name	Attribute value
Maker	Diodes Incorporated
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.05 V
Minimum output voltage	4.95 V
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	100 ppm/°C
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Fine-tuning/adjustable output	NO
width	3.9 mm

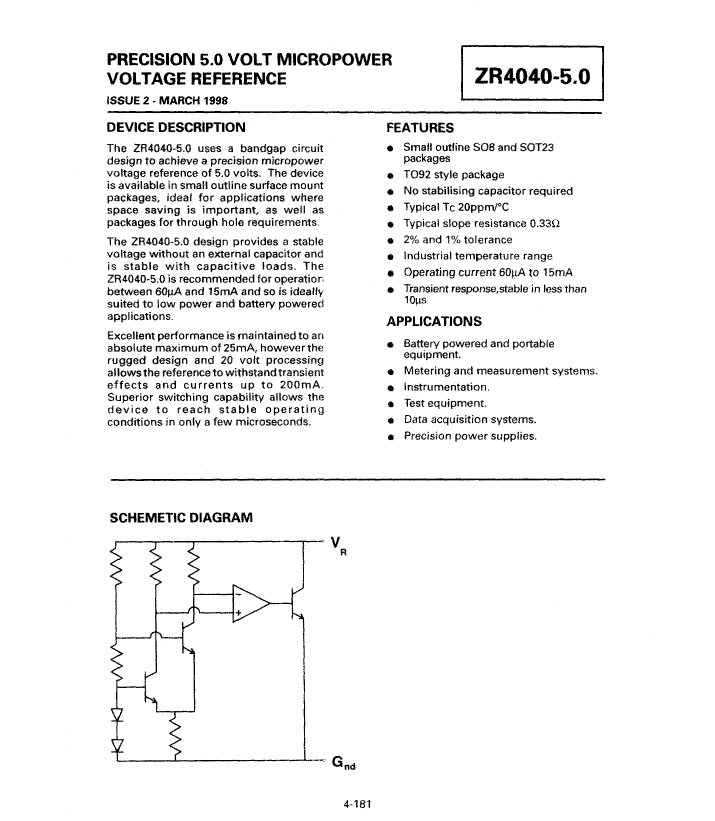

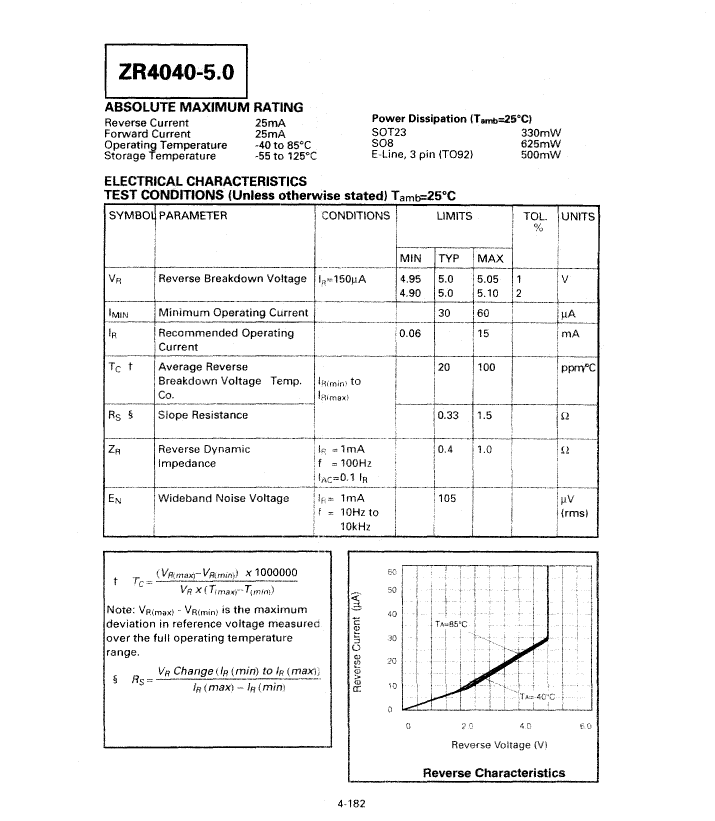

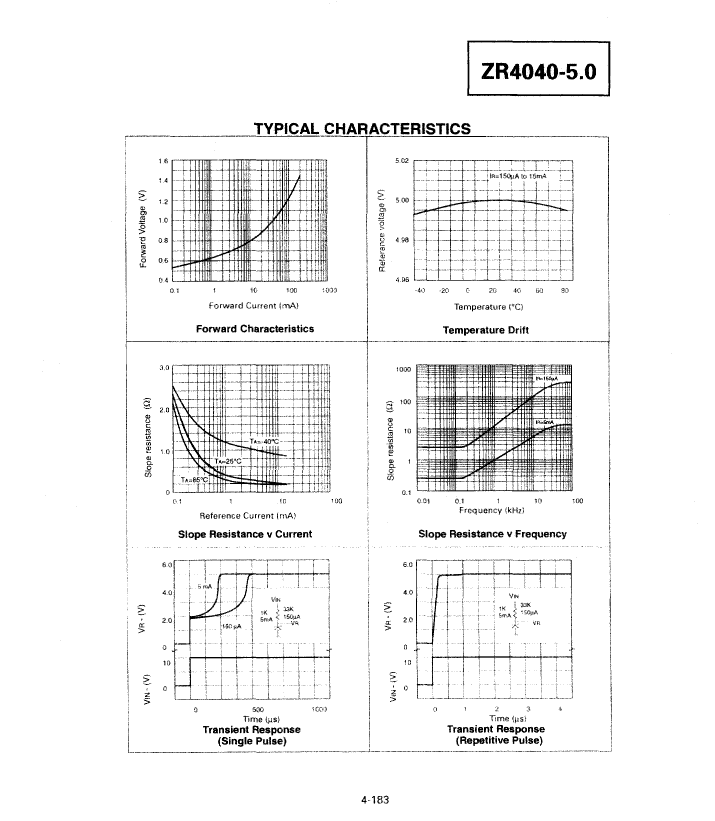

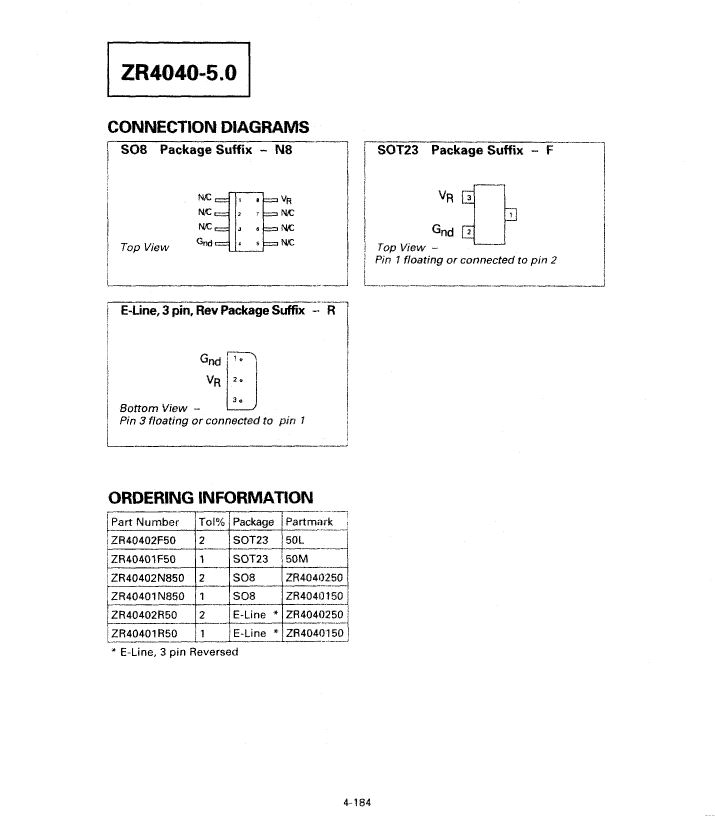

Preview

Download Datasheet

View All

ZR40401N850 Related Products

	ZR40401N850	ZR40401N850TC	ZR40402N850	ZR40402N850TC
Description	Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8	Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8	Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8	Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8
Maker	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	SOP,
Contacts	8	8	8	8
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	4.9 mm	4.9 mm	4.9 mm	4.9 mm
Number of functions	1	1	1	1
Output times	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	5.05 V	5.05 V	5.1 V	5.1 V
Minimum output voltage	4.95 V	4.95 V	4.9 V	4.9 V
Nominal output voltage	5 V	5 V	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm
surface mount	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO	NO
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm
