ZY7015L-T2

Description
DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-25
CategoryPower/power management    The power supply circuit
File Size1MB,34 Pages
ManufacturerBel Fuse
Download Datasheet Parametric Compare View All

ZY7015L-T2 Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-25

ZY7015L-T2 Parametric

Parameter NameAttribute value
Brand NamePower-One
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerBel Fuse
Parts packaging codeMODULE
package instruction,
Contacts25
Reach Compliance Codecompli
ECCN codeEAR99
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage13.2 V
Minimum input voltage3 V
Nominal input voltage12 V
JESD-30 codeR-XDMA-X25
JESD-609 codee3/e4
Humidity sensitivity level2
Number of functions1
Output times1
Number of terminals25
Maximum output voltage5.5 V
Minimum output voltage0.5 V
Nominal output voltage0.5 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)220
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Terminal surfaceMATTE TIN/SILVER (59) OVER NICKEL (59)
Terminal formUNSPECIFIED
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Fine-tuning/adjustable outputYES

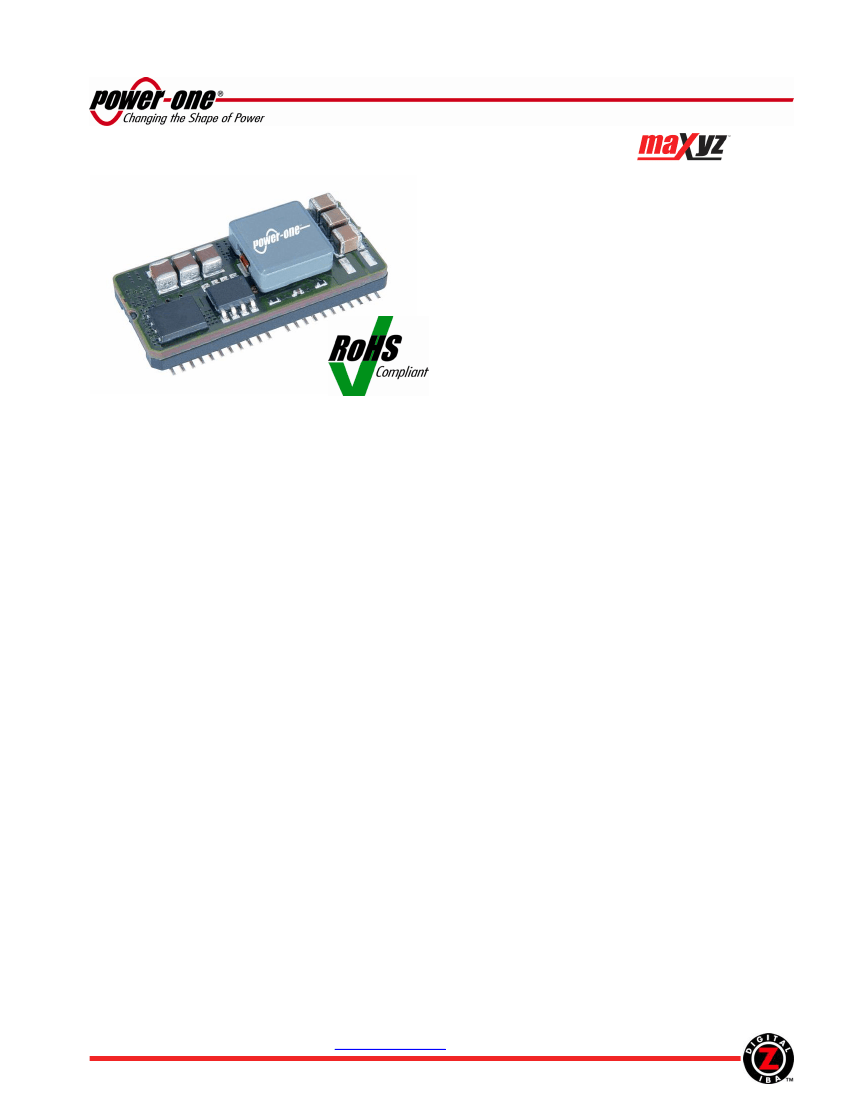

ZY7015 15A DC-DC Intelligent POL Data Sheet
3V to 13.2V Input
0.5V to 5.5V Output
Member of the
Family
Applications
Low voltage, high density systems with
Intermediate Bus Architectures (IBA)
Point-of-load regulators for high performance DSP,
FPGA, ASIC, and microprocessor applications
Desktops, servers, and portable computing
Broadband, networking, optical, and
communications systems
Active memory bus terminators
Benefits
Integrates digital power conversion with intelligent
power management
Eliminates the need for external power
management components
Completely programmable via industry-standard
I
2
C communication bus
One part that covers all applications
Reduces board space, system cost and
complexity, and time to market
Description
Features
RoHS lead free and lead-solder-exempt products are
available
Wide input voltage range: 3V–13.2V
High continuous output current: 15A
Wide programmable output voltage range: 0.5V–5.5V
Active digital current share
Single-wire serial communication bus for frequency
synchronization, programming, and monitoring
Optimal voltage positioning with programmable slope
of the VI line
Overcurrent, overvoltage, undervoltage, and
overtemperature protection with programmable
thresholds and types
Programmable fixed switching frequency 0.5-1.0MHz
Programmable turn-on and turn-off delays
Programmable turn-on and turn-off voltage slew rates
with tracking protection
Programmable feedback loop compensation
Power Good signal with programmable limits
Programmable fault management
Start up into the load pre-biased up to 100%
Full rated current sink
Real time voltage, current, and temperature
measurements, monitoring, and reporting
Small footprint SMT package: 16x32mm
Extremely low profile of 8mm
Compatible with conventional pick-and-place
equipment
Wide operating temperature range
UL 60950-1/CSA 22.2 No. 60950-1-07 Second
Edition, IEC 60950-1: 2005, and EN 60950-1:2006
Power-One‟s point-of-load converters are recommended for use with regulated bus converters in an Intermediate
Bus Architecture (IBA). The ZY7015 is an intelligent, fully programmable step-down point-of-load DC-DC module
integrating digital power conversion and intelligent power management. When used with ZM7300 Series Digital
Power Managers, the ZY7015 completely eliminates the need for external components for sequencing, tracking,
protection, monitoring, and reporting. All parameters of the ZY7015 are programmable via the industry-standard
I
2
C communication bus and can be changed by a user at any time during product development and service.
ZD-00283 Rev. 2.7, 5-May-2011
www.power-one.com
Page 1 of 34

ZY7015L-T2 Related Products

ZY7015L-T2 ZY7015H-T1 ZY7015H-T2 ZY7015H-T3 ZY7015HG-T1 ZY7015HG-T2 ZY7015HG-T3 ZY7015L-T3 ZY7015L-T1
Description DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-25 DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-25 DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-25 DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-25 DC-DC Regulated Power Supply Module, 1 Output, Hybrid, ROHS COMPLIANT PACKAGE-25 DC-DC Regulated Power Supply Module, 1 Output, Hybrid, ROHS COMPLIANT PACKAGE-25 DC-DC Regulated Power Supply Module, 1 Output, Hybrid, ROHS COMPLIANT PACKAGE-25 DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-25 DC-DC Regulated Power Supply Module, 1 Output, Hybrid, PACKAGE-25
Brand Name Power-One Power-One Power-One Power-One Power-One Power-One Power-One Power-One Power-One
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Lead free Lead free Lead free Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible conform to conform to conform to incompatible incompatible
Maker Bel Fuse Bel Fuse Bel Fuse Bel Fuse Bel Fuse Bel Fuse Bel Fuse Bel Fuse Bel Fuse
Parts packaging code MODULE MODULE MODULE MODULE MODULE MODULE MODULE MODULE MODULE
Contacts 25 25 25 25 25 25 25 25 25
Reach Compliance Code compli compliant compliant compli compli compli compli compli compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Analog Integrated Circuits - Other Types DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage 13.2 V 13.2 V 13.2 V 13.2 V 13.2 V 13.2 V 13.2 V 13.2 V 13.2 V
Minimum input voltage 3 V 3 V 3 V 3 V 3 V 3 V 3 V 3 V 3 V
Nominal input voltage 12 V 12 V 12 V 12 V 12 V 12 V 12 V 12 V 12 V
JESD-30 code R-XDMA-X25 R-XDMA-X25 R-XDMA-X25 R-XDMA-X25 R-XDMA-X25 R-XDMA-X25 R-XDMA-X25 R-XDMA-X25 R-XDMA-X25
JESD-609 code e3/e4 e3/e4 e3/e4 e3/e4 e3/e4 e3/e4 e3/e4 e3/e4 e3/e4
Humidity sensitivity level 2 2 2 2 3 3 3 2 2
Number of functions 1 1 1 1 1 1 1 1 1
Output times 1 1 1 1 1 1 1 1 1
Number of terminals 25 25 25 25 25 25 25 25 25
Maximum output voltage 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Minimum output voltage 0.5 V 0.5 V 0.5 V 0.5 V 0.5 V 0.5 V 0.5 V 0.5 V 0.5 V
Nominal output voltage 0.5 V 0.5 V 0.5 V 0.5 V 0.5 V 0.5 V 0.5 V 0.5 V 0.5 V
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius) 220 220 220 220 260 260 260 220 220
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO NO NO NO NO NO
technology HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID
Terminal surface MATTE TIN/SILVER (59) OVER NICKEL (59) MATTE TIN/SILVER (59) OVER NICKEL (59) MATTE TIN/SILVER (59) OVER NICKEL (59) MATTE TIN/SILVER (59) OVER NICKEL (59) MATTE TIN/SILVER (59) OVER NICKEL (59) MATTE TIN/SILVER (59) OVER NICKEL (59) MATTE TIN/SILVER (59) OVER NICKEL (59) MATTE TIN/SILVER (59) OVER NICKEL (59) MATTE TIN/SILVER (59) OVER NICKEL (59)
Terminal form UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Fine-tuning/adjustable output YES YES YES YES YES YES YES YES YES
