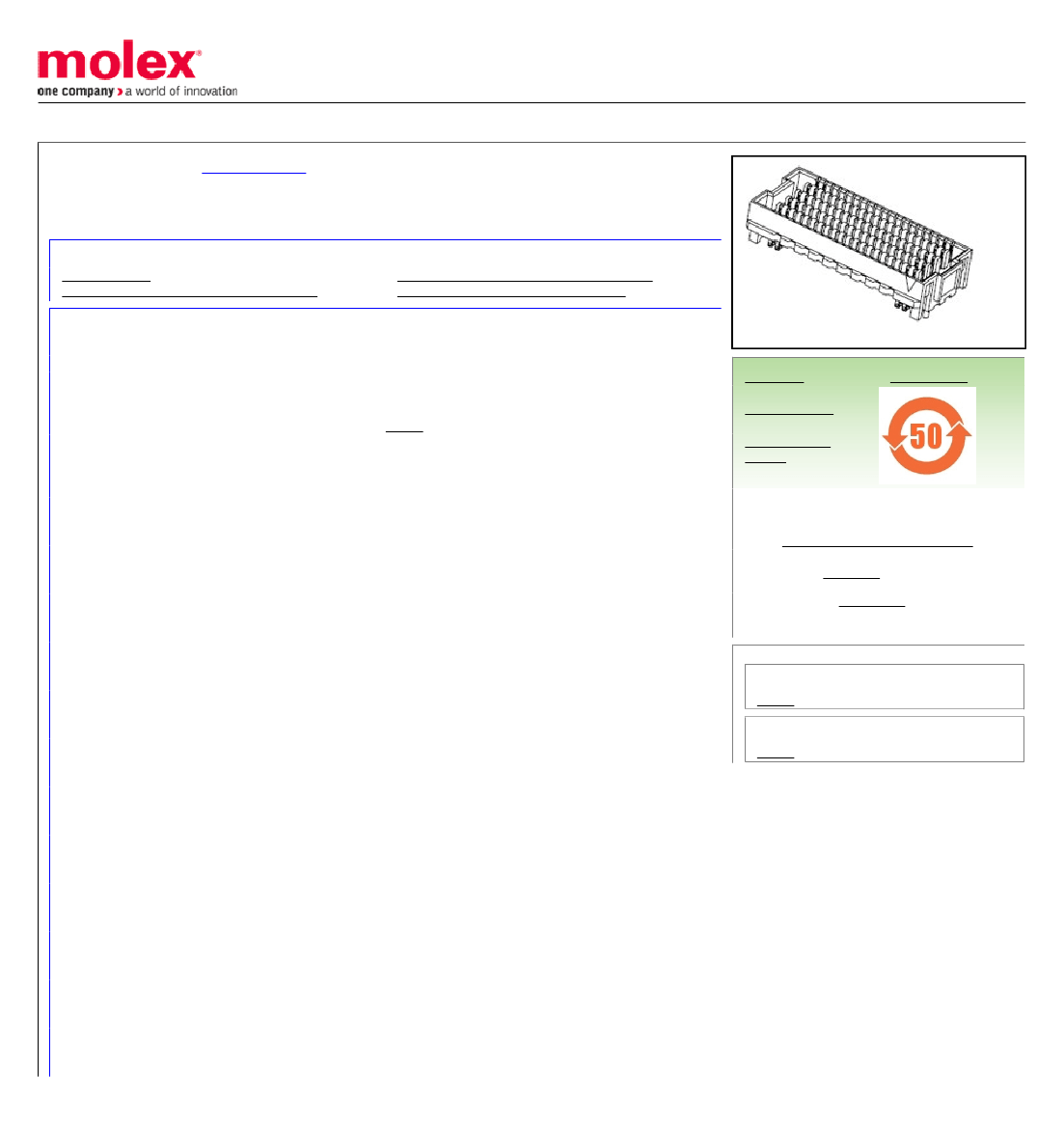

Part Number:
Status:
Description:
0459713187
Active
1.27mm (.050") by 1.27mm (.050") Pitch SEARAY* Receptacle, 240 Circuits, 6.00mm
(.236") Unmated Height, 8 Rows, With Pegs, Solder Charge™
Documents:

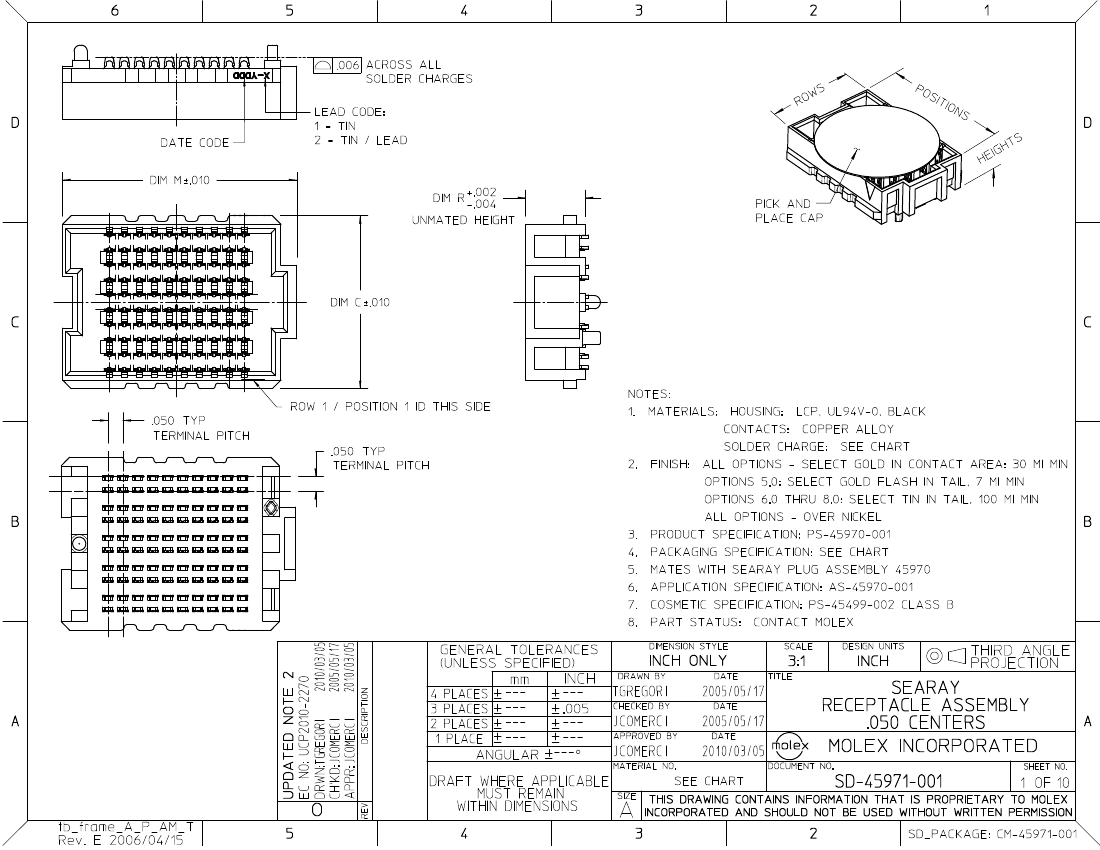

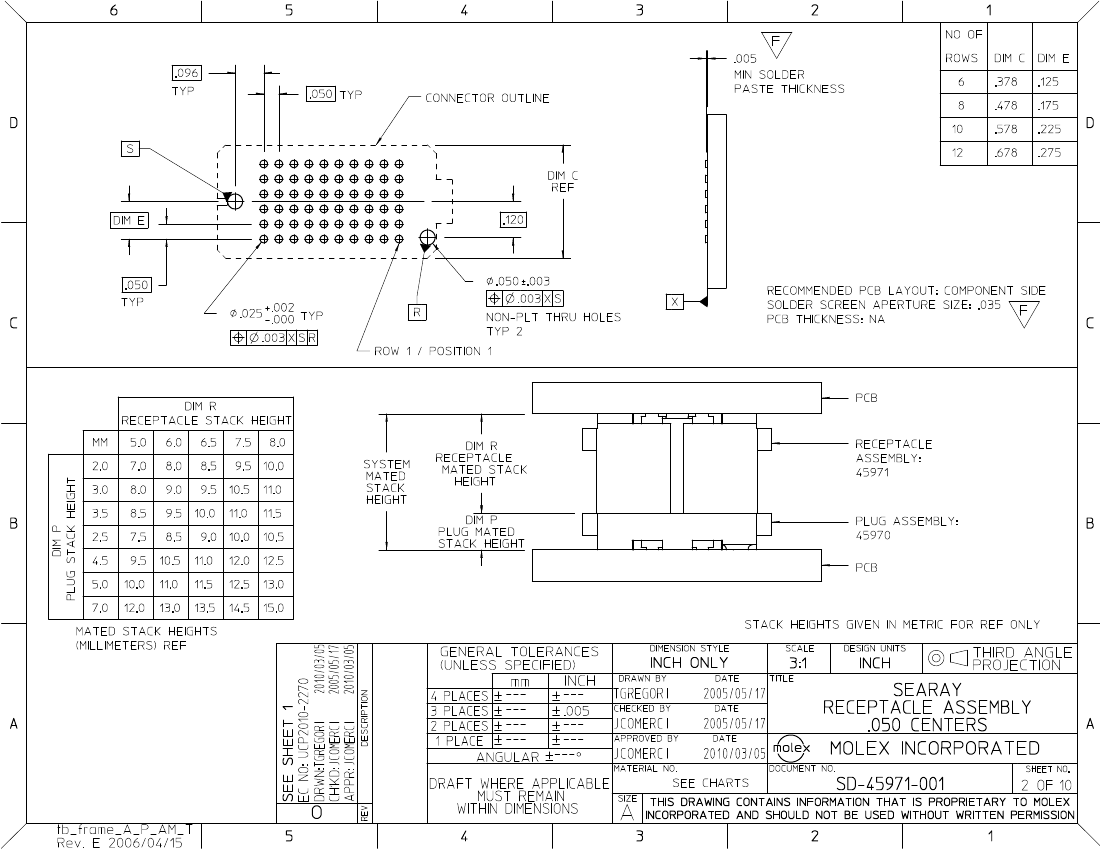

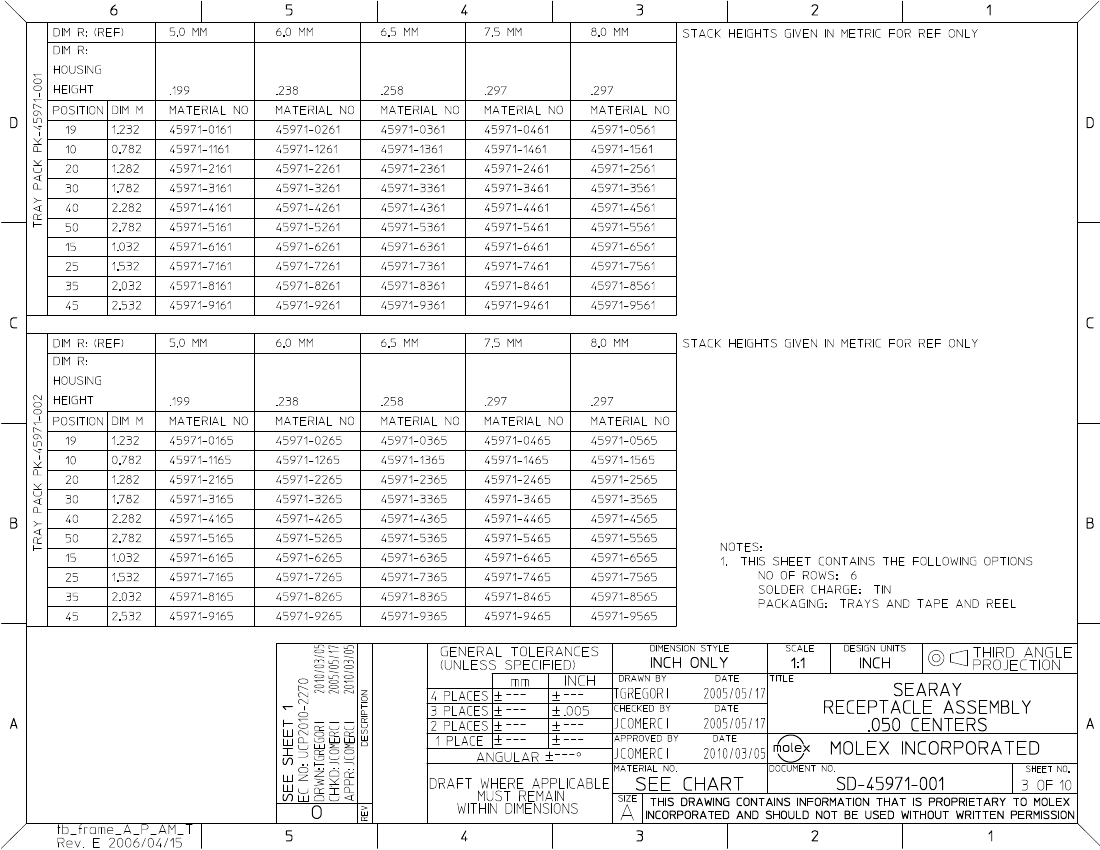

Drawing (PDF)
Product Specification PS-45970-001 (PDF)
Product Specification PS-45970-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E29179
image - Reference only
EU RoHS
Not RoHS Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
China RoHS
Agency Certification
CSA
UL
General
Product Family
Series
Application
Product Name
PCB Receptacles
45971
Board-to-Board
SEARAY*
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Robotic Placement
Stackable
Surface Mount Compatible (SMC)
240
240
240
Black
100
94V-0
No
No
None
No
Copper Alloy
Gold
Tin-Lead
High Temperature Thermoplastic
8
Vertical
0.086 In
2.18 mm
Yes
Yes
0.062 In
1.57 mm
Embossed Tape on Reel
0.050 In
1.27 mm
0.050 In
1.27 mm
30
0.75
100
2.5
Yes
Yes
Pick and Place Cap
No
Yes
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
45971Series
Mates With
45970 SEARAY* Plug
Temperature Range - Operating
Termination Interface: Style
-55°C to +125°C
Surface Mount
Electrical
Current - Maximum per Contact
Grounding to PCB
Voltage - Maximum
2.7A
No
240V AC
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
Replacement RoHS Compliant Part Number
3
Reflow Capable (SMT only)
1
230
0459713185
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Test Summary
*SEARAY is a trademark of Samtec, Inc.
AS-45970-001, AS-45970-002, AS-45970-990
PK-45971-001, PK-45971-002
PS-45970-001, PS-45970-002
SD-45971-001
TS-45970-001
