Part Number:
Status:
Overview:
Description:
0459841182
Active
extreme_lphpower
1.27mm (.050"), 12.00mm (.472") Pitch, EXTreme LPHPower™ Receptacle Header,
Right Angle, 10 Power Contacts, 40 Signal Contacts, Select Gold (Au) Plating, for
2.36mm (.093") Thick PC Board
Documents:
3D Model

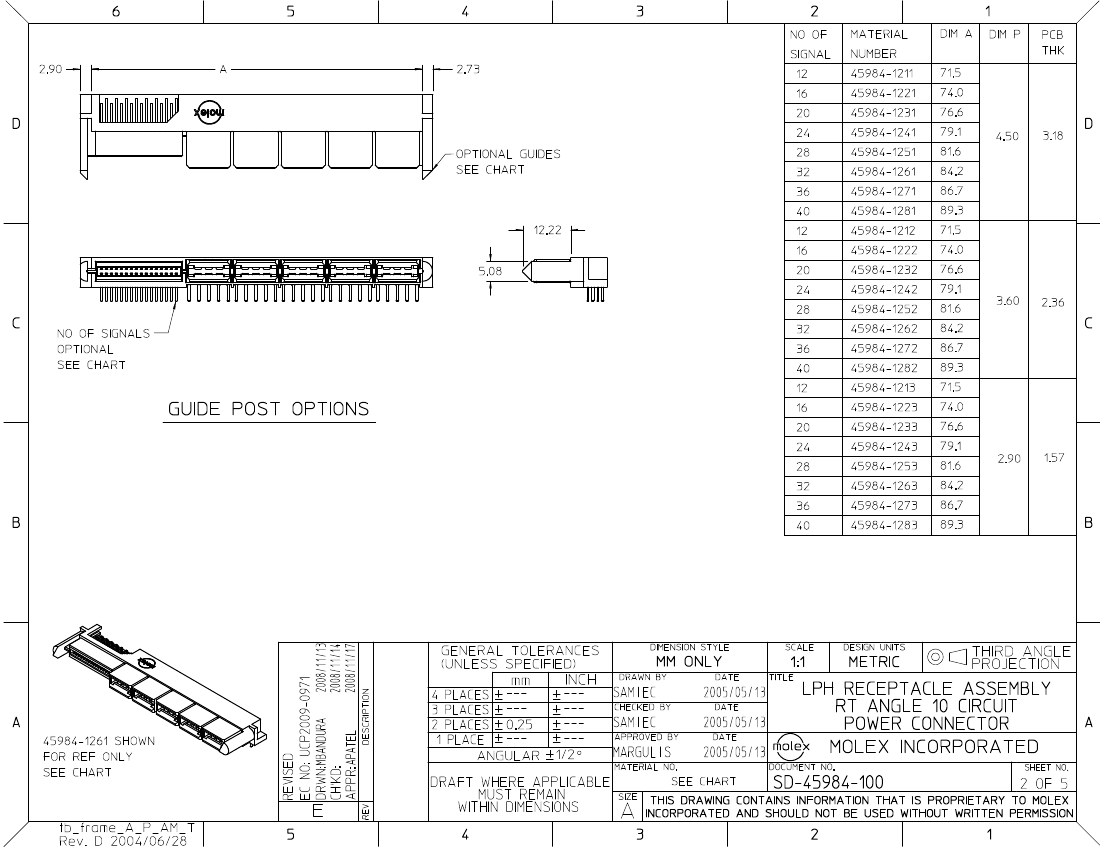

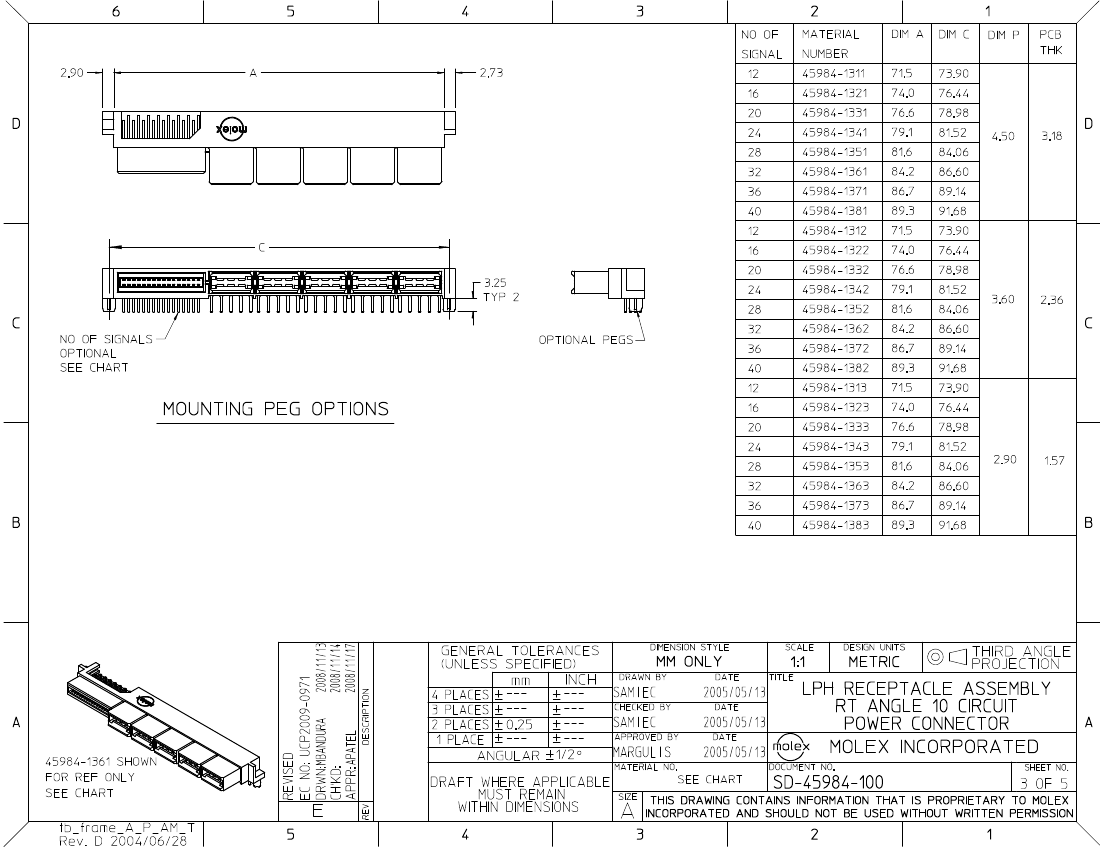

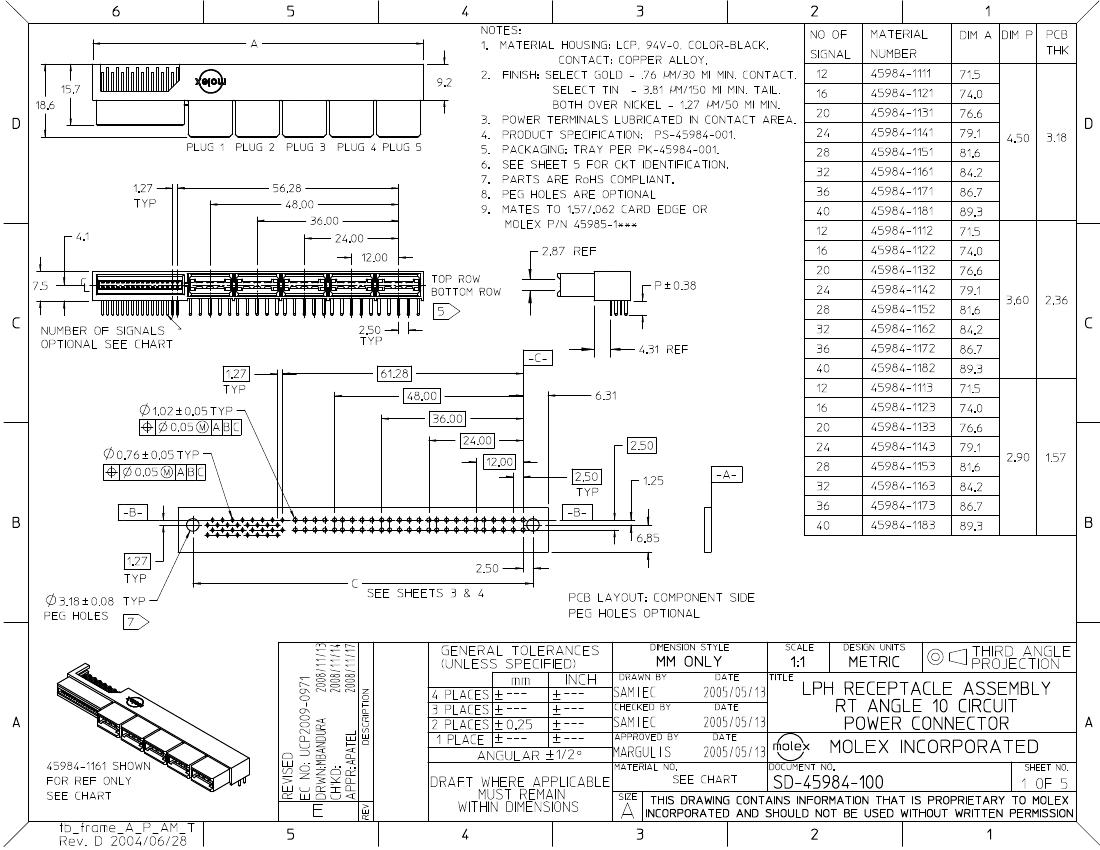

Drawing (PDF)
Product Specification PS-45984-001 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
UL
LR 19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
PCB Receptacles
45984
Board-to-Board
extreme_lphpower
EXTreme LPHPower™
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
50
50
10 Power, 40 Signal
Black
250
94V-0
No
No
Yes
No
High Performance Alloy (HPA), Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
2
Right Angle
0.142 In
3.60 mm
No
None
0.093 In
2.36 mm
Tray
0.050 In, 0.472 In
1.27 mm, 12.00 mm
30
0.75
150, 75
1.875, 3.75
Yes
Yes
No
Yes
Search Parts in this Series
45984Series
Mates With
45985 EXTreme LPHPower™ Headers,
1.57mm (.062") Card Edge
Temperature Range - Operating
Termination Interface: Style
-40°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Grounding to PCB
Voltage - Maximum
20A
No
250V AC (RMS)/DC
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
20
Wave Capable (TH only)
3
260
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-45984-001
PS-45984-001
SD-45984-100
