303M-11F4E0: DescriptionSurge Protection Circuit,; CategoryWireless rf/communication Telecom circuit; File Size167KB，6 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

303M-11F4E0 Overview

Surge Protection Circuit,

303M-11F4E0 Parametric

Parameter Name	Attribute value
Maker	Bourns
package instruction	,
Reach Compliance Code	unknow
Telecom integrated circuit types	SURGE PROTECTION CIRCUIT

Preview

Download Datasheet

View All

Features

■

Greatly reduced maintenance

■

Longer service life

■

Tighter control over the operating voltage

■

Reduced maintenance calls, fewer

■

Sealed solid-state device to ensure long life

equipment failures and quieter lines

■

Consistent performance

even in hostile environments

■

Fail-short device

■

Listed per UL 497 (File: E53117)

■

Meets Telcordia GR-974

Model C-303

™

5-Pin Solid-State Protector Modules

Bourns

Model C-303™ 5-Pin Solid-State Protector Modules provide surge protection in a 5-pin type protector for use in central office

connector, remote and building entrance terminal applications. The housings are made of colored self-extinguishing insulating

material. The protector modules have five contact pins. When inserted into the connector sockets, contact pins provide the following

connections for each cable pair:

• protection ground that also acts as a polarization pin

• tip and ring to the outside cable

• tip and ring to the central office equipment

Protector modules are available with gold-plated outside and central office pins; grounding pin is always tin-alloy plated.

• Protector modules with gold-plated pins are intended to be used in connectors with gold-plated protector receptacles.

The Bourns

Model C-303™ Solid-State Protector Module family greatly surpasses the performance of two- and three-element gas

tubes as well as carbon, ensuring enhanced protection for sensitive switching equipment.

When the protector modules are fully inserted into the connector base, the outside plant and the central office pairs are connected

together. Fast and easy disconnect of the central office pairs from the outside plant pairs is accomplished by pulling the fully inserted

protector out to the “detent” position. Protection is still provided on the outside plant cable pairs.

The 5-pin module is designed to short-to-ground (also known as a “fail-short event”) when it encounters lightning, power cross or other

electrical conditions that exceed the surge capabilities of the SSOVP device.

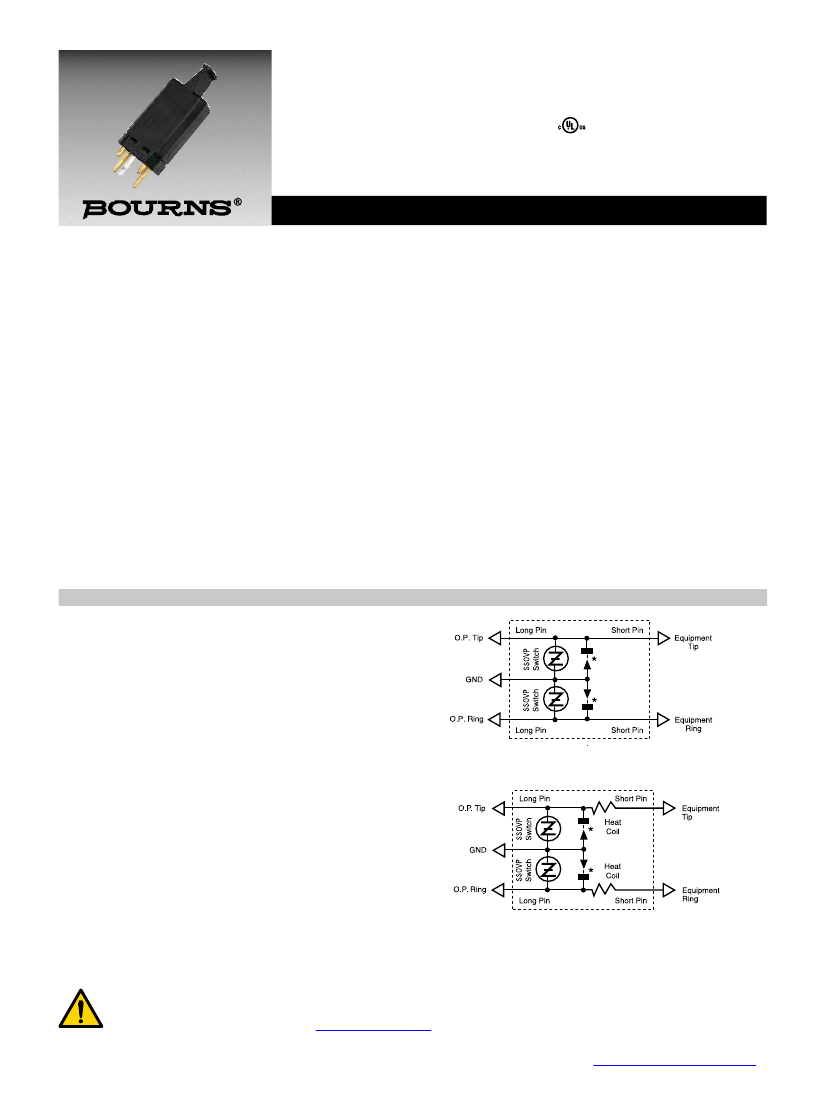

11- and 12-Type Protector Modules

The 11-type modules provide voltage protection to wiring and

equipment. The 12-type modules provide voltage protection

and are equipped with heat coils for applications where sneak

current protection is required.

High-sensitivity heat coils protect digital equipment line cards

against overheating caused by prolonged currents, commonly

called sneak currents. Sneak currents may be caused by direct

contact with low-voltage power lines or from induction on

telephone lines caused by fault currents, overloads or

unbalanced loads on nearby power lines. The 150 milliampere

heat coils are sensitive enough to operate before component

damage occurs on most digital line cards. They carry normal

currents with ample safety margin and shunt potentially harmful

sneak currents safely to ground.

Medium sensitivity (350 mA) and PBX battery (1.2 A) heat coils

are also available.

11-Type Protector Module

12-Type Protector Module

* Metallic shunts close circuit by heat coil operation to ground

line and equipment directly or through heat coil resistance.

Heat coil operates due to sneak currents and power crosses.

WARNING Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

Speciﬁcations are subject to change without notice.

Users should verify actual device performance in their speciﬁc applications.

The products described herein and this document are subject to speciﬁc legal disclaimers as set forth on the last page of this document, and at

www.bourns.com/docs/legal/disclaimer.pdf.

Model C-303

™

5-Pin Solid-State Protector Modules

Specifications

Note: All SSOVP protector modules are CSA and UL Listed for subscriber premises applications.

220 V / 240 V Modules

300 V Modules

DC Limiting Voltage ..................................................................265 V max. @ 2000 V/sec .................. 345 V max. @ 2000 V/s

AC Limiting Voltage (1K V

rms

, 1 A

rms

, 1 Cycle) .......................265 V max. .......................................... N/A

Leakage Current (Minimum Voltage Limit) ...............................20 mA max. @ 215 VDC ..................... 20 mA max. @ 265 VDC

μA

max. @ 200 VDC

Impulse Breakdown Voltage (Vimp) .........................................300 V max. @ 100 V/μsec .................. 390 V max. @ 100 V/μsec

350 V max. @ 1000 V/μsec

400 V max. @ 1000 V/μsec

400 V max. @ 10,000 V/μsec

Insulation Resistance (IR) ........................................................100 megohms min. @ 50-200 VDC .... 100 megohms min. @ 50-200 VDC

DC Holdover (-20 °C to +65 °C) ...............................................20 msec max....................................... 20 msec max.

@ 260 mA ±52 VDC

@ 200 mA ±135 VDC

@ 140 mA ±150 VDC

Service Life Surge

±10 A, 10 x 1000

μsec

........................................................Unlimited ............................................. Unlimited

±100 A, 10 x 1000

μsec

......................................................Unlimited ............................................. Unlimited

±300 A, 10 x 1000

μsec

......................................................Fail-short ............................................. Fail-short

±10,000 A, 8 x 20

μsec

.......................................................Fail-short ............................................. Fail-short

60 Hz RMS

1 Amp for 1 second .............................................................60 surges, no-fail................................. 60 surges, no-fail

10 Amps for 1 second .........................................................5 surges, no-fail................................... 5 surges, no-fail

4, 10 and 30 Amps for 15 minutes ......................................Fail-short ............................................. Fail-short

60 Amps for 3 seconds .......................................................Fail-short ............................................. Fail-short

120 Amps for 0.6 second ....................................................Fail-short ............................................. Fail-short

350 Amps for 0.04 second ..................................................Fail-short ............................................. Fail-short

Capacitance - Line to Ground...................................................< 75 picofarads @ 0 VDC, .................. < 75 picofarads @ 0 VDC,

1 VAC, 1 MHz

On-State Voltage ......................................................................< 10 V @ 100 Amps ............................ < 10 V @ 100 Amps

Response Time.........................................................................< 20 nanoseconds @ 10 kV/μsec ....... < 20 nanoseconds @ 10 kV/μsec

Storage Temperature................................................................-40 °C to +65 °C .................................. -40 °C to +65 °C

Safety Standard Listing ............................................................UL 497, CSA, ...................................... UL 497, CSA,

Telcordia Specification GR-974

Sneak Current Protection Specifications

150 mA Heat Coils

(High Sensitivity)

350 mA Heat Coils

(Medium Sensitivity)

1.2 A Heat Coils

(PBX Battery)

Non-Operate.............................................3 hours min. @ 150 mA....... 3 hours min. @ 350 mA......... 3 hours min. @ 1.2 A

Operate.....................................................210 seconds max. .............. 210 seconds max................... 210 seconds max.

@ 250 mA

@ 540 mA

@ 1.875 A

Resistance................................................19 ohms max....................... 4 ohms max. .......................... 0.32 ohms max.

Resistance Imbalance ..............................1.0 ohms max...................... 0.5 ohms max. ....................... --

Packaging Specifications

220 V /

240 V and 300 V

Standard Packaging .............................................................................................................................. 100 modules

Dimensions (H x W x D) ........................................................................................................................ 8 x 15 x 20 cm

(3 x 6 x 8 in.)

Shipping Weight .................................................................................................................................... 1.8 kg (4 lb)

Speciﬁcations are subject to change without notice.

Users should verify actual device performance in their speciﬁc applications.

The products described herein and this document are subject to speciﬁc legal disclaimers as set forth on the last page of this document, and at

www.bourns.com/docs/legal/disclaimer.pdf.
