4114R-3-331/391FLF: DescriptionRES NET,THICK FILM,330 OHMS,100WV,1% +/-TOL,-100,100PPM TC,7731 CASE; CategoryPassive components The resistor; File Size219KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

4114R-3-331/391FLF Overview

RES NET,THICK FILM,330 OHMS,100WV,1% +/-TOL,-100,100PPM TC,7731 CASE

4114R-3-331/391FLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
Reach Compliance Code	_compli
ECCN code	EAR99
structure	Molded
JESD-609 code	e3
Lead length	3.43 mm
lead spacing	2.54 mm
Manufacturer's serial number	4100R
Network Type	Dual Termi
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4.57 mm
Package length	19.43 mm
Package form	DIP
Package width	7.87 mm
Rated power dissipation(P)	0.125 W
resistance	330 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	4100R
size code	7731
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	-100,100 ppm/°C
Terminal surface	Matte Tin (Sn)
Tolerance	1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

■

RoHS compliant* versions available (see

How to Order “Termination” option)

Compatible with automatic insertion

equipment

Superior package integrity

Marking on contrasting background for

permanent identification

■

Now available with improved tolerance

to ±0.5 %

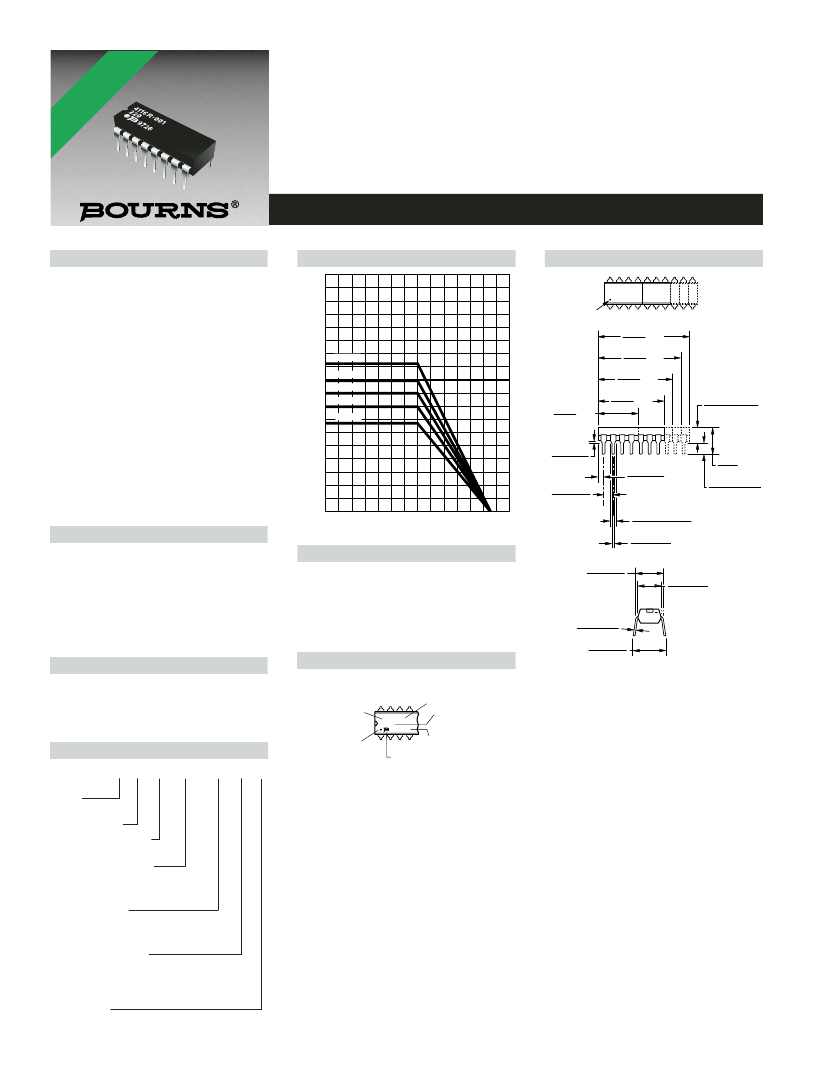

4100R Series - Thick Film Molded DIPs

Product Characteristics

Resistance Range

......................10 ohms to 10 megohms

Maximum Operating Voltage..........100 V

Temperature Coefficient of Resistance

Ω

to 2.2 MΩ................±100 ppm/°C

below 50

Ω

......................±250 ppm/°C

above 2.2 MΩ..................±250 ppm/°C

TCR Tracking .........................50 ppm/°C

maximum; equal values

Resistor Tolerance ................See circuits

Operating Temperature

.................................-55 °C to +125 °C

Insulation Resistance

..................10,000 megohms minimum

Dielectric Withstanding Voltage

.............................................200 VRMS

Lead Solderability

.....Meet requirements of MIL-STD-202

Method 208

Environmental Characteristics

TESTS PER MIL-STD-202.........∆R MAX.

Short Time Overload..................±0.25 %

Load Life ....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat

................................................±0.25 %

Terminal Strength.......................±0.25 %

Thermal Shock...........................±0.25 %

Physical Characteristics

Flammability .........Conforms to UL94V-0

Lead Frame Material

..........................Copper, solder coated

Body Material ..................Novolac epoxy

How To Order

Package Power Temp. Derating Curve

G CU

4.00

Product Dimensions

PIN #1 REF.

3.50

3.00

2.50

2.00

1.50

1.00

.50

4120R

4118R

4116R

4114R

4108R

11.81

MAX.

(.465)

27.05

MAX.

(1.065)

24.51

MAX.

(.965)

21.97

MAX.

(.865)

19.43

MAX.

(.765)

WATTS

4.57 + .12/ - .28

(.180 + .005/ - .007)

.89

.25

(.035

.010)

TYP.

125

AMBIENT TEMPERATURE (

C )

2.54

.25

(.100

.010*)

TYP.

NON-ACCUM.

2.03

.12

(.080

.005)

8.40

MAX.

(.331)

3.43 + .38/ - .25.

(135 + .015/ - .010)

1.65 + .12/ - .07

(.065 + .005/ - .003)

.438

.050

TYP.

(.019

.002)

Package Power Rating at 70 °C

4108R......................................1.69 watts

4114R......................................2.00 watts

4116R......................................2.25 watts

4118R......................................2.50 watts

4120R......................................2.80 watts

Typical Part Marking

Represents total content. Layout may vary.

PART

NUMBER

4114R-1-

152

YYWW

7.87

.25

(.310

.010)

TO OUTSIDE

WHEN PINS

ARE PARALLEL

.254

.050

(.010

.002)

8.64

.50

(.340

.020)

6.71

.10

(.260 + .005)

(.260

- .000)

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

CIRCUIT

RESISTANCE

CODE

DATE CODE

PIN ONE

INDICATOR

41 14 R - 1 - 152 __ __

Model

(41 = Molded DIP)

Number of Pins

Physical Configuration

(R = Thick Film Low Profile)

Electrical Configuration

• 1 = Isolated

• 2 = Bussed

• 3 = Dual Terminator

Resistance Code

• First 2 digits are significant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance” on

next page for resistance range)

• F = ±1 % (100

Ω

- 1 MΩ)

• D = ±0.5 % (100

Ω

- 1 MΩ)

Terminations

• LF = Tin-plated (RoHS compliant version)

• Blank = Tin/Lead-plated

Consult factory for other available options.

MANUFACTURER'S

TRADEMARK

For Standard Values Used in Capacitors,

Inductors, and Resistors,

click here.

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
