This document was generated on 04/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0460077303
Active
7.50mm (.295") Pitch Sabre™ Header, Single Row, Right Angle, 3 Circuits, PC Tail
Length 5.33mm (.210"), with Snap-In Metal Pins, Tin (Sn) Plating
Documents:
3D Model
Packaging Specification (PDF)
Drawing (PDF)
Product Specification PSX-44441-9999 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
UL
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Product Literature Order No
Product Name
PCB Headers
46007
Wire-to-Board
Fully Polarized, Meets UL 1950 Finger Proof Standard
USA-113
Sabre™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
No
3
3
Black
25
No
94V-0
No
No
None
Yes
Brass
Tin
Tin
High Temperature Thermoplastic
1
Right Angle
0.210 In
5.33 mm
No
Yes
0.125 In
3.20 mm
Tray
0.295 In
7.50 mm
35
0.88
35
0.88
Yes
Yes
Fully
No
Search Parts in this Series
46007Series
Mates With
44441-2003
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
-40°C to +75°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
18A
600V
Material Info
Reference - Drawing Numbers
Product Specification

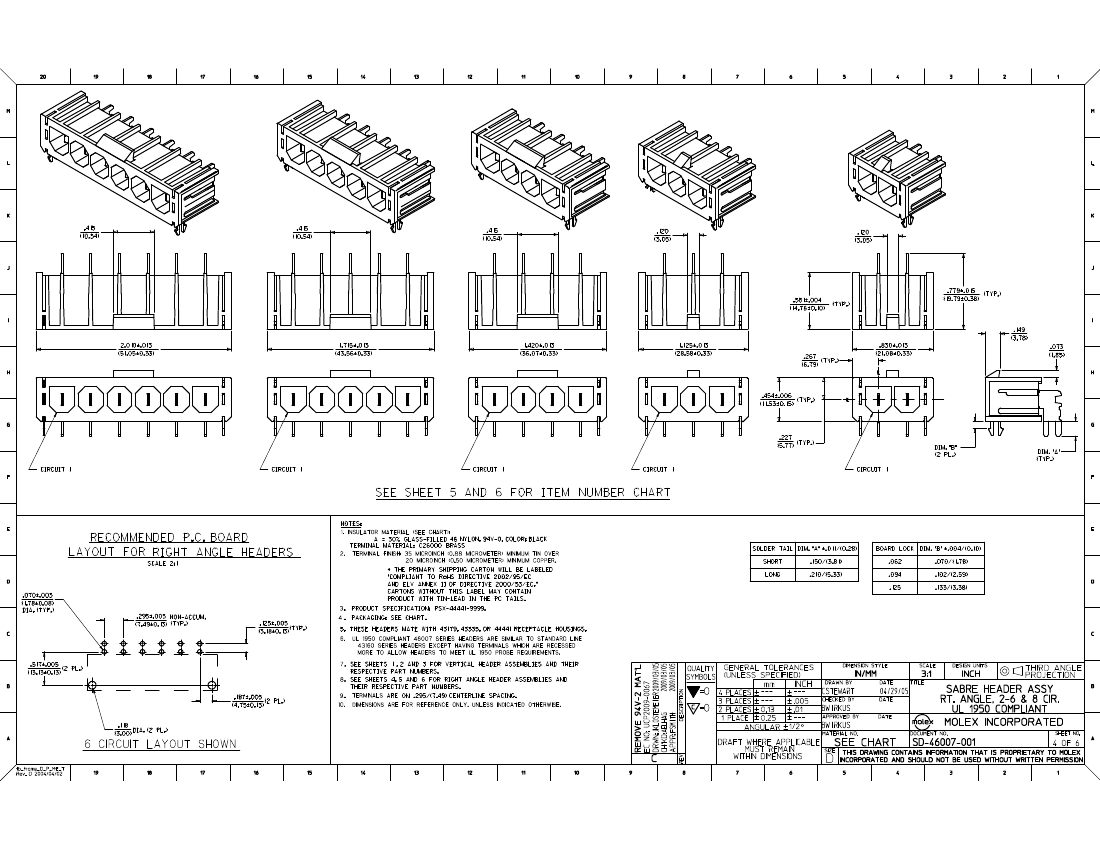

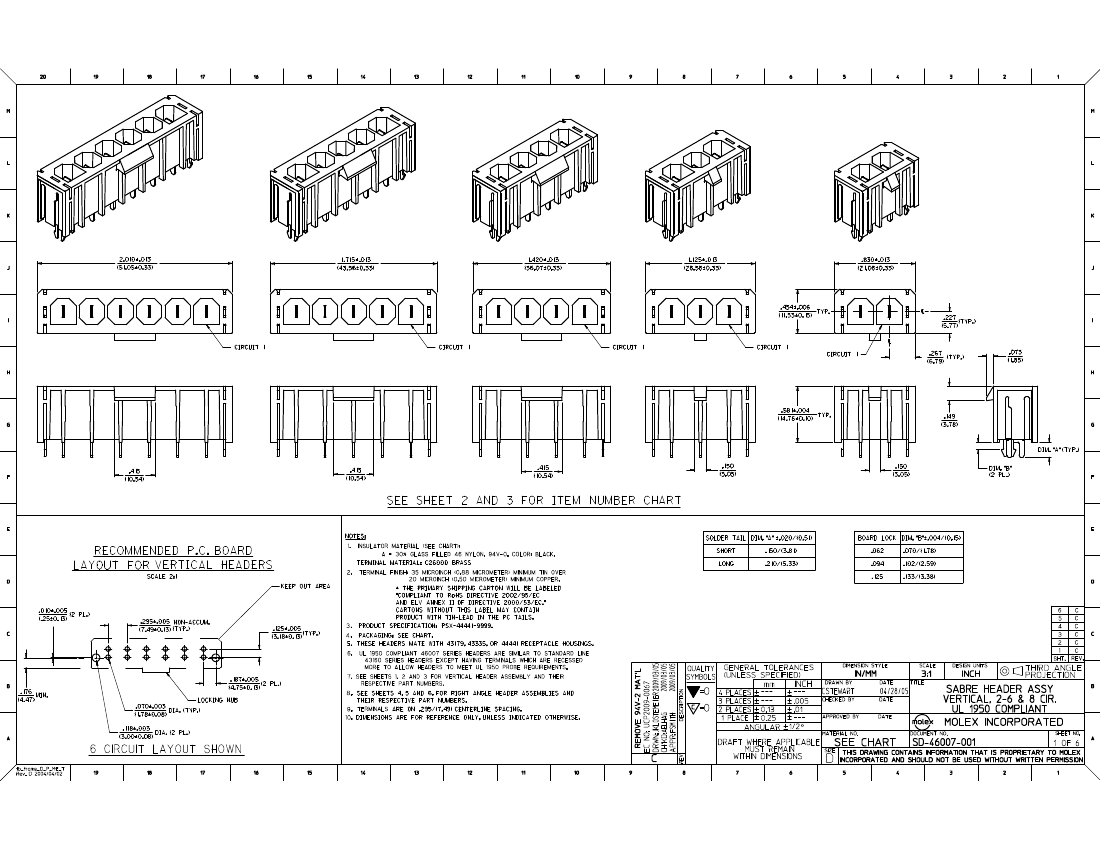

Sales Drawing
PSX-44441-9999
SD-46007-001
