0472820001

Description
2.00mm
CategoryThe connector    The connector
File Size114KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0472820001 Overview

2.00mm

0472820001 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number47282
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts4
UL Flammability Code94V-0
Base Number Matches1

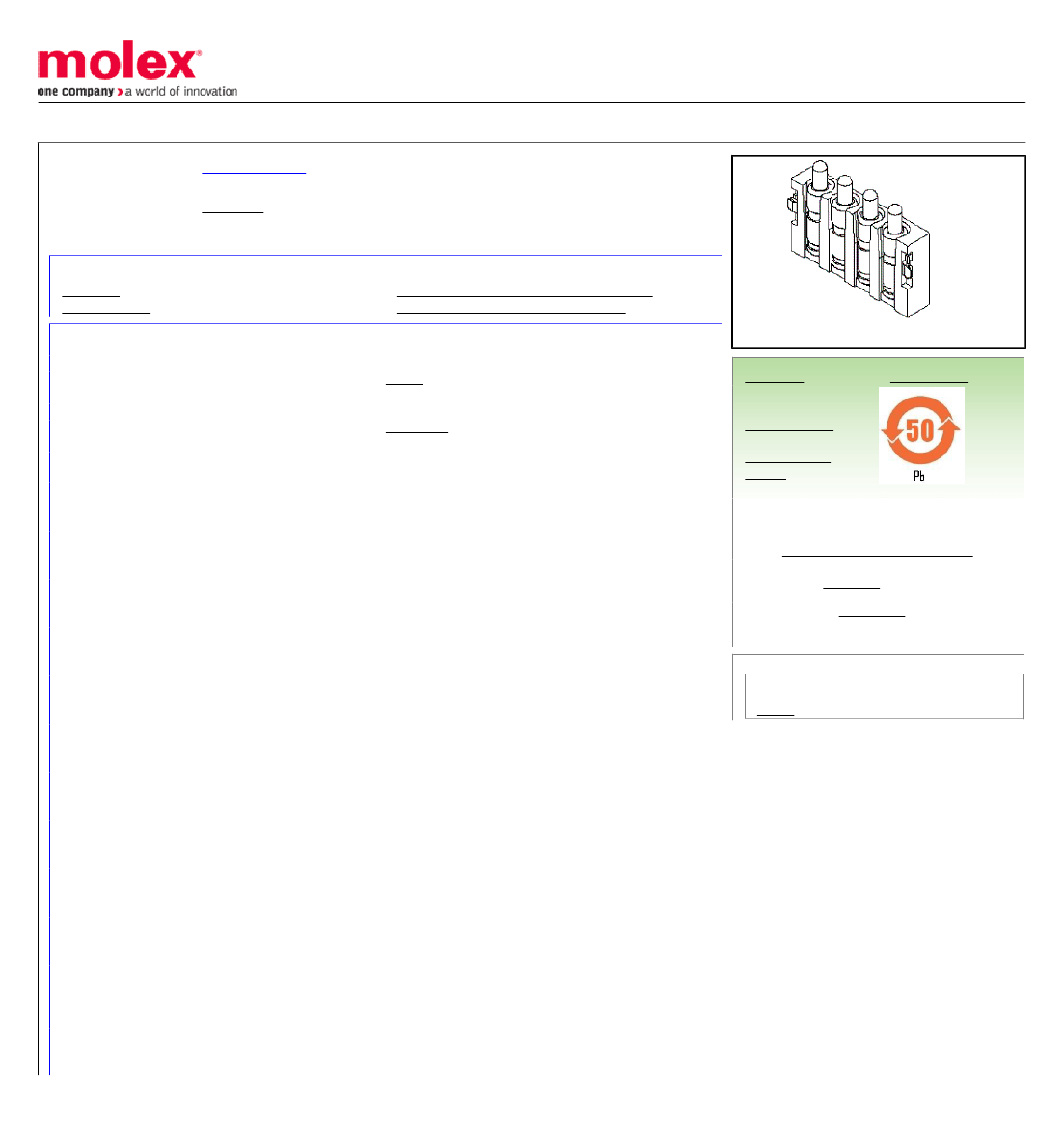

This document was generated on 05/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0472820001
Active
pogo_pins
2.00mm (.079") Pitch Po-Go Pin Connector, Surface Mount, Right Angle, 4 Circuits,
Lead-free
Documents:
3D Model

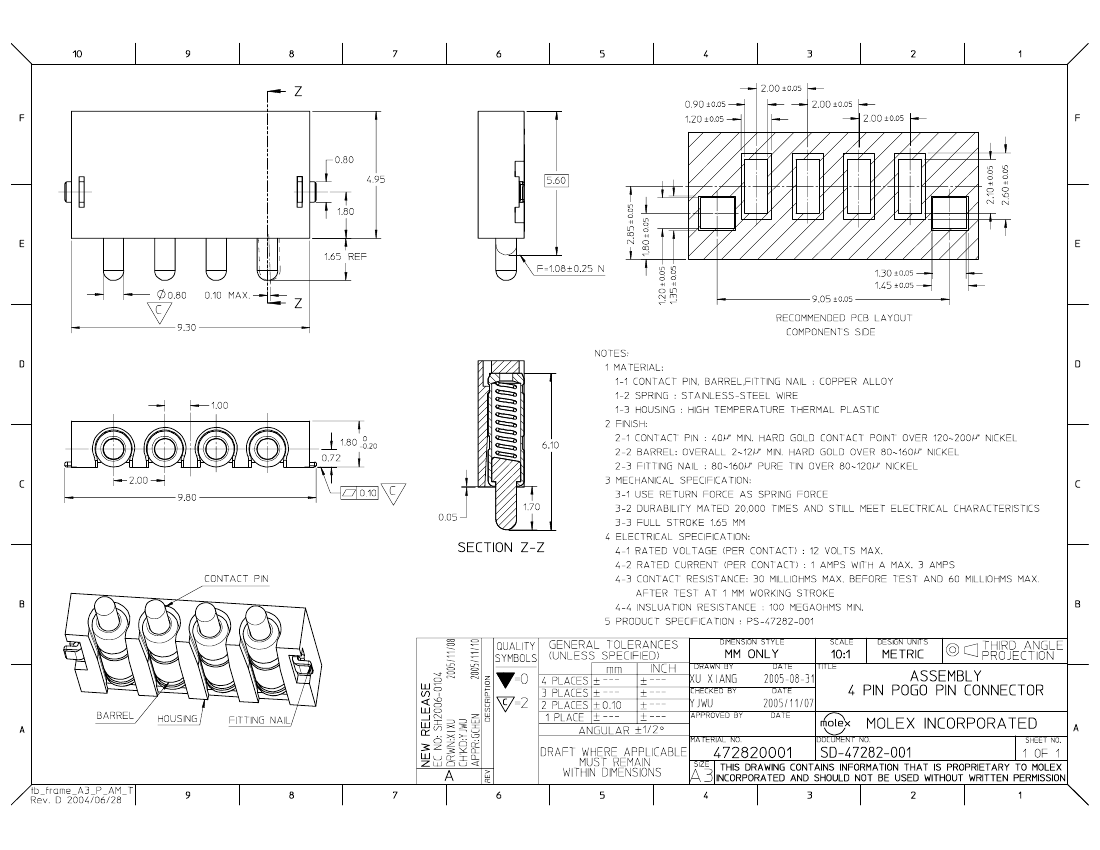

Drawing (PDF)
Product Specification PS-47282-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Headers
47282
Board-to-Board
Action Height: 5.60mm (.220")
pogo_pins
PoGo Pin
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
4
4
Black
20,000
No
No
No
None
None
0.220 In
5.60 mm
Gold
Gold
High Temperature Thermoplastic
1
Right Angle
No
Yes
Embossed Tape on Reel
0.079 In
2.00 mm
40
1.00
No
No
No
No
-40°C to +85°C
Surface Mount
Search Parts in this Series
47282Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
12V DC
Solder Process Data
Duration at Max. Process Temperature (seconds)
30
