Part Number:
Status:
Description:
0482036763
Active
High Density, DDC Compatible D-Subminiature Shielded I/O PCB Female Receptacle,
Right Angle, Through Hole, 15 Circuits, 2 #4-40 Hex Internal Thread Screws
Assembled (L=5mm), Blue Housing, Overall Gold (Au) Flash, Lead Free
Documents:
3D Model

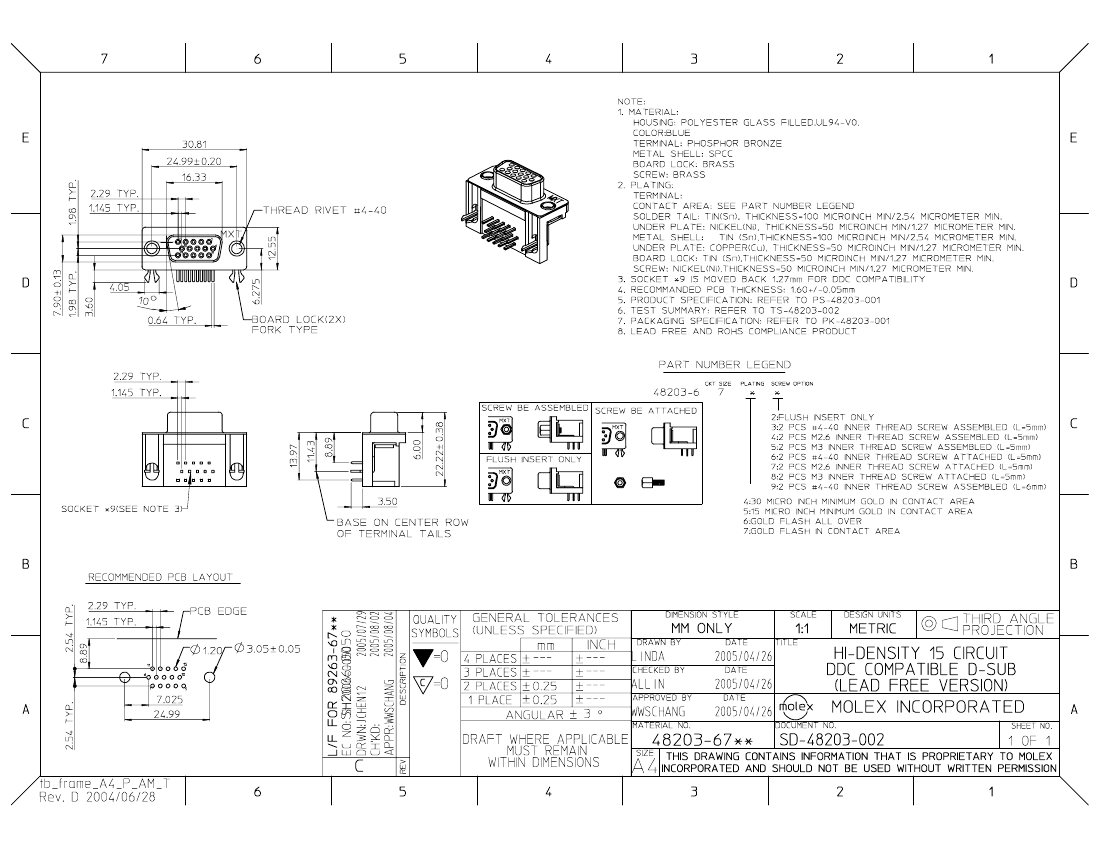

Drawing (PDF)
Product Specification PS-48203-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series

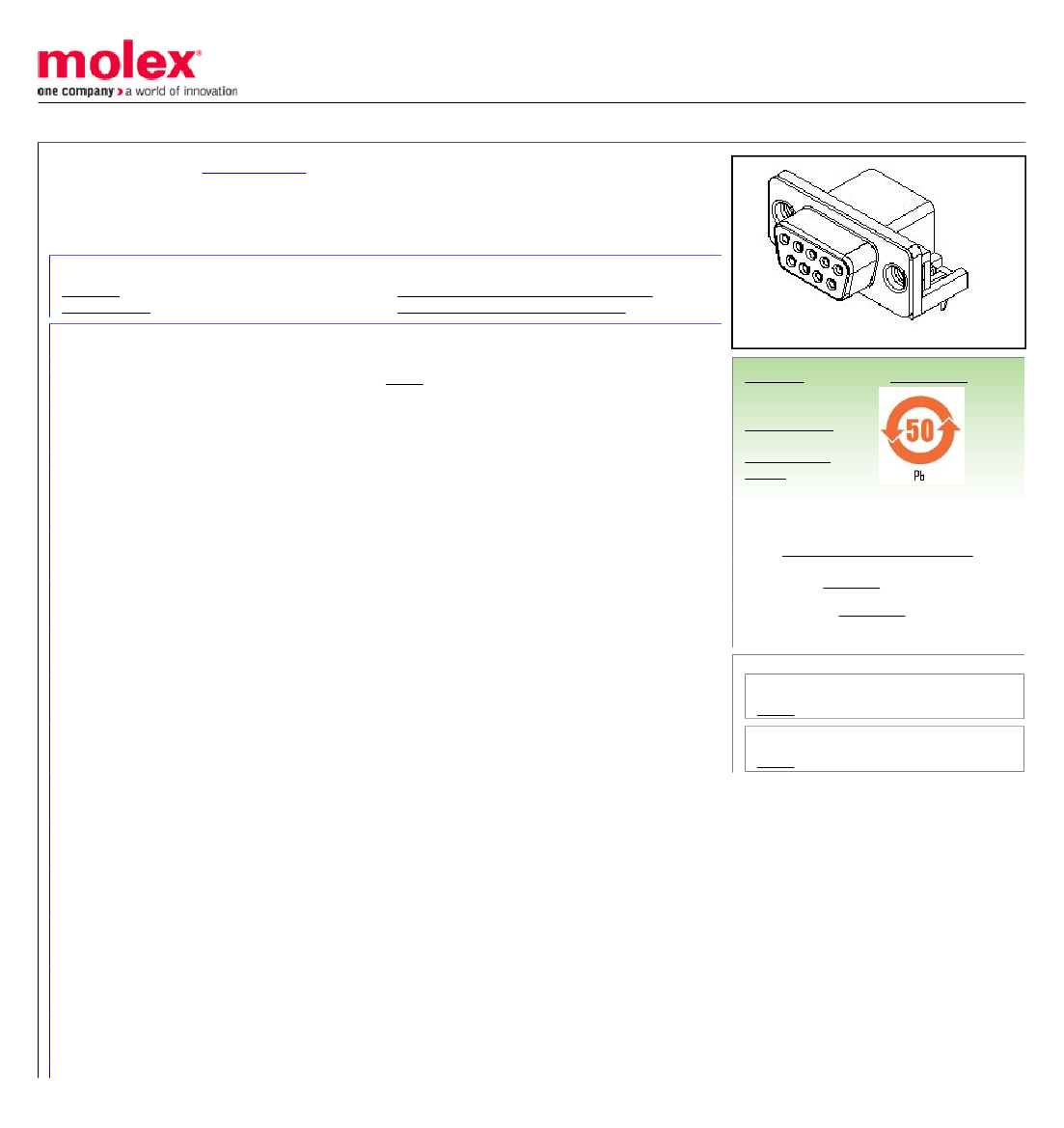

image - Reference only
I/O Connectors
48203
Wire-to-Board
Socket #9 is moved back 1.27mm for DCC
Compatibility; Housing Color: Blue
Receptacle
D-Sub, DB15
N/A
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Product Name
Type
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Gender
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
N/A
15
15
Blue
600
Receptacle
Yes
Phosphor Bronze
Gold
Tin
Polyester
3
Right Angle
0.138 In
3.50 mm
Yes
Yes
0.063 In
1.60 mm
Tray
Yes
0.090 In
2.29 mm
0.090 In
2.29 mm
2
0.05
2
0.05
Yes
Yes
1
No
-40°C to +85°C
Through Hole
Search Parts in this Series
48203Series
Mates With
48202
