This document was generated on 04/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0493900002
Active
6.60mm (.259") Pitch Wire-to-Board Header, Dual Row, Vertical, 8 Circuits, Polyester
Carbonate UL94V-0, Red
Documents:
3D Model

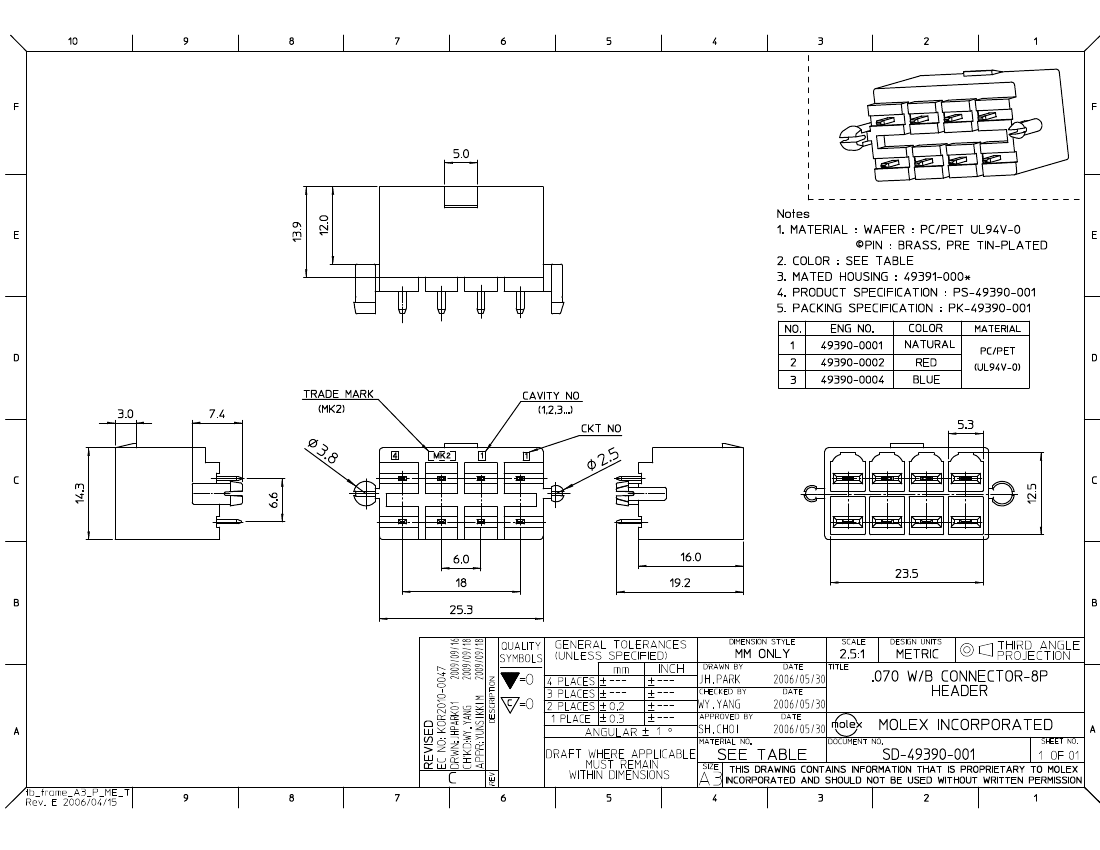

Drawing (PDF)
Product Specification PS-49390-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
PCB Headers
49390
Wire-to-Board
Polarized to Mating Part
N/A
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
8
8
30
No
No
No
None
Yes
Tin
Tin
2
Vertical
0.130 In
3.30 mm
Yes
Yes
Bag
0.236 In
6.00 mm
0.236 In
6.00 mm
40
1
40
1
No
Yes
Fully
No
No
-40°C to +120°C
Through Hole
Search Parts in this Series
49390Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
300V AC (RMS)/DC
Material Info
