This document was generated on 05/10/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0549280570
Active
7.50mm (.295") Pitch MTC™ Spring Type Receptacle, 5 Circuits Version, White Color
Documents:

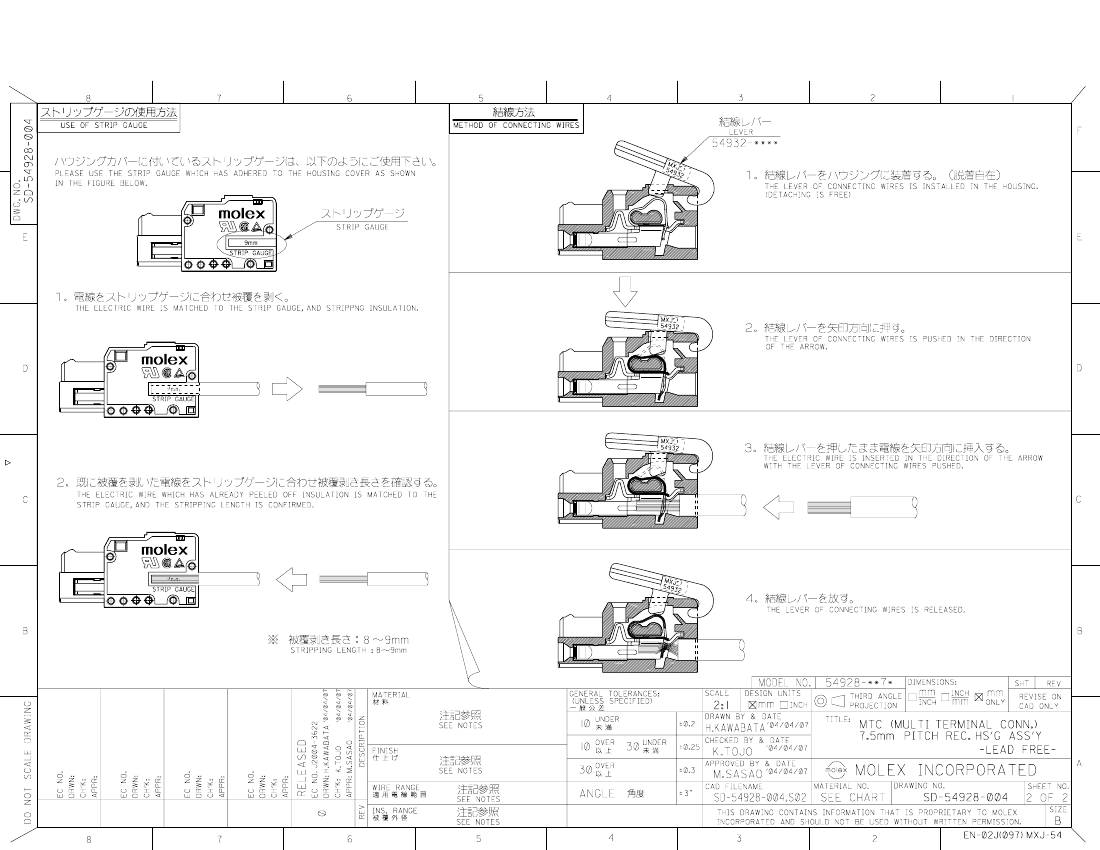

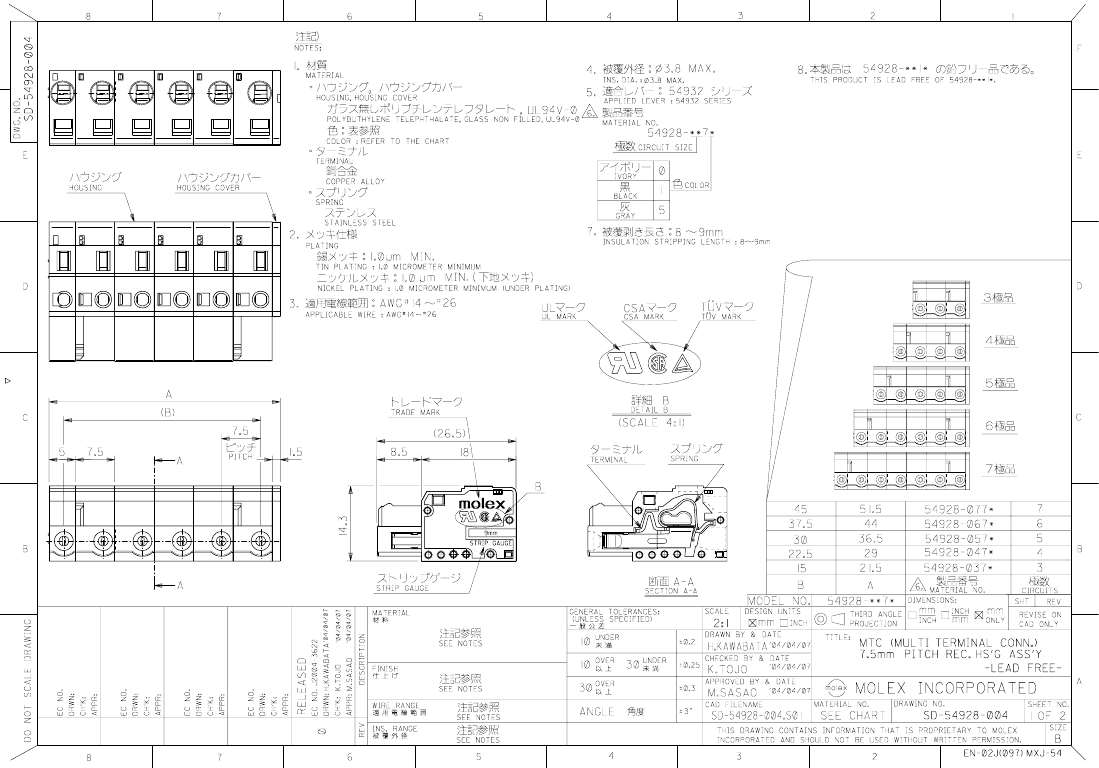

Drawing (PDF)
Product Specification PS-51241-005 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
Series
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
54928
Wire-to-Board
Plug
MTC™
Euro Block
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
5
5
White
Vertical
94V-0
Yes
High Performance Alloy (HPA)
Tin-Lead
Tin-Lead
Polyester
1
Vertical
No
0.295 In
7.50 mm
0.295 In
7.50 mm
120
3
120
3
Yes
Fully
No
-30°C to +85°C
Surface Mount
14, 16, 18, 20, 22, 24, 26
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
54928Series
Mates With
55759
Electrical
Current - Maximum per Contact
Voltage - Maximum
16A
400V
Material Info
Reference - Drawing Numbers
Product Specification
PS-51241-005
