HSJ1633-012110 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HSJ1633-012110

Preview

HSJ1633-012110: DescriptionAudio/RCA Connector, 4 Pole(s), Surface Mount Terminal, Jack; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric Compare View All

HSJ1633-012110 Overview

Audio/RCA Connector, 4 Pole(s), Surface Mount Terminal, Jack

HSJ1633-012110 Parametric

Parameter Name	Attribute value
Maker	Hosiden Corporation
Reach Compliance Code	unknow
body width	0.197 inch
subject depth	0.531 inch
body length	0.311 inch
Body/casing type	JACK
Configuration	1X1 HORIZONTAL
Connector type	2.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Installation type	BOARD
Number of connectors	ONE
Number of poles	4
Number of ports	1
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Base Number Matches	1

Preview

Download Datasheet

View All

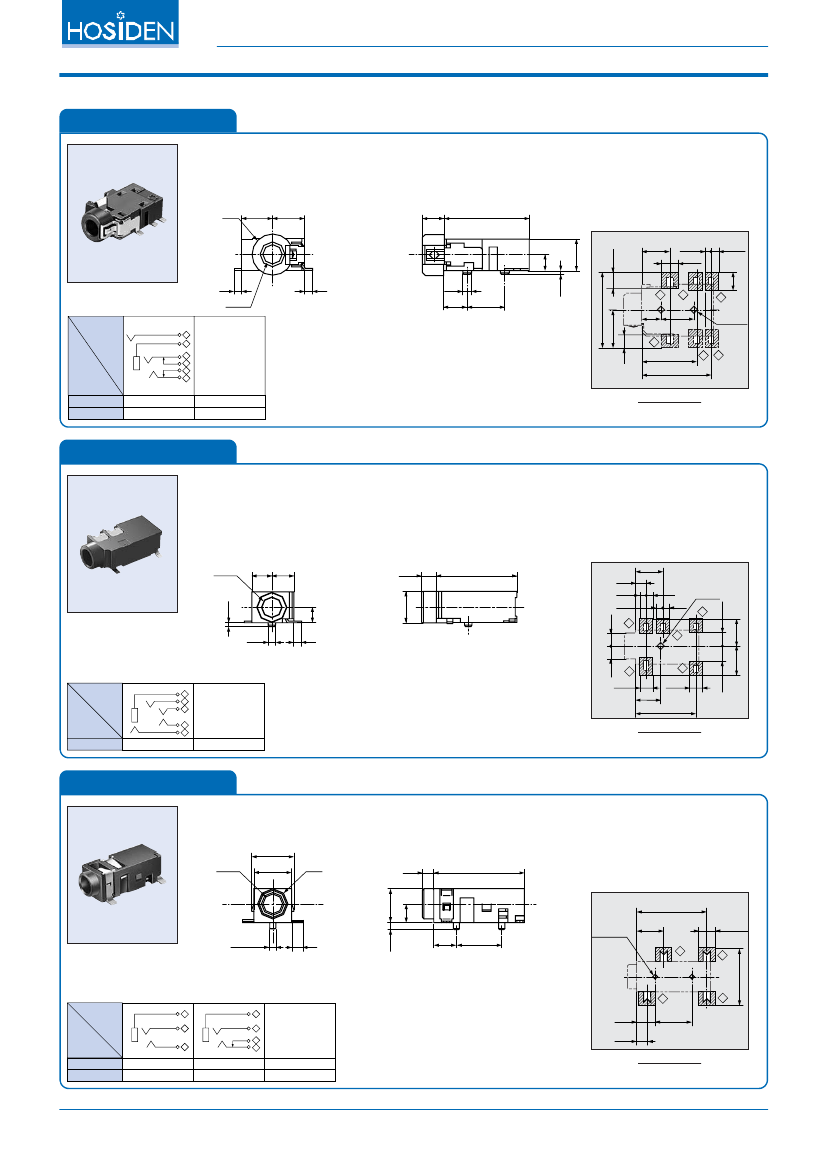

2.5 DIA Miniature Jacks SMD Style Horizontal Type

Unit: mm

HSJ1633-019810

φ

5

3.9

4

2.7

10.8

2

2.4

4.3

0.85

2.5

11.5

2.8

11.5

h=2

mm

Schematic

1

2

3

5

6

4

1

φ

2.6

Remarks

1

φ

1

0.5

4

3

4.8

2

3

5.8

1

4

4.8

6

2-

φ

1.1

8.2

10.4

Pad Layout

(Top View)

Packaging

Style

HSJ1633-012110 Hand Soldering Only

Bulk

Taping Packaging HSJ1633-019810 Reflow Soldering

HSJ1660-019570

2

3 5

φ

2.6

2.5 2.8

1.8

10.2

4.3

1.7

1.1

1

1.9

2

3

1.7

5

2.2

4

9.6

Pad Layout

(Top View)

2.4

4-2.7

3

4

9.5

1

2

6

1

1.1

φ

1.1

φ

4

0.5

φ

1

2.2

Schematic

1

3

4

Remarks

Packaging

5

2

Style

Taping Packaging HSJ1660-019570 Reflow Soldering

HSJ1603-010010

5.6

φ

2.6

5

φ

4

1.5

12

4.5

2.5

11.4

3

6

2-

φ

0.8

1

h=2.5

mm

Schematic

1

3

1

3

Remarks

0.8

2-

φ

0.9

4.4

3

1.7

4

Packaging

2

Style

HSJ1603-010010 HSJ1603-010020 Hand Soldering Only

Bulk

Taping Packaging HSJ1603-011010 HSJ1603-011020 Reflow Soldering

Pad Layout

(Top View)

4.5

4.2

h=2

mm

2

4

2.1

HSJ1633-012110 Related Products

	HSJ1633-012110	HSJ1603-010020	HSJ1603-011010	HSJ1603-011020	HSJ1660-019570
Description	Audio/RCA Connector, 4 Pole(s), Surface Mount Terminal, Jack	Audio/RCA Connector, 3 Pole(s), Female, Surface Mount Terminal, Locking, Jack	Audio/RCA Connector, 3 Pole(s), Surface Mount Terminal, Jack	Audio/RCA Connector, 3 Pole(s), Female, Surface Mount Terminal, Locking, Jack	Audio/RCA Connector, 5 Pole(s), Surface Mount Terminal, Jack
Maker	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
body width	0.197 inch	0.177 inch	0.177 inch	0.177 inch	0.157 inch
subject depth	0.531 inch	0.531 inch	0.531 inch	0.531 inch	0.472 inch
body length	0.311 inch	0.22 inch	0.22 inch	0.22 inch	0.209 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK
Configuration	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL
Connector type	2.5mm AUDIO	2.5mm AUDIO	2.5mm AUDIO	2.5mm AUDIO	2.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
Number of poles	4	3	3	3	5
Number of ports	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
