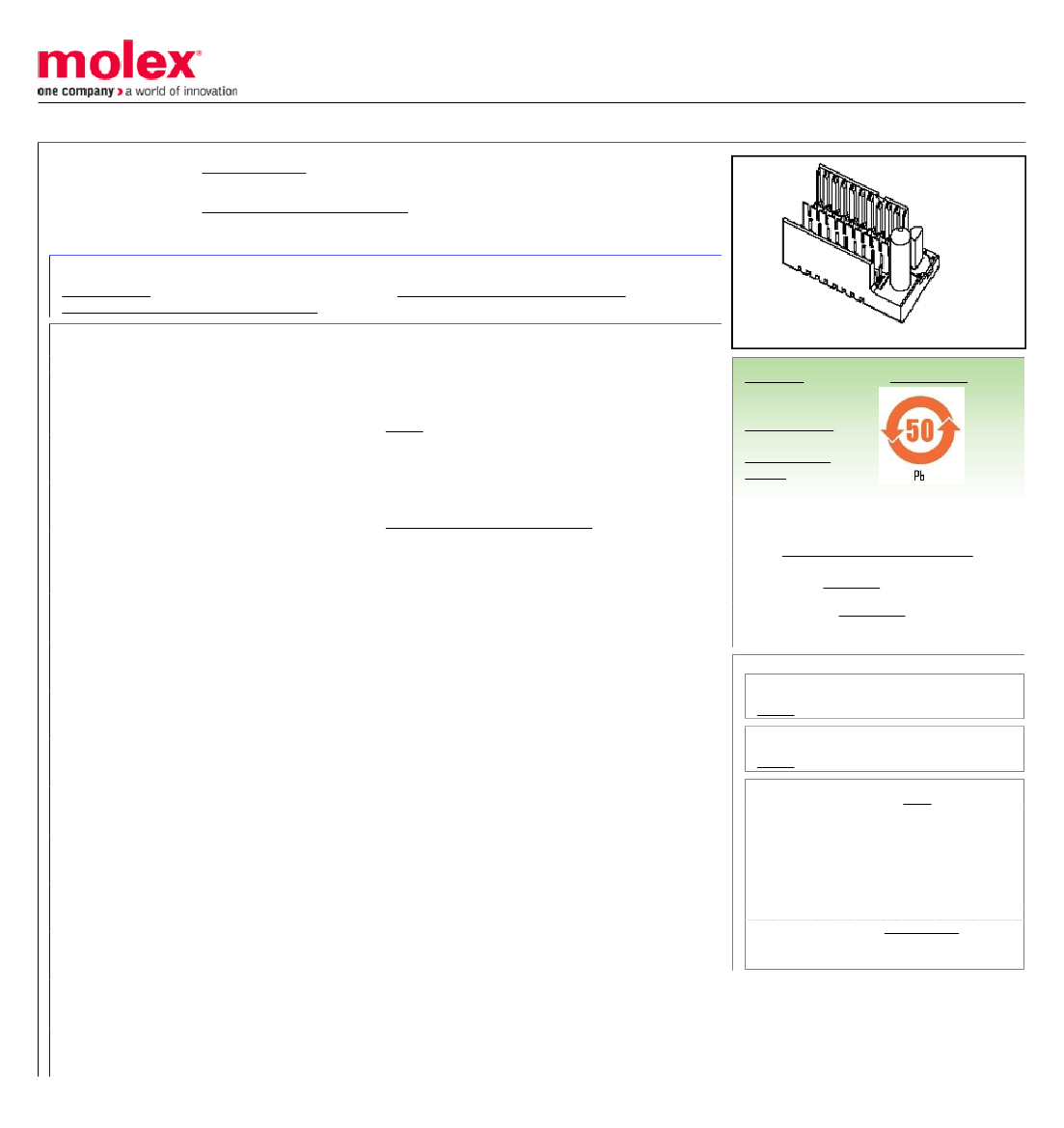

Part Number:
Status:
Overview:
Description:
0758274204
Active
gbx_backplane_connector_system
1.85mm by 1.85mm (.073 by .073") Pitch 2-Pair GbX® Backplane Connector System,
Right Guide Header, 100 Circuits, Gold (Au) 0.76µm (30µ"), Pin Length 4.55mm (.179")
Documents:

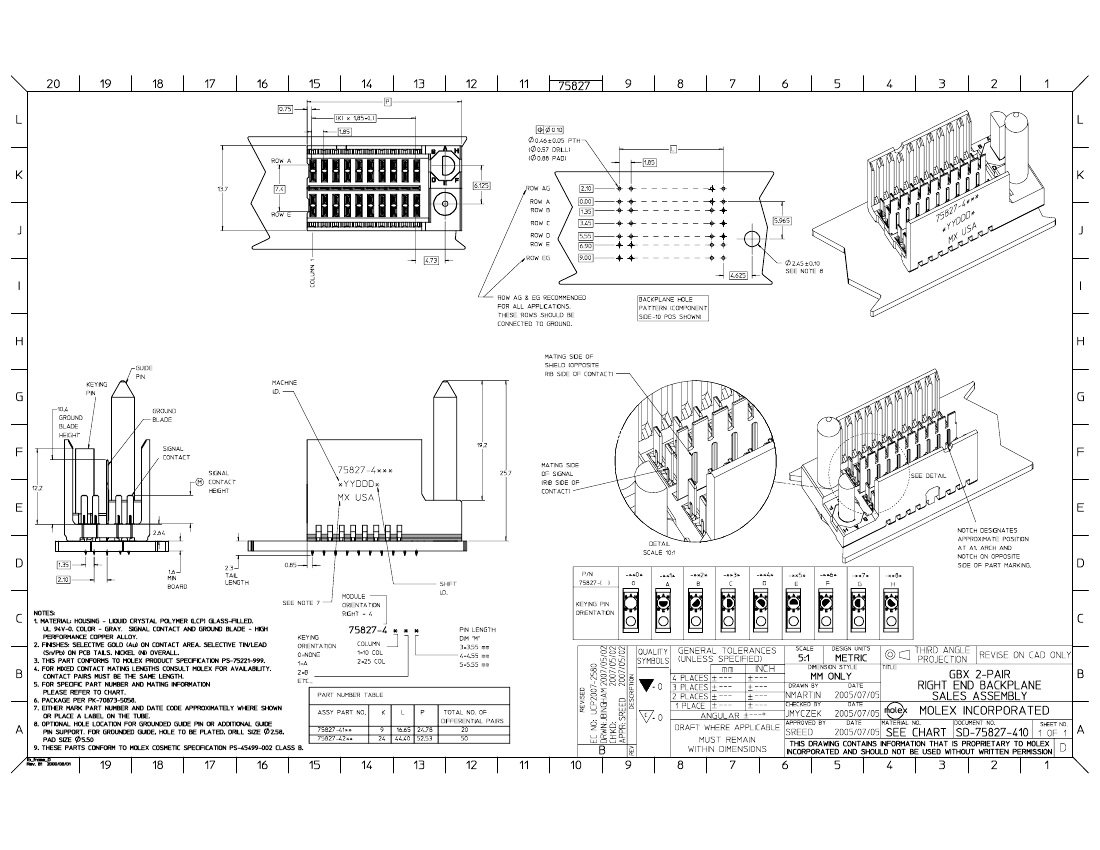

Drawing (PDF)
Product Specification PS-75221-999 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
UL
E29179
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Application Tooling Documents
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
75827
Backplane
<a href="http://www.molex.com/pdm_docs/ats/
TM-622022099.pdf">Tooling Manual</a>
Right Guide Header, No Keying Postion
PCB Header
gbx_backplane_connector_system
GbX®
N/A
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
100
100
Gray (Dark)
200
No
94V-0
Yes
None
High Performance Alloy (HPA), Stainless Steel
Gold
Tin-Lead
High Temperature Thermoplastic
25
2
4
Vertical
0.091 In
2.30 mm
No
Yes
0.063 In
1.60 mm
Tube
0.073 In
1.85 mm
0.073 In
1.85 mm
30
0.76
30
Search Parts in this Series
75827Series
Mates With
75650 GbX® Daughtercard
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
GbX® 2 Pair by 25 0622022430
Wide Differential
Insertion Tool
Plating min: Termination (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
0.76
No
No
Yes
105°C
Through Hole - Compliant Pin
Electrical
Current - Maximum per Contact
Data Rate
Real Signals (per 25mm)
Shield Type
Shielded
Voltage - Maximum
1A
8.0 Gbps
54
Ground Plane Shield
Yes
120V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Packaging Specification
PK-70873-5058
Product Specification
PS-75221-999
Sales Drawing
SD-75827-410
