E2747/E2747LF STRATUM 3 TCXO (-20 to 70°C)
Issue 5, 11
th
June 2008
Outline in mm
Pad Connections
1. Do not connect
2. NC
3. Do not connect
4. GND
5. RF Output
6. NC
7. NC
8. Tri-State Control (Enable)
9. Supply, +Vs
10. Do not connect or connect to GND
Marking
Manufacturers ID (R)
Manufacturing identifier (X XX)
Pad 1 / Static Sensitivity Identifier ()
Abbreviated Part Number (2747)
Oscillator’s Date of Manufacture (YW)
Notes:
R X XX
∆
2747 YW
1) Sample marking may vary.
2) Parts may be marked 'CMAC' (a trademark used under licence) instead of 'R' for a limited time.
Electrical
Nominal Frequency, Fo
Supply Voltage, Vs
Input Current
Output:
Type
Load
V
OL
V
OH
Duty cycle @ 50%
Rise time, 10% to 90%
Fall time, 90% to 10%
12.8 MHz
3.3 V ± 5%
≤ 4 mA
HCMOS
15 pF max
≤ 0.1 Vs
0.9 Vs
45% to 55%
≤ 9 ns
≤ 9 ns
Holdover Stability
[±(Fmax-Fmin)/2]
Temperature, -20°C to +70°C
≤ ± 0.28 ppm
Temperature, -20°C to +70°C, inclusive of Supply
Voltage, 3.3V ± 5% and Ageing, 24 hours
≤ ± 0.32 ppm
Free-Run Accuracy
Calibration @25°C, Temperature -20 to 70°C, Supply
Voltage 3.3V ± 5%, Load 15pF ± 5%, Reflow Soldering
and Ageing 20 years
≤ ± 4.6 ppm ref. to Nominal Frequency
Rakon Limited
T +64 9 573 5554, F +64 9 573 5559
1 Pacific Rise, Mt Wellington, Auckland 1060, New Zealand
Private Bag 99943, Newmarket, Auckland 1149, New Zealand
Page 1 of 3
w w w. r a k o n . c o m
E2747/E2747LF STRATUM 3 TCXO (-20 to 70°C)
Issue 5, 11
th
June 2008
Phase Noise
10Hz
100Hz
1kHz
10kHz
100kHz
Tri-State
Pad 8 open circuit or
0.6 Vs
Pad 8 ≤ 0.2 Vs
≤
≤
≤
≤
≤
-
-
-
-
-
90 dBc/Hz
115 dBc/Hz
127 dBc/Hz
137 dBc/Hz
143 dBc/Hz
Output Enabled
Output in Tri-State Mode
In Tri-state mode, the output stage is disabled but the oscillator and compensation circuit are still
active (current consumption ≤ 1mA)
Environmental
Storage Temperature Range
Vibration
-55 to +125C
IEC 60068-2-6 Test Fc Procedure B4, 10-60Hz 1.5mm displacement, at 10gn,
30 minutes in each of three mutually perpendicular axes at 1 octave per minute
IEC 60068-2-27 Test Ea, 100gn acceleration for 6ms duration, three shocks in
each direction along three mutually perpendicular axes
Shock
Solderability MIL-STD-202, Method 208, Category 3
Resistance to Soldering Heat: 260°C / 10s exposure
Marking
RoHS
Laser Marked
Parts with the suffix ‘LF’ on the part number are fully compliant with the
European Union directive 2002/95/EC on the restriction of the use of certain
hazardous substances in electrical and electronic equipment. Note the RoHS
compliant parts are suitable for assembly using both Lead-free solders (see
Lead-free Reflow soldering profile) and Tin / Lead solders (see Tin / Lead Reflow
soldering profile).
Rakon Limited
T +64 9 573 5554, F +64 9 573 5559
1 Pacific Rise, Mt Wellington, Auckland 1060, New Zealand
Private Bag 99943, Newmarket, Auckland 1149, New Zealand
Page 2 of 3
w w w. r a k o n . c o m
E2747/E2747LF STRATUM 3 TCXO (-20 to 70°C)
Issue 5, 11
th
June 2008

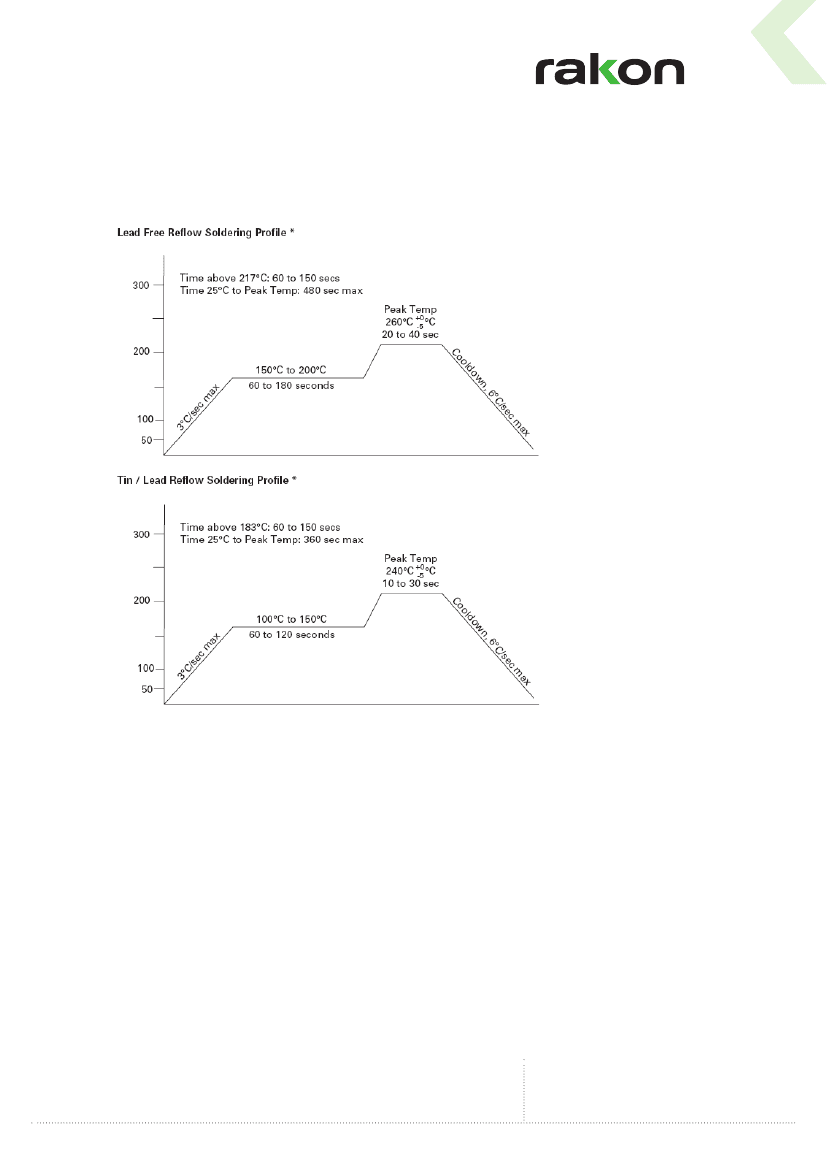

*Note:
These profiles were used during the qualification testing of the product and therefore represents worst
case conditions. It is not recommended for use by the customer in the actual assembly of these parts.
Rakon Limited
T +64 9 573 5554, F +64 9 573 5559
1 Pacific Rise, Mt Wellington, Auckland 1060, New Zealand
Private Bag 99943, Newmarket, Auckland 1149, New Zealand
Page 3 of 3
w w w. r a k o n . c o m
