This document was generated on 05/14/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0767106110
Active
1.40mm (0.055") Pitch Tinman Vertical Receptacle, Dual End, 5 Pair, 10 Column, 150
Circuits, 85 Ohms, Tin/Lead
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Product Name
Style
Backplane Connectors
76710
Backplane
85 Ohms
PCB Receptacle
Tinman
N/A

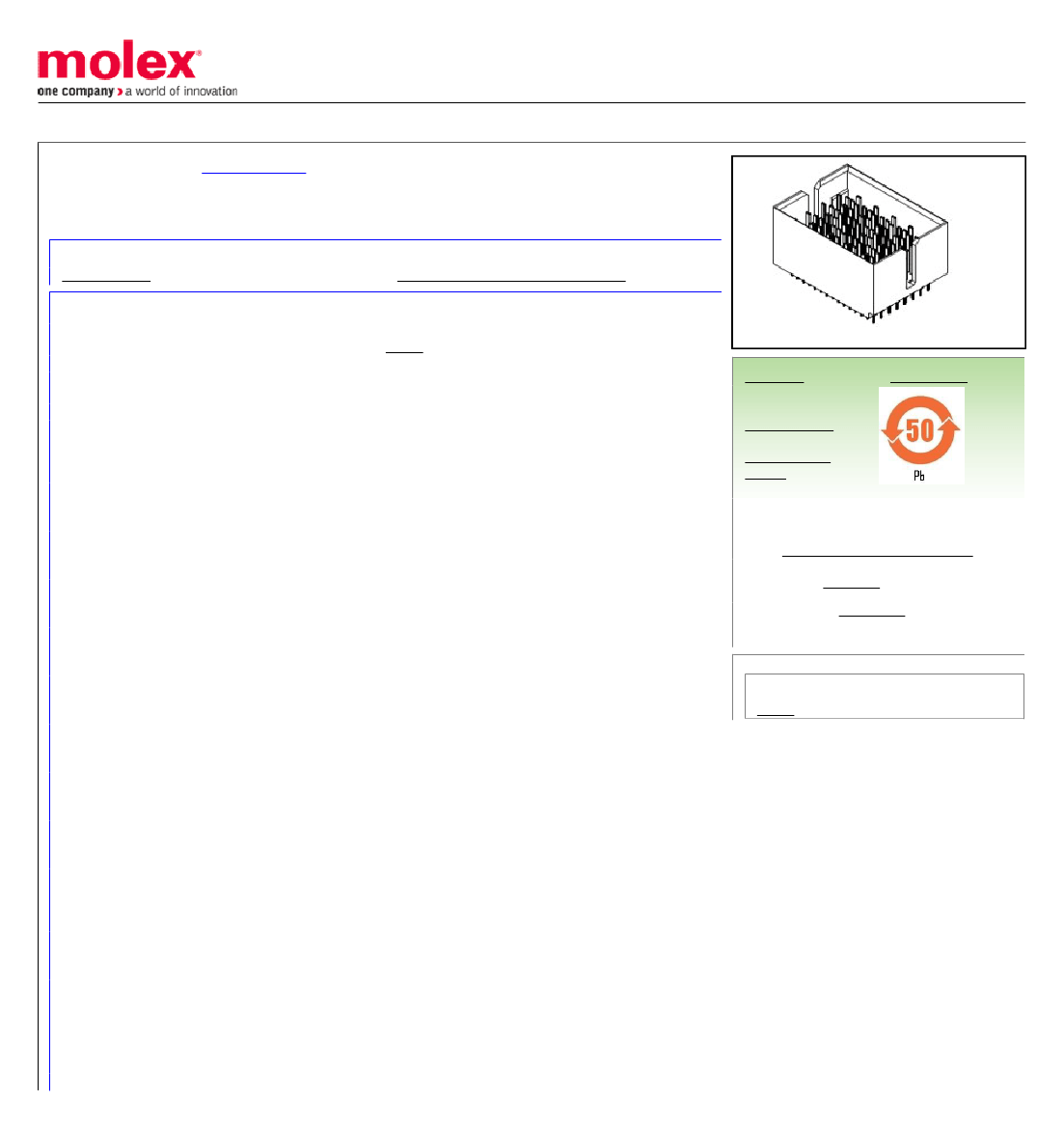

image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
150
150
Black
200
Yes
No
None
Copper Alloy
Tin-Lead
High Temperature Thermoplastic
10
5
15
Vertical
0.098 In
2.50 mm
No
None
0.055 In
1.40 mm
Tube
0.074 In
1.90 mm
No
Yes
-65°C to +90°C
Surface Mount
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
76710Series
Electrical
Current - Maximum per Contact
Data Rate
Shielded
Voltage - Maximum
0.5A
10.0 Gbps
No
250V AC
Material Info
Reference - Drawing Numbers
Packaging Specification

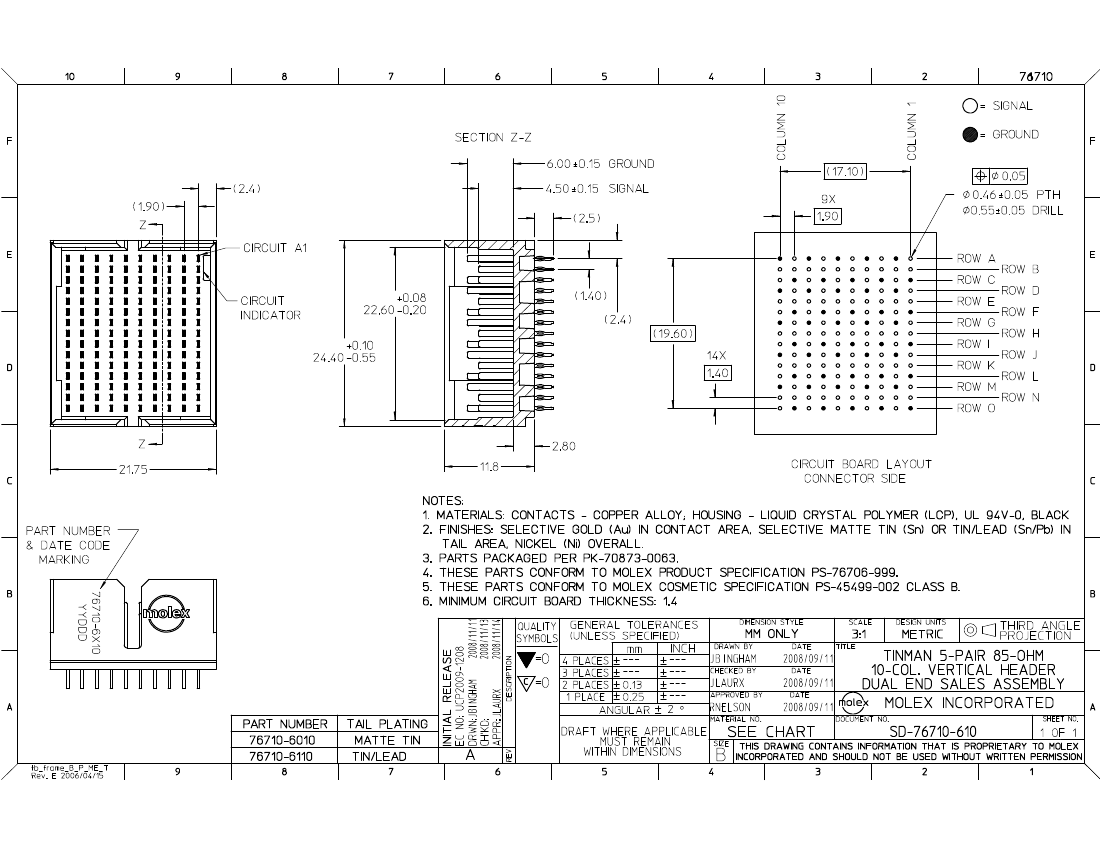

Sales Drawing
PK-70873-0063
SD-76710-610
