SMD Power Inductors for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications (NR series H type)
NRH2412T1R5NNGHV
Features
Item Summary
1.5uH±30%, 1.15A, 2.4x2.4x1.2mm
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 2500pcs
Products characteristics table
Inductance
Case Size (mm)
Rated Current (max)
Saturation Current (max)
Temperature Rise Current (max)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Self Resonant Frequency (min)
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
1.5 uH ± 30 %
2.4x2.4
1.15 A
2.1 A (⊿L=30%)
1.15 A (⊿T=40℃)
0.12 Ω
0.1 Ω
100 kHz
89 MHz
-40 to +125 ℃
(Including-self-generated heat)
± 20 %
External Dimensions
Dimension L
Dimension W
Dimension H
Dimension e
Dimension f
2.4 ±0.1 mm
2.4 ±0.1 mm
Max 1.2 mm
0.6 ±0.2 mm
1.45 ±0.2 mm
Recommended Land Patterns
2018.11.08
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor

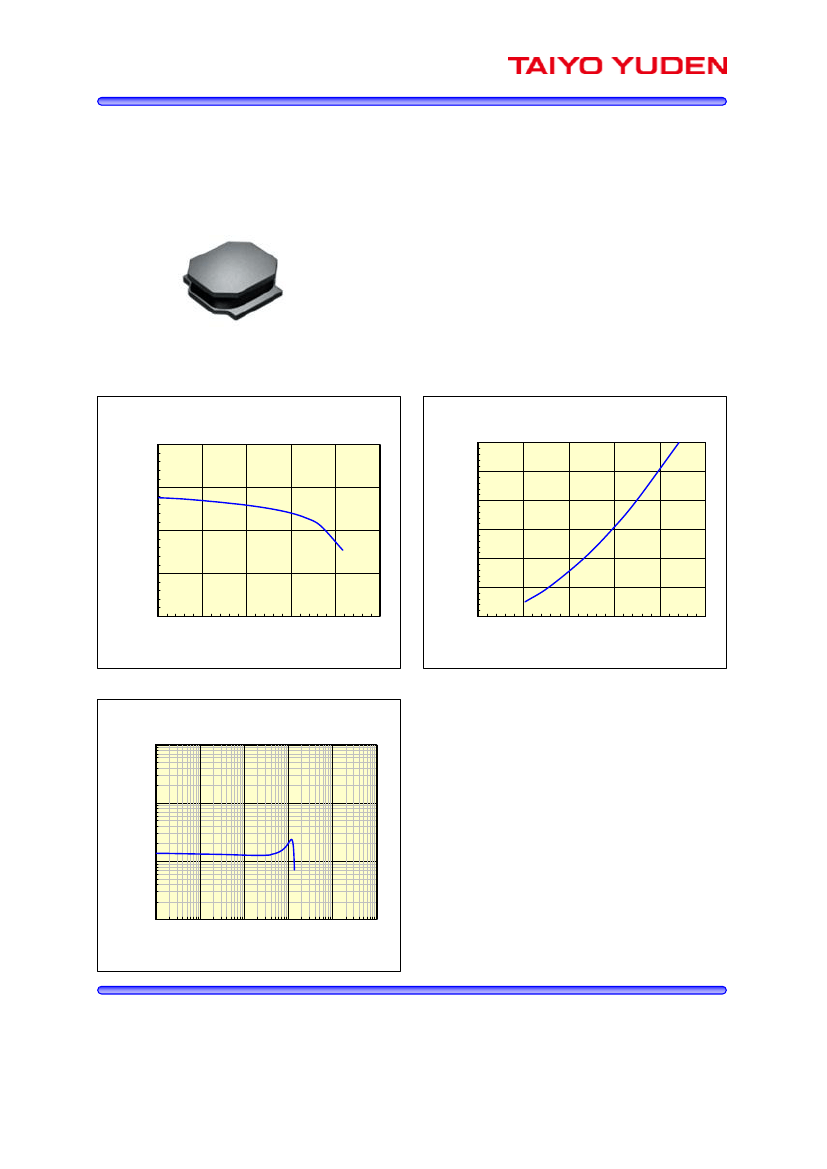

-Electrical Characteristics Data-
2016/7/14
SMD Power Inductors for Automotive / Industrial Applications
(NR series H type)
Dimension
Length :
Width :
Height :
Inductance :
DC Resistance :
Saturation Current :
Temp. rise Current :
AEC-Q200 qualified
unit : mm
2.4 + / - 0.1
2.4 + / - 0.1
1.2
max.
unit : inch
( 0.094 + / - 0.004 )
( 0.094 + / - 0.004 )
( 0.047
max. )
NRH2412T1R5NNGHV
1.5
uH
( test freq at 0.1MHz )
ohm ( typ / max )
0.1
/ 0.12
2,100 mA ( max )
1,150 mA ( max )
Saturation current typical : 30% reduction from initial L value.
Temp rise Current typical : Temperature will rise by 40 deg C
DC Bias vs Inductance
2
60
DC Bias vs Temperature
Self-temperature rise [deg]
0
600
1200
1800
2400
3000
50
40
30
20
10
0
0
400
800
1200
1600
2000
Inductance [uH]
1.5
1
0.5
0
DC Bias [mA]
DC Bias [mA]
Frequency vs Inductance
100
Inductance [uH]
10
1
0.1
0.1
1
10
100
1000
10000
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
The products are tested based on the test conditions and methods defined in AEC-Q200.
Please consult with TAIYO YUDEN for the details of the product specification and AEC-Q200 test results, etc.,
and please review and approve TAIYO YUDEN's product specification before ordering.
■
