53011230001D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 53011230001D

53011230001D: DescriptionBarrier Strip Terminal Block,; CategoryThe connector; File Size693KB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

53011230001D Overview

Barrier Strip Terminal Block,

53011230001D Parametric

Parameter Name	Attribute value
Maker	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compli
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

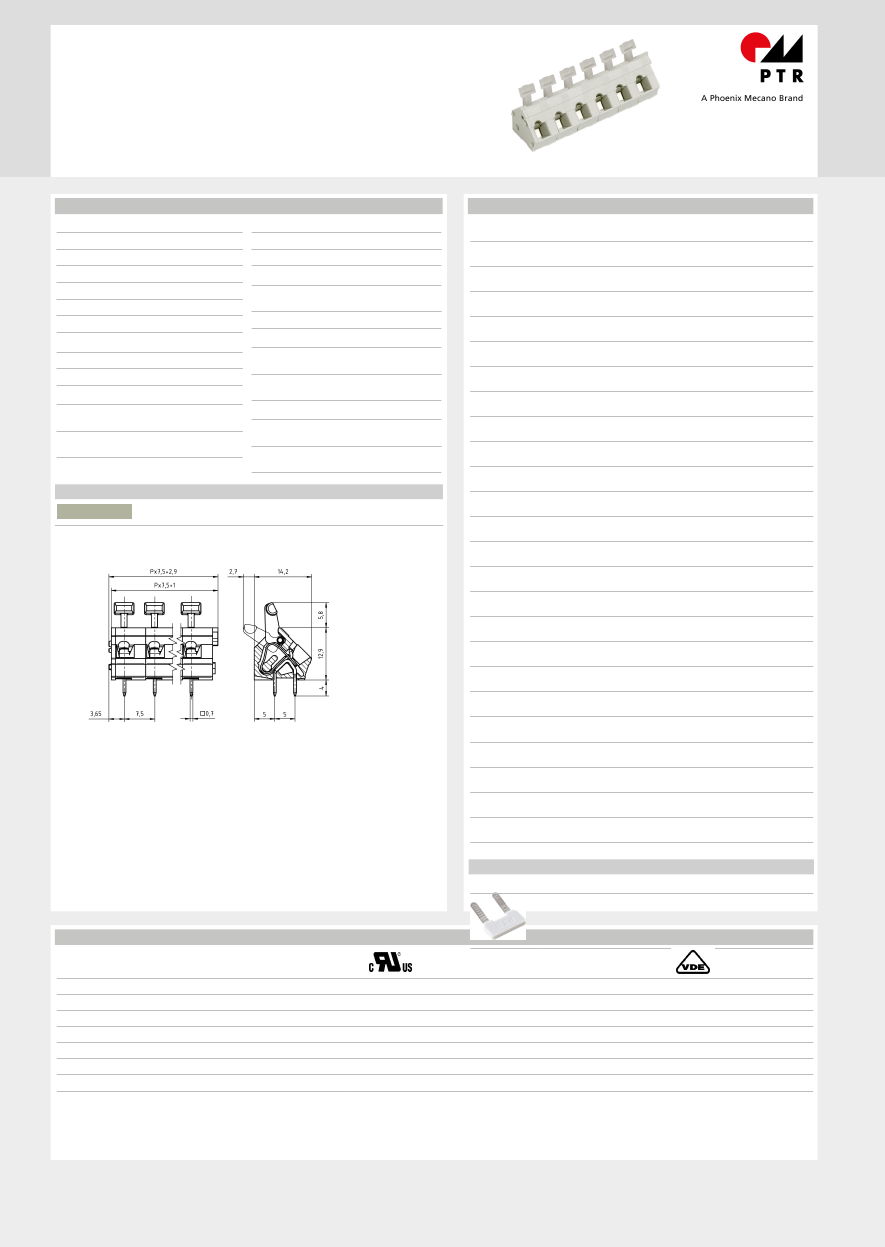

Tension Spring |

Spacing 7.5 mm

AK3011/..KD-7.5-PEBBLE GREY

- 1- to n-poles

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

0.08 mm²

2.5 mm²

0.14mm²

2.5 mm²

0.14 mm²

1.5 mm²

Order Data (Spacing 7.5 mm)

Insulating Material

Material

Flammability Class

PA 6.6

10.40

17.90

25.40

32.90

40.40

47.90

55.40

62.90

70.40

77.90

85.40

92.90

100.40

107.90

115.40

122.90

130.40

137.90

145.40

152.90

160.40

167.90

175.40

182.90

Poles

Width (mm)

Article Designation

AK3011/1KD-7.5-PEBBLE

GREY

AK3011/2KD-7.5-PEBBLE

GREY

AK3011/3KD-7.5-PEBBLE

GREY

AK3011/4KD-7.5-PEBBLE

GREY

AK3011/5KD-7.5-PEBBLE

GREY

AK3011/6KD-7.5-PEBBLE

GREY

AK3011/7KD-7.5-PEBBLE

GREY

AK3011/8KD-7.5-PEBBLE

GREY

AK3011/9KD-7.5-PEBBLE

GREY

AK3011/10KD-7.5-PEBBLE

GREY

AK3011/11KD-7.5-PEBBLE

GREY

AK3011/12KD-7.5-PEBBLE

GREY

AK3011/13KD-7.5-PEBBLE

GREY

AK3011/14KD-7.5-PEBBLE

GREY

AK3011/15KD-7.5-PEBBLE

GREY

AK3011/16KD-7.5-PEBBLE

GREY

AK3011/17KD-7.5-PEBBLE

GREY

AK3011/18KD-7.5-PEBBLE

GREY

AK3011/19KD-7.5-PEBBLE

GREY

AK3011/20KD-7.5-PEBBLE

GREY

AK3011/21KD-7.5-PEBBLE

GREY

AK3011/22KD-7.5-PEBBLE

GREY

AK3011/23KD-7.5-PEBBLE

GREY

AK3011/24KD-7.5-PEBBLE

GREY

Article

Number

53011010001 F

53011020001 E

53011030001 E

53011040001 E

53011050001 E

53011060001 D

53011070001 D

53011080001 D

53011090001 D

53011100001 D

53011110001 D

53011120001 D

53011130001 D

53011140001 D

53011150001 D

53011160001 D

53011170001 D

53011180001 D

53011190001 D

53011200001 D

53011210001 D

53011220001 D

53011230001 D

53011240001 D

200

100

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

Stripped Length

PCB Hole Diameter

6.0 mm

1.1 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

260 °C

3-4 s

Materials

Solder Tab

Tension Spring

Copper

Alloy

Stainless

Steel

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Colours

PEBBLE GREY, RAL 7032

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Accessoires

Figure

Designation

Bridge, 2-pole, insulated,

BRI/2-7.5/7.62-L8.2-LIGHT GREY

Article Number

Order Data:

50000000017

Ratings

UseGroup

Rated Voltage

Rated Current

Rated Wire Size

- solid

- stranded

Test Voltage

300 V

15 A

300 V

10 A

min

750 V

24 A

max

2.5 mm²

3.0 kV

AWG 28-14

1.60 kV

AWG 28-14

1.60 kV

0.5 mm²

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu
