This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0877584217

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Through Hole, Vertical, 42 Circuits, 0.76µm

(30µ") Gold (Au) Selective Plating, Pocket Tray Packaging, Lead-free

Documents:

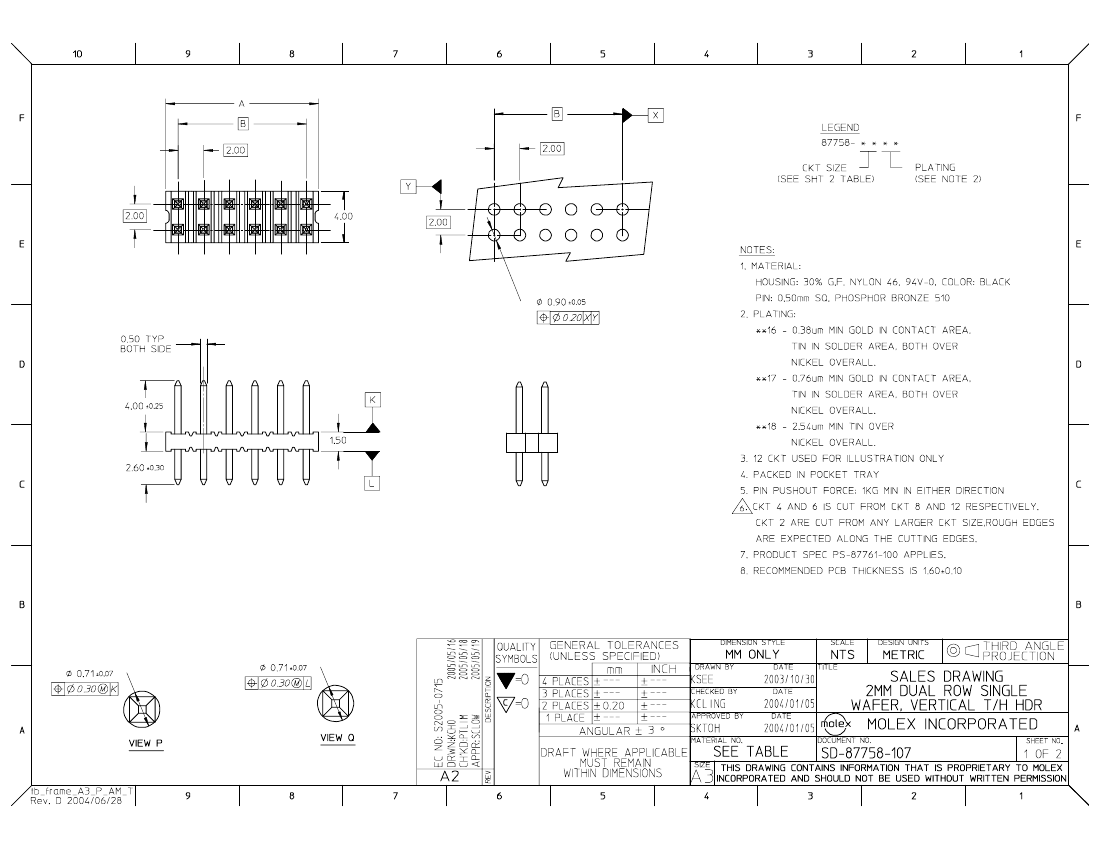

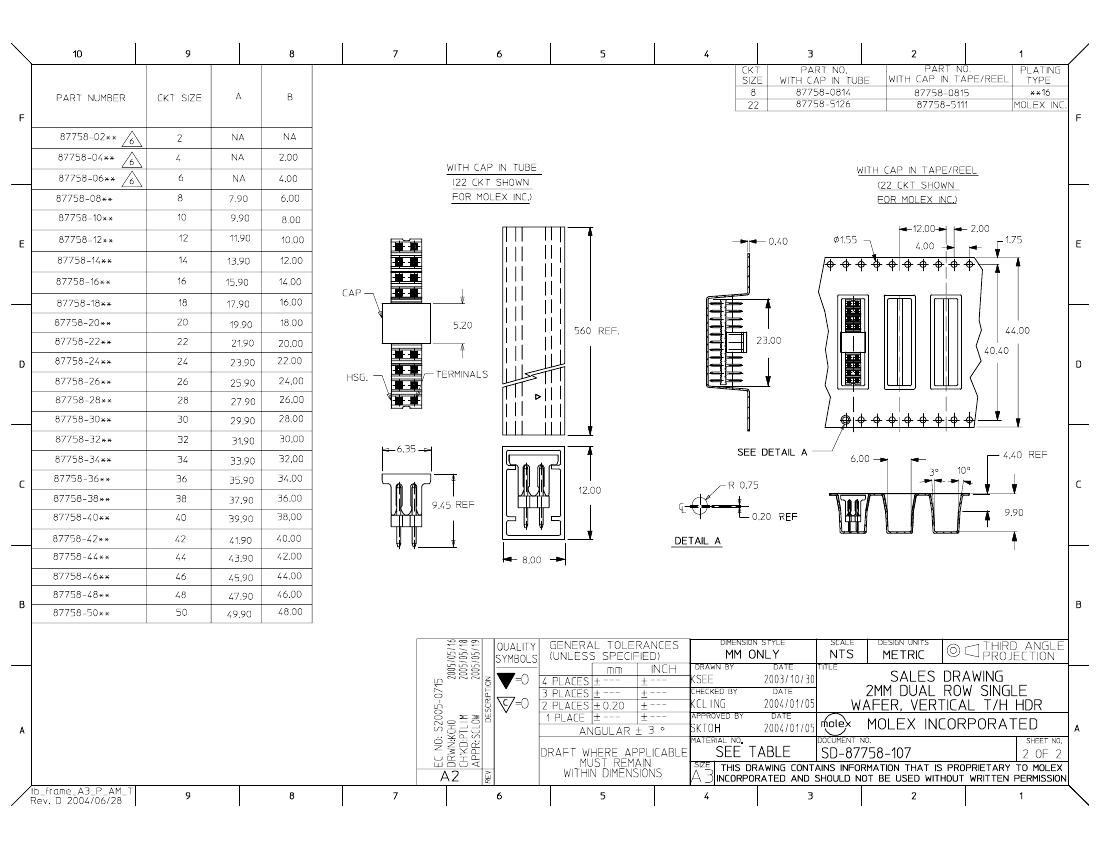

Drawing (PDF)

Product Specification PS-87761-100 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

87758

Board-to-Board

milligrid

Milli-Grid™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Yes

Black

100

94V-0

None

0.157 In

4.00 mm

Phosphor Bronze

Gold

Tin

Nylon

Vertical

0.102 In

2.60 mm

None

0.062 In

1.60 mm

Tray

0.079 In

2.00 mm

0.079 In

2.00 mm

0.76

Search Parts in this Series

87758Series

Mates With

79107 Milli-Grid™ Receptacle, Vertical,

Through Hole. 79108 Milli-Grid™ Flex-to-

Board, Vertical Receptacle. Milli-Grid™

Receptacle, Surface Mount. 79109. 87381
