0878322223: Description2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, Shrouded, Leadfree 22 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Plating; CategoryThe connector The connector; File Size389KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0878322223 Overview

2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, Shrouded, Leadfree 22 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Plating

0878322223 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	87832
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	22

Preview

Download Datasheet

View All

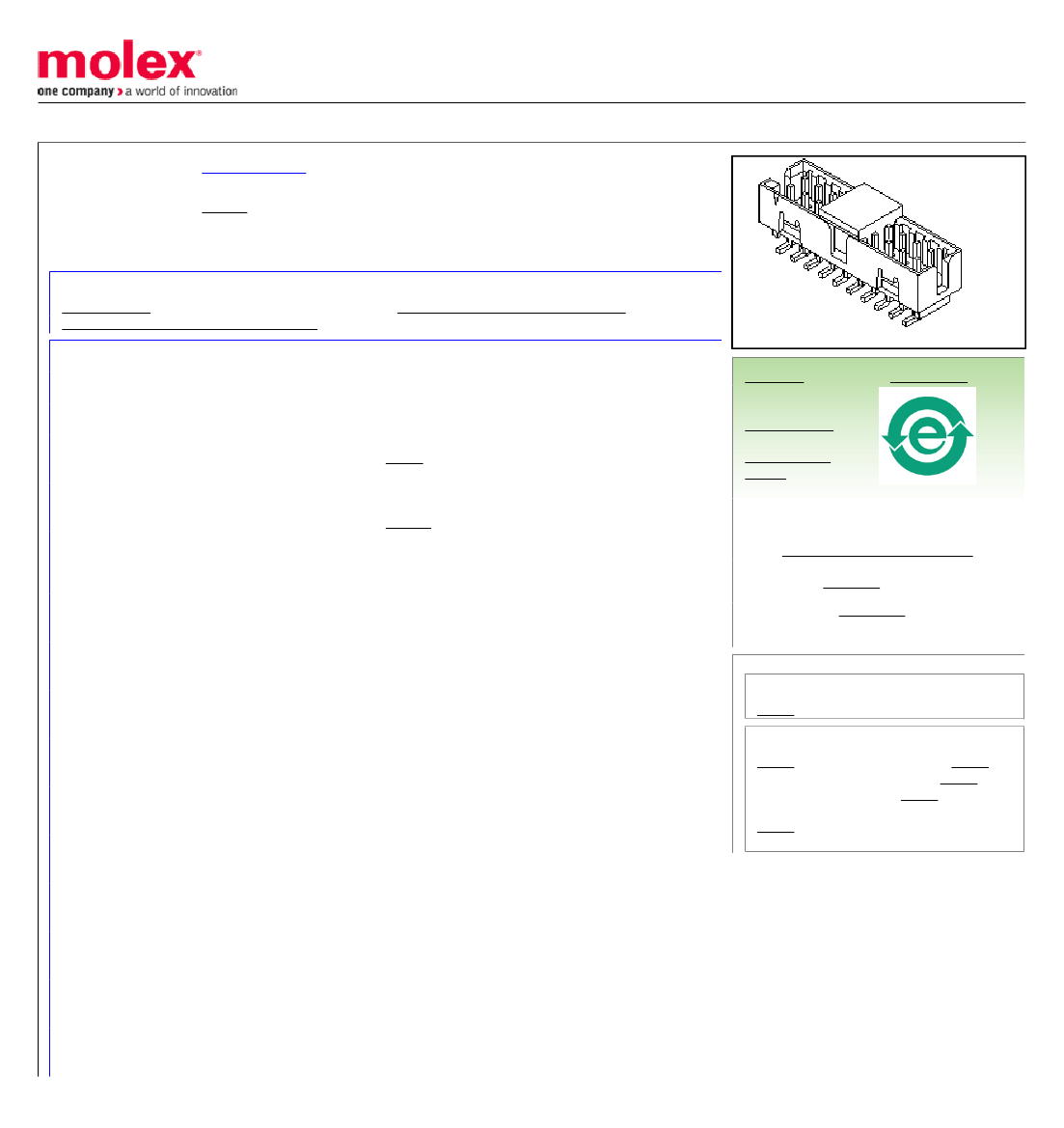

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878322223

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Surface Mount, Vertical, Shrouded, Lead-

free, 22 Circuits, 0.76µm (30µ") Gold (Au) Plating, with Locking Windows and Center

Polarization Slot, PCB Locator, Tube

Documents:

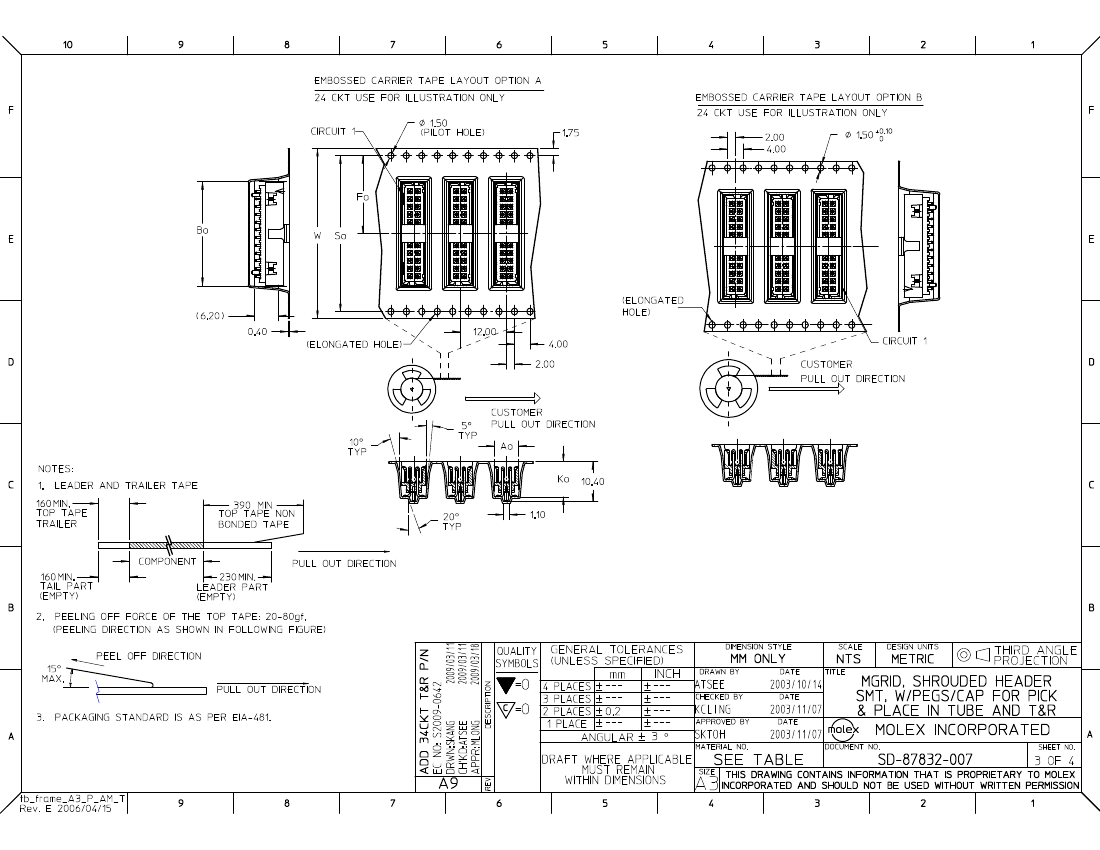

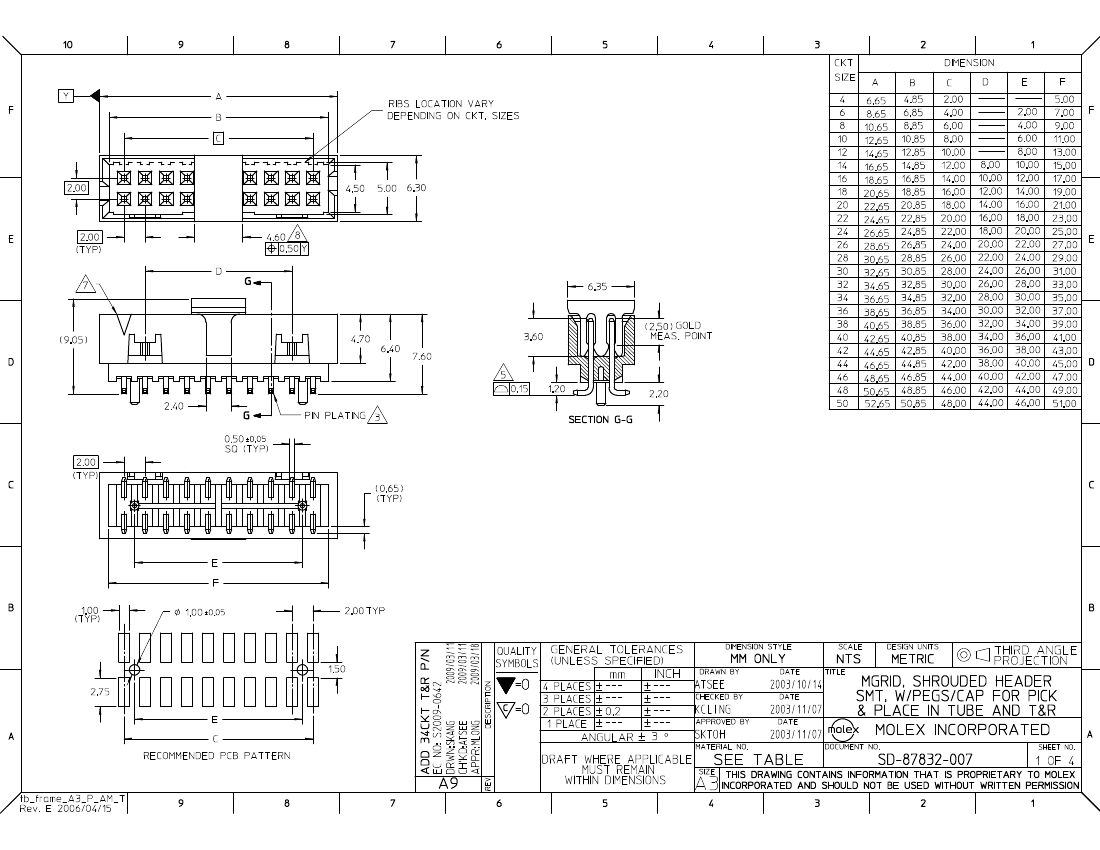

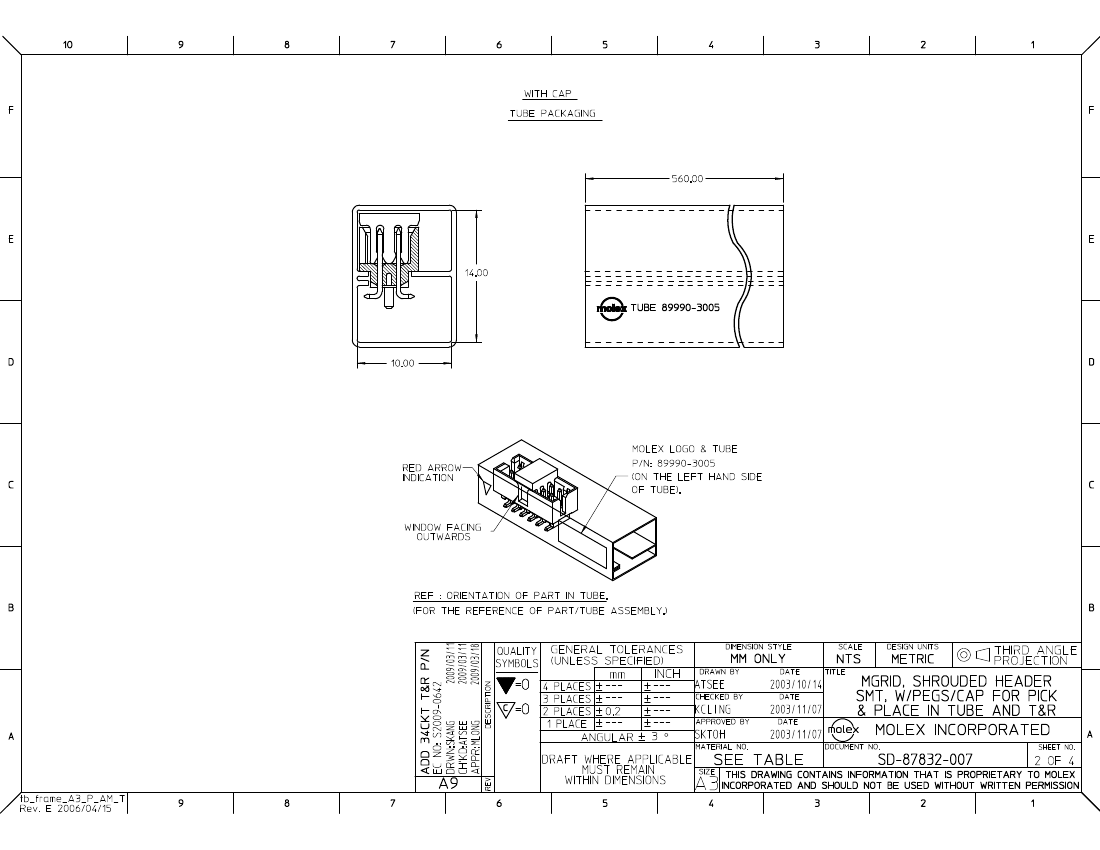

Drawing (PDF)

Product Specification PS-87831-027 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

87832

Wire-to-Board

With Cap; Contact Molex for application in automotive

industry

milligrid

Milli-Grid™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Shrouded

Black

94V-0

Yes

Phosphor Bronze

Gold

Tin

Nylon

Vertical

Yes

None

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

0.76

1.88

Side Slots (2)

Pick and Place Cap

Fully

Search Parts in this Series

87832Series

Mates With

50394 Wire-to-Board Terminals. 51110

Wire-to-Board Crimp Housing. 87568 Wire-

to-Board IDT Housings. 79107 Board-to-

Board Top Entry Through Hole Receptacle.

79108 Board-to-Board FFC/FPC Top Entry

Through Hole Receptacle. L

0878322223 Related Products

	0878322223	87832-2223
Description	2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, Shrouded, Leadfree 22 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Plating	2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, Shrouded, Leadfree 22 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Plating
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	unknow	compli
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	AU ON NI
Contact completed and terminated	TIN	TIN OVER NICKEL
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
Insulator color	BLACK	BLACK
insulator material	NYLON	GLASS FILLED NYLON
Manufacturer's serial number	87832	87832
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch
Rated current (signal)	2 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	22	22
