0879431101: Description2.50mm (.098) / 3.50mm (.138) Pitch Wire-to-Board Female Crimp Terminal, Tin (Sn) Overall, 16 AWG, Reel Packaging, Lead-free; CategoryThe connector Connector bracket; File Size74KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0879431101 Overview

2.50mm (.098) / 3.50mm (.138) Pitch Wire-to-Board Female Crimp Terminal, Tin (Sn) Overall, 16 AWG, Reel Packaging, Lead-free

0879431101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	CONTACT FINISH: TIN
Assembly name	CONTACT
Maximum number of cable entries	0.0964 inch
Minimum cable entry	0.0736 inch
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	FEMALE
DIN compliance	NO
Finished thickness	20
IEC compliance	NO
MIL compliance	NO
Material	COPPER
Terminal type	CRIMP
used for	87943-7001
Maximum wire diameter	16 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

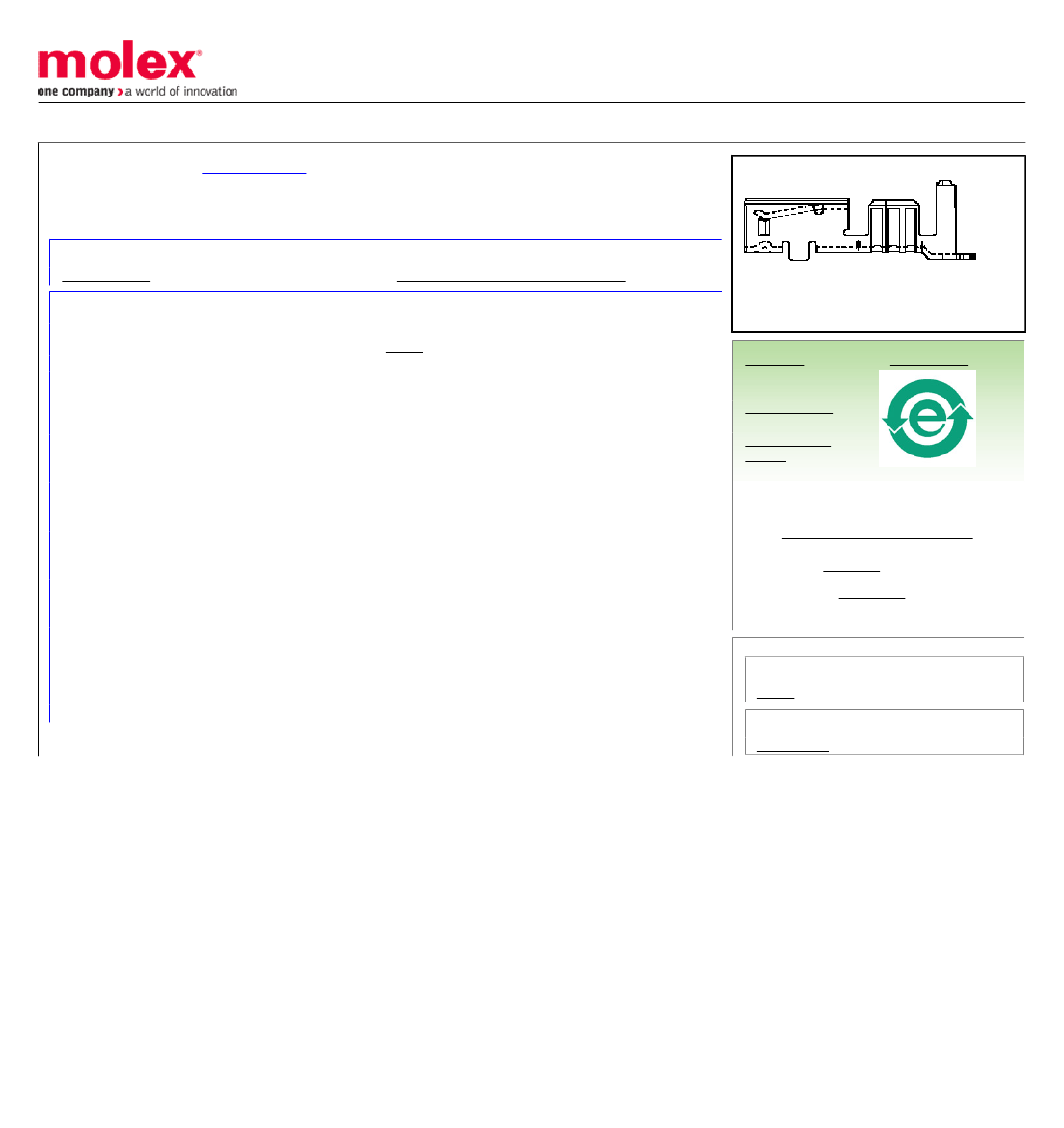

This document was generated on 04/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0879431101

Active

2.50mm (.098") / 3.50mm (.138") Pitch Wire-to-Board Female Crimp Terminal, Tin (Sn)

Overall, 16 AWG, Reel Packaging, Lead-free

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

Crimp Terminals

87943

Yes

N/A

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Crimp Quality Equipment

Product Name

Physical

Durability (mating cycles max)

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

30

Female

Copper

Tin

Reel

20

0.50

20

0.50

Crimp or Compression

1.87-2.45mm

16

1.31

Material Info

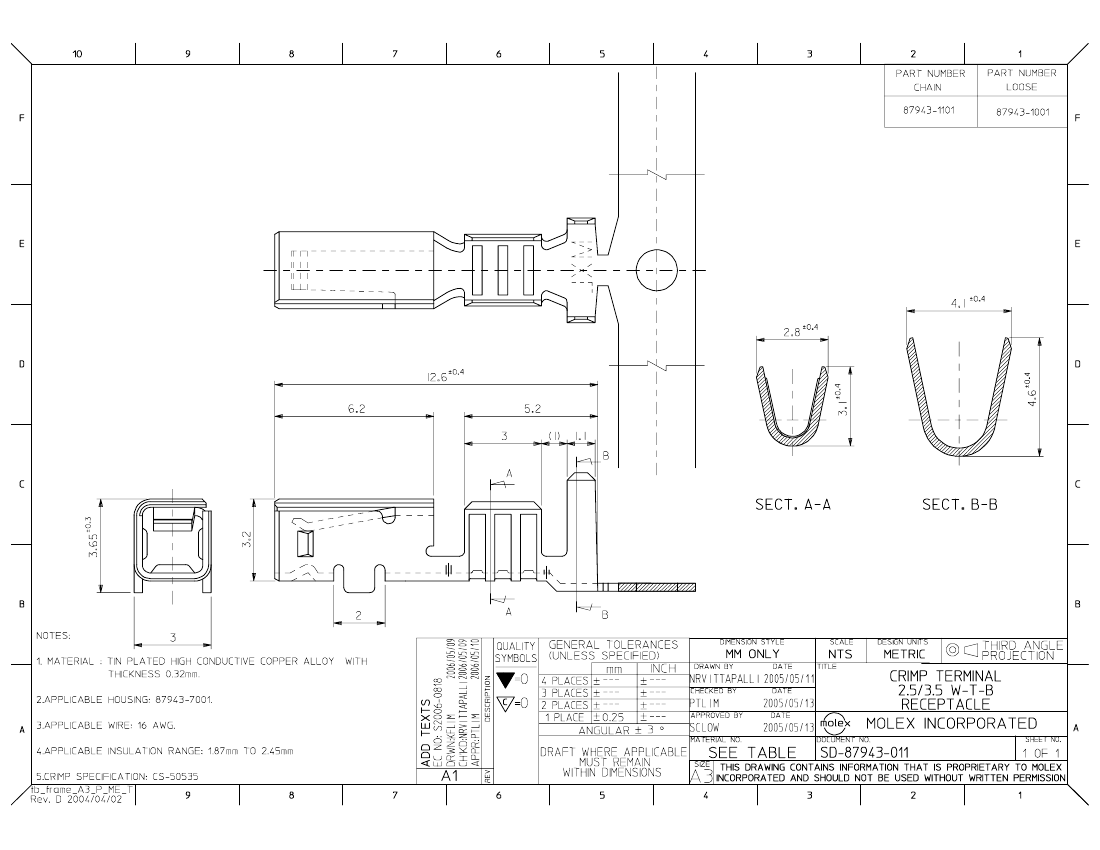

Reference - Drawing Numbers

Sales Drawing

SD-87943-011

Search Parts in this Series

87943Series

Use With

87943-7001 Receptacle Housing

This document was generated on 04/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
