54LS133DM

Description
NAND Gate, TTL/H/L Series, 1-Func, 13-Input, TTL, CDIP14, CERAMIC, DIP-14
Categorylogic    logic
File Size26KB,1 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/

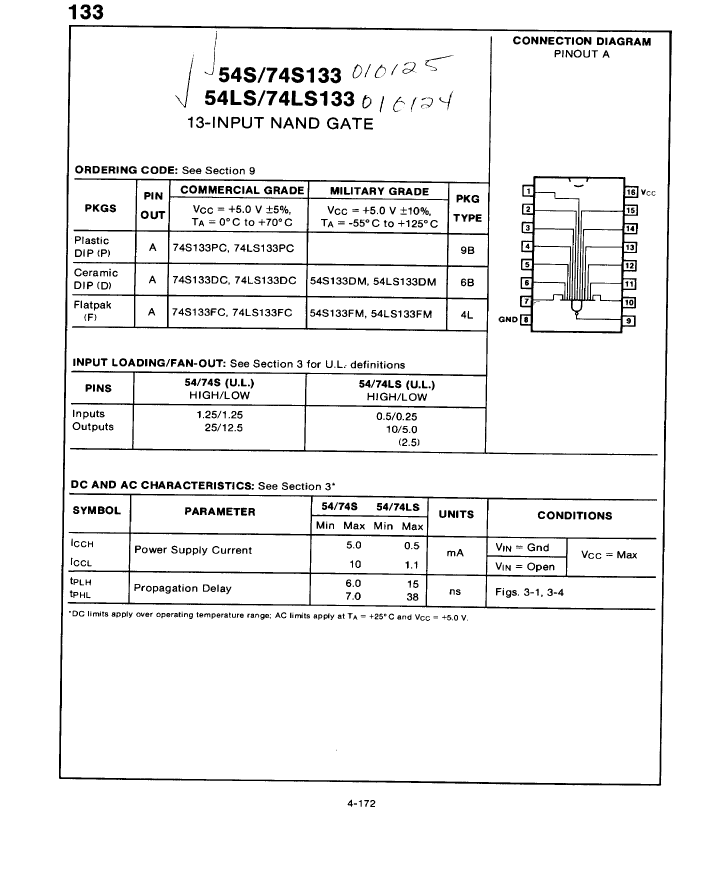

Download Datasheet Parametric View All

54LS133DM Overview

NAND Gate, TTL/H/L Series, 1-Func, 13-Input, TTL, CDIP14, CERAMIC, DIP-14

54LS133DM Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerFairchild
package instructionDIP, DIP16,.3
Reach Compliance Codecompli
seriesTTL/H/L
JESD-30 codeR-CDIP-T14
JESD-609 codee0
Logic integrated circuit typeNAND GATE
Humidity sensitivity level2A
Number of functions1
Number of entries13
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)250
power supply5 V
propagation delay (tpd)38 ns
Certification statusNot Qualified
Schmitt triggerNO
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
