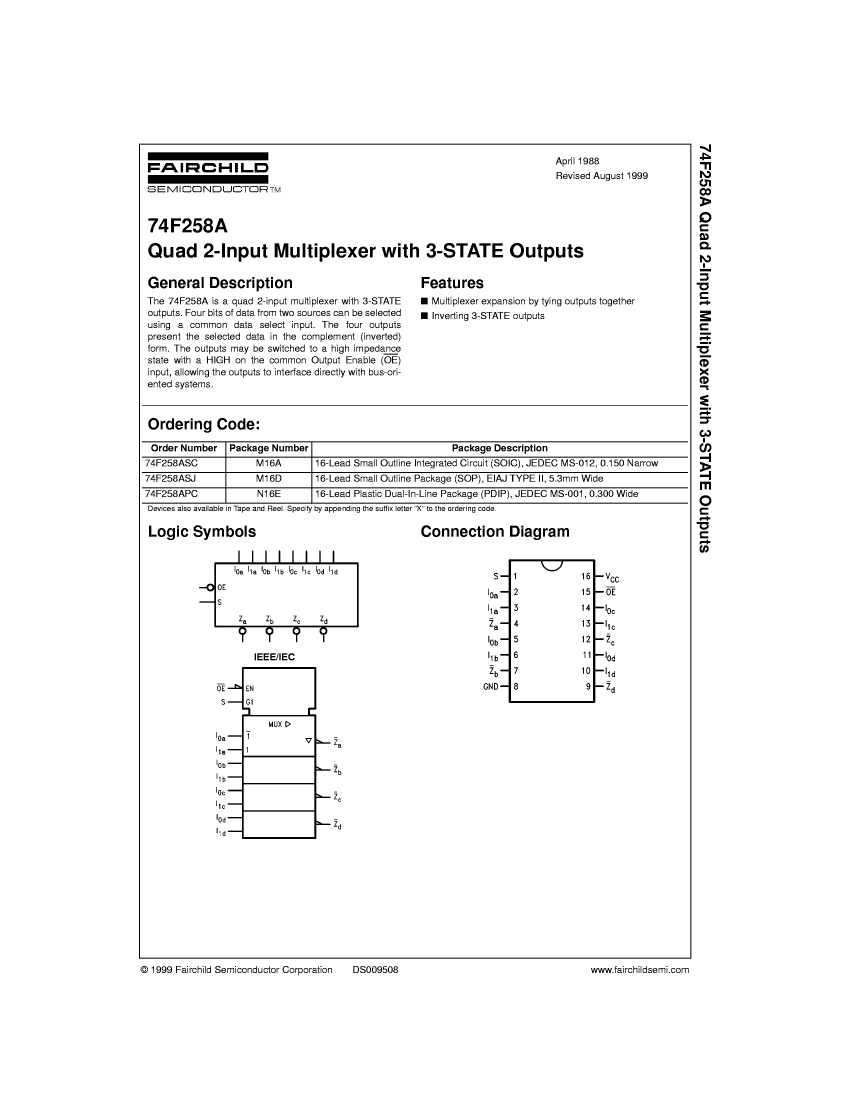

Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16,

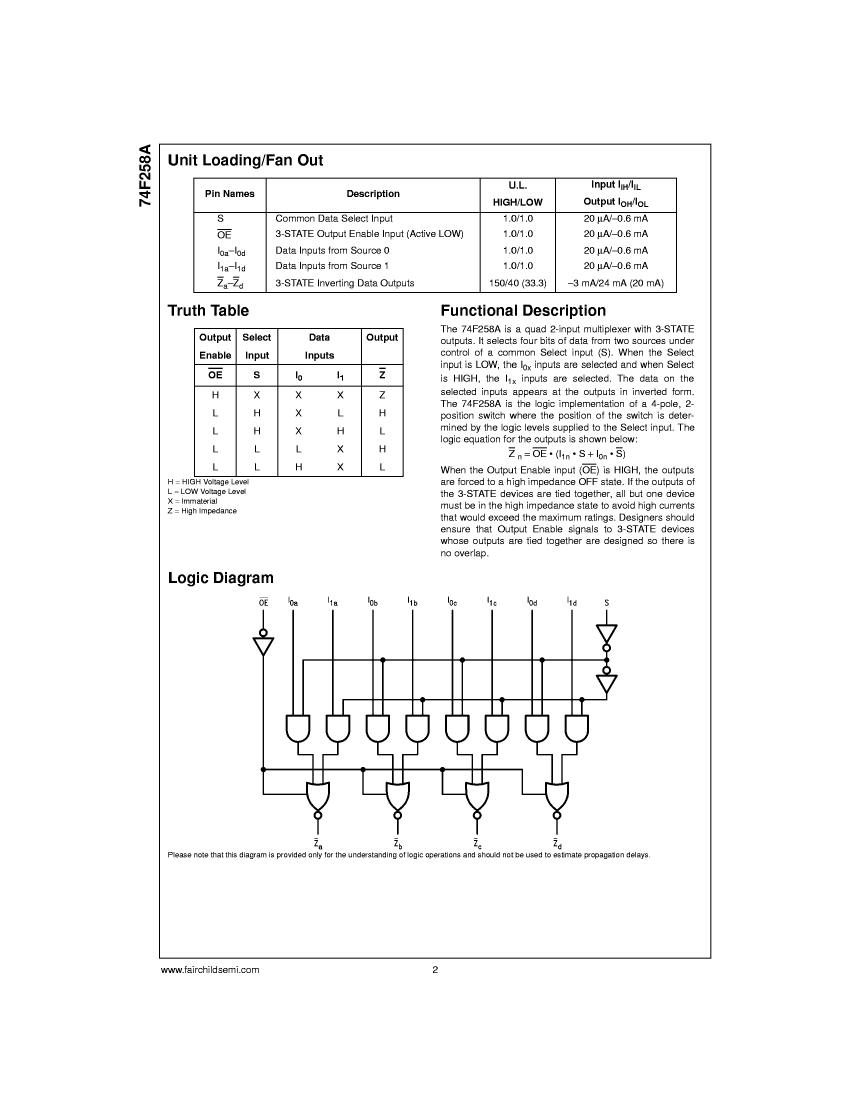

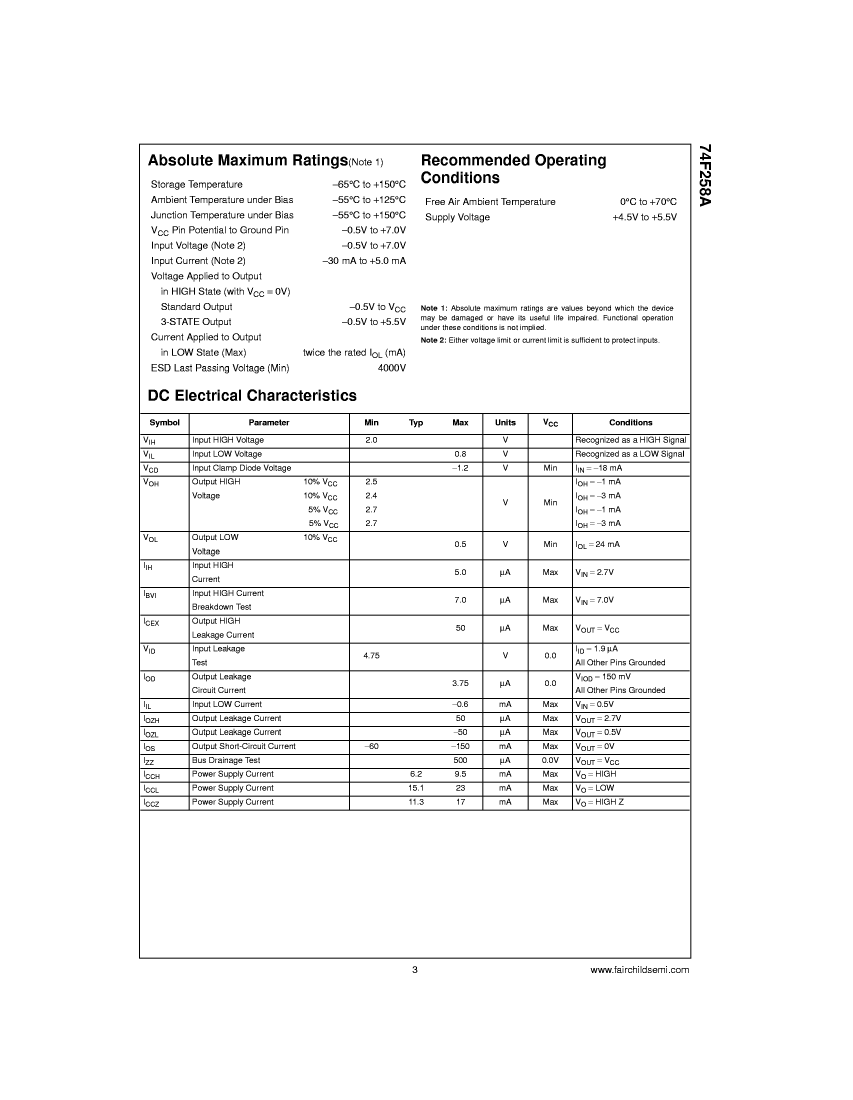

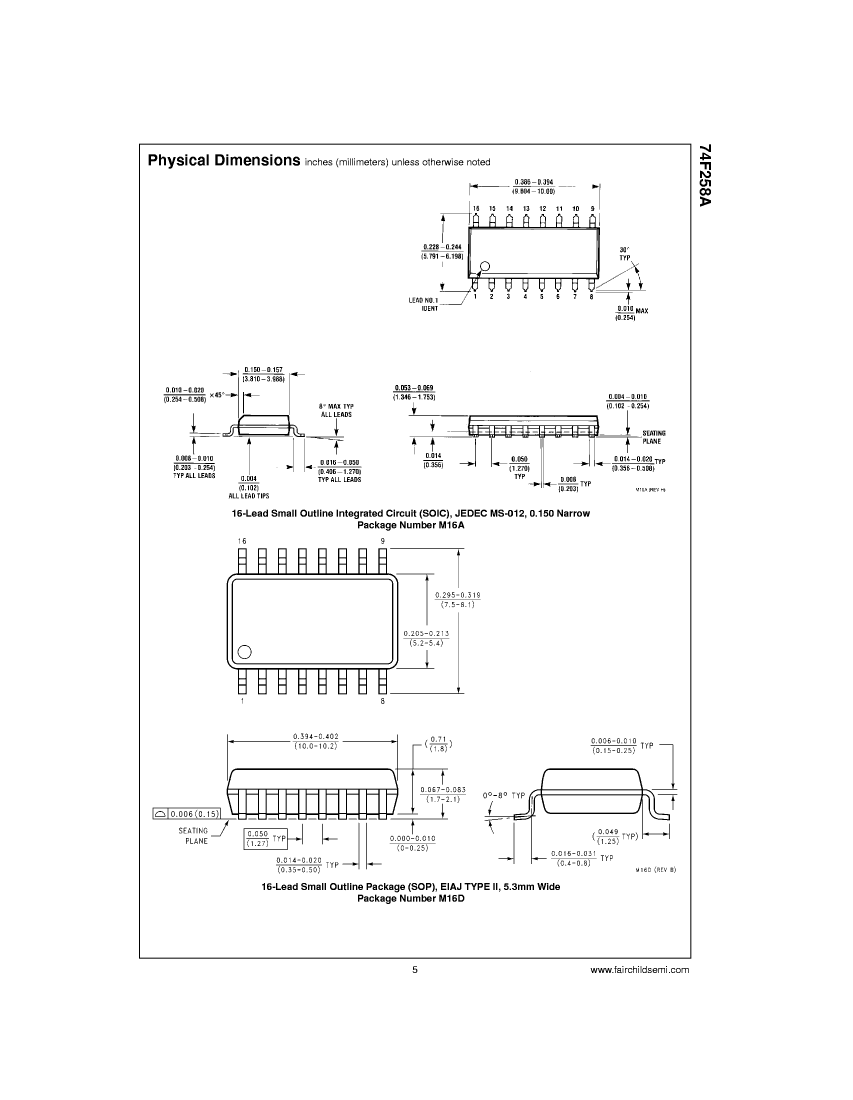

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | compli |
| JESD-30 code | R-PDIP-T16 |
| Logic integrated circuit type | MULTIPLEXER |
| Humidity sensitivity level | 2A |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | 250 |
| power supply | 5 V |
| Prop。Delay @ Nom-Su | 11 ns |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| 5962-01-270-9170 | 74F258APCQR | 74F258DCQM | 74F258ADC | 74F258PCQM | |
|---|---|---|---|---|---|
| Description | Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16, | Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16, | Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16, | Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16, | Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16, |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild |
| Reach Compliance Code | compli | compliant | compliant | compliant | compliant |
| JESD-30 code | R-PDIP-T16 | R-PDIP-T16 | R-XDIP-T16 | R-XDIP-T16 | R-PDIP-T16 |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Humidity sensitivity level | 2A | 2A | 2A | 2A | 2A |
| Number of functions | 4 | 4 | 4 | 4 | 4 |
| Number of entries | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC | CERAMIC | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | 250 | 250 | 250 | 250 | 250 |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | 30 | 30 | 30 | 30 | 30 |
| package instruction | DIP, DIP16,.3 | - | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| JESD-609 code | - | e0 | e0 | e0 | e0 |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Base Number Matches | - | 1 | 1 | 1 | - |
