0901230106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0901230106

0901230106: Description6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP; CategoryThe connector The connector; File Size235KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0901230106 Overview

6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP

0901230106 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STACKABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

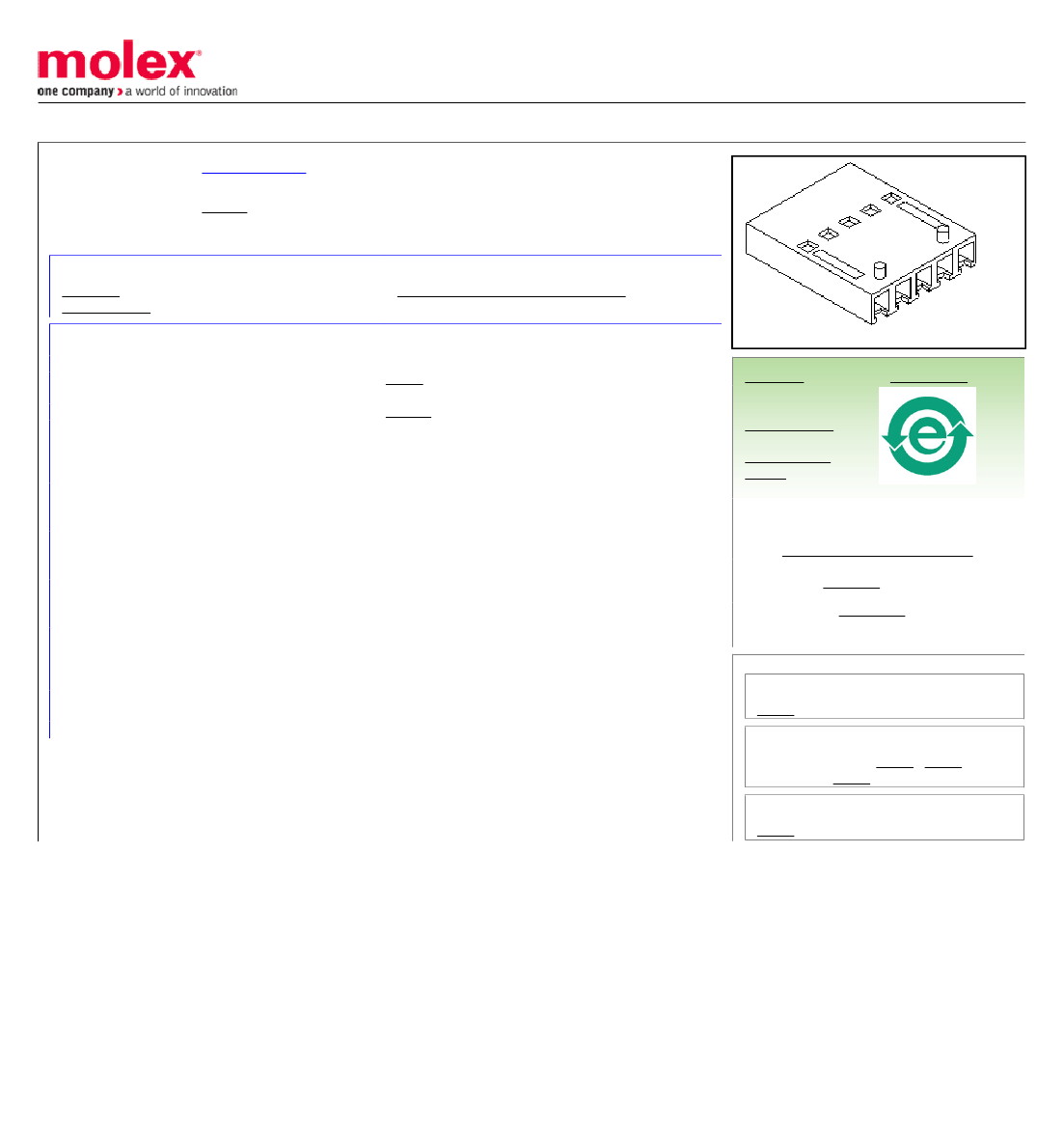

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0901230106

Active

cgrid_iii

2.54mm (.100") Pitch C-Grid III™ Modular Crimp Housing - Single Row, 2 Polarizing

Buttons, 6 Circuits

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Comments

Overview

Product Name

Crimp Housings

90123

2 Polarizing Buttons

cgrid_iii

C-Grid III™

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Black

Female

PPO

Bag

0.100 In

2.54 mm

Yes

-55°C to +105°C

Material Info

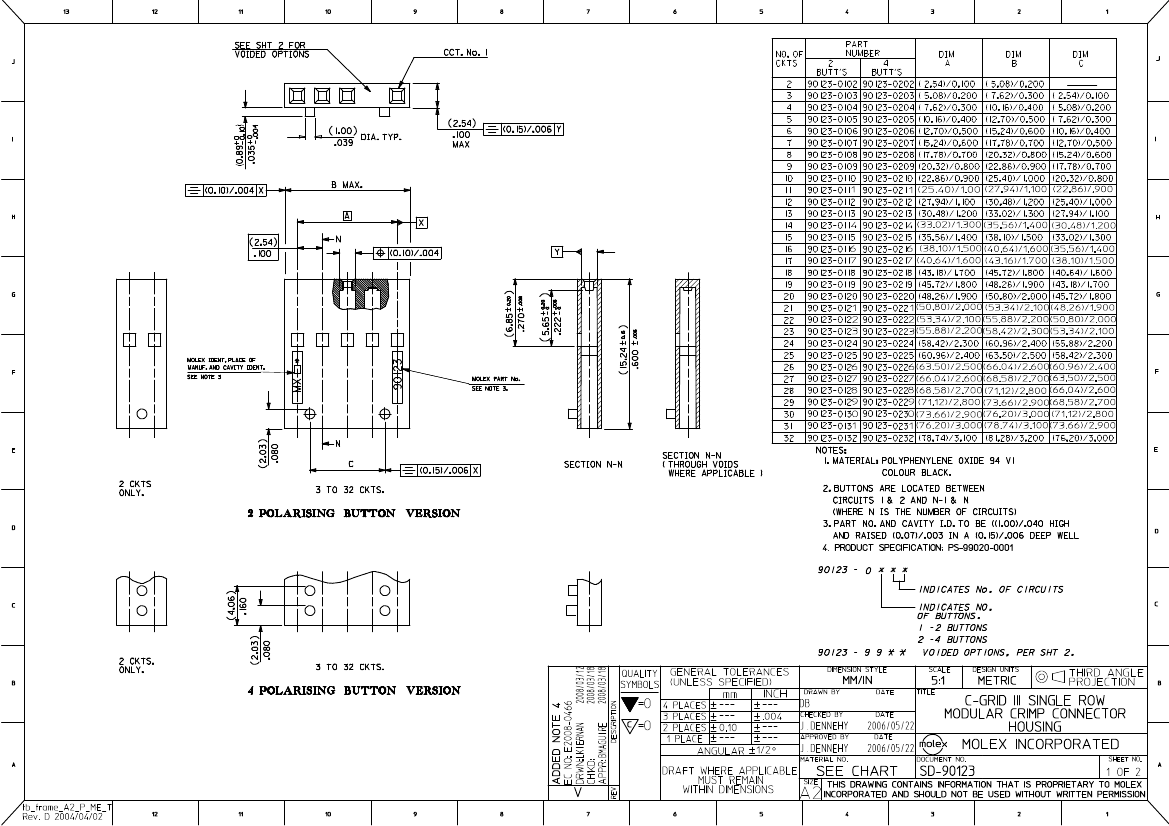

Reference - Drawing Numbers

Sales Drawing

SD-90123

Search Parts in this Series

90123Series

Mates With

C-Grid III™ Header 90120 , 90121 , C-Grid

III™ Header 90136

Use With

90119 C-Grid III™ Crimp Terminal

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
