IC42S16101
512K x 16 Bits x 2 Banks (16-MBIT)
SYNCHRONOUS DYNAMIC RAM
FEATURES
• Drive Strength for low capacitive bus loading
• Clock frequency: 200, 166, 143 MHz
• Fully synchronous; all signals referenced to a
positive clock edge
• Two banks can be operated simultaneously and
independently
• Dual internal bank controlled by A11 (bank select)
• Single 3.3V power supply
• LVTTL interface
• Programmable burst length
– (1, 2, 4, 8, full page)
• Programmable burst sequence:
Sequential/Interleave
• Auto refresh, self refresh
• 4096 refresh cycles every 64 ms
• Random column address every clock cycle
• Programmable
CAS
latency (2, 3 clocks)
• Burst read/write and burst read/single write
operations capability
• Burst termination by burst stop and precharge
command
• Byte controlled by LDQM and UDQM
• Package 400mil 50-pin TSOP-2 and 60ball(16M)
VF-BGA
• Pb(lead)-free package is available
DESCRIPTION
ICSI
's 16Mb Synchronous DRAM IC42S16101 is organized
as a 524,288-word x 16-bit x 2-bank for improved
performance. The synchronous DRAMs achieve high-speed
data transfer using pipeline architecture. All inputs and
outputs signals refer to the rising edge of the clock input.

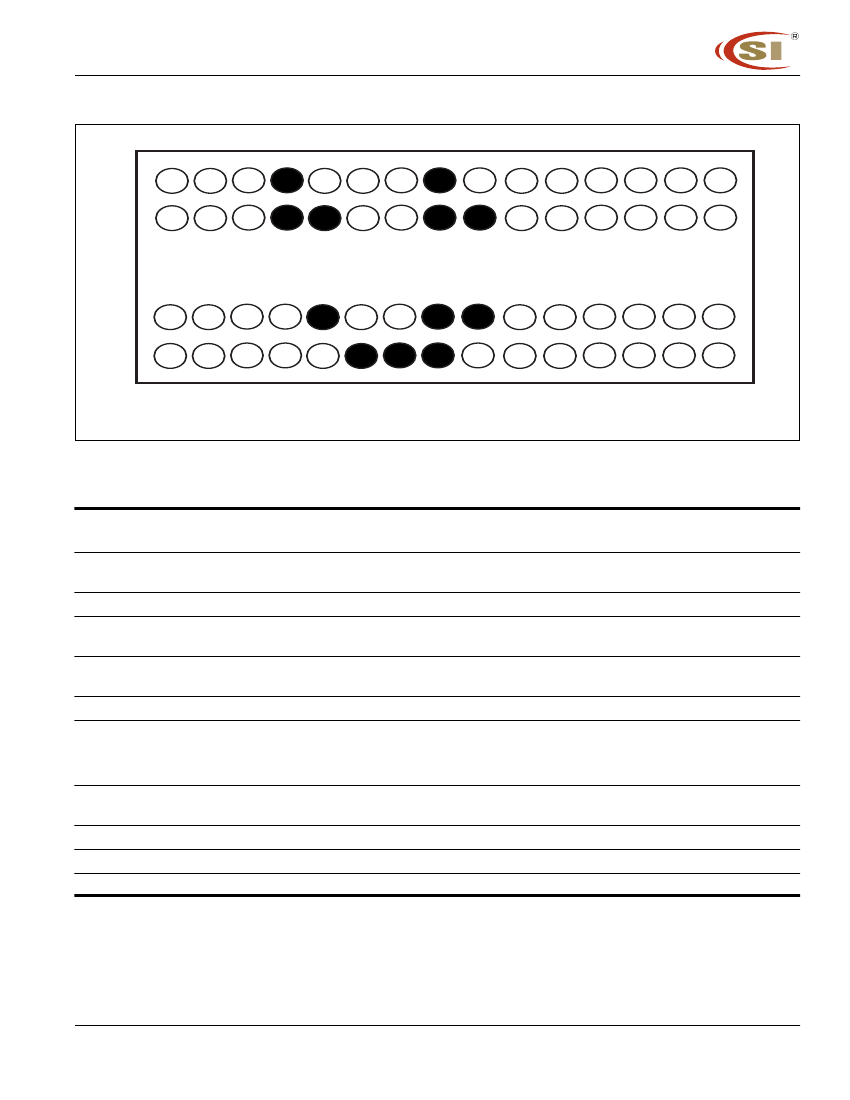

PIN CONFIGURATIONS
50-Pin TSOP-2
VCC
DQ0
DQ1
GNDQ
DQ2
DQ3
VCCQ
DQ4
DQ5
GNDQ
DQ6
DQ7
VCCQ
LDQM
WE
CAS
RAS
CS
A11
A10
A0
A1
A2
A3
VCC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
GND
DQ15
DQ14
GNDQ
DQ13
DQ12
VCCQ
DQ11
DQ10
GNDQ
DQ9
DQ8
VCCQ
NC
UDQM
CLK
CKE
NC
A9
A8
A7
A6
A5
A4
GND
