AR-08HZL-TT: DescriptionIC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder, ROHS COMPLIANT; CategoryThe connector socket; File Size175KB，2 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric View All

AR-08HZL-TT Overview

IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder, ROHS COMPLIANT

AR-08HZL-TT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ASSMANN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARD: UL 94V-0
body width	0.4 inch
body length	0.4 inch
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Tin (Sn)
Contact material	PHOSPHOR BRONZE
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP8
Shell material	THERMOPLASTIC POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

NOTES

Material:

Pin (outer sleeve) :

Brass,machined, CuZn38Pb2

Clip(contact 4 finger) :

Phosphor Bronze

Insulator body(black) :

Glass filled thermoplastic polyester UL94V-0

Electrical

Current rating :

3 Amps/contact max.

Contact resistance :

≦

4mΩ /contact

Insulation resistance :

≧

10000MΩ at 500VAC

Rated voltage :

100 VRMS /150VDC

Mechanical

Operating temperature :

Gold plated:-55

C to +125

(Continuous)

-67

F to +105

Tin plated:-40

C to +105

Average insertion force with steel pin of:

∅

0.43mm/0.017" < 250g

Average withdrawal force with steel pin of

∅

0.43mm/0.017" >50g

Mechanical life :

min.200

Applications and features:

1.The open frame is most common type.

2.The open body design gives better access (for cleaning and inspections)

to air -cooling.

3.Side and end stackable.

4.High retention design prevents IC walkout during heavy vibration.

5.Closed bottom sleeve for 100% anti-wicking of silder.

6.Twist free construction.

Environmental data

Solderability (IEC 60068-2-20. Ta) :235

C, 2s

Resistance to soldering heat (IEC 60068-2-20. Tb) :

-Through hole mount components :260

C, 10s

Order Code:

AR xx- x x

No. of contact

06 ~ 64

Versions

-TT

- Standard

/7-TT

- Only for 24+28 poles*

(Dim C: 7.62)

Plating

HZL

- Sleeve tin / clip gold flash

HZL/01 - Sleeve tin / clip 10u" gold

HZL/07 - Sleeve tin / clip 30u" gold

HGL

- Sleeve gold flash / clip gold flash

Contact

24*

28*

Dim A

7.62

10.16

12.70

17.78

20.32

22.86

Dim B

5.08

7.62

10.16

15.24

17.78

20.32

Dim C

7.62

Dim D

25.40

27.94

30.48

35.56

22.86

25.40

27.94

33.02

7.62

10.16

7.62

15.24

7.62

10.16

12.70

10.16

17.78

10.16

35.56

40.64

33.02

38.10

15.24

17.78

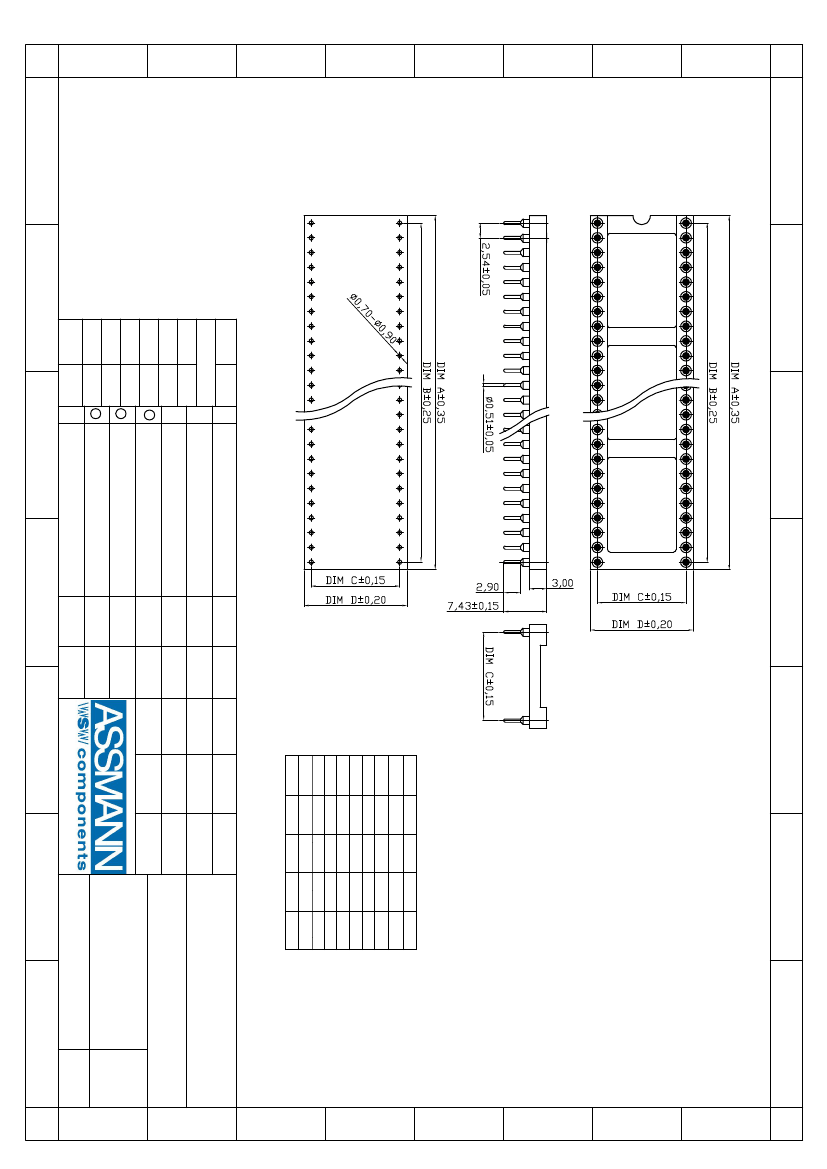

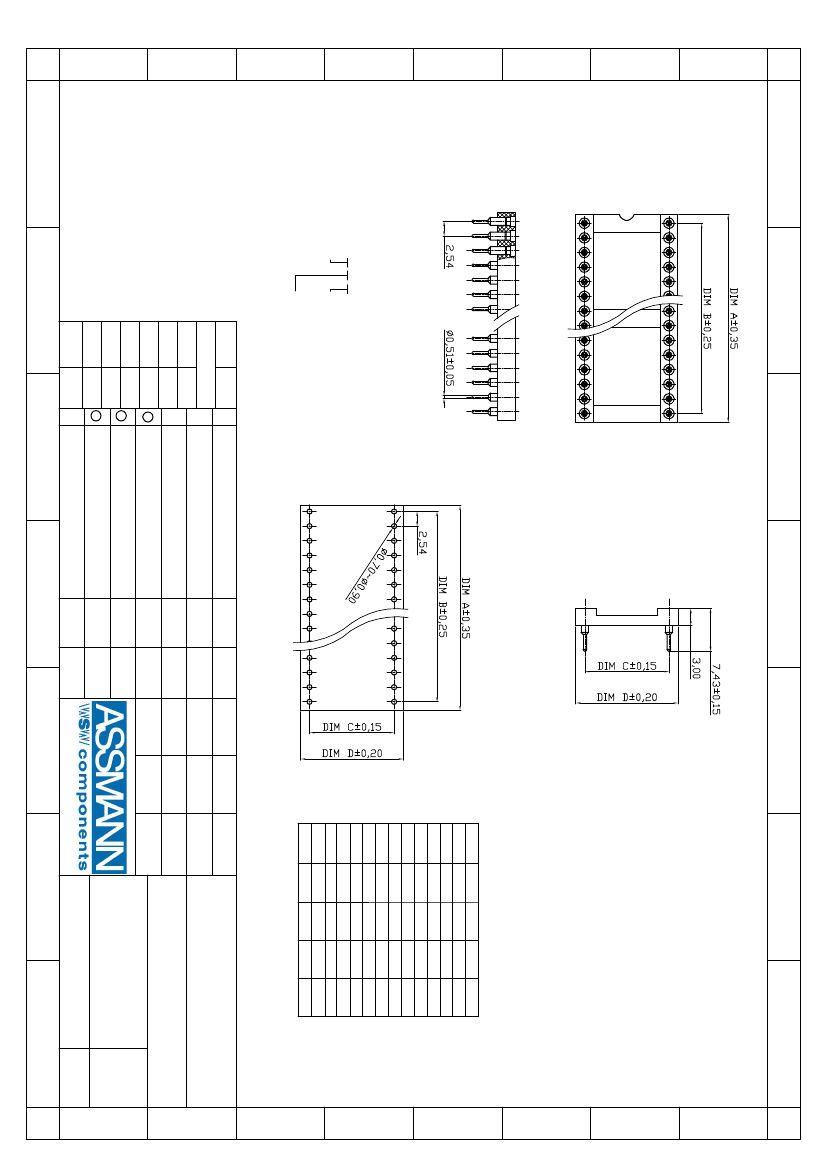

PCB LAYOUT

Scale

X.X

X.XX

DIM

X.°

Angle

Free

TOLERANCE

±0.50

±0.30

±0.10

TOL

Add "HGL"-Version,corrected P/N code 28.01.2014

Add sheet 2

16.08.2012

A. Plate

Lucas

Approved

16.08.2012

Drawn

Date

23.07.2012

RoHS compliant

Unit:mm

Name

Customer-No.

Lucas

Winnie

ASSMANN WSW-No.

AR xx-x x

1°

Drawn

23.07.2012

Lucas

Drawing-No.

ASS 4852 CO

TOL

Id.

Modification

Date

Name

rev02

Replace

Sheet

1/2
