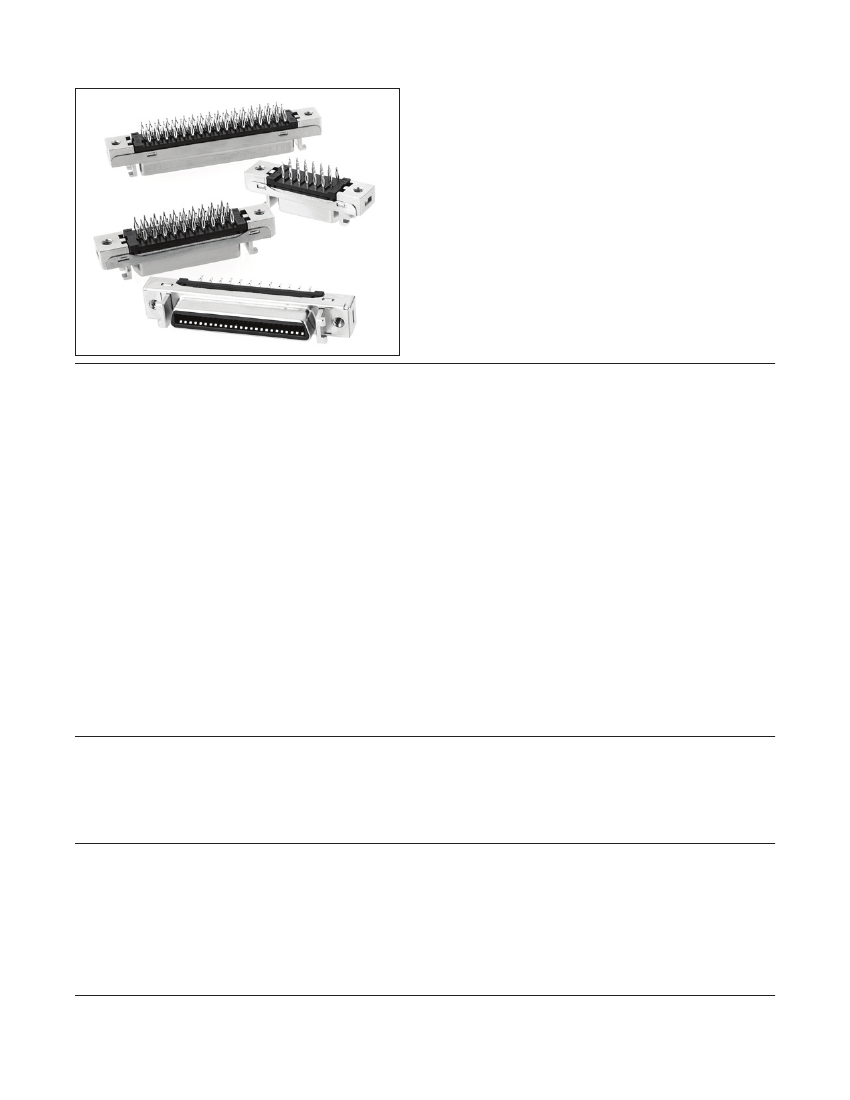

Mini D Ribbon (MDR) Connectors

.050” Boardmount Compliant Pin Vertical Receptacle - Shielded

•

102 Series

Wiper-on-wiper contact for reliable repetitive plugging

Rugged die cast metal case construction

Contacts: 14, 20, 26, 36, 40, 50, 68 and 80

See Regulatory Information Appendix (RIA) for chemical

compliance information.

Date Modified: November 13, 2008

TS-0961-C

Sheet 1 of 3

Physical

Insulation Material:

Glass Reinforced Polyester (PBT)

Flammability: UL 94V-0

Color: Black

Contact Material:

Copper Alloy

Plating

Underplating: 80 μ” [ 2.0 μm ] Nickel

Wiping Area: See Ordering Information

Compliant Tails: See Ordering Information

Body

Material: Zinc Alloy

Plating: Nickel

Shroud & Latch Hook

Material: Steel

Plating: Nickel

Marking:

3M Logo and Part Number

Electrical

Current Rating:

1 A

Insulation Resistance:

> 5 × 10

at 500 V

Withstanding Voltage:

500 V

RMS

for 1 Minute

Environmental

Temperature Rating:

-20°C to +85°C

UL File No.: E68080
